Kenmore 21 Cu. Ft. (595L) Convertible Chest Freezer/Refrigerator

1. Important Safety Information

Read all instructions before using this appliance to reduce the risk of fire, electric shock, or injury.

• Electrical Safety: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords.
• Ventilation: Maintain adequate air circulation around the unit. Do not block ventilation openings.
• Child Safety: This appliance is equipped with keyed safety locks. Keep keys out of reach of children to prevent entrapment.
• Flammable Materials: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Defrosting: Always unplug the appliance before manual defrosting or cleaning.

2. Product Overview

The Kenmore KKCF21-W is a versatile 21 cubic foot (595L) convertible chest appliance designed for both freezing and refrigeration. Its robust construction and thoughtful features make it ideal for various storage needs, including garage and cottage environments.

Key Features:

• Massive Capacity: 21 Cu. Ft. (595L) storage, capable of holding up to 735 lbs of food.
• Convertible Design: Easily switch between freezer (-14 to -24°F / -6.8 to -11.2°C) and refrigerator (32 to 46°F / 0 to 8°C) modes using a manual dial.
• Dual Lids with Safety Locks: Features balanced hinge doors that stay open for convenient loading and unloading. Keyed locks provide security.
• Bright LED Interior Lights: Energy-efficient LED lighting illuminates the interior for easy visibility.
• Hanging Storage Baskets: Two removable baskets help organize smaller items and prevent them from getting lost.
• Easy-Rolling Wheels: Equipped with wheels for convenient relocation.
• Manual Defrost with Front Drain: Simple manual defrost process facilitated by a front-mounted drain.
• Garage-Ready: Designed to operate reliably in garage environments.

Product Components:

Figure 2.1: Top view of the Kenmore chest freezer with both lids open, revealing the spacious interior filled with various frozen food packages.

Figure 2.2: Front view of the Kenmore chest freezer with lids closed, situated in a garage or utility room, demonstrating its compact footprint.

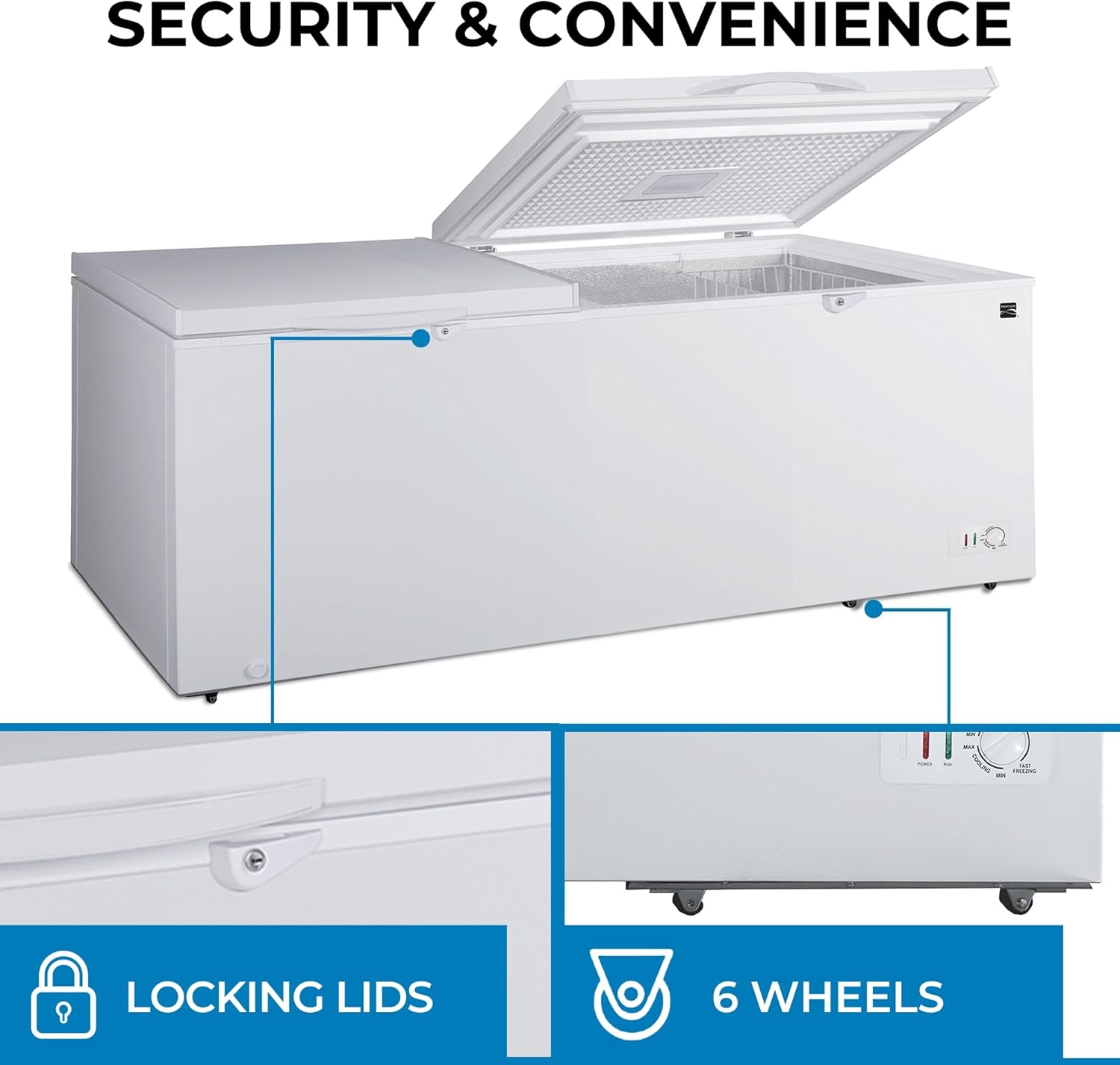

Figure 2.3: Detail view highlighting the keyed locking mechanism on the lids and the easy-rolling wheels at the base of the unit.

Figure 2.4: Visual representation of the convertible functionality, detailing temperature settings for both freezer and refrigerator modes and examples of suitable contents.

Figure 2.5: Features of the dual lid design, including multi-angle balanced hinges, the front-mounted defrost drain, bright LED interior lights, and removable storage baskets.

Figure 2.6: The Kenmore chest freezer positioned in a garage, emphasizing its 'Garage-Ready' capability for reliable operation in varying temperatures.

3. Setup Instructions

1. Unpacking: Carefully remove all packaging materials, including tape and labels. Keep packaging for future transport if needed.
2. Placement:
   • Place the appliance on a firm, level floor.
   • Allow at least 4 inches (10 cm) of space between the back and sides of the unit and any adjacent walls for proper air circulation.
   • This unit is garage-ready, meaning it can operate in ambient temperatures ranging from 0°F to 110°F (-17°C to 43°C).
3. Cleaning: Before first use, clean the interior and exterior surfaces with a mild detergent and warm water. Rinse thoroughly and dry.
4. Initial Power-On: After placement and cleaning, wait at least 2-4 hours before plugging the unit into a grounded electrical outlet. This allows refrigerants to settle.

4. Operating Instructions

1. Temperature Control:

   The temperature is controlled by a manual dial located on the front of the unit. Rotate the dial to select your desired setting.



   Figure 4.1: Manual temperature control dial.

2. Switching Modes (Freezer/Refrigerator):

   The dial allows you to select between 'Freezing' and 'Cooling' (refrigerator) modes. Adjust the dial to the desired temperature range for either function.

   • Freezer Mode: Set the dial towards 'Freezing' for temperatures between -14°F to -24°F (-6.8°C to -11.2°C).
   • Refrigerator Mode: Set the dial towards 'Cooling' for temperatures between 32°F to 46°F (0°C to 8°C).


   Figure 4.2: Examples of contents in Freezer Mode (left) and Refrigerator Mode (right).

3. Loading Food:

   Distribute food evenly to allow for proper air circulation. Utilize the two removable storage baskets for smaller, frequently accessed items.

4. Using Keyed Safety Locks:

   Insert the key into the lock on each lid and turn to secure the lid. Remove the key and store it in a safe place, away from children.



   Figure 4.3: Detail of the keyed safety lock.

5. Maintenance

1. Manual Defrosting:

   Defrost the appliance when frost accumulation reaches 1/4 inch (0.6 cm) thick. Unplug the unit, remove all contents, and open the lids. Place a shallow pan under the front-mounted drain plug to collect water. Once defrosted, clean and dry the interior before plugging back in.



   Figure 5.1: Front-mounted defrost drain.

2. Cleaning:
   • Clean the interior regularly with a solution of baking soda and water (1 tablespoon baking soda to 1 quart water).
   • Wipe down the exterior with a soft cloth and mild detergent.
   • Ensure the condenser coils at the back are free of dust and debris for efficient operation.
3. Power Cord: Periodically inspect the power cord for any signs of damage. If damaged, contact qualified service personnel.

6. Troubleshooting

7. Specifications

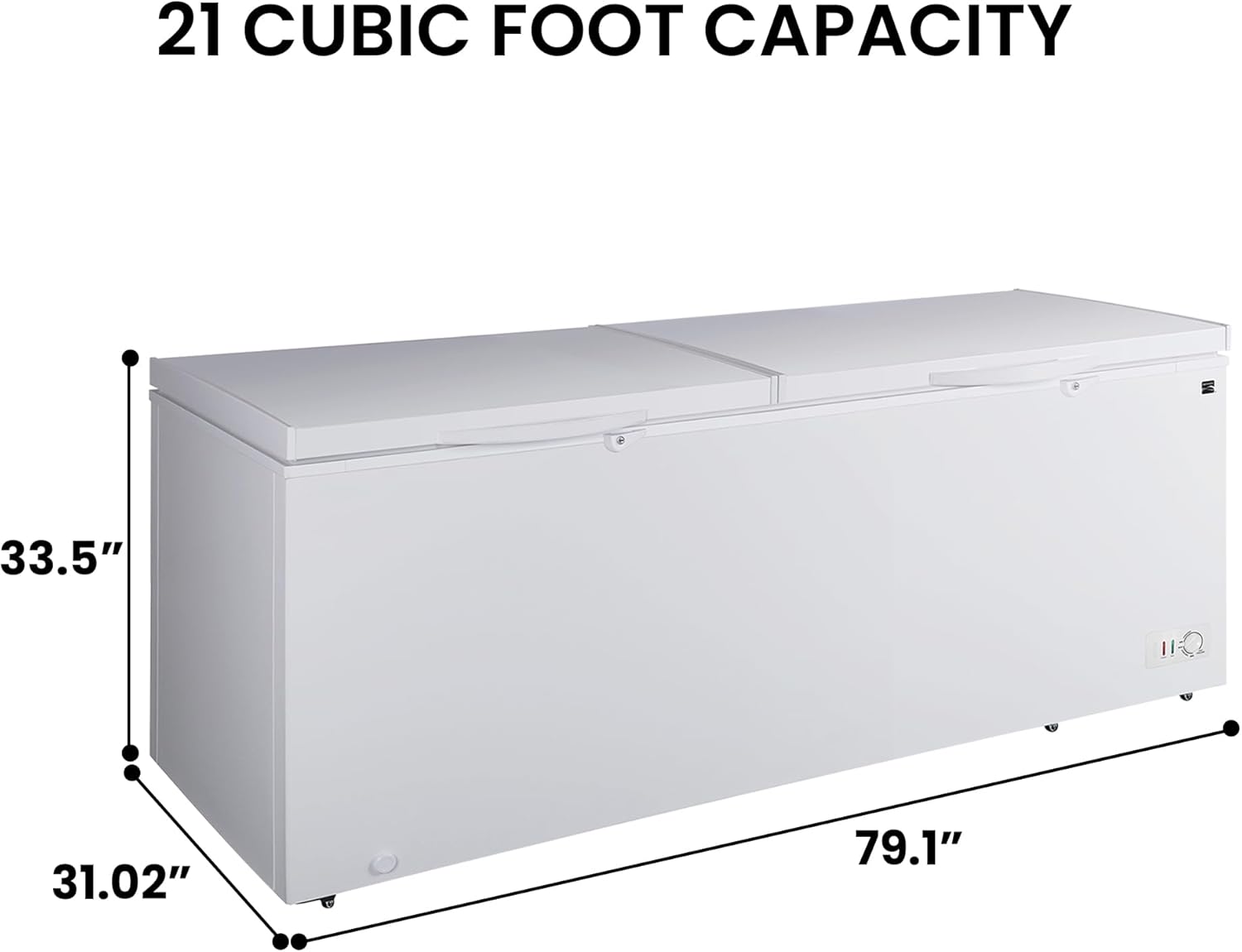

Figure 7.1: Kenmore chest freezer with key dimensions indicated.

8. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Koolatron customer service directly. Keep your purchase receipt for warranty claims.

Koolatron Customer Support: Visit the Koolatron Store on Amazon
