Product Overview
The Kenmore 5.0 Cubic Feet Convertible Chest Freezer is a versatile appliance designed for flexible food storage. It can operate as either a deep freezer or a refrigerator, adapting to various needs from bulk grocery storage to seasonal produce management. Its compact design and garage-ready insulation make it suitable for diverse environments.
Image: Front view of the Kenmore Convertible Chest Freezer with the lid open, revealing various frozen food packages inside. The unit is white and has a compact design.
Setup and Placement
Before initial use, ensure the unit is placed on a level surface in a well-ventilated area. Allow adequate space around the appliance for proper air circulation. This unit features a "Garage-Ready Design" with premium insulation and sealing technology, ensuring consistent operation in various environments, including garages, basements, or cabins, even in extreme temperatures.
The "Compact & Space-Saving" design with a flat back allows it to be placed flush against a wall, maximizing available space in tight areas.
Image: The Kenmore Convertible Chest Freezer positioned in a garage, demonstrating its suitability for such environments. Shelving units are visible in the background.
Initial Cleaning
Before plugging in the appliance, clean the interior and exterior surfaces with a mild detergent and warm water. Rinse thoroughly and dry with a soft cloth. Ensure the unit is completely dry before connecting to power.
Operating Instructions
2-in-1 Convertible Function
This unit offers a "2-IN-1 CONVERTIBLE FUNCTION," allowing easy switching between refrigerator and freezer modes. A simple front-mount dial controls this function. Turn the dial to the "FREEZING" setting for freezer operation or "COOLING" for refrigerator operation.
Image: A detailed view of the front-mounted control dial, indicating settings for both freezing and cooling modes, along with a power indicator light.
Temperature Range
The "WIDE TEMPERATURE RANGE" ensures versatile storage:
- Freezer Mode: -24°C to -12°C (-11°F to 10°F)
- Refrigerator Mode: 0°C to 8°C (32°F to 46°F)
Adjust the dial to achieve the desired temperature for your stored items.
Hands-Free Convenience
The unit features a "HANDS-FREE CONVENIENCE" balanced hinge lid that stays open at various angles. This allows for easy packing and unpacking, as both hands are free to access the contents without the lid closing unexpectedly.

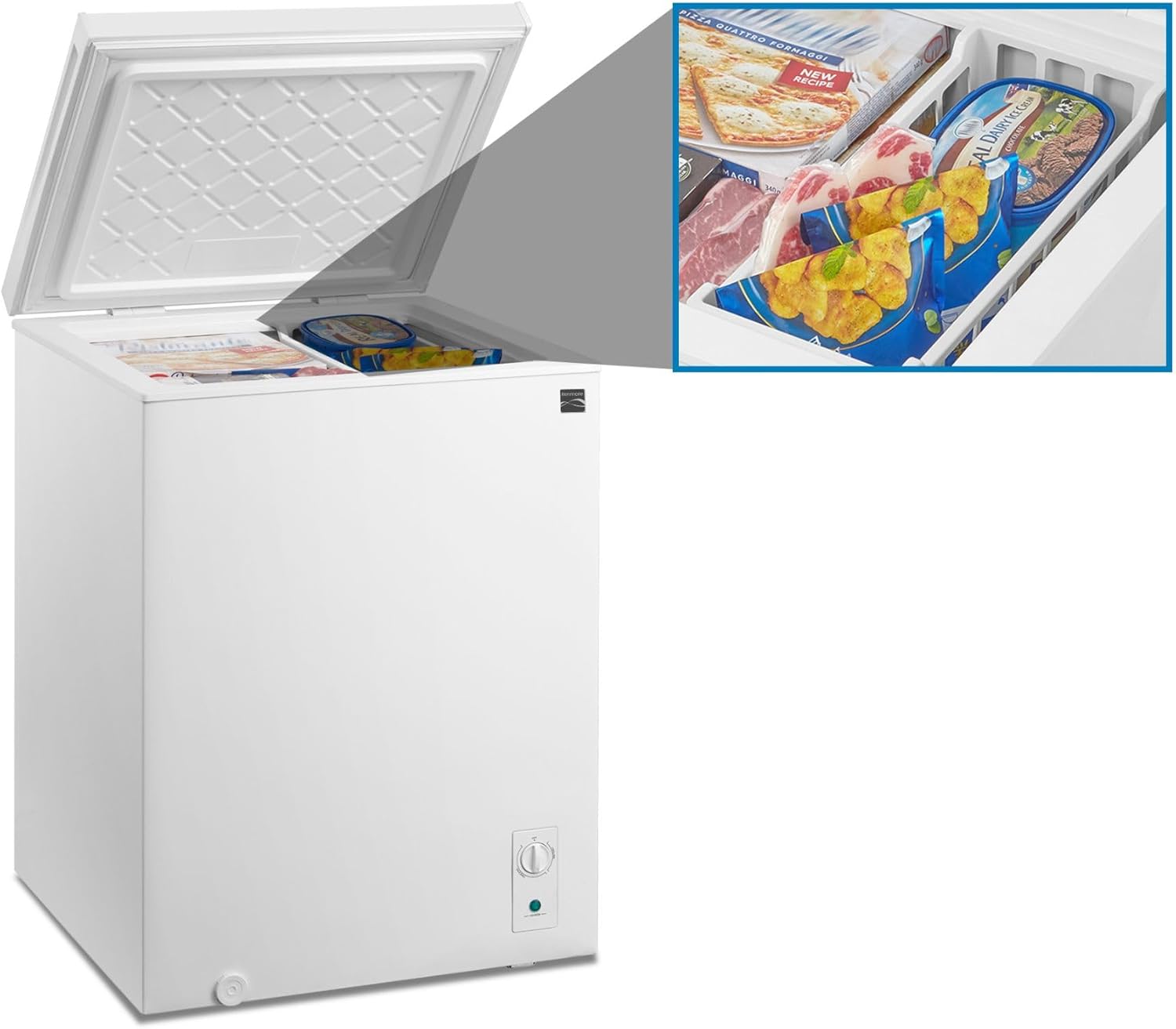

Image: The chest freezer with its lid fully open, showcasing the interior space and the included hanging basket. The lid remains open independently.
Organized Storage
For "ORGANIZED STORAGE," a removable hanging basket is included. This basket is ideal for keeping smaller or frequently accessed items within easy reach, preventing them from being buried under larger items.
Maintenance
Easy Defrosting
The "EASY DEFROSTING" feature includes an easy-access drain with a leakproof plug. This simplifies the defrosting process, allowing for convenient removal of melted ice and water without mess. Regular defrosting is recommended to maintain optimal performance and energy efficiency.
Image: A close-up view of the front-mounted drain plug, designed for easy and mess-free defrosting.
Cleaning
Regularly clean the interior and exterior of the unit. Use a mild, non-abrasive cleaner. For the interior, a solution of baking soda and water can help neutralize odors. Ensure the unit is unplugged before cleaning. Wipe down the door gasket to ensure a tight seal.
Troubleshooting
If your appliance is not operating as expected, consider the following common issues before contacting service:
- Unit not cooling/freezing: Check if the power cord is securely plugged into a working outlet. Verify the temperature control dial is set to the appropriate mode (Freezer or Refrigerator) and temperature. Ensure the lid is properly closed and sealed.
- Excessive frost buildup: This may indicate that the lid is not sealing properly or that the unit needs defrosting. Ensure the lid gasket is clean and intact. Perform a manual defrost if frost accumulation is significant.
- Unusual noises: Minor noises from the compressor or refrigerant flow are normal. If loud or persistent noises occur, ensure the unit is level and not touching any walls or other objects.
- Lid not closing properly: Check for any obstructions preventing the lid from closing fully. Ensure the unit is level.
For issues not resolved by these steps, refer to the warranty and support information.
Specifications
| Feature | Detail |
|---|---|
| Brand Name | Koolatron |
| Model Info | KKCF05-W |
| Item Weight | 52.2 pounds |
| Product Dimensions | 22 x 23.6 x 33.5 inches (D x W x H) |
| Installation Type | Freestanding |
| Color | Milk white |
| Voltage | 115 Volts |
| Defrost Type | Manual |
| Door Hinges | Top |
| Door Material Type | Painted Metal |
| Shelves | 1 (removable wire basket) |
| Certification | DOE |
| Included Components | Convertible freezer/fridge; 1 x removable wire basket |
Image: A diagram illustrating the external dimensions of the chest freezer: 33.5 inches height, 23.6 inches width, and 22 inches depth.
Warranty and Support
This Kenmore product is built to last and is backed by a 2-year warranty for your total peace of mind. This warranty covers defects in materials and workmanship under normal use.
For technical assistance, troubleshooting, or warranty claims, please refer to the contact information provided with your purchase documentation or visit the official Koolatron support website. You can also find general customer support information via the Amazon product page's Customer Support section.
