Introduction
Thank you for choosing the Fafrees F20 Mate E-Bike Tricycle. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric tricycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

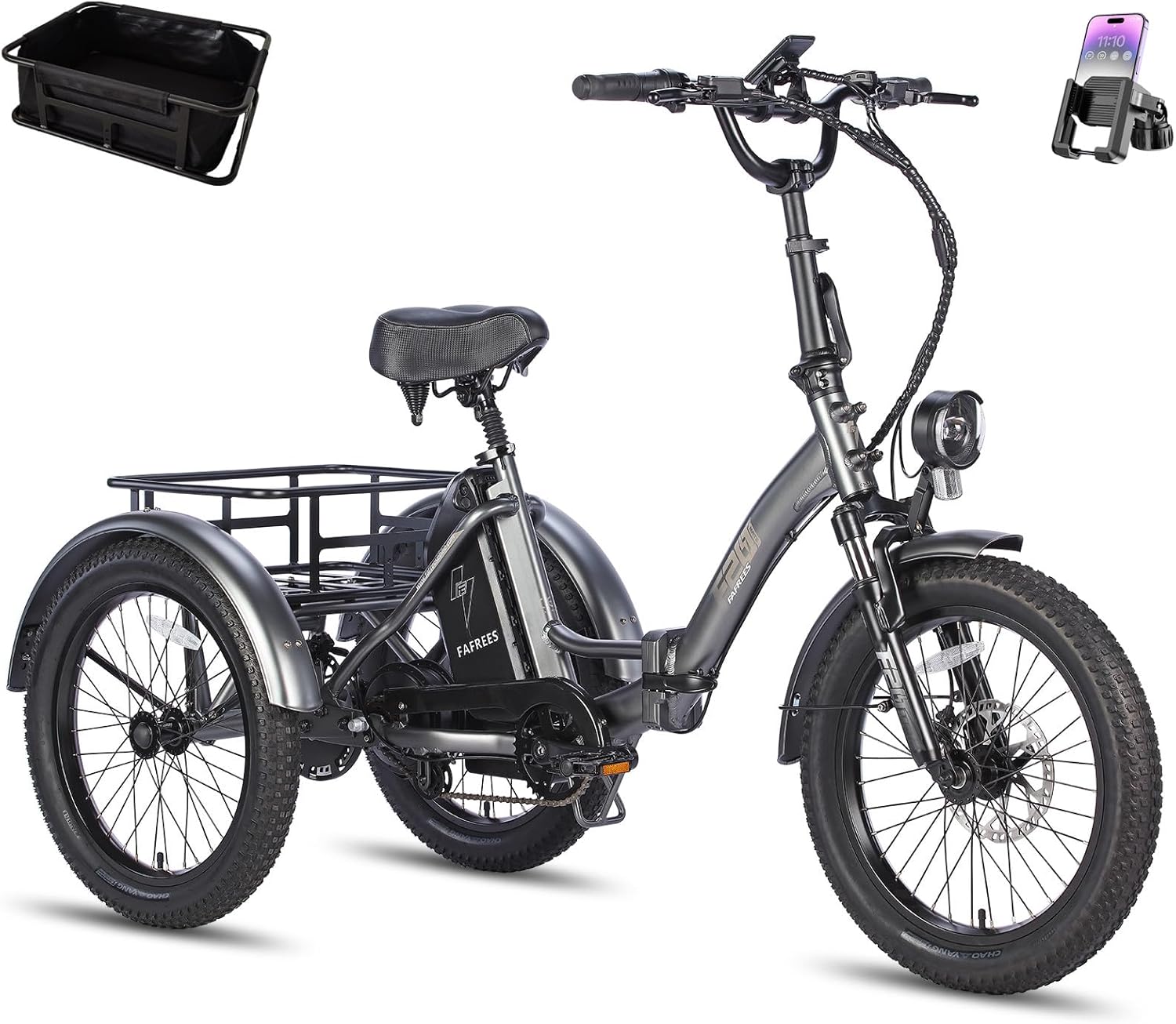

Image: The Fafrees F20 Mate E-Bike Tricycle, showcasing its robust design with a rear cargo basket and front suspension.
Safety Information
Always prioritize safety when operating your electric tricycle. Adhere to local traffic laws and wear appropriate safety gear, including a helmet. Regularly inspect your tricycle for any signs of wear or damage before each ride.
- Ensure all bolts and quick releases are securely tightened.
- Check tire pressure before each ride.
- Test brakes for proper function.
- Familiarize yourself with the electric assist levels and controls.
- Do not exceed the maximum load capacity: Rider 150 kg, Front Basket 20 kg (if installed), Rear Basket 45 kg.
- Avoid riding in adverse weather conditions if possible.
Setup and Assembly
Your Fafrees F20 Mate tricycle arrives 90% pre-assembled. The remaining assembly typically involves attaching the handlebars, pedals, and potentially the front wheel and cargo basket. Detailed instructions are provided in the included user manual and can be found on the product page.
What's in the Box:
- 1 x Fafrees F20 Mate Electric Tricycle
- 1 x Charger
- 1 x User Manual
- 1 x Gift Box (packaging)
For assembly, ensure you have adequate space and the necessary tools. Follow the step-by-step guide carefully to ensure all components are correctly and securely installed.
Operating Instructions
Battery and Charging
The F20 Mate is equipped with a 48V, 18.2Ah detachable battery. This allows for convenient charging either on or off the tricycle. A full charge takes approximately 6-7 hours and provides a range of 60-110 kilometers depending on riding conditions and assist level.
Image: Close-up of the 48V 18.2Ah lithium battery, highlighting its quick charge time and removable design.
- Connect the charger to the battery charging port, then plug into a power outlet.
- The charger indicator light will show charging status (typically red for charging, green for full).
- Do not overcharge the battery.
- Store the battery in a cool, dry place when not in use.
Color LCD Display
The high-definition color LCD display provides essential riding information and allows for easy control of various functions.
Image: The color LCD display showing speed, battery level, and other metrics, with icons for 5 speed levels, automatic speed regulation, and walking assist.
- 5 Speed Levels: Adjust the pedal assist level to control motor output.
- Automatic Speed Regulation: The system can adapt power output based on riding conditions.
- Walking Assist: Provides low-speed assistance for pushing the tricycle.
- The display shows current speed, battery charge, odometer, and trip distance.
Braking System
The F20 Mate features front and rear hydraulic disc brakes with 180mm, 2.3mm thick brake pads for precise and responsive stopping power. It also includes a parking brake for added safety when stationary.

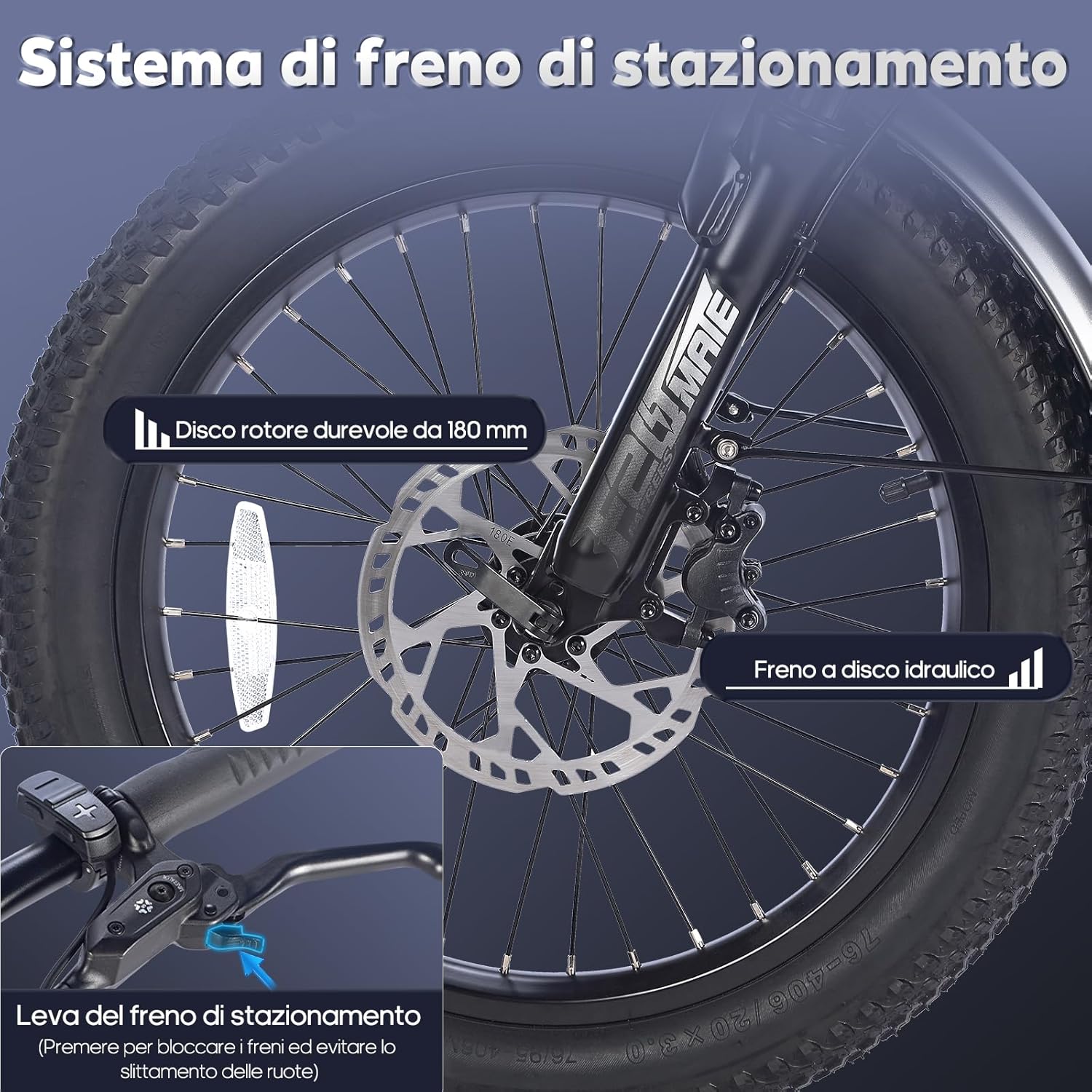

Image: Close-up of the hydraulic disc brake system, showing the 180mm rotor and the parking brake lever.
- Engage both brake levers simultaneously for effective stopping.
- To activate the parking brake, press the small button on the brake lever after engaging the brake. This locks the brakes to prevent rolling.
- Release the parking brake by squeezing the lever again.
Fat Tires and Suspension
Equipped with 20*3.0 inch fat tires, the F20 Mate offers superior traction and adaptability across various terrains, including loose gravel, mud, snow, sand, and city roads. Dual suspension (front suspension and rear shock absorber tubes) effectively dampens shocks and vibrations for a comfortable ride.
Image: The 20*3.0 inch fat tire, illustrating its capability on various surfaces like grassy terrain, sandy beaches, dirt roads, snowy paths, and city streets.
Folding Mechanism
The F20 Mate features a foldable frame and handlebars for easy transport and storage. The low step-through frame design (40 cm support height) makes mounting and dismounting effortless.
Image: A person demonstrating the low step-through height, with separate images showing the foldable handlebar and the fully folded tricycle.
- Locate the folding latches on the frame and handlebar stem.
- Follow the specific folding sequence outlined in the detailed manual to ensure proper and safe folding.
- Ensure all folding mechanisms are securely locked before riding.
Safety Lights
Integrated front and rear lights, including brake lights, enhance visibility and safety during night riding. Reflectors are also added to both rear fenders for increased safety.
Image: Close-up of the front headlight and rear brake light, demonstrating their illumination in low-light conditions.
- Turn on lights before riding in low-light conditions or at night.
- Ensure brake lights are functioning correctly.
Maintenance
Regular maintenance is crucial for the longevity and safe operation of your Fafrees F20 Mate tricycle.
- Tires: Check tire pressure regularly (refer to tire sidewall for recommended PSI). Inspect for wear and punctures.
- Brakes: Periodically check brake pads for wear and replace as needed. Ensure brake levers are responsive and cables (if applicable) are not frayed.
- Battery: Keep the battery charged, especially during long periods of storage. Avoid fully discharging the battery.
- Cleaning: Clean the tricycle with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Lubrication: Lubricate the chain and other moving parts as necessary.
- Fasteners: Regularly check and tighten all bolts, nuts, and quick releases.
Troubleshooting
This section addresses common issues you might encounter. For more complex problems, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not assisting | Battery low/dead, power not on, loose connection, assist level too low. | Charge battery, turn on power, check connections, increase assist level on display. |
| Brakes feel spongy or weak | Air in hydraulic line, worn brake pads, misaligned calipers. | Bleed brakes (professional service recommended), replace pads, adjust calipers. |
| Tire loses air quickly | Puncture, loose valve stem, faulty tube. | Inspect tire for foreign objects, tighten valve stem, repair or replace inner tube. |
| Display not turning on | Battery not connected, battery dead, loose display cable. | Ensure battery is seated, charge battery, check display cable connection. |
Specifications
Detailed technical specifications for the Fafrees F20 Mate E-Bike Tricycle.

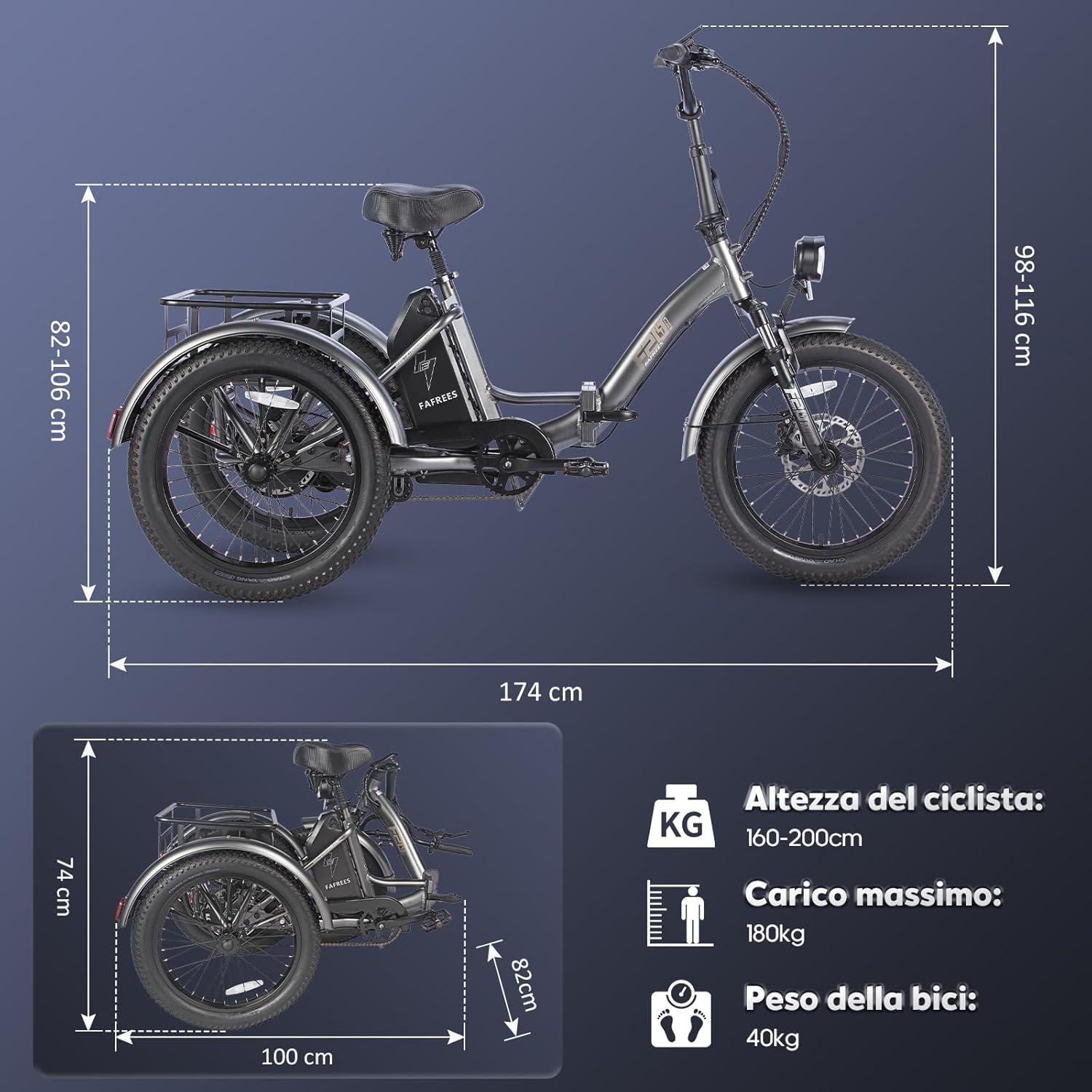

Image: Technical drawing showing the dimensions of the tricycle (174 cm length, 74 cm width, 98-116 cm height) and folded dimensions, along with rider height, maximum load, and bike weight.
| Feature | Detail |
|---|---|
| Product Dimensions | 174 x 74 x 116 cm |
| Item Weight | 40 kg |
| Model Number | F20 Mate |
| Recommended Age | Adults |
| Bicycle Type | Electric Bike |
| Brake Type | Hydraulic Disc Brakes |
| Color | Grey |
| Style | Urban |
| Frame Material | Aluminum Alloy |
| Frame Size | 18 Inches |
| Number of Speeds | 1 (single speed drivetrain, multiple assist levels) |
| Power Source | Electric Battery |
| Special Features | Digital Display, Foldable |
| Suspension Type | Front Suspension |
| Wheel Size | 20 Inches |
| Battery | 48V 18.2Ah |
| Max Rider Weight | 150 kg |
| Max Front Basket Load | 20 kg |
| Max Rear Basket Load | 45 kg |
| Range (PAS Mode) | 60-110 km |
| Charging Time | 6-7 hours |
