FUMLTP 51-Inch Smart Ceiling Fan with Light (Model SY36L) Instruction Manual

1. Introduction

Thank you for choosing the FUMLTP 51-Inch Smart Ceiling Fan with Light. This manual provides essential information for the safe and efficient operation of your new ceiling fan. Please read it thoroughly before installation and retain it for future reference.

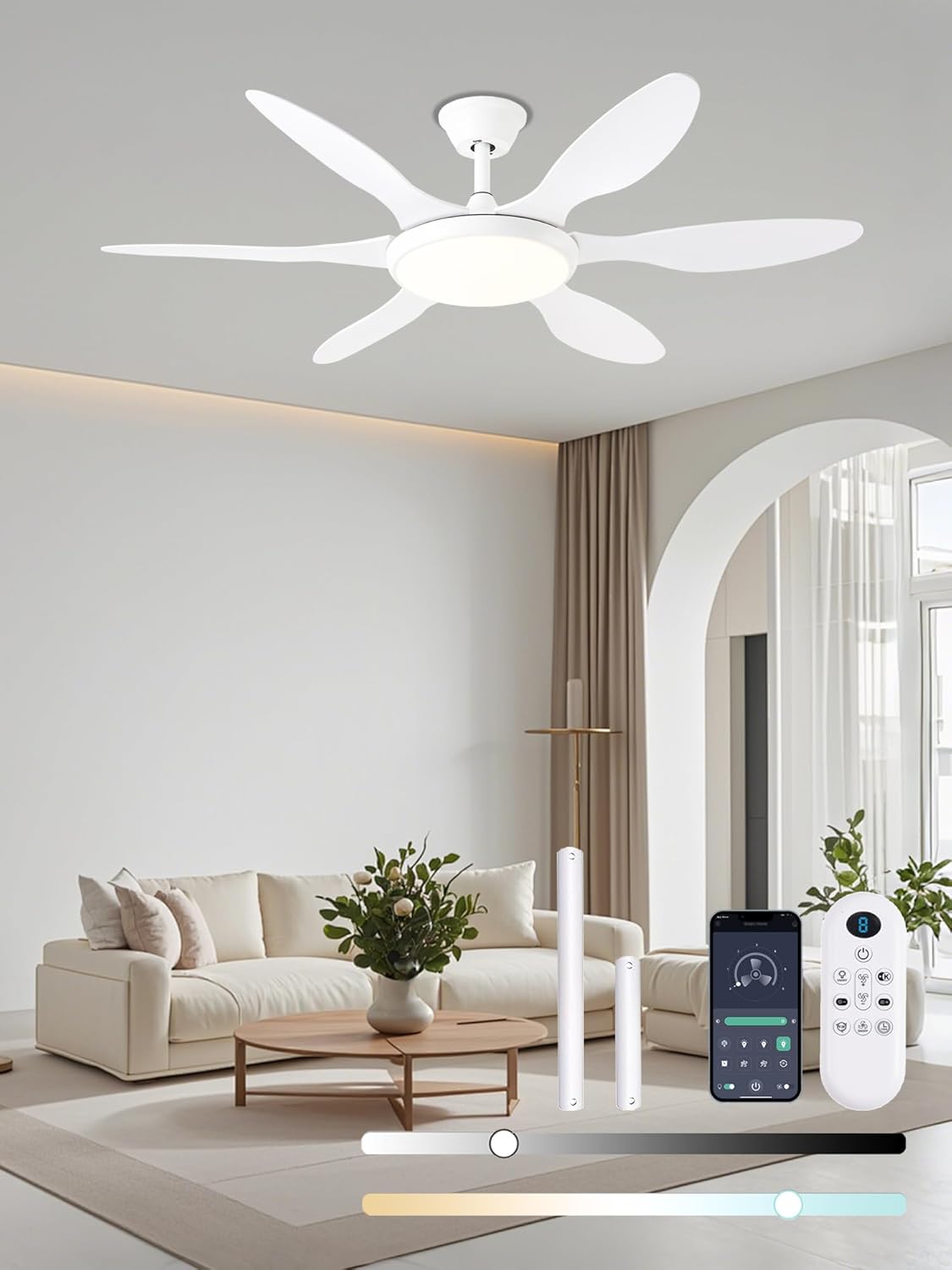

Figure 1.1: FUMLTP 51-Inch Smart Ceiling Fan with Light in a modern living room setting, showcasing remote and app control options.

2. Safety Information

Always disconnect power at the circuit breaker before installing, cleaning, or servicing the fan. Ensure all electrical connections comply with local codes and ordinances. Installation should be performed by a qualified electrician. Do not insert any objects into the fan blades while the fan is in operation. This appliance is not intended for use by young children or individuals with disabilities without supervision.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Ceiling Fan Motor Assembly
• Fan Blades (6 pieces)
• Light Kit
• Remote Control
• User Manual
• Mounting Bracket
• Canopy
• Downrod (10 Inches)
• Wiring Caps
• Screws and Hardware

Video 3.1: Unboxing and component overview of the ceiling fan.

4. Product Features

• Reversible DC Motor: Allows for seasonal use, providing downdraft airflow in summer and updraft airflow in winter. Features 6 adjustable wind speeds.
• Energy Efficient & Quiet Operation: Operates at less than 35dB, suitable for quiet environments like bedrooms. The DC motor consumes up to 70% less power than traditional AC motors.
• Smart Control: Control the fan and light functions via the included remote control or a smartphone application (Fan Lamp Pro).
• Adjustable 3CCT & Dimmable LED Light: Features a large, high-brightness LED panel with adjustable brightness (10%-100%) and 3 color temperatures (3000K Warm, 4500K Natural, 6500K Cool White).
• Night Light & Timer Function: Includes a night-light mode and a 1-8 hour timer. The memory function retains previous light and wind settings.

Figure 4.1: Overview of the fan's advanced features.

Figure 4.2: Explanation of the reversible DC motor for year-round comfort.

5. Installation

Follow these steps carefully for proper installation. It is recommended to have a licensed electrician perform the installation.

1. Prepare for Installation: Ensure the power is off at the circuit breaker. Clear the installation area.
2. Assemble Fan Blades: Attach the 6 fan blades to the motor assembly using the provided screws. Ensure they are securely fastened.
3. Install Downrod: Connect the chosen downrod (short or long) to the fan motor assembly. Feed the motor wires through the downrod.
4. Mounting Bracket Installation: Secure the mounting bracket to the ceiling junction box. Ensure it is firmly attached to a structural element of the ceiling.
5. Hang Fan Assembly: Carefully lift the fan assembly and hang it on the mounting bracket.
6. Electrical Wiring: Connect the electrical wires from the ceiling to the fan's wiring according to the wiring diagram in the user manual. Ensure all connections are secure using wiring caps.
7. Install Receiver: Place the remote control receiver inside the mounting bracket.
8. Attach Canopy: Slide the canopy up to cover the mounting bracket and secure it with screws.
9. Install Light Kit: Connect the light kit wires to the fan motor assembly. Secure the LED light panel and then attach the lamp cover.

Video 5.1: Detailed installation guide for the FUMLTP 51-Inch Smart Ceiling Fan with Light.

Figure 5.2: Visual representation of the fan's components for easy assembly.

6. Operating Instructions

6.1 Remote Control

The included remote control allows for convenient operation of all fan and light functions.

• Power Button: Turns the fan and light on/off.
• Light On/Off: Toggles the light on or off.
• Light Mode Switch (K): Cycles through 3 color temperatures (3000K, 4500K, 6500K).
• Light Brightness +/-: Adjusts light brightness from 10% to 100%.
• Fan Gear Key (+/-): Increases or decreases fan speed (6 speeds available).
• Fan Forward/Reverse: Changes the direction of blade rotation for seasonal use.
• Fan Timing Key: Sets the fan timer for 1, 2, 4, or 8 hours.

Figure 6.1: Remote control functions and layout.

6.2 App Control (Fan Lamp Pro)

For enhanced control, download the 'Fan Lamp Pro' application on your smartphone.

1. Download App: Scan the QR code provided in the manual or visit https://www.jasonghost.com/fanlamppro/ to download the 'Fan Lamp Pro' app.
2. Enable Bluetooth: Ensure your phone's Bluetooth is turned on.
3. Pairing: Within 5 seconds of powering on the fan, tap the pairing button in the app. The light will flash twice to confirm successful pairing.
4. Control Functions: The app allows control over fan speed, light color temperature, brightness, and timer settings.

Figure 6.2: App control interface and pairing steps.

Video 6.1: Demonstration of the FUMLTP 51-Inch Smart Ceiling Fan's display and control features.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your ceiling fan.

• Cleaning: Clean the fan and light fixture periodically with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Blade Inspection: Check fan blades for any signs of damage or imbalance.
• Tighten Screws: Periodically check and tighten all screws on the fan and mounting bracket.

8. Troubleshooting

If you encounter any issues, refer to the following common troubleshooting tips:

• Fan Does Not Operate: Check power supply, circuit breaker, and ensure all wiring connections are secure. Verify remote control battery.
• Light Does Not Work: Check power supply and wiring connections to the light kit. Ensure the light is turned on via remote or app.
• Excessive Wobbling: Ensure all blade screws are tight. Check that the mounting bracket is securely installed. Use the included balancing kit if necessary.
• Remote/App Not Responding: Ensure the remote control battery is functional. For app control, verify Bluetooth is enabled and the fan is properly paired.

9. Specifications

10. Warranty and Support

This product includes a user manual. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official FUMLTP website.
