Mobiclinic 1800W Electric Chainsaw - Model 1 - Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Mobiclinic 1800W Electric Chainsaw, Model 1. Please read these instructions carefully before using the chainsaw and keep them for future reference.

2. Important Safety Instructions

WARNING: Failure to follow these safety instructions can result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear.
• Ensure the work area is clear of bystanders, children, and pets.
• Inspect the chainsaw before each use for any damage, loose parts, or worn components.
• Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
• Always hold the chainsaw firmly with both hands during operation.
• Be aware of kickback and take precautions to avoid it.
• Disconnect the power supply before performing any maintenance, cleaning, or when the chainsaw is not in use.
• Never attempt to modify the chainsaw.
• Use only genuine Mobiclinic replacement parts and accessories.

3. Package Contents

Verify that all items are present upon unpacking:

• Mobiclinic 1800W Electric Chainsaw unit
• Saw chain
• Guide bar
• Guide bar cover
• Instruction Manual

Image: Mobiclinic Electric Chainsaw with its guide bar cover. The chainsaw is red and black, featuring a metal guide bar and chain.

4. Setup and Assembly

Follow these steps to assemble your chainsaw before first use:

1. Install the Guide Bar and Chain:
   • Ensure the chainsaw is unplugged.
   • Remove the chain cover.
   • Place the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction.
   • Mount the guide bar onto the studs, aligning the chain with the groove in the guide bar.
   • Replace the chain cover and hand-tighten the nuts.
2. Adjust Chain Tension:
   • The chain should be snug against the guide bar but still able to be pulled freely by hand.
   • Adjust the tensioning screw until the chain is properly tensioned.
   • Tighten the chain cover nuts securely.
3. Fill the Oil Reservoir:
   • Locate the oil reservoir cap.
   • Fill the reservoir with SAE 20 or SAE 30 chainsaw bar and chain oil (not included). The capacity is 120 ml.
   • Monitor the oil level through the oil control window during operation.
   • Securely replace the oil reservoir cap.

Image: Close-up view of the chainsaw's automatic lubrication system, showing the oil filling port and the transparent oil level window. The text indicates a 120 ml capacity and recommends using lubricating oil.

5. Operating Instructions

Before starting, ensure you have read and understood all safety instructions.

1. Starting the Chainsaw:
   • Plug the chainsaw into a suitable power outlet (230-240V~/50Hz).
   • Hold the chainsaw firmly with both hands, one on the main handle and one on the auxiliary handle.
   • Engage the safety switch and press the trigger to start the motor.
2. Cutting Technique:
   • Allow the chain to reach full speed before making contact with the wood.
   • Apply steady, even pressure. Do not force the chainsaw through the wood.
   • Be aware of the direction the wood will fall and clear the area.
   • Avoid cutting with the tip of the guide bar to prevent kickback.
3. Stopping the Chainsaw:
   • Release the trigger switch.
   • The chain brake will automatically engage for rapid stopping.
   • Unplug the chainsaw from the power source when finished or when leaving it unattended.

Image: A person wearing safety gloves and glasses is operating the Mobiclinic electric chainsaw to cut a log. Sawdust is visible, indicating active cutting. The image highlights the chainsaw's power and cutting efficiency.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your chainsaw.

• Chain Lubrication: The chainsaw features an automatic lubrication system. Regularly check the oil level via the control window and refill with SAE 20 or SAE 30 bar and chain oil as needed.
• Chain Tension: Periodically check and adjust chain tension. A properly tensioned chain should not sag but should still be able to be moved by hand.
• Chain Sharpening: A dull chain reduces cutting efficiency and increases kickback risk. Sharpen the chain regularly or replace it when necessary.
• Cleaning: After each use, disconnect the power and clean sawdust, chips, and debris from the guide bar, chain, and motor housing. Use a brush or compressed air.
• Carbon Brush Replacement: The motor uses carbon brushes. These may need replacement after extended use. Consult a qualified technician for this procedure if you are unsure.
• Storage: Store the chainsaw in a dry, secure location, out of reach of children. Always use the guide bar cover when storing.

Image: Diagram illustrating the automatic lubrication system of the chainsaw, showing how to add oil to the 120 ml reservoir and how to monitor the oil level through the transparent window. Emphasizes keeping the chain oiled for smooth operation and extended life.

7. Troubleshooting

Before attempting any repairs, ensure the chainsaw is unplugged.

8. Technical Specifications

• Model: 1
• Power: 1800W
• No-load Speed: 7500 RPM
• Cutting Length: 40 cm (16 inches)
• Chain Type: 3/8" with 0.050 gauge
• Chain Speed: 13 m/s
• Oil Tank Capacity: 120 ml
• Recommended Oil: SAE 20 or SAE 30 Bar and Chain Oil
• Power Supply: 230-240V~/50Hz
• Weight: 4 kg
• Dimensions (L x W x H): 80 x 21 x 18 cm (approximate, based on image)
• Housing Material: Nylon + GF30

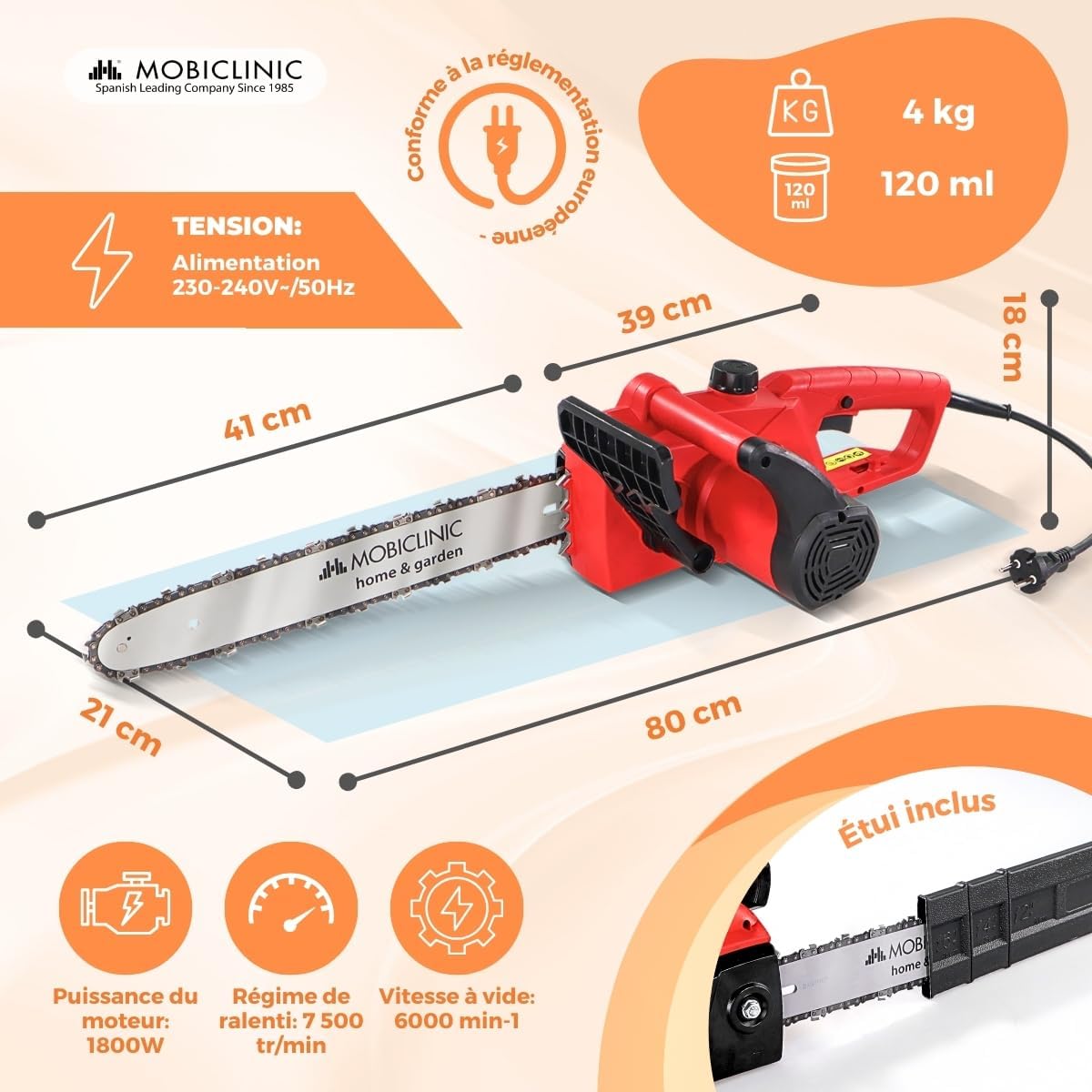

Image: Diagram showing the dimensions of the Mobiclinic electric chainsaw (80 cm length, 41 cm guide bar, 18 cm height) and key specifications such as 1800W motor power, 7500 RPM idle speed, 120 ml oil capacity, and 4 kg weight.

9. Warranty and Support

Mobiclinic S.L. offers quality products and customer confidence since 1985. For warranty information, technical support, or to inquire about replacement parts, please contact Mobiclinic customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Note: Information regarding spare parts availability is currently unavailable.
