fishkeeper FK042
fishkeeper Aquarium Air Pump Instruction Manual
Model: FK042
1. Product Overview
The fishkeeper Aquarium Air Pump is designed to provide efficient oxygenation for your freshwater or saltwater aquarium. Available in 3W and 5W models, this compact and powerful pump ensures a healthy aquatic environment for your fish.
The 3W model offers a 50 GPH (3L/min) output flow, suitable for tanks up to 50 gallons and water depths up to 4 feet. The 5W model provides 95 GPH (2*3.5L/min) output, ideal for tanks up to 160 gallons. Both models feature a high-frequency all-copper pneumatic motor for stable airflow and are engineered for quiet operation, with noise levels typically below 40 dB, similar to a refrigerator's hum.
Image 1.1: The fishkeeper Aquarium Air Pump and its included accessories.
Video 1.1: An official product video demonstrating the fishkeeper 3W Aquarium Air Pump's features and powerful oxygenation.
2. Package Contents
Your fishkeeper Aquarium Air Pump package includes all the necessary components for immediate setup and operation:
- 1 × Fish Tank Aerator Pump (3W or 5W model)
- 1 × 6.56ft Air Tube (for 3W model) or 2 × 6.56ft Air Tubes (for 5W model)
- 1 × Air Stone (for 3W model) or 2 × Air Stones (for 5W model)
- 1 × Check Valve (for 3W model) or 2 × Check Valves (for 5W model)
- 1 × Y-shunt Connector (for 5W model, to connect two air stones)
- 1 × Use Manual
Image 2.1: A visual representation of the free accessories included with your air pump.
Image 2.2: Detailed view of components included with both 3W and 5W models, highlighting differences in air tubes, air stones, and check valves.
3. Setup Instructions
Follow these steps to set up your fishkeeper Aquarium Air Pump:
- Prepare the Air Tube: Cut the provided air tube to your desired length, ensuring it reaches from the pump to the air stone within your tank.
- Connect the Check Valve (if needed): If your air pump will be placed below the water level of your tank, a check valve MUST be used to prevent water from siphoning back into the pump and causing damage. Insert the check valve into the air tube, ensuring the airflow direction is correct (usually indicated by an arrow on the valve).
- Attach to Pump: Securely attach one end of the prepared air tube (with or without the check valve) to the air outlet of the pump.
- Attach Air Stone: Connect the other end of the air tube to the air stone.
- Place in Tank: Submerge the air stone in your aquarium. For optimal bubble distribution, place it in an area with good water circulation.
- Power On: Plug the air pump into a suitable power outlet.
For 5W models with two air outlets, you can use the included Y-shunt connector to split the airflow and connect two air stones for aeration in different parts of a single tank or in two smaller tanks simultaneously.
Image 3.1: Step-by-step guide for installing the air pump, including cutting the air tube, connecting the check valve, attaching to the pump, and linking to the air stone.

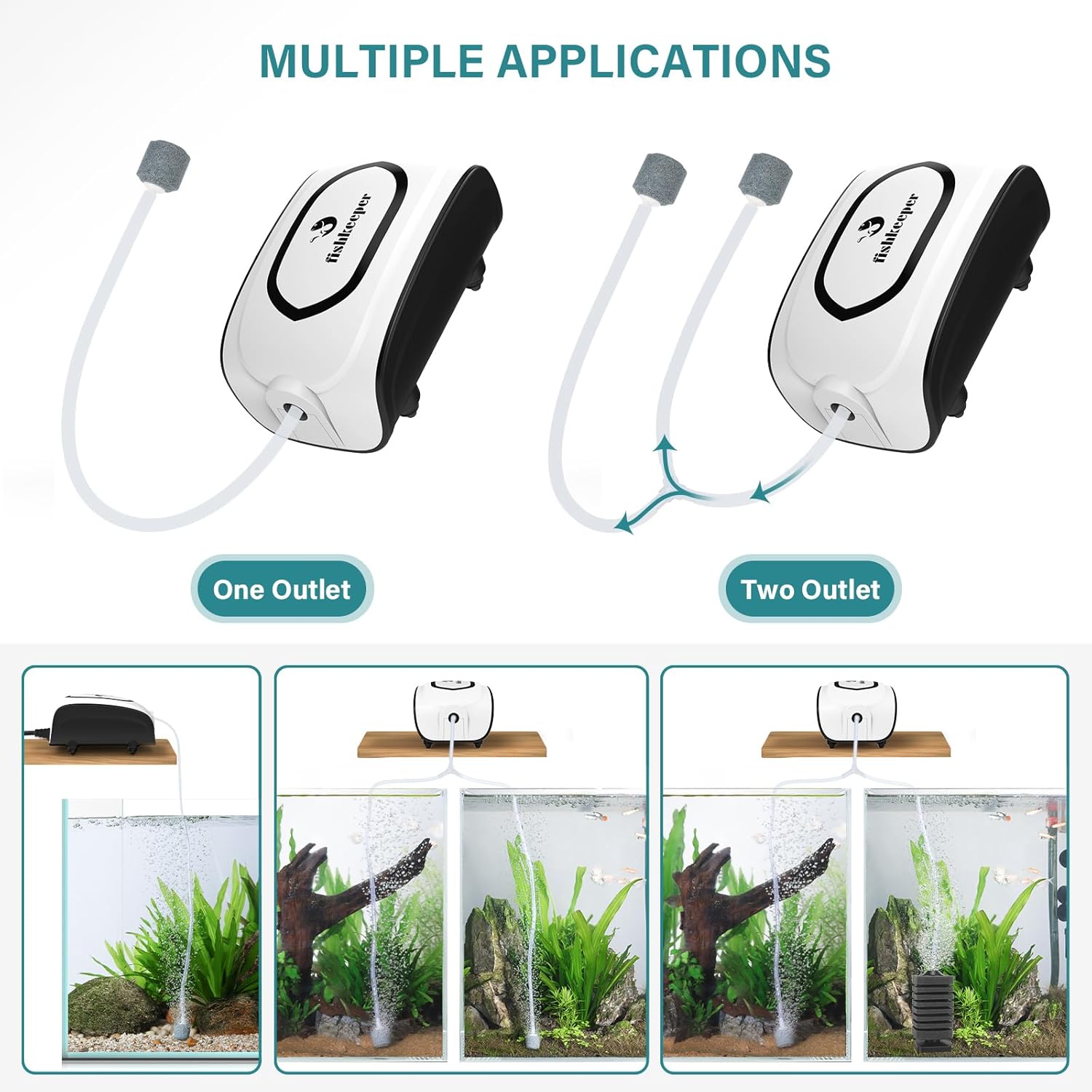

Image 3.2: Illustration demonstrating single outlet use and dual outlet use with the Y-shunt connector for aerating one or two tanks.
4. Operating Instructions
The fishkeeper Aquarium Air Pump is designed for simple and effective operation:
- Power On/Off: Simply plug in the pump to turn it on, and unplug it to turn it off.
- Adjust Airflow: The pump features an adjustable knob (if applicable to your model) to control the air output. Turn the knob clockwise to increase airflow and counter-clockwise to decrease it, allowing you to customize the bubble intensity for your aquarium's needs.
- Quiet Operation: Thanks to its high-frequency pneumatic motor and four shock-absorbing rubber feet, the pump operates quietly, minimizing disturbance to your aquatic environment and household.
Image 4.1: The air pump's design incorporates shockproof rubber feet for quiet operation, reducing noise and vibration.
Image 4.2: The pump delivers super air pressure, capable of aerating tanks with water depths up to 4 feet.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your fishkeeper Aquarium Air Pump:
- Air Stone Cleaning/Replacement: Over time, air stones can become clogged, reducing airflow. Periodically remove the air stone and clean it. If cleaning does not restore adequate airflow, replace the air stone.
- Tubing Inspection: Regularly check the air tubing for kinks, blockages, or damage. Ensure the tubing is clear and allows for unrestricted airflow.
- Pump Placement: Ensure the pump is placed on a stable, flat surface to prevent excessive vibration. The rubber feet are designed to absorb shock, but proper placement further enhances quiet operation.
6. Troubleshooting
If you encounter any issues with your fishkeeper Aquarium Air Pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No air output or weak airflow. |
|
|
| Pump is noisy or vibrating excessively. |
|
|
| Water backing up into the air tube/pump. |
|
|
7. Specifications
| Feature | 3W Model | 5W Model |
|---|---|---|
| Power | 3W | 5W |
| Air Outlet | 1 | 2 |
| Max. Air Flow | 50GPH (3L/min) | 95GPH (2*3.5L/min) |
| Pressure | 0.025Mpa | 0.04Mpa |
| Sound | ≤40db | ≤40db |
| Cord Length | 5.9FT | 5.9FT |
| Voltage | AC 110-120/60 Hz | AC 110-120/60 Hz |
| For Aquariums | 1 - 50 Gallon | 1 - 160 Gallon |
| Material | Aluminum | |
| Product Dimensions | 3.7"L x 2.4"W x 1.7"H | |
| Item Weight | 5.76 ounces | |
Image 7.1: A visual summary of the technical specifications for both 3W and 5W models.
8. Warranty & Support
The fishkeeper Aquarium Air Pump comes with a 1-Year Warranty from the date of purchase, covering manufacturing defects and malfunctions under normal use.
For any questions, troubleshooting assistance, or warranty claims, please contact fishkeeper customer support. Refer to the contact information provided in your product packaging or visit the official fishkeeper website for further assistance.
