1. Introduction
This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your BAUTEC GAZELLE 7 Hot Wire Foam Cutter and STYROCUTTER 250W Hand Cutter Premium Set. This combination tool set offers maximum flexibility for professional cutting of insulation and isolation boards made from Styrodur, Styrofoam, and polystyrene hard foam. Please read this manual thoroughly before initial use and retain it for future reference.
2. Safety Instructions
WARNING: Failure to follow these safety instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the work area is well-ventilated to disperse any fumes produced during cutting.
- Keep children and bystanders away while operating the tool.
- Do not touch the hot wire or blade during operation or immediately after use, as they remain hot and can cause severe burns.
- Disconnect the tool from the power supply before making any adjustments, changing accessories, or performing maintenance.
- Use only original BAUTEC cutting wires and blades.
- Do not operate the tool in damp or wet conditions.
- Store the tool in a dry, secure place out of reach of children.
3. Package Contents
Your BAUTEC Premium Set includes the following components:
Overview of the BAUTEC GAZELLE 7 Hot Wire Foam Cutter and STYROCUTTER 250W Hand Cutter Premium Set, showing both main units and all included accessories.
Detailed view of the BAUTEC GAZELLE 7 accessories, including 10 cutting wires, 6 Styrofoam grips, 2 grinding rasps, foot switch, toolkit, and softbag.

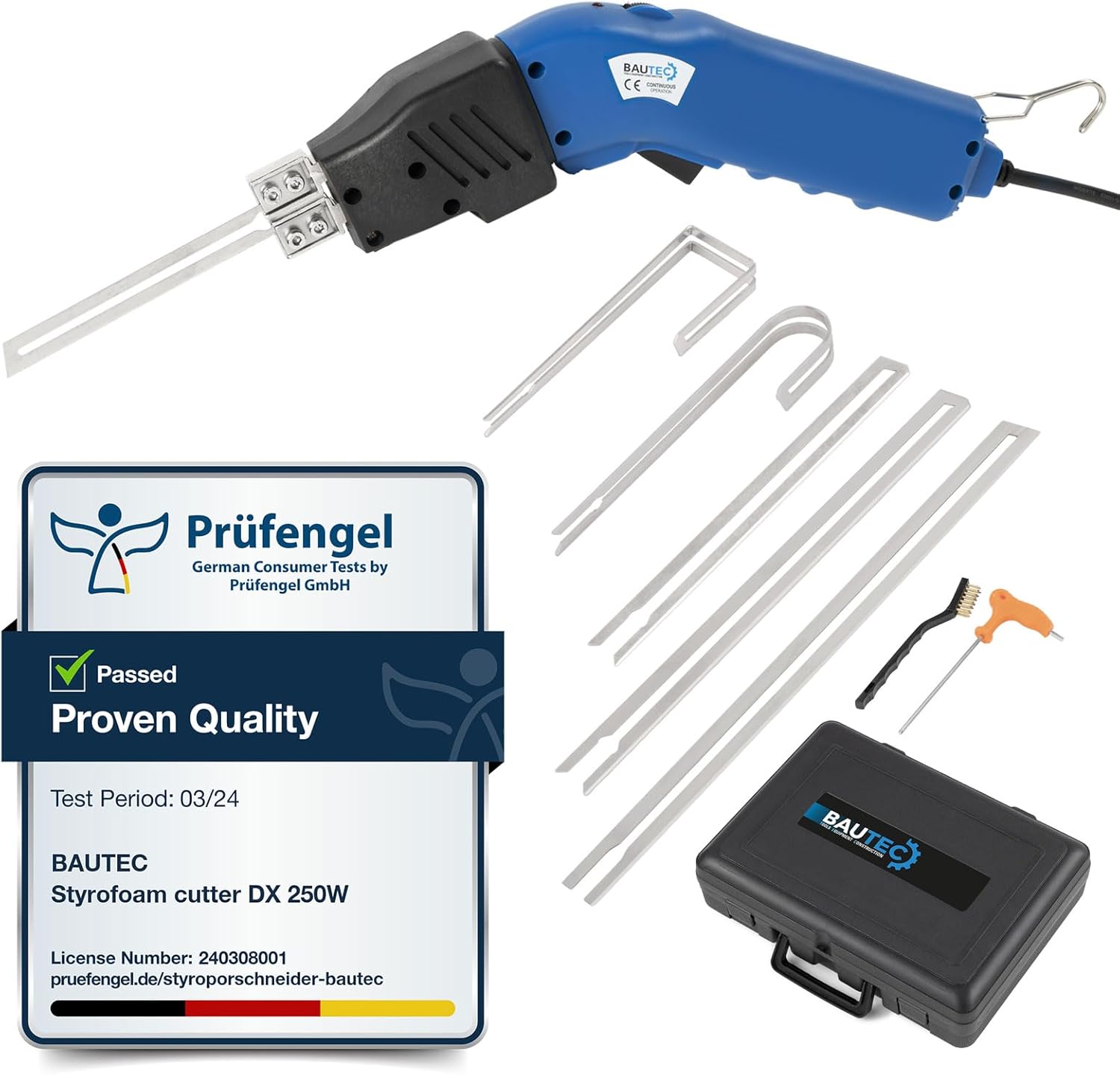

Detailed view of the BAUTEC STYROCUTTER 250W hand cutter with its included 5 blades and carrying case.
- 1 x BAUTEC GAZELLE 7 Hot Wire Foam Cutter (incl. softbag)
- 1 x Scaffold Holder
- 6 x Styrofoam Grips
- 1 x BAUTEC STYROCUTTER 250W Hand Cutter (for continuous use) + Blade Set in Case
- 1 x Foot Switch
- 1 x Tool Kit
- 10 x Cutting Wires
- 2 x Grinding Rasps
4. Setup
4.1 BAUTEC GAZELLE 7 Hot Wire Foam Cutter
- Assembly of the Stand: Unfold the stand legs to ensure the unit is stable. The GAZELLE 7 can be used freestanding.
- Attaching the Scaffold Holder (Optional): If working on scaffolding, secure the scaffold holder to the GAZELLE 7 frame and then attach it to the scaffolding for stable operation.
- Adjusting Plate Support: The plate support is adjustable on both sides (0-90 degrees). Loosen the adjustment knobs, position the support to the desired angle, and tighten the knobs securely. The unit also features an additional support surface (right and left).
A hand adjusting the knob for the plate support, demonstrating its adjustability for various cutting angles.
- Installing Cutting Wire: Carefully attach a cutting wire to the cutting bow. Ensure it is taut and securely fastened. The GAZELLE 7 features a ball-bearing guided cutting bow for smooth operation.
- Connecting Power: Connect the foot switch to the GAZELLE 7 and then plug the unit into a standard 230V AC power outlet. The integrated 200-watt transformer powers the hot wire.

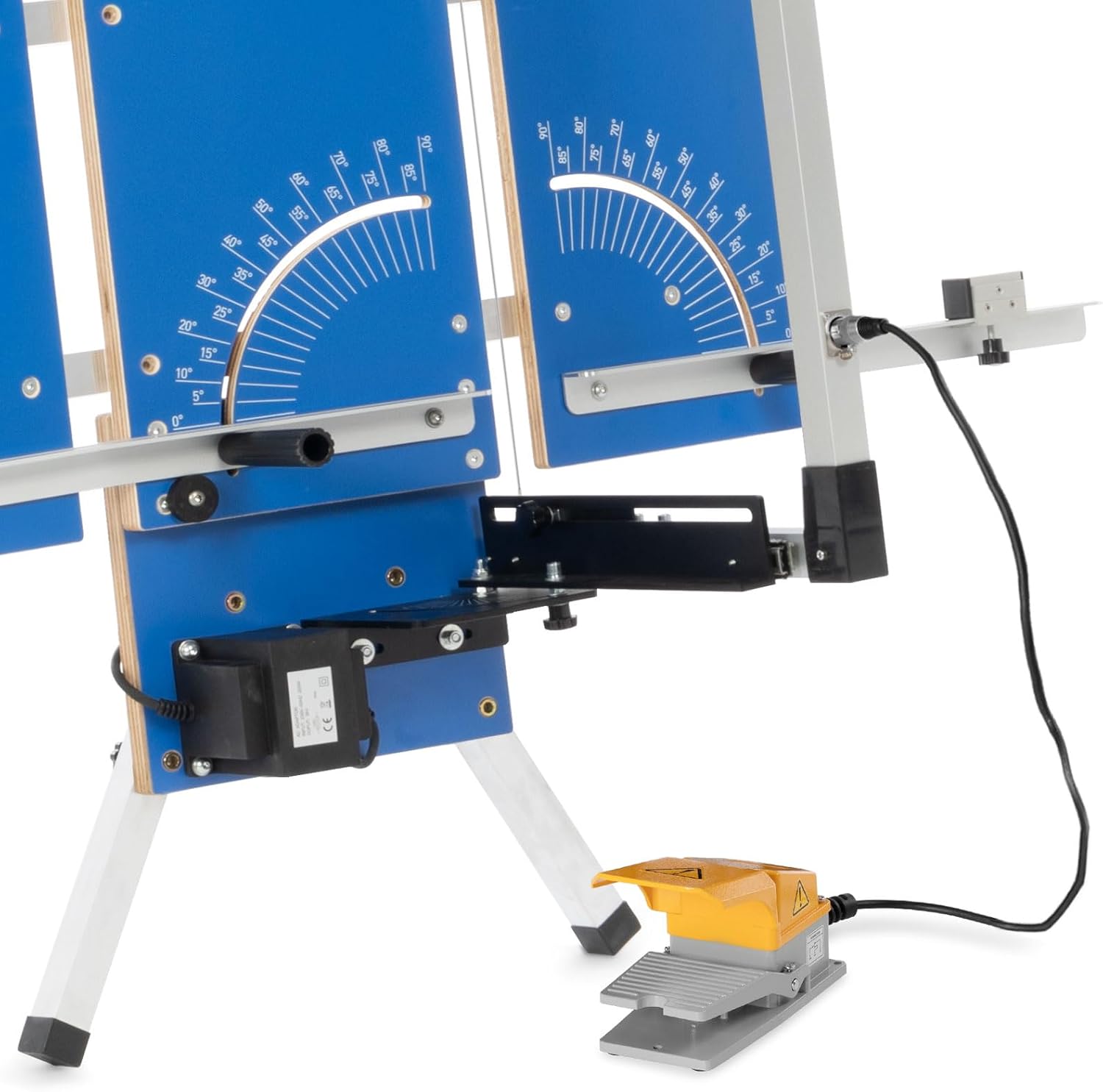

Close-up of the foot switch and the 200-watt transformer unit on the BAUTEC GAZELLE 7.
4.2 BAUTEC STYROCUTTER 250W Hand Cutter
- Blade Installation: Select the appropriate blade for your cutting task. Insert the blade securely into the hand cutter's holder and tighten any retaining screws.
- Connecting Power: Plug the STYROCUTTER 250W into a standard 230V AC power outlet.
5. Operating Instructions
5.1 BAUTEC GAZELLE 7 Hot Wire Foam Cutter
- Material Placement: Place the foam board securely on the adjustable plate support. Use the Styrofoam grips to hold the material firmly in place if needed.
- Setting Cutting Parameters: Adjust the desired cutting length (up to 1300 mm) and depth (up to 330 mm). Use the laser-etched scales and adjustable stop guide for precise cuts. For angled cuts, adjust the plate support as described in Section 4.1.
A close-up view of the angle adjustment mechanism on the GAZELLE 7, showing the protractor scale for precise angle settings.
- Initiating Cut: Press the foot switch to heat the cutting wire. Allow a few seconds for the wire to reach optimal temperature.
- Performing the Cut: Gently guide the cutting bow through the foam material. Maintain a steady, even pressure for a clean cut. Do not force the wire.
- Completing the Cut: Release the foot switch once the cut is complete. Allow the wire to cool before handling.
5.2 BAUTEC STYROCUTTER 250W Hand Cutter
- Power On: Switch on the hand cutter. The blade will heat up quickly.
- Cutting: Guide the hot blade through the foam material. The 250-watt power allows for cutting depths up to 250 mm. This tool is suitable for continuous use without cool-down periods.
- Power Off: Switch off the hand cutter after use and allow the blade to cool completely before storing.
6. Cutting Techniques
The BAUTEC Premium Set supports various cutting techniques for diverse applications:

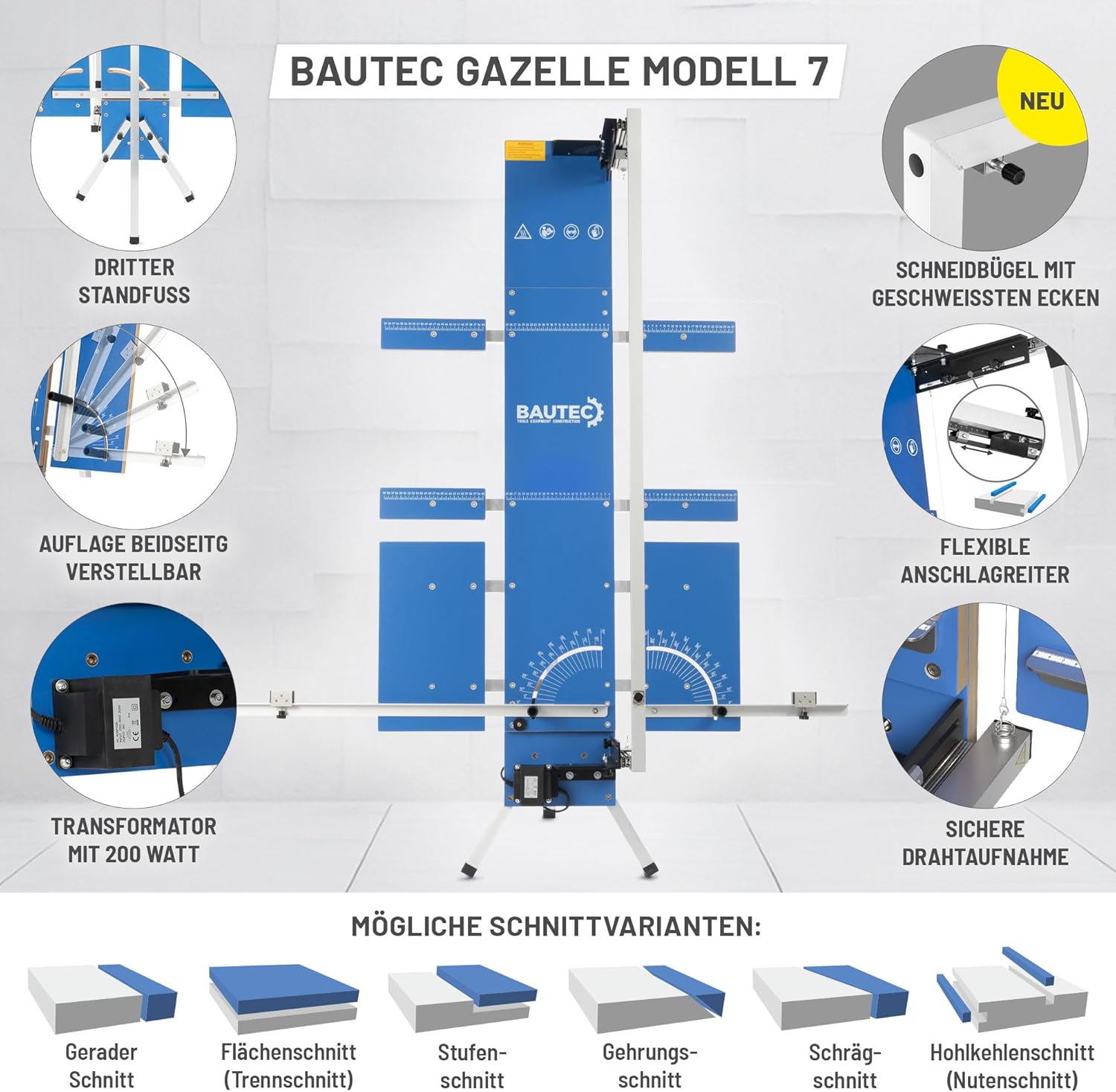

Visual representation of different cutting variants achievable with the BAUTEC foam cutters: straight cut, flat cut, step cut, miter cut, bevel cut, and groove cut.
- Straight Cut: For basic, linear cuts.
- Flat Cut (Surface Cut): For reducing the thickness of a foam board.
- Step Cut: For creating stepped edges on foam boards.
- Miter Cut: For angled cuts, typically 45 degrees, for corners.
- Bevel Cut (Slanted Cut): For creating sloped edges.
- Groove Cut (Hollow Cut): For creating channels or recesses in the foam. The STYROCUTTER 250W is particularly suited for this with its specialized blades.
Close-up showing the mechanism for performing a groove cut (Nutenschnitte) with the BAUTEC GAZELLE 7.
The STYROCUTTER 250W hand cutter demonstrating a groove cut on a piece of foam.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your BAUTEC cutting tools.
- Cleaning: After each use, ensure both the GAZELLE 7 and STYROCUTTER 250W are clean. Use a brush (included in the toolkit) to remove any foam residue from the cutting wire, blades, and surrounding areas. Do not use solvents that could damage plastic parts.
- Wire/Blade Replacement: Replace cutting wires on the GAZELLE 7 when they become worn, bent, or break. Similarly, replace STYROCUTTER blades when they become dull or damaged. Always ensure the tool is unplugged before replacing parts.
- Storage: Store the GAZELLE 7 in its softbag (included) to protect it from dust and damage. Keep all accessories organized in the provided cases. Store in a dry, cool place.
The BAUTEC GAZELLE 7 hot wire foam cutter neatly folded and stored inside its protective softbag.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cutting wire/blade not heating | No power supply; damaged wire/blade; faulty connection. | Check power plug and outlet. Ensure foot switch is pressed (GAZELLE 7). Inspect wire/blade for damage and replace if necessary. Check all connections. |
| Uneven or rough cuts | Wire/blade not hot enough; material moved during cut; wire/blade worn or dirty; incorrect cutting speed. | Allow wire/blade to heat fully. Secure material firmly. Replace worn wire/blade. Clean wire/blade. Adjust cutting speed. |
| Wire breaks frequently | Wire tension too high; forcing the cut; material too dense; wire defect. | Check wire tension. Do not force the cut; let the heat do the work. Ensure material is suitable for hot wire cutting. Replace with a new wire. |
| Tool does not turn on | No power supply; main switch off; internal fault. | Check power connection. Ensure main switch is on. If problem persists, contact customer support. |
9. Specifications
| Feature | BAUTEC GAZELLE 7 | BAUTEC STYROCUTTER 250W |
|---|---|---|
| Manufacturer | KA Produktions- Dienstleistungen- und Handels GmbH | |
| Model Number | modello 7 | N/A |
| Power Source | AC (Alternating Current) | |
| Voltage | 230 VAC | |
| Wattage | 200 Watt | 250 Watt |
| Cutting Length (Max) | 1300 mm | N/A |
| Cutting Depth (Max) | 330 mm | 250 mm |
| Product Dimensions | 170 x 87 x 0.1 cm | N/A |
| Weight | 15 Kilograms (total set) | N/A |
| Material | Tool Steel, Aluminum | |
| Handle Material | Plastic (for STYROCUTTER) | |
| Specific Use | Cutting (Styrofoam, Polystyrene, Hard Foam) | |
| Handle Type | Ergonomic (for STYROCUTTER) | |
| Spare Parts Availability (EU) | 10 Years | |
10. Warranty and Support
BAUTEC products are manufactured to high-quality standards. For warranty information, technical support, or spare parts, please refer to the contact details provided with your purchase documentation or visit the official BAUTEC website. Please have your model number (GAZELLE 7, STYROCUTTER 250W) and purchase date available when contacting support.
