Weuaste YS-Carplay-04 Motorcycle DVR Instruction Manual

1. Product Overview

The Weuaste YS-Carplay-04 is a motorcycle DVR system designed to enhance your riding experience with integrated smart features and recording capabilities. It features a 5.5-inch IPS touchscreen display, dual 1080p HD cameras for front and rear recording, and supports wireless Apple CarPlay and Android Auto. The system is built to withstand various weather conditions, offering IP66 waterproofing and operation in a wide temperature range.

Image: The Weuaste Motorcycle DVR screen showing both Wireless CarPlay and Wireless Android Auto interfaces, demonstrating its smart connectivity features.

Key Features:

• Wireless Apple CarPlay & Android Auto: Seamless integration with your smartphone for navigation, music, calls, and messaging.
• Dual 1080p HD Cameras: Front and rear cameras provide high-definition video recording with loop recording functionality and full-color night vision.
• 5.5-inch IPS Touchscreen: Responsive and easy-to-use display, visible even in bright sunlight.
• Siri & Google Voice Control: Access voice assistants for hands-free operation.
• IP66 Waterproof & Durable Design: Engineered to withstand various weather conditions and temperatures from -4°F to 158°F.
• WiFi & Bluetooth Connectivity: For data transfer, phone pairing, and accessory connection.
• TF Card Support: Includes a 128GB TF card for ample storage of video recordings.

2. Package Contents

Before installation, please verify that all components listed below are present in your package.

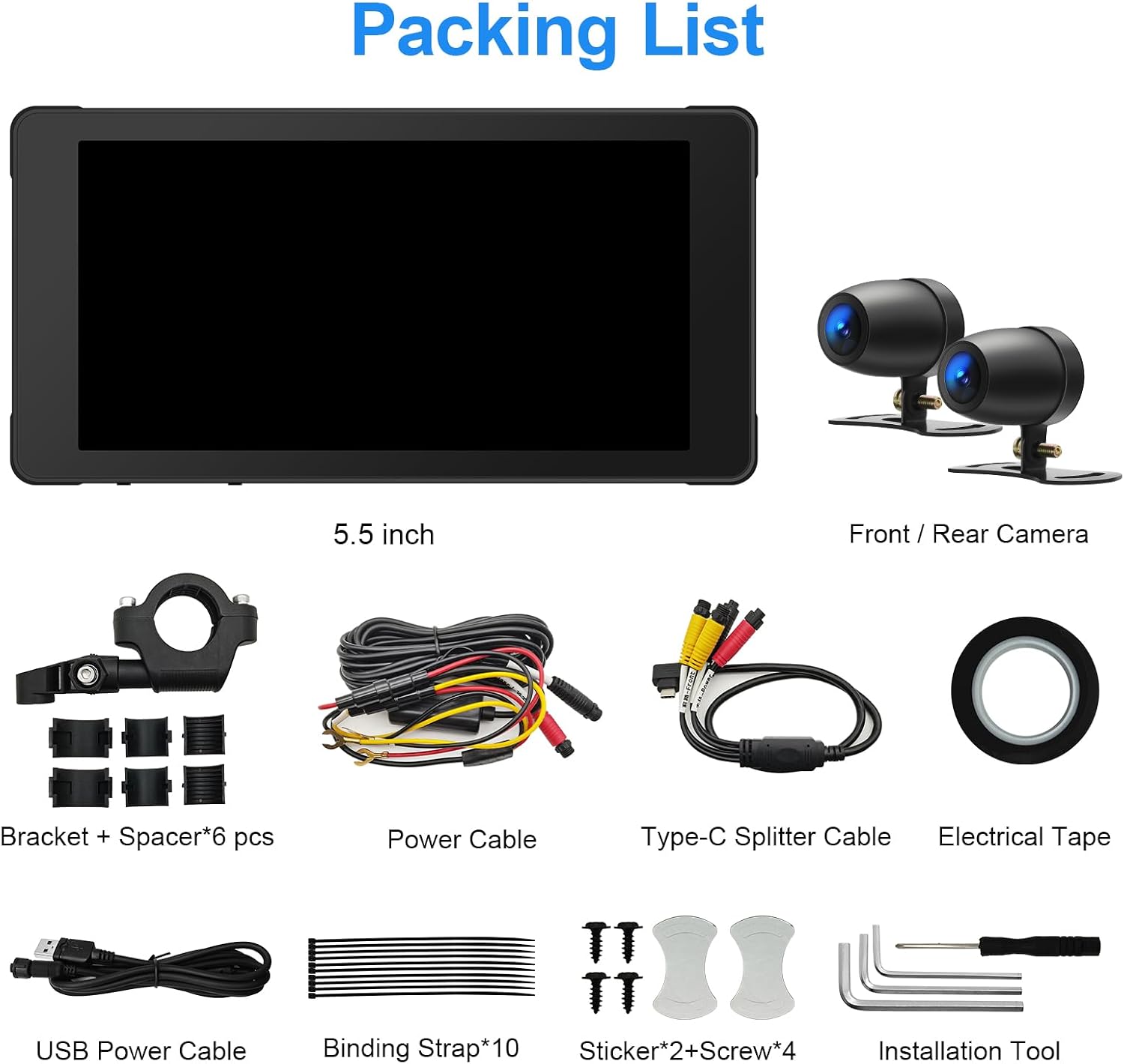

Image: A visual representation of the complete packing list, including the main unit, cameras, cables, and mounting hardware.

• 5.5-inch IPS Touchscreen Display Unit
• Front Camera (1080p)
• Rear Camera (1080p)
• Mounting Bracket + Spacers (6 pcs)
• Power Cable
• Type-C Splitter Cable
• USB Power Cable
• Binding Straps (10 pcs)
• Stickers + Screws (4 pcs)
• Installation Tools (Allen wrenches, etc.)
• Electrical Tape
• 128GB TF Card (pre-installed or separate)

3. Setup and Installation

Careful installation is crucial for optimal performance and safety. It is recommended to route wires neatly and securely.

3.1 Component Identification

Image: Detailed view of the main display unit, highlighting the Microphone Receiving Hole, Type-C Power Plug, Light Sensor, and SD Card Slot Hole.

• Microphone Receiving Hole: For voice input.
• Type-C Power Plug: Main power input for the device.
• Light Sensor: Automatically adjusts screen brightness.
• SD Card Slot Hole: Insert the TF card here for video storage.

3.2 Mounting the Display Unit

1. Select a suitable location on your motorcycle handlebars for the display unit. Ensure it does not obstruct your view or controls.
2. Use the provided mounting bracket and spacers to securely attach the display unit. Adjust the angle for optimal visibility.

3.3 Installing the Cameras

Image: Close-up view of the two 1080P dual cameras, designed for front and rear installation on a motorcycle.

1. Mount the front camera in a position that provides a clear, unobstructed view of the road ahead.
2. Mount the rear camera to capture the view behind your motorcycle. Consider locations that minimize vibration and offer protection from debris.
3. Route the camera cables securely along the motorcycle frame, away from moving parts and heat sources. Use binding straps to keep cables tidy.

3.4 Power Connection

1. Connect the main power cable to your motorcycle's power source (e.g., battery or ignition-switched power). Ensure correct polarity.
2. Connect the Type-C power plug from the display unit to the power cable.
3. Use the USB power cable for initial setup or testing if a temporary power source is needed. This is not intended for permanent installation.

3.5 TF Card Insertion

1. Locate the SD Card Slot Hole on the display unit.
2. Insert the provided 128GB TF card into the slot until it clicks into place. Ensure it is inserted correctly to avoid damage.

4. Operating Instructions

4.1 Powering On/Off

• The device typically powers on automatically with the motorcycle's ignition.
• To manually power off, press and hold the power button (if available) or disconnect power.

4.2 Touchscreen Operation

The 5.5-inch IPS touchscreen is highly responsive and can be operated even with gloves. Navigate through menus and applications by tapping and swiping.

4.3 Wireless CarPlay & Android Auto

1. Ensure your smartphone's Bluetooth and Wi-Fi are enabled.
2. On the DVR, navigate to the CarPlay or Android Auto section.
3. Follow the on-screen prompts to pair your phone via Bluetooth. Once paired, the system will establish a Wi-Fi connection for CarPlay/Android Auto functionality.
4. Access navigation, music, calls, and other compatible apps directly from the DVR screen.

4.4 Steering Wheel Control

Image: The steering wheel control unit, showing buttons for Motorcycle Battery Voltage Display, Cycle Button / Answer the Phone, Camera Button / Hang up the Phone, and Main Interface Button.

The wired remote control provides convenient access to key functions without needing to touch the screen.

• Motorcycle Battery Voltage Display: Shows current battery voltage.
• Cycle Button / Answer the Phone: Used to cycle through modes or answer incoming calls.
• Camera Button / Hang up the Phone: Activates camera functions or ends calls.
• Main Interface Button: Returns to the main menu or home screen.

4.5 Video Recording

The dual cameras continuously record footage. The system supports seamless loop recording, overwriting the oldest files when the TF card is full. Recorded videos are stored on the 128GB TF card.

4.6 Siri & Google Voice

When connected to Apple CarPlay or Android Auto, you can utilize Siri or Google Voice for hands-free commands. Activate the voice assistant through the touchscreen interface or your paired smartphone.

5. Maintenance

The Weuaste YS-Carplay-04 is designed for durability and minimal maintenance.

5.1 Weather Resistance

Image: The DVR unit shown on a motorcycle in sunny, rainy, and cold conditions, illustrating its IP66 waterproof rating and ability to function between -4°F and 158°F.

• The device has an IP66 waterproof rating, protecting it from dust and powerful water jets.
• It is designed to operate reliably in temperatures ranging from -4°F to 158°F (-20°C to 70°C).
• Regularly wipe the screen and camera lenses with a soft, damp cloth to remove dirt and ensure clear visibility. Avoid abrasive cleaners.

5.2 TF Card Management

• Periodically check the TF card for important recordings.
• Format the TF card every few months to maintain optimal recording performance and prevent data corruption. Refer to the device settings for the formatting option.

6. Troubleshooting

If you encounter issues with your Weuaste YS-Carplay-04 DVR, refer to the following common problems and solutions.

6.1 Device Does Not Power On

• Check Power Connections: Ensure all power cables are securely connected to the motorcycle's power source and the DVR unit. Verify correct polarity.
• Test Power Source: If possible, test the DVR with an alternative, known-good 12V power source (e.g., a different motorcycle or a bench power supply) to rule out issues with your motorcycle's wiring harness.
• Inspect Wiring Harness: Look for any visible damage, cuts, or loose connections in the supplied wiring harness.

6.2 Screen Freezes or Becomes Unresponsive

• Restart Device: Disconnect and reconnect the power to perform a hard reset.
• Check TF Card: A faulty or full TF card can sometimes cause system instability. Try removing the TF card or replacing it with another one.
• Software Update: Check the manufacturer's website for any available firmware updates that might resolve software-related issues.

6.3 Cameras Not Recording or Poor Quality

• Check Camera Connections: Ensure both front and rear camera cables are securely plugged into the main unit.
• Clean Lenses: Wipe camera lenses with a soft cloth to remove dirt, dust, or water spots.
• TF Card Issues: Ensure the TF card is properly inserted, not full, and formatted correctly. A slow or corrupted TF card can affect recording quality.

6.4 CarPlay/Android Auto Connection Issues

• Bluetooth & Wi-Fi: Confirm that Bluetooth and Wi-Fi are active on both your smartphone and the DVR.
• Forget Device: On your smartphone, forget the DVR from your Bluetooth settings and attempt to re-pair.
• Update Phone OS: Ensure your smartphone's operating system is up to date.

7. Specifications

8. Warranty and Support

Warranty information for the Weuaste YS-Carplay-04 Motorcycle DVR is not provided within this manual. For details regarding warranty coverage, technical support, or service, please refer to the manufacturer's official website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
