1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your DAMINY 4-Inch LED Recessed Lighting with Junction Box. Please read this manual thoroughly before installation and retain it for future reference.
The DAMINY LED Recessed Light is an ultra-thin, dimmable, canless wafer ceiling light designed for various indoor applications. It features 5 selectable color temperatures (5CCT) and high brightness with energy efficiency.
2. Safety Information
- WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installation or servicing.
- This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Ensure all electrical connections are made correctly and securely.
- Do not modify or alter the product in any way.
- Suitable for damp locations.
- IC Rated: Suitable for direct contact with insulation.

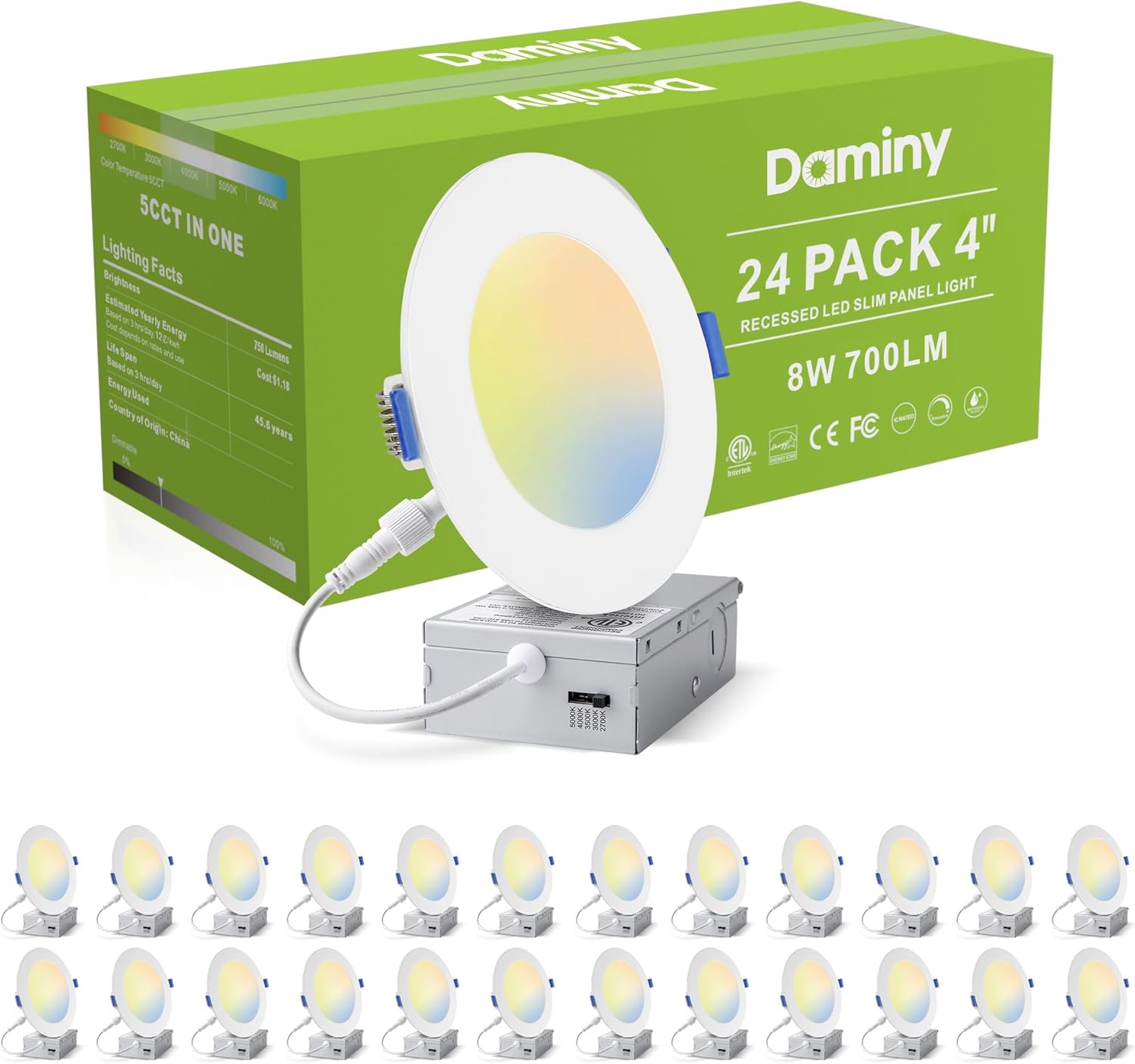

3. Package Contents
Verify that all components are present before beginning installation:
- DAMINY 4-Inch LED Recessed Lights (24 units)
- External Junction Boxes (24 units)
- Installation Template
- Instruction Manual (this document)
4. Product Features
- 5CCT Selectable: Choose from 2700K (Soft White), 3000K (Warm White), 3500K (Nature White), 4000K (Daylight), or 5000K (Cool White) to suit different preferences and environments.
- Dimmable: Compatible with most standard dimmers, offering smooth dimming from 5% to 100% brightness.
- Ultra-Thin Design: Slim profile allows for easy installation in various ceiling types, including those with limited plenum space.
- High Brightness & Energy Efficient: Delivers 700 lumens while consuming only 8 watts, equivalent to an 80W incandescent lamp, saving up to 92% in energy costs.
- ETL & IC Rated: Certified for safety and suitable for direct contact with insulation, reducing fire risk.
5. Specifications
| Feature | Specification |
|---|---|
| Model Number | P126C |
| Size | 4 Inch |
| Wattage | 8W (equivalent to 80W incandescent) |
| Brightness | 700 Lumens |
| Color Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K (Selectable) |
| Dimmability | 5%-100% (Compatible with most dimmers) |
| Material | Aluminum |
| Product Dimensions | 4.7"L x 4.7"W x 1.05"H |
| Advised Hole Cutout Size | 4.25 inches |
| Indoor/Outdoor Usage | Indoor (Damp Location Rated) |
| Certifications | ETL, IC Rated |
| Power Source | AC |
6. Installation Instructions
Before You Begin: Ensure power is disconnected at the circuit breaker. Wear appropriate safety gear.
- Cut a Hole: Use the provided template to mark the desired location on the ceiling. Cut a 4.25-inch diameter hole.
- Connect Wiring: Open the junction box cover. Connect the house wiring (live, neutral, ground) to the corresponding wires inside the junction box using appropriate wire connectors. Ensure connections are secure.
- Select Color Temperature (CCT): Before mounting, locate the 5CCT selection switch on the side of the junction box. Slide the switch to your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K).
- Connect Light to Junction Box: Connect the male and female connectors between the recessed light and the junction box. Ensure they click securely into place.
- Mount Junction Box: Place the junction box through the cutout hole into the ceiling.
- Mount Light: Push the spring clips on the recessed light upwards and insert the light into the ceiling hole. Release the clips to secure the light flush against the ceiling.
7. Operating Instructions
- Power On: Restore power at the circuit breaker. The light should illuminate.
- Color Temperature Selection: The desired color temperature must be selected using the switch on the junction box before installation. Once installed, the CCT cannot be changed without removing the fixture.
- Dimming: If connected to a compatible dimmer switch, adjust the dimmer to control the brightness level from 5% to 100%.
8. Maintenance
- Cleaning: Ensure power is off before cleaning. Wipe the light fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- No User-Serviceable Parts: The LED components are integrated and not user-replaceable. Do not attempt to open or repair the fixture.
9. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Loose wiring connection Faulty light fixture | Check circuit breaker and wall switch. Verify all wiring connections in the junction box. Contact customer support if power and connections are confirmed. |
| Light flickers or blinks | Incompatible dimmer switch Loose wiring Voltage fluctuations | Ensure dimmer is LED compatible. Try a non-dimming switch. Check wiring connections. Consult an electrician if voltage issues are suspected. |
| Incorrect color temperature | CCT switch set incorrectly | Disconnect power, carefully remove the light, and adjust the CCT switch on the junction box to the desired setting. Reinstall. |
| Light is too dim or too bright | Dimmer setting CCT selection | Adjust the dimmer switch. Note that different CCTs can perceive brightness differently. |
10. Warranty and Support
DAMINY LED recessed lights come with a 5-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any questions regarding your product, please contact DAMINY customer service. Our friendly customer service team is available to assist you within 12 hours.
Contact Information: Please refer to the contact details provided on your purchase receipt or the official DAMINY website.
