1. Introduction
The JOYELEC T-Tap Quick Splice Wire Connectors are designed to simplify the wire connection process, eliminating the need for traditional wire stripping or soldering. This kit provides a fast, secure, and insulated method for connecting wires, enhancing both efficiency and safety in various electrical applications.
These T-type terminal blocks utilize internal clamping hooks to ensure a strong and reliable electrical connection, preventing malfunctions due to poor contact. They also protect wires from external exposure, reducing corrosion and extending wire lifespan, while ensuring isolation between wires to prevent short circuits.
2. Safety Information
- Always disconnect power to the circuit before installing or removing connectors.
- Ensure proper wire gauge is used for the corresponding connector size to prevent loose connections or overheating.
- Do not use damaged connectors.
- Keep out of reach of children.
- Consult a qualified electrician if you are unsure about any electrical work.
3. Package Contents
Your JOYELEC T-Tap Quick Splice Wire Connector kit includes:
- 144 pieces (72 sets) of T-Tap Quick Splice Connectors and Male Quick Disconnects.
- The kit is organized by color and wire gauge:
- Red Connectors: 26 sets (for 0.5-1.0mm² / 22-18 AWG wire)
- Blue Connectors: 26 sets (for 1.0-2.5mm² / 18-14 AWG wire)
- Yellow Connectors: 20 sets (for 2.5-4.0mm² / 14-12 AWG wire)

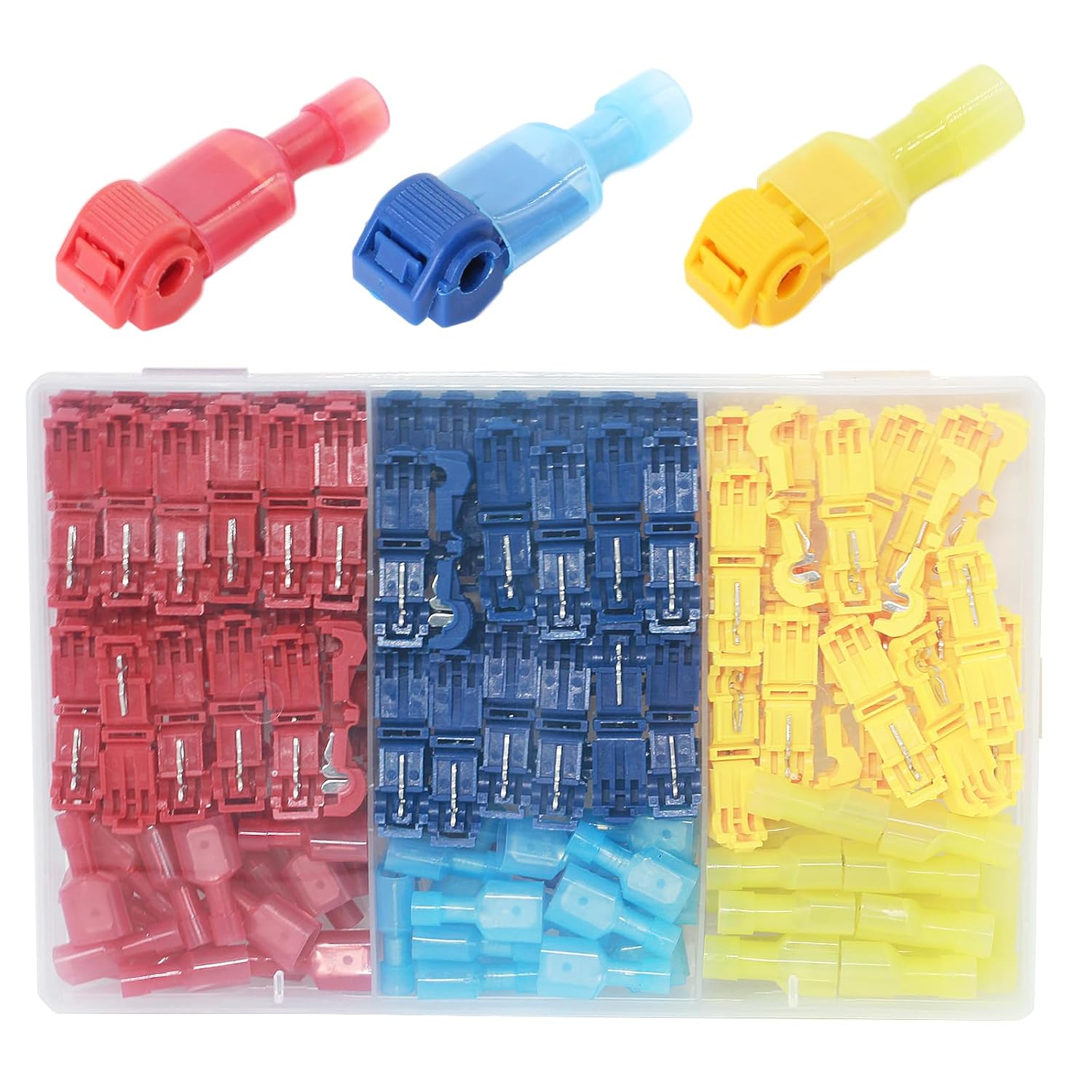

Image 1: Overview of the JOYELEC T-Tap Quick Splice Wire Connector kit, showing the organized red, blue, and yellow connectors and male disconnects in a clear storage box.
4. Specifications
The JOYELEC T-Tap Quick Splice Wire Connectors are made from high-quality copper for excellent conductivity and nylon for insulation. They are corrosion-resistant and heat-resistant up to 221°F (105°C).
4.1 Wire Gauge Compatibility
| Color | Wire Range (mm²) | Wire Range (AWG) |
|---|---|---|
| Red | 0.5 - 1.0 | 22 - 18 |
| Blue | 1.0 - 2.5 | 18 - 14 |
| Yellow | 2.5 - 4.0 | 14 - 12 |
4.2 Connector Dimensions
Image 2: Detailed diagram showing the dimensions (width and length) of the T-Tap connectors and the corresponding AWG/mm² wire ranges for red, blue, and yellow types. Also includes a diagram for male disconnect dimensions.
| Type | W (mm) | L (mm) |
|---|---|---|
| Red T-Tap | 10 | 37 |
| Blue T-Tap | 10 | 37 |
| Yellow T-Tap | 10 | 37 |
Note: Specific dimensions for male disconnects are also provided in Image 2.
5. Operating Instructions
The JOYELEC T-Tap connectors allow for quick and secure wire connections without the need for cutting, stripping, or soldering. Follow these steps for proper installation:
Image 3: Illustrates the key advantage of T-Tap connectors: no need for cutting, stripping, or soldering wires, highlighting the copper tin plating for conductivity and corrosion resistance, and industrial-grade quality with heat resistance up to 221°F.
5.1 Connecting a Wire with a T-Tap Connector
- Select Connector: Choose the appropriate T-Tap connector (red, blue, or yellow) based on your wire's gauge.
- Place Wire: Open the T-Tap connector and place the wire to be tapped into the connector's channel. Ensure the wire is fully seated.
- Fold and Crimp: Fold the connector over the wire. Using pliers, squeeze the metal blade down until it pierces the wire insulation and makes contact with the conductor. Continue squeezing until the connector locks securely.
- Verify Connection: Gently tug on the wire to ensure it is firmly held by the connector.
5.2 Connecting with a Male Quick Disconnect
- Prepare Male Disconnect: Insert the end of the wire into the metal spade crimp of the male quick disconnect.
- Crimp Disconnect: Use a crimping tool to securely crimp the spade terminal onto the wire. Ensure a tight connection.
- Plug into T-Tap: Insert the crimped male quick disconnect into the T-Tap connector until it clicks into place, forming a secure and insulated connection.
Image 4: Visual step-by-step guide demonstrating how to use the T-Tap quick splice connectors, from placing the wire to securing the insulated connection.
6. Applications
JOYELEC T-Tap Quick Splice Wire Connectors are versatile and suitable for a wide range of electrical applications, including:
- Automotive wiring (cars, motorcycles)
- Home electrical wiring (e.g., light circuits, general home wirings)
- Installation of downlights and spotlights
- Connecting flexible wires
- General industrial electrical connections
Image 5: Collage showing various applications for the T-Tap connectors, including light circuits, home wirings, motorcycle electrical systems, and connections for flexible wires.
7. Maintenance
These connectors are designed for long-term reliability with minimal maintenance. However, periodic inspection of connections in critical applications is recommended to ensure continued integrity. Keep connectors clean and free from moisture and corrosive substances.
8. Troubleshooting
8.1 Loose Connection
- Cause: Incorrect wire gauge used, insufficient crimping pressure, or improper seating of the wire.
- Solution: Ensure the correct connector size matches the wire gauge. Re-crimp the connector with firm, even pressure using appropriate pliers. Verify the wire is fully inserted before crimping. If the connection remains loose, replace the connector.
8.2 No Electrical Continuity
- Cause: The metal blade did not properly pierce the wire insulation, or the male disconnect is not fully seated in the T-Tap.
- Solution: Ensure the T-Tap connector is fully crimped, allowing the blade to make solid contact with the wire conductor. For the male disconnect, ensure it is pushed firmly into the T-Tap until it locks. Test continuity with a multimeter.
9. Warranty and Support
For any questions, concerns, or support regarding your JOYELEC T-Tap Quick Splice Wire Connectors, please contact JOYELEC customer service through your purchase platform or the official JOYELEC website. Please have your model number (MZMY BOX) and purchase details ready for faster assistance.
