Introduction
Thank you for choosing the EMKE Hot Water Towel Rail. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new towel rail. Please read these instructions carefully before installation and retain them for future reference.
Safety Information
Always observe the following safety precautions:
- Installation must be performed by a qualified professional in accordance with local building and plumbing regulations.
- Ensure the wall is suitable to bear the weight of the towel rail when filled with water.
- Do not cover the towel rail with excessive items as this may impede heat dissipation.
- Keep children away from the hot surfaces of the towel rail during operation.
- This product is designed for hot water central heating systems only. It is not an electric towel rail.
Product Features
- High-Quality Construction: Made from durable Q195 steel with an eco-friendly AkzoNobel powder coating for excellent rust and corrosion resistance.
- Efficient Heating: Oval tube design provides rapid and effective heat distribution, suitable for an area of approximately 8 m².
- Space-Saving Design: Wall-mounted to optimize bathroom space.
- Flexible Installation: Can be installed with connections on the left or right side, and even upside down.
- Advanced Welding: Features 360° advanced welding technology to prevent leaks.
Setup and Installation
The EMKE Hot Water Towel Rail comes with a complete mounting kit and an installation guide. Please follow the detailed steps provided in the included guide for proper setup.
Components Included:
- Towel Rail
- Mounting Kit (includes plugs, long screws, small screws, and stoppers)
- Installation Guide
Note: The valve is not included and must be ordered separately if required.
Key Installation Details:
- Connection Thread: G1/2"
- Pipe Pitch: 50 mm
- Adjustable Wall Distance: 106-112 mm (from wall to outer edge of radiator)
- Flexible Orientation: Can be installed with connections on the left or right, or inverted.

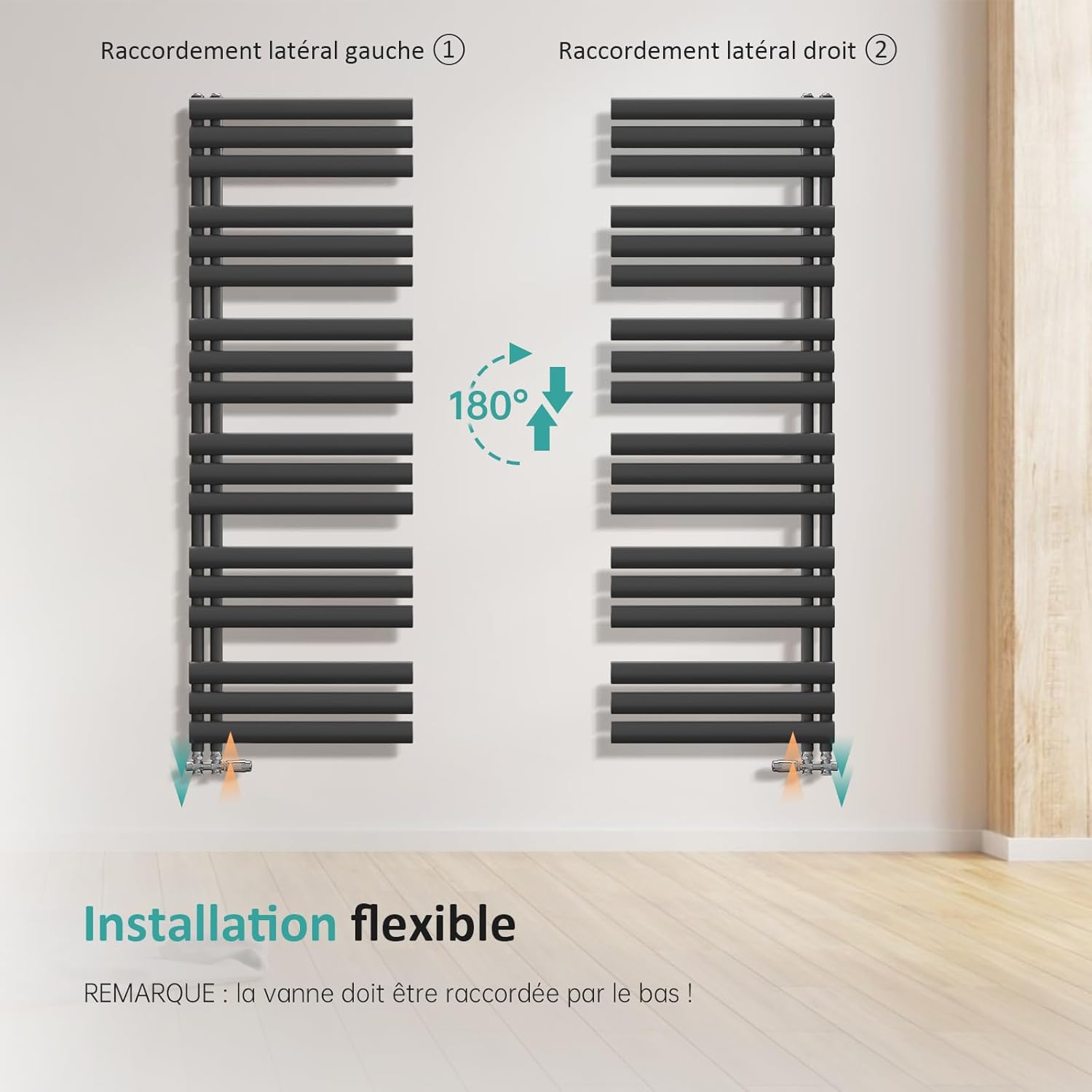

Image: Flexible installation options for the EMKE towel rail, showing left and right side connections and 180-degree rotation. The valve must be connected from below.
Image: Diagram illustrating the adjustable wall distance of 106-122mm and G1/2 inch connection with 50mm pitch, suitable for standard bathroom radiators.

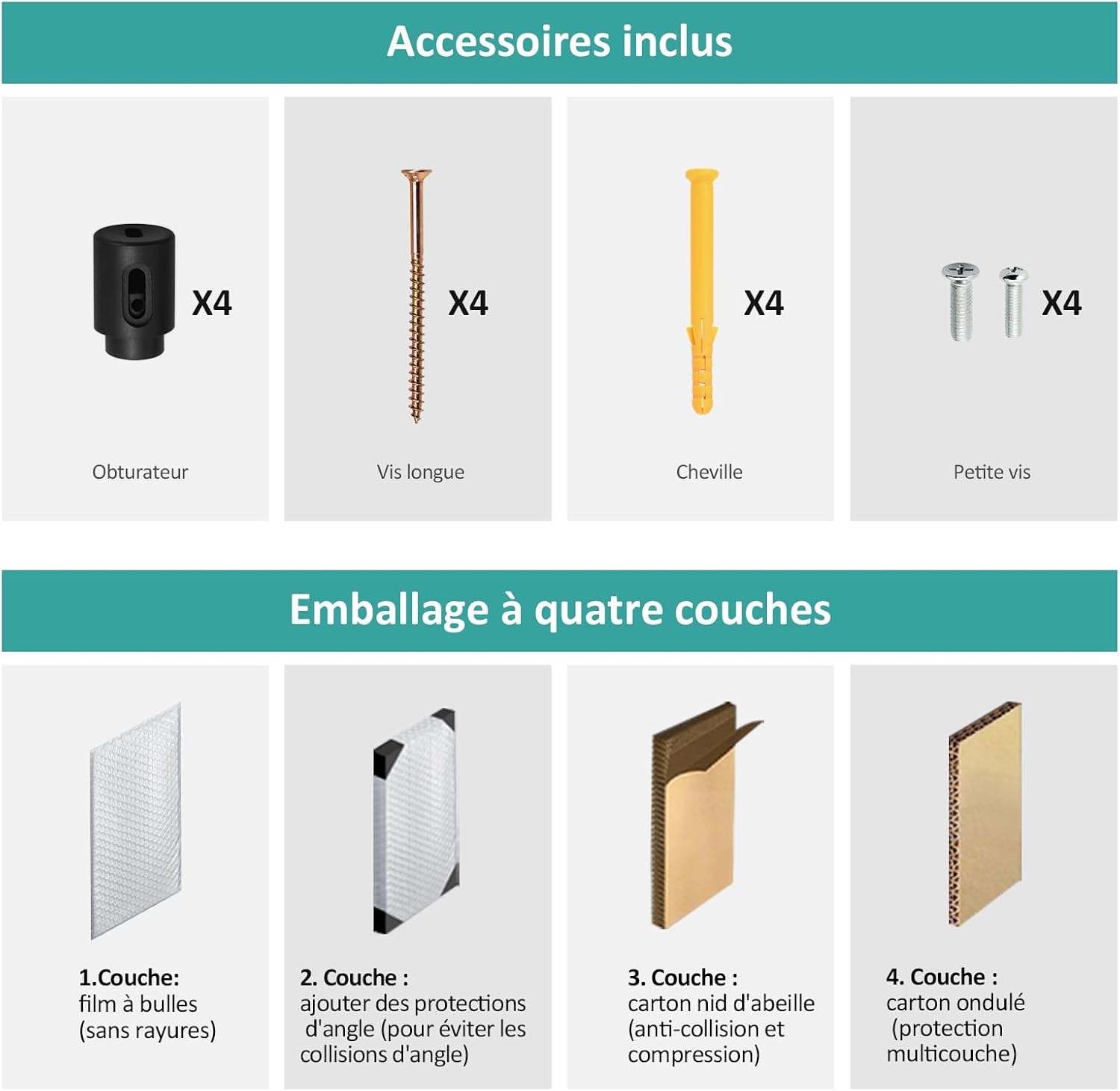

Image: Included accessories for mounting the towel rail, along with a diagram detailing the four-layer protective packaging.
Operation
This EMKE towel rail operates as part of your home's hot water central heating system. Once properly installed and connected to your heating circuit, it will heat up when your central heating is active.
- Heat Output: 823 Watts, designed to effectively heat an area of 8 m².
- Function: Provides warmth to the bathroom and efficiently dries towels.
- Rapid Heating: The oval tube design ensures quick heat-up times, contributing to energy savings.
Image: High thermal conductivity of the towel rail, providing sufficient heat for the bathroom and promoting well-being.
Image: The oval tube design provides triple heating for rapid drying compared to slower heating methods.
Maintenance
To ensure the longevity and optimal performance of your EMKE towel rail, follow these maintenance guidelines:
- Cleaning: The powder-coated surface is easy to clean. Use a soft, damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Bleeding the Radiator: Periodically check for air in the system. If the top of the towel rail feels cooler than the bottom, it may need bleeding. Consult your heating system manual or a professional for instructions on how to bleed a hot water radiator.
- Inspections: Regularly inspect connections for any signs of leaks or corrosion. Address any issues promptly.
Image: Diagram illustrating the quality materials used in the towel rail's construction, including a smooth surface, low-carbon SPCC steel, and a protective coating, ensuring durability and easy cleaning.
Troubleshooting
If you encounter issues with your EMKE Hot Water Towel Rail, consider the following common solutions:
- No Heat or Insufficient Heat:
- Ensure your central heating system is operational.
- Check if the radiator valve is fully open.
- Bleed the towel rail to release any trapped air.
- Verify that the system pressure is adequate.
- Leaks:
- Tighten any loose connections, but do not overtighten.
- If a leak persists, contact a qualified plumber.
- Unusual Noises:
- Gurgling sounds often indicate trapped air; bleed the radiator.
- Knocking sounds might suggest issues with water flow or pipework; consult a professional.
For persistent problems, please contact EMKE customer support.
Specifications
| Attribute | Value |
|---|---|
| Model | Oval Tube Hot Water Towel Rail |
| Dimensions (H x W) | 1740 x 600 mm |
| Color | Anthracite |
| Heat Output | 823 W |
| Recommended Application Area | 8 m² |
| Energy Type | Hot Water (non-electric) |
| Material | Q195 Steel |
| Finish Type | Powder Coating (AkzoNobel) |
| Installation Type | Screw-in (Wall Mounted) |
| Item Weight | 19.6 Kilograms |
| Connection Thread | G1/2" |
| Pipe Pitch | 50 mm |
| Wall Distance (Adjustable) | 106-112 mm |
| Certification | DIN EN 442 Tested |
Image: Dimensional specifications and heat output table for various EMKE towel rail models, including the 1740x600mm model.
Warranty and Support
EMKE is committed to providing high-quality products and excellent customer service.
- Returns: Enjoy a 30-day return policy.
- Guarantee: The product is covered by legal guarantees.
- Customer Support: Dedicated customer support is available to assist you with any questions or concerns.
For further assistance, please visit the official EMKE store on Amazon: EMKE Store
Image: EMKE customer support team, emphasizing that customer concerns are handled professionally.
