1. Introduction
This manual provides essential information for the safe and effective use of the Fabater BC01 Female Solar Connector. Please read these instructions carefully before installation and operation to ensure proper functionality and longevity of the product.
2. Safety Information
Always observe the following safety precautions:
- Ensure all power sources are disconnected before installation or maintenance.
- Only qualified personnel should perform electrical installations.
- Do not exceed the rated current (30A) or voltage (500V) of the connector.
- Inspect connectors for damage before use. Do not use damaged connectors.
- Keep connectors clean and free from debris.
3. Product Overview
The Fabater BC01 Female Solar Connector is designed for reliable and secure connections in solar power systems. Key features include:
- Premium PA66 Material: Constructed from premium PA66 material for durability, corrosion resistance, and long-term stability.
- High Electrical Ratings: Rated for 30A current and 500V voltage, ensuring stable performance.
- IP68 Waterproof and Dustproof: Features an IP68 rating, providing high resistance to water and dust, suitable for extreme weather and high humidity.
- Stable Locking System: Equipped with a stable embedded locking system for secure and easy connection/disconnection, simplifying assembly.
- Flame Retardant: Designed with a flame-retardant grade (UL94V-0) for enhanced safety in high-temperature environments.

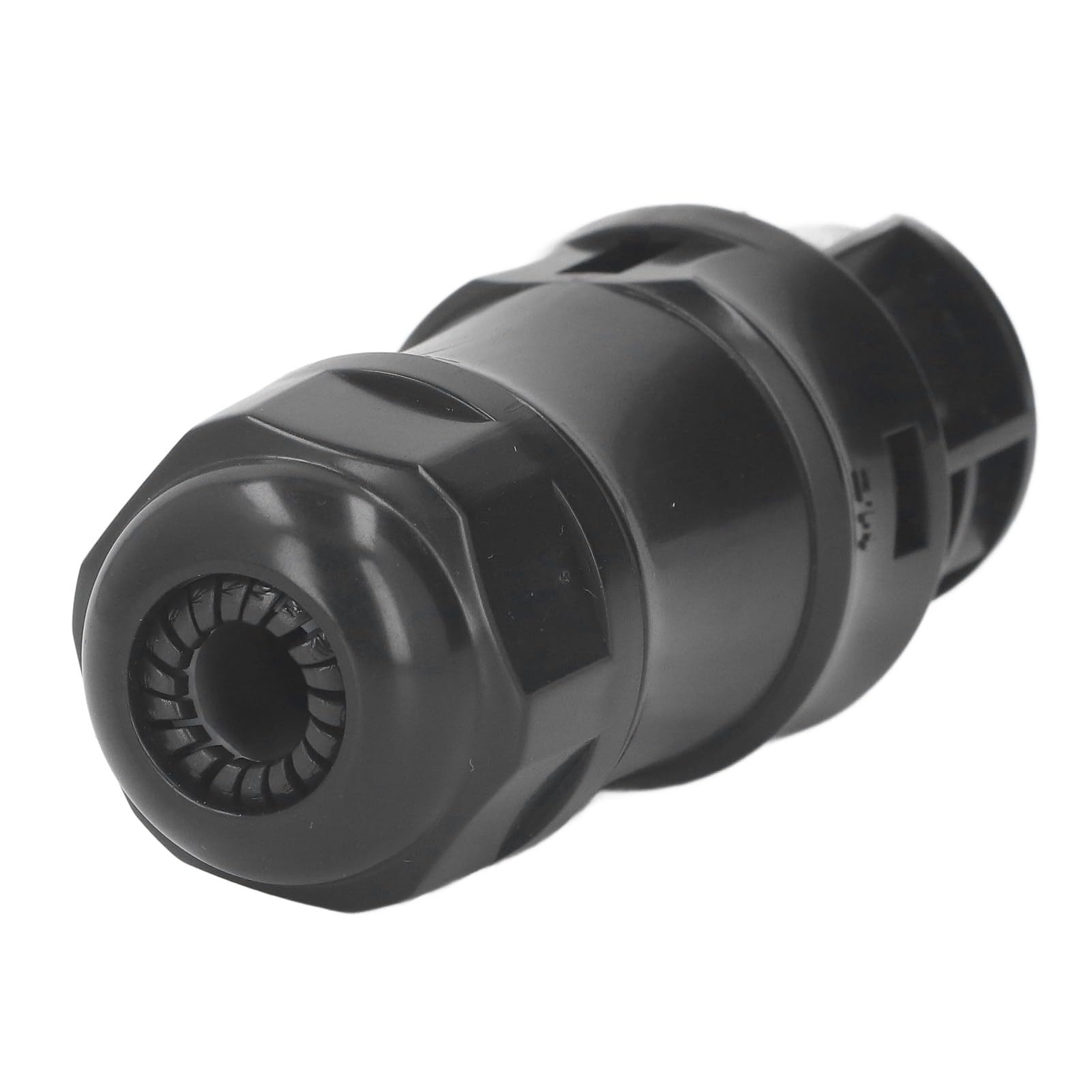

Figure 3.1: Overview of the Fabater BC01 Female Solar Connector.
Figure 3.2: Detailed view of the female connection pins.
Figure 3.3: The IP68 rating visible on the connector body, indicating its waterproof and dustproof capabilities.
4. Specifications
| Attribute | Value |
|---|---|
| Model Number | Fabateru5db2raco7 |
| Material | PA66 Nylon |
| Pin Configuration | 3 Pin |
| Rated Current | 30A AC/DC |
| Rated Voltage | 500V AC/DC |
| Protection Level | IP68 |
| Cable Specification | ≤ 4.0mm² |
| Cable Diameter | Approx. 6 ~ 14mm / 0.24 ~ 0.55in |
| Fire Rating | UL94V-0 |
| Product Dimensions | 5.9 x 3.93 x 1.18 inches |
| Item Weight | 1.76 ounces |
5. Setup and Installation
The Fabater BC01 Female Solar Connector is designed for straightforward installation. Follow these steps for a secure connection:
- Prepare Cables: Ensure your solar cables are stripped to the appropriate length for connection. The connector supports cable specifications up to 4.0mm² and diameters from 6 to 14mm.
- Insert Wires: Carefully insert the prepared wires into the designated terminals within the connector.
- Secure Connection: Utilize the stable embedded locking system to firmly secure the connection. Ensure an audible click or firm resistance indicates proper engagement.
- Verify Sealing: Confirm that the tail locking grip and sealing ring are properly tightened to ensure the IP68 waterproof and dustproof integrity.
Figure 5.1: Typical usage diagram illustrating the connection of solar panels to an inverter and then to a male connector, with the female connector being the counterpart.
Installation Videos:
Video 5.1: Demonstrates the features and general overview of the Fabater BC01 Female Solar Connector, highlighting its IP68 rating.
Video 5.2: Provides a closer look at the 3-pin female solar connector, detailing its PA66 Nylon construction and 500V rating.
6. Operation
Once installed, the Fabater BC01 Female Solar Connector operates passively as a secure electrical conduit. Ensure all connections are tight and properly sealed before energizing the solar system. The connector is designed for continuous outdoor use, providing a stable and reliable power connection.
7. Maintenance
To ensure optimal performance and longevity of your solar connector:
- Regular Inspection: Periodically inspect connectors for any signs of wear, corrosion, or damage.
- Cleaning: If necessary, gently clean the exterior of the connector with a damp cloth. Do not use harsh chemicals or abrasive materials.
- Connection Check: Verify that all connections remain tight and secure.
- Environmental Protection: While IP68 rated, avoid prolonged submersion or exposure to extreme physical stress.
8. Troubleshooting
If you encounter issues with your solar connector, consider the following:
- No Power Flow:
- Check if the connector is fully engaged and locked.
- Inspect cables for damage or improper wiring.
- Ensure the power source (solar panel) is active and producing power.
- Loose Connection:
- Disconnect power and re-engage the connector, ensuring the locking mechanism is secure.
- Verify that the cable diameter is within the specified range (6-14mm) for a snug fit.
- Water Ingress:
- Ensure the sealing ring and tail locking grip are correctly installed and tightened.
- If water is present, disconnect power immediately and allow the connector to dry completely before re-use. Replace if damage is suspected.
If problems persist, contact customer support.
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact Fabater customer service through their official channels. Keep your purchase receipt for warranty claims.
