Termignoni 96025704B Carbon Homologated Exhaust Pipe User Manual

1. Product Overview

This manual provides essential information for the proper installation, usage, and maintenance of your Termignoni 96025704B Carbon Homologated Exhaust Pipe. Designed for specific Ducati Monster models, this exhaust system offers enhanced performance and a distinctive aesthetic, while complying with homologation standards.

Compatibility: Ducati Monster S4R, Ducati Monster S4RS (45° angle)

Key Features: Carbon fiber construction, Homologated for road use.

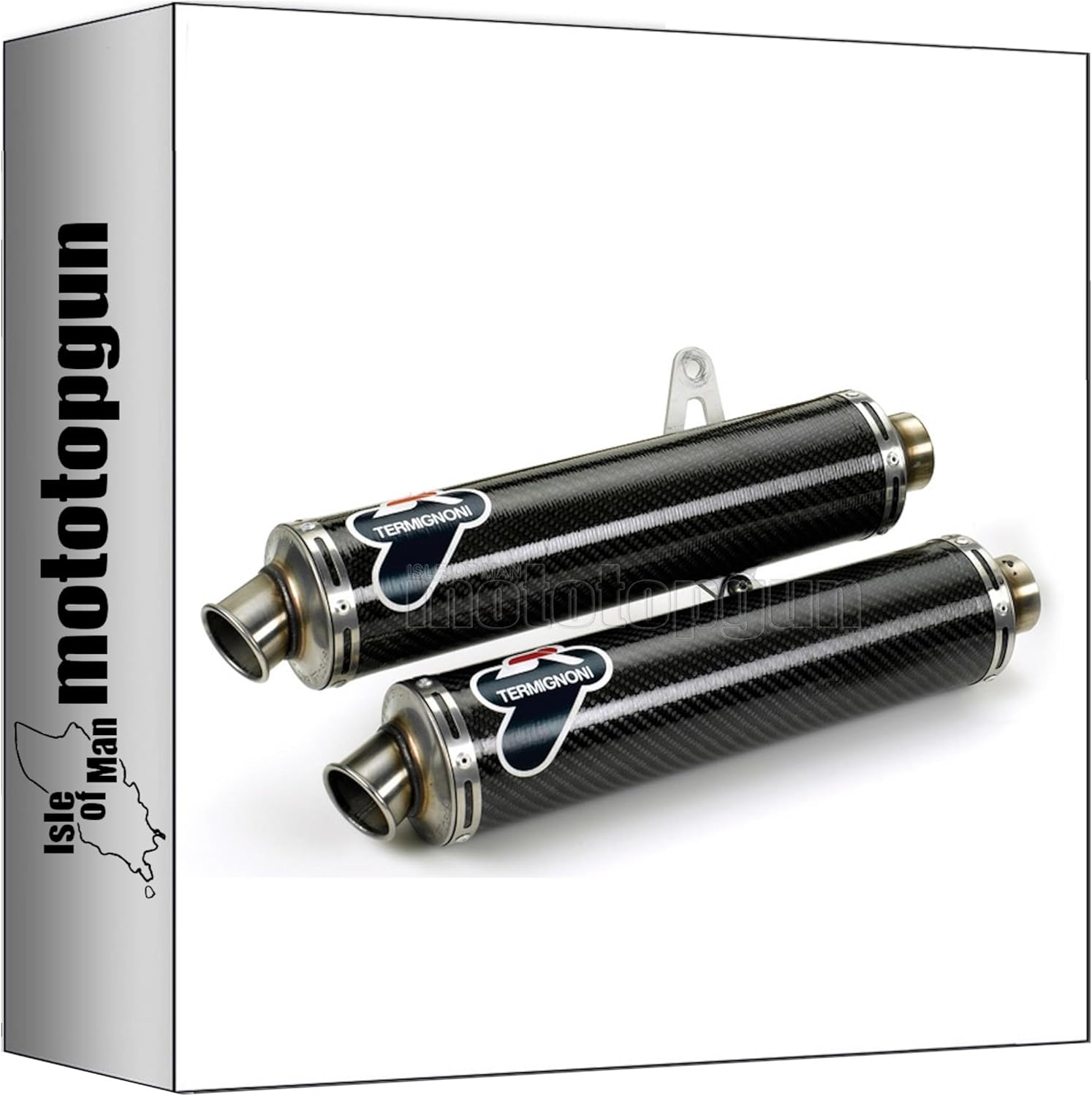

Image: The Termignoni 96025704B carbon fiber exhaust pipes, featuring the brand logo and a mounting bracket.

2. Safety Information

Always prioritize safety when working with motorcycle components. Improper installation or handling can lead to serious injury or damage to the motorcycle.

• It is highly recommended that installation be performed by a qualified professional mechanic.
• Ensure the motorcycle is cool before beginning any work on the exhaust system. Hot components can cause severe burns.
• Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• Secure the motorcycle on a stable stand to prevent it from falling during installation.
• Keep all fasteners and small parts organized to prevent loss.
• After installation, ensure all connections are secure and there are no exhaust leaks.

3. Package Contents

Please verify that all components are present and undamaged before proceeding with installation. If any items are missing or damaged, contact your retailer immediately.

• Termignoni Carbon Homologated Exhaust Pipes (2 units)
• Mounting Hardware (brackets, springs, bolts, washers, nuts)
• Installation Guide (if provided separately)
• Homologation Certificate (if provided separately)

Image: A detailed view of the two Termignoni carbon fiber exhaust pipes, highlighting the texture and finish.

4. Setup and Installation

This section provides a general overview of the installation process. Refer to any specific instructions included with your exhaust system or consult a professional.

1. Preparation: Ensure the motorcycle is off, cool, and securely placed on a stand. Disconnect the battery if necessary.
2. Remove Stock Exhaust: Carefully unbolt and remove the existing exhaust system, paying attention to gaskets and mounting points.
3. Install New Exhaust:
   • Attach the new Termignoni exhaust pipes to the motorcycle's headers using the provided clamps or springs. Do not fully tighten yet.
   • Mount the exhaust pipes to the frame using the supplied brackets and bolts. Ensure proper alignment.
   • Gradually tighten all bolts and clamps, working from the headers outwards, ensuring even pressure and a secure fit.
4. Final Checks: Inspect all connections for tightness. Ensure there is adequate clearance between the exhaust system and other motorcycle components (e.g., swingarm, fairings).
5. Leak Test: Start the engine and listen for any exhaust leaks. A soapy water solution can be sprayed on connections to identify leaks (bubbles will form).

Important: Professional installation is strongly recommended to ensure correct fitment and optimal performance.

5. Usage Considerations

After installing your new Termignoni exhaust, observe the following:

• Initial Break-in: During the first few rides, the exhaust system may emit a slight odor as manufacturing residues burn off. This is normal.
• Heat: Exhaust systems operate at very high temperatures. Avoid touching the exhaust pipes immediately after riding. Ensure no flammable materials are near the exhaust.
• Sound Level: As a homologated exhaust, it is designed to meet specific noise regulations. However, the sound profile will differ from the stock system.
• Performance: While designed for performance, optimal results may require engine tuning or ECU remapping, especially if other modifications have been made. Consult a professional for advice.

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your Termignoni exhaust system.

• Cleaning: Clean the carbon fiber surfaces regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that can damage the finish.
• Fastener Checks: Periodically check all mounting bolts, clamps, and springs for tightness. Vibrations from riding can cause fasteners to loosen over time.
• Inspect for Damage: Regularly inspect the exhaust pipes for any signs of cracks, dents, or corrosion. Address any issues promptly to prevent further damage.
• Gaskets and Seals: If any leaks are detected, inspect and replace worn gaskets or seals as necessary.

7. Troubleshooting

This section addresses common issues you might encounter with your exhaust system.

• Excessive Noise/Rattling: Check all mounting points and fasteners for looseness. Ensure springs are properly seated. Inspect for internal baffle damage.
• Exhaust Leaks: Re-tighten all connections. Inspect gaskets and seals for wear or improper seating. Replace if necessary.
• Unusual Odors: A slight burning smell is normal during the initial break-in period. Persistent strong odors may indicate a leak or contact with a foreign object.
• Performance Issues: If you experience a significant drop in performance or unusual engine behavior after installation, consult a professional mechanic. This may indicate an installation error or a need for engine tuning.

If you are unable to resolve an issue, contact a qualified mechanic or Termignoni support.

8. Specifications

Image: The official Termignoni brand logo.

9. Warranty and Support

This Termignoni exhaust system comes with a 2 Years Warranty from the date of purchase. This warranty covers manufacturing defects under normal use.

For warranty claims, technical support, or inquiries regarding your product, please contact your authorized Termignoni dealer or the retailer from whom you purchased the product. Ensure you have your proof of purchase and product model number (96025704B) available.

For general information or to locate an authorized dealer, please visit the official Termignoni website.
