1. Important Safety Information
Before operating your Arwibon Q30 Pro Electric Scooter, please read this manual thoroughly and understand all safety warnings and instructions. Failure to follow these instructions may result in serious injury or property damage.
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads, gloves) when riding.
- Do not ride in wet conditions, heavy rain, or through puddles.
- Ensure all bolts and fasteners are tightened before each ride.
- Observe local traffic laws and regulations.
- This scooter is designed for adults. The maximum load capacity is 264 pounds (120 kg). Do not exceed this limit.
- Avoid riding on steep inclines exceeding 35 degrees.
- Do not perform stunts or sudden maneuvers.
- Keep both hands on the handlebars while riding.
- Familiarize yourself with the braking system and practice braking in a safe, open area.
- The scooter is equipped with powerful headlights and rear lights for visibility. Use them during low-light conditions.
2. Product Overview
The Arwibon Q30 Pro is a high-performance electric scooter designed for both urban commuting and off-road adventures. It features a powerful motor, long-range battery, and robust suspension system.
Key Features:
- Motor: 2500W for powerful acceleration and speed.
- Speed: Up to 40 MPH (64 km/h).
- Range: Up to 40 miles (64 km) on a single charge.
- Tires: 11-inch vacuum off-road tires for various terrains.
- Suspension: Dual spring shock absorbers for a smooth ride.
- Braking System: Dual disc brakes for responsive stopping power.
- Folding Design: Convenient 1-second folding mechanism for portability.
- Lighting: Powerful headlights, taillights, turn signals, and brake lights for enhanced safety.
Image: Arwibon Q30 Pro Electric Scooter highlighting its 2500W motor, 34-40MPH top speed, 25-35° climbing grade, and 260 lbs maximum load capacity.
Image: Arwibon Q30 Pro Electric Scooter showing its 52V18AH battery, 6-8 hours charging time, and 28-40 miles range.
Image: Arwibon Q30 Pro Electric Scooter emphasizing its off-road pneumatic tires and four spring shocks for smooth rides.
3. What's in the Box
Upon unpacking, please ensure all items are present and in good condition:
- Arwibon Q30 Pro Electric Scooter
- Charger
- Tool kit
- Brake pads (spare)
- Rear Fender
- User Manual (this document)
4. Setup and Assembly
Your Arwibon Q30 Pro Electric Scooter comes mostly pre-assembled. Follow these steps to prepare it for its first ride:
- Unfolding the Scooter:
Carefully lift the handlebar stem until it locks into the upright position. Ensure the folding mechanism is securely latched. You may need to press a release lever or button to unlock the stem for unfolding.
- Handlebar Adjustment:
Adjust the height of the handlebars to a comfortable riding position. Loosen the quick-release clamp, extend or retract the stem, and then securely tighten the clamp.
- Initial Charge:
Before your first ride, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The charging indicator on the charger will typically change color (e.g., red to green) when fully charged. Charging time is approximately 7 hours.
- Tire Pressure Check:
Verify that the tire pressure is within the recommended range. Refer to the tire sidewall for specific pressure recommendations. Proper tire pressure ensures optimal performance and safety.
- Brake Check:
Test both front and rear brakes to ensure they are functioning correctly and provide adequate stopping power. Adjust if necessary (refer to maintenance section or seek professional assistance).
Image: Arwibon Q30 Pro Electric Scooter demonstrating its convenient folding design, stored in a car trunk.
5. Operating Instructions
Follow these steps for safe and effective operation of your scooter:
- Power On/Off:
Press and hold the power button on the display to turn the scooter on or off.
- Starting the Ride:
Place one foot on the deck and push off with the other foot to gain initial momentum. Once moving, gently press the throttle to engage the motor.
- Acceleration:
Use the thumb throttle to control your speed. Apply gentle pressure for smooth acceleration.
- Braking:
To slow down or stop, gently squeeze the brake levers on the handlebars. The scooter is equipped with dual disc brakes for effective stopping.
- Lights and Signals:
Use the headlight switch to turn on the front light for visibility. Activate the turn signals when changing direction. The rear brake light will illuminate when braking.
- Horn:
Use the horn to alert pedestrians or other riders of your presence.
- Gear Shifter:
The gear shifter allows you to select different speed modes (if applicable) for varying riding conditions.
Image: Close-up view of the Arwibon Q30 Pro Electric Scooter's handlebar, showing the voltage display, battery level, turn signal, speed display, throttle, keyhole, gear shifter, headlight switch, rear wheel brake lever, and horn.

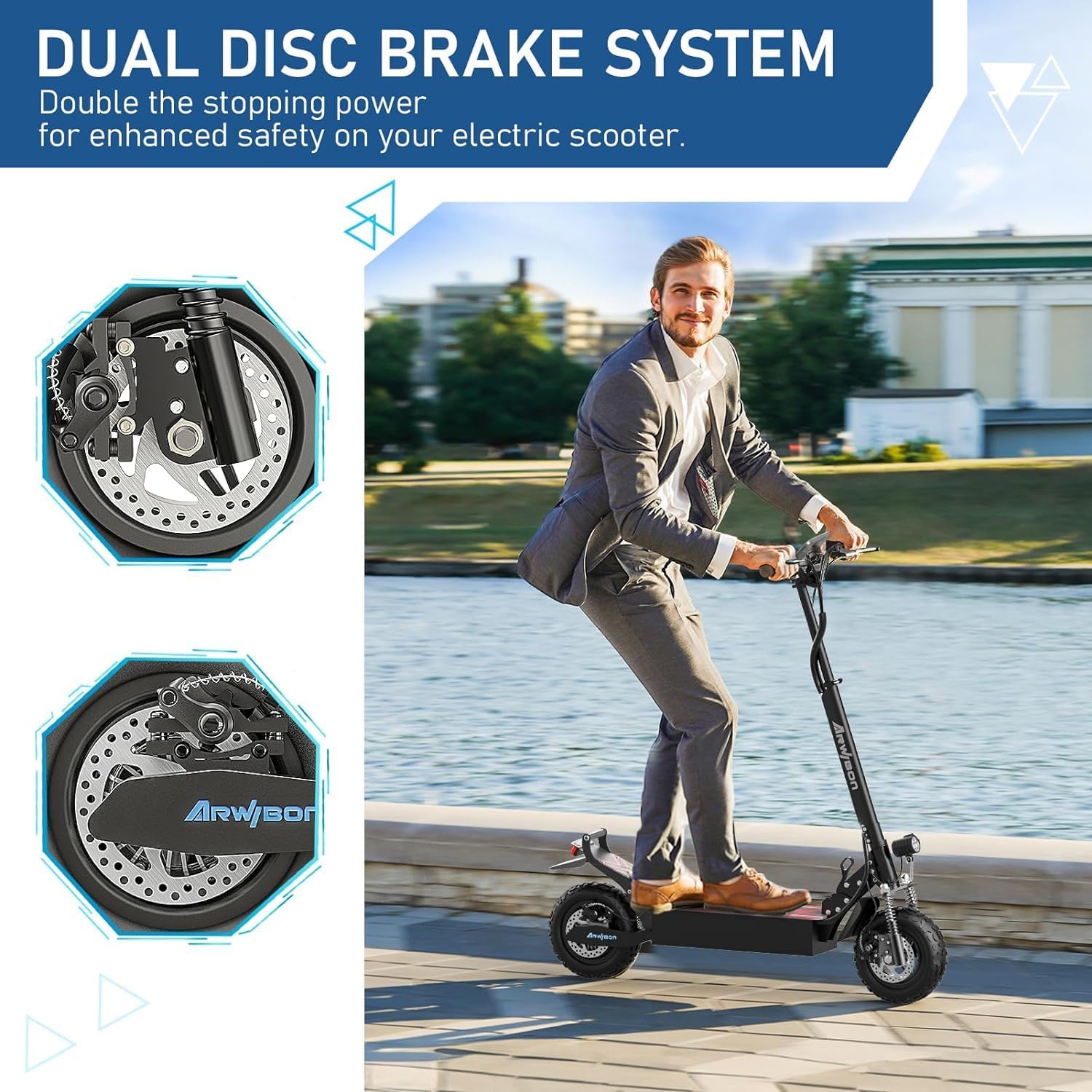

Image: Diagram illustrating the dual disc brake system on the Arwibon Q30 Pro Electric Scooter, highlighting the front and rear disc brakes for enhanced safety.

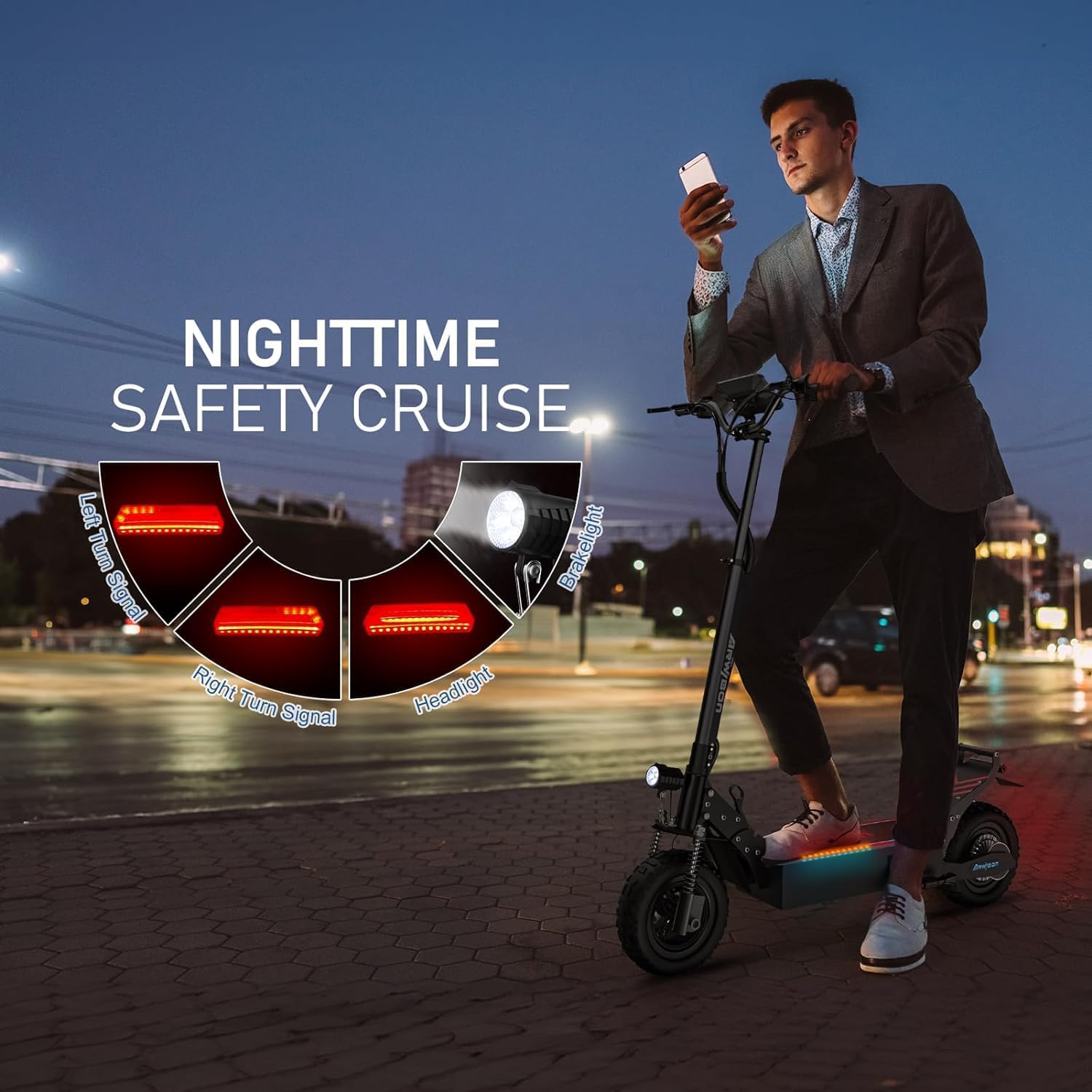

Image: Arwibon Q30 Pro Electric Scooter being ridden at night, showcasing its powerful headlight, left and right turn signals, and brake light for nighttime safety.
Video: An official product video demonstrating the Arwibon Q30 Pro Electric Scooter in various environments, highlighting its features and maneuverability.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter:
- Cleaning: Wipe down the scooter with a damp cloth after each ride. Avoid using high-pressure water jets directly on electrical components.
- Tire Care: Regularly check tire pressure and inflate to the recommended PSI. Inspect tires for wear and tear, and replace if necessary.
- Brake System: Periodically check brake pads for wear. If braking performance decreases, inspect and adjust the brakes or replace pads.
- Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Avoid fully discharging the battery. Store the scooter in a cool, dry place.
- Fasteners: Check all screws and bolts periodically and tighten any that have become loose.
- Storage: When storing for extended periods, ensure the battery is charged to about 50-70% and store in a dry, temperature-controlled environment.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low battery, loose connections, power button issue. | Charge the battery. Check all visible cable connections. Ensure the power button is pressed correctly. |
| Motor not engaging or weak power. | Low battery, loose motor cable, throttle malfunction. | Charge the battery. Check motor cable connections. Contact support if throttle is unresponsive. |
| Brakes feel loose or ineffective. | Worn brake pads, loose brake cable, misaligned calipers. | Inspect brake pads and replace if worn. Adjust brake cable tension. Seek professional help for caliper alignment. |
| Unusual noises during operation. | Loose components, debris in wheels, motor issue. | Inspect the scooter for loose parts and tighten. Check wheels for obstructions. If noise persists, contact support. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.
8. Specifications
Detailed technical specifications for the Arwibon Q30 Pro Electric Scooter:
| Feature | Specification |
|---|---|
| Brand | Arwibon |
| Model Name | Arwibon Q30 Pro |
| Motor Power | 2500W |
| Maximum Speed | Up to 40 MPH |
| Maximum Distance Range | Up to 40 Miles |
| Charging Time | 7 Hours |
| Weight Limit | 264 Pounds (120 kg) |
| Climbing Grade | Up to 35° |
| Wheel Size | 11 Inches |
| Wheel Type | Vacuum Off-Road |
| Suspension Type | Dual Suspension |
| Brake Style | Dual Disc Brake |
| Frame Material | Aluminum |
| Product Dimensions (LxWxH) | 50"L x 10.6"W x 20"H |
| Item Weight | 77 Pounds (35 kg) |
| Special Feature | Dual Braking System, Foldable |
| Age Range (Description) | Adult |
| UL Certified | UL2272 Electrical System |
Image: Arwibon Q30 Pro Electric Scooter with key dimensions (50 inches length, 43-50 inches adjustable height) and UL2272 certification logo.
9. Warranty and Support
Warranty: The Arwibon Q30 Pro Electric Scooter comes with a 12-month limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
Customer Support: For any questions, technical assistance, or warranty claims, please contact Arwibon customer service. You can message us on Amazon for quick replies and support regarding replacement parts or other inquiries.
We aim to provide 24-hour quick replies to resolve your problems as soon as possible.
Replacement parts can be obtained by messaging us on Amazon; we will provide the necessary links.
