1. Introduction
Thank you for choosing the Devoko Outdoor Trampoline. This manual provides essential information for the safe assembly, operation, and maintenance of your trampoline. Please read it thoroughly before use to ensure the safety and enjoyment of all users.

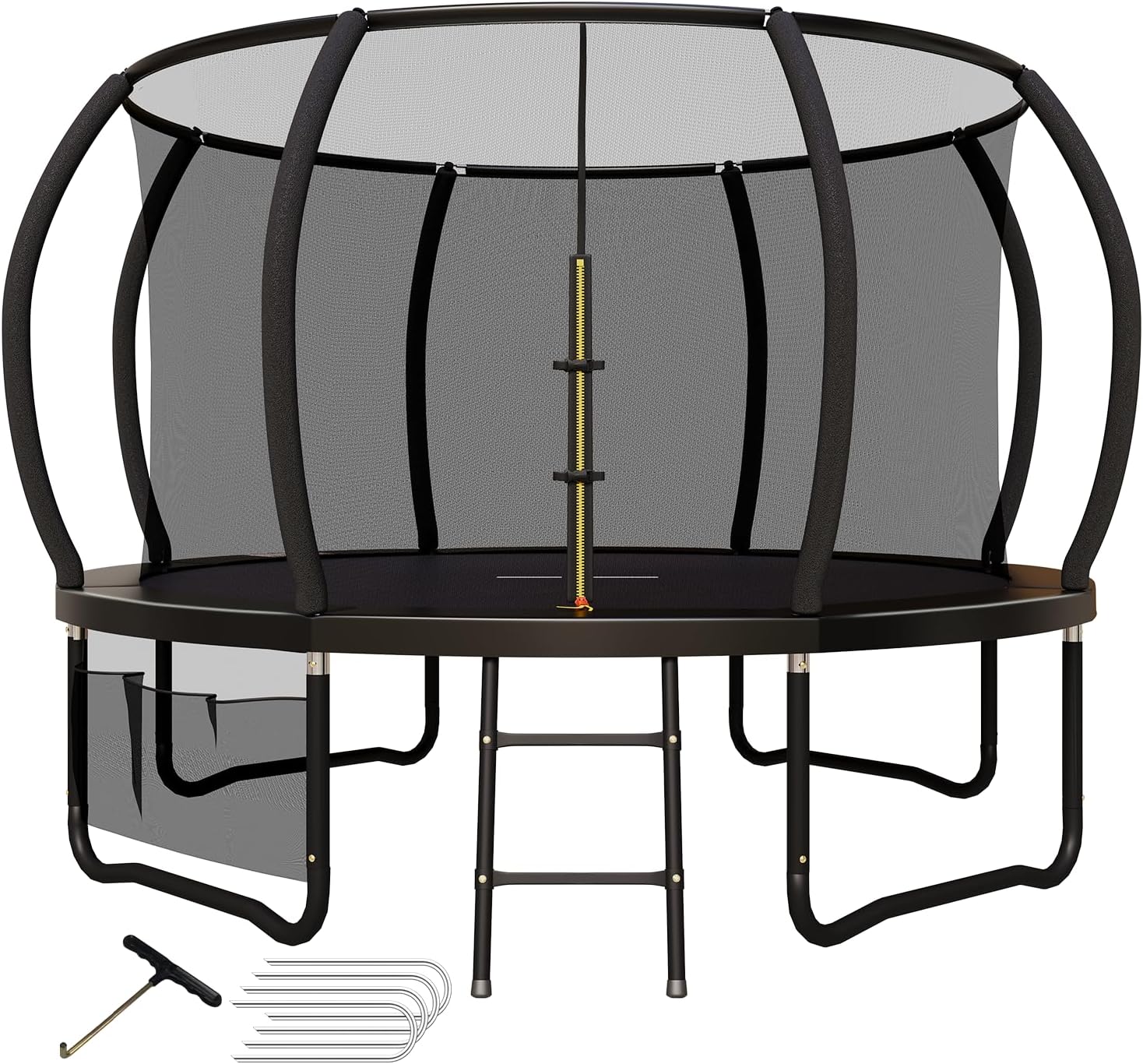

Image 1.1: Devoko Outdoor Trampoline (Black, 305 cm / 10 FT)
2. Safety Information
Your safety is our top priority. The Devoko trampoline is designed with advanced safety features and complies with European safety standards EN71-1:2014+A1:2018, EN71-2:2020, EN71-3:2019+A1:2021, and EN71-14:2018.
Key Safety Features:
- New Generation Curved Bars: Designed to protect users from accidents or injuries by providing a safer enclosure.
- High-Quality Safety Net: Made of 90 g/m² PET material, durable and wear-resistant, protecting users from falls.
- UV-Resistant Jumping Mat: Made of polypropylene (PP) with excellent elasticity and rebound properties, built to withstand impacts.
- Galvanized Frame & Powder-Coated Legs: Prevents rust and ensures long-term durability.
- Waterproof Thick Foam Padding: Enhances safety and extends product life.
- Maximum Weight Capacity: 150 kg (330 lbs). Do not exceed this limit.
Image 2.1: Safety features including curved poles and secure enclosure.
Image 2.2: Overview of safety components and weight capacity.
3. Setup and Assembly
The Devoko trampoline is designed for quick and easy installation. Your package includes a comprehensive installation manual, ground anchors, gloves, and tools for spring installation.
Assembly Steps:
- Step 1: Assemble the Base Frame. Connect the metal frame components to form the circular base.
- Step 2: Attach the Jumping Mat and Springs. Secure the jumping mat to the frame using the provided springs and spring tool. Ensure all springs are correctly attached and tensioned.
- Step 3: Install the Safety Enclosure. Erect the safety poles and attach the safety net. Ensure the net is securely fastened to the jumping mat and poles.
For visual guidance, please refer to the included installation video (if applicable) and the detailed diagrams in the printed manual.
Image 3.1: Simplified three-step assembly process.
Image 3.2: Details of the stable frame and support structure.
Image 3.3: Ground anchors and stable base structure for enhanced stability.
Note: The safety poles are designed for easy removal in approximately 1 minute to prevent damage in case of strong winds. Always secure the trampoline with ground anchors, especially in windy conditions.
4. Operating Instructions
The Devoko trampoline provides a safe and fun outdoor play area for children of all ages. To ensure a safe experience, please adhere to the following guidelines:
- Only one person should jump at a time to prevent collisions.
- Always enter and exit the trampoline using the provided ladder.
- Ensure the safety net zipper and buckles are securely closed before jumping.
- Do not attempt somersaults or other dangerous maneuvers without proper training and supervision.
- Remove shoes, jewelry, and any sharp objects before using the trampoline.
- Supervise children at all times when the trampoline is in use.
Image 4.1: Emphasizing the super bouncy mat and safety features for enjoyable use.
Image 4.2: Highlighting the mat's resistance to water, tearing, and UV rays.
5. Maintenance
Regular maintenance will extend the life of your Devoko trampoline and ensure continued safety.
- Regular Inspection: Periodically check all components for wear, damage, or loose connections. Pay close attention to the frame, springs, jumping mat, safety net, and padding.
- Cleaning: Clean the jumping mat and safety net with mild soap and water. Avoid harsh chemicals that could damage the materials.
- Rust Prevention: The galvanized frame and powder-coated legs are designed to resist rust. However, ensure proper drainage around the trampoline and wipe down any standing water to further prevent corrosion.
- Weather Protection: In extreme weather conditions (e.g., strong winds, heavy snow), it is recommended to disassemble the safety net and poles, or even the entire trampoline, to prevent damage.
- Storage: If storing the trampoline for an extended period, disassemble it and store components in a dry, protected area.
Image 5.1: Details on anti-rust treatment and robust frame construction.
6. Troubleshooting
This section addresses common issues you might encounter with your trampoline.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trampoline feels unstable. | Loose frame connections, uneven ground, insufficient anchoring. | Check all bolt connections and tighten if necessary. Ensure the trampoline is on level ground. Use all provided ground anchors. |
| Jumping mat has reduced bounce. | Damaged or stretched springs, worn jumping mat. | Inspect all springs for damage or stretching; replace as needed. Check the jumping mat for tears or excessive wear. |
| Safety net is sagging or torn. | Loose attachments, material wear, accidental damage. | Ensure all net attachments to poles and mat are secure. Inspect for tears and repair or replace the net if damaged. |
7. Specifications
Detailed specifications for the Devoko Outdoor Trampoline (Model GSD10FTK).
| Feature | Specification |
|---|---|
| Model Number | GSD10FTK |
| Color | Black |
| Size | 305 cm / 10 FT |
| Frame Material | Metal (Galvanized Steel) |
| Main Material | Polyethylene + Steel |
| Shape | Round |
| Maximum Weight Capacity | 150 Kilograms (330 lbs) |
| Number of Springs | 60 |
| Included Components | Gloves, Spring Tool, Ground Anchors, Ladder |
| Certifications | GS Certified (EN71-1:2014+A1:2018, EN71-2:2020, EN71-3:2019+A1:2021, EN71-14:2018) |
Image 7.1: Available trampoline sizes and their respective dimensions.
8. Warranty and Support
Devoko stands behind the quality of its products.
- Warranty: We offer a 5-year warranty on this product.
- Returns: Enjoy a 30-day free return policy.
- Customer Support: In case of any issues or questions, please contact us. We commit to responding within 24 hours.
For further assistance, please refer to the contact information provided with your purchase or visit the official Devoko website.
