1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your Sunco 6 Pack 2W Solar Sidewalk Path Lights. These solar-powered lights are designed for outdoor use, offering 100 lumens of brightness and selectable color temperatures (3000K, 5000K, 7000K) with automatic dusk-to-dawn functionality.
Image: Overview of the Sunco LED Solar Sidewalk Light highlighting its features.
2. Product Features
- Solar-Powered Operation: Utilizes solar energy for charging, eliminating the need for external wiring or power sources.
- 3-in-1 Color Temperature (3CCT): Offers selectable color temperatures of 3000K (Warm White), 5000K (Cool White), and 7000K (Daylight) to suit various preferences.
- Dusk-to-Dawn Functionality: Equipped with a built-in photocell sensor that automatically turns the lights on at dusk and off at dawn.
- Weather-Resistant Design: Constructed with durable plastic and rated IP65 for protection against dust and water ingress, suitable for outdoor environments.
- Brightness: Provides 100 lumens of illumination per light unit.
- Integrated CCT Switch: Allows for easy selection of desired color temperature.
- Adjustable Height: Includes extension poles for customizable height during installation.
Image: Sunco solar path lights demonstrating the three selectable color temperature options.
3. Package Contents
Verify that all components are present in your package:
- 6 x Solar Path Light Heads
- 6 x Upper Pole Segments
- 6 x Lower Pole Segments
- 6 x Ground Stakes
- 1 x Instruction Manual
4. Important Safety Information
- This product is designed for outdoor use only. Do not install indoors.
- Ensure the installation location does not create a tripping hazard.
- Do not attempt to disassemble, repair, or modify the light unit. This may void the warranty and pose a safety risk.
- Keep the solar panel clean to ensure optimal charging efficiency.
- Avoid placing the lights near open flames or sources of extreme heat.
- Dispose of the lithium-ion battery in accordance with local regulations.
5. Setup and Installation
5.1. Assemble the Light Unit
Connect the pole segments together, then attach them to the light head. You can use one or both pole segments to adjust the height of the light.
Image: Visual guide for connecting the pole and light head.
5.2. Select Color Temperature (CCT)
Locate the CCT switch on the underside of the light head. Slide the switch to select your desired color temperature: 3000K (Warm White), 5000K (Cool White), or 7000K (Daylight).
Image: Demonstrating the selectable CCT switch and its effect on light color.
5.3. Optimal Placement for Solar Charging
For optimal performance, place the solar path lights in an area that receives direct sunlight for at least 6-8 hours daily. Avoid shaded areas caused by trees, buildings, or other obstructions. Also, ensure the lights are not placed directly under streetlights or other strong light sources, as this may interfere with the dusk-to-dawn sensor and prevent the lights from activating.
Image: Guide for proper light placement to ensure effective solar charging and operation.
5.4. Secure in Ground
Attach the ground stake to the bottom pole segment. Firmly push the assembled light into the soil. Ensure the light is stable and upright.
6. Operating Instructions
6.1. Automatic Dusk-to-Dawn Functionality
Once installed and exposed to sunlight, the lights will automatically charge during the day. At dusk, the built-in photocell sensor will detect low light conditions and activate the lights. They will remain illuminated throughout the night and turn off automatically at dawn.

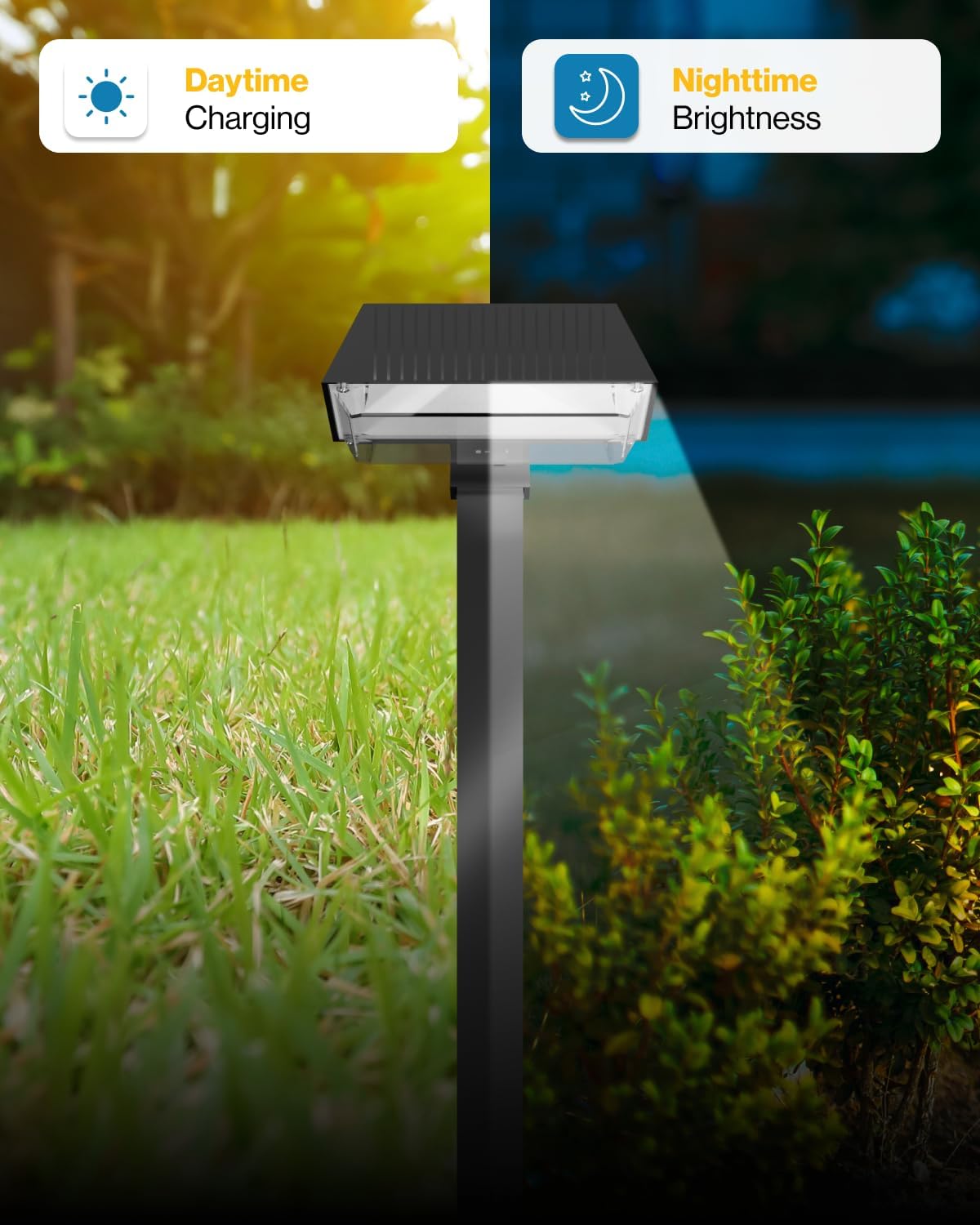

Image: Illustration of the light's automatic charging during the day and illumination at night.
6.2. Adjusting Color Temperature
The color temperature can be changed at any time using the CCT switch located on the light head. Adjust the switch to cycle between 3000K, 5000K, and 7000K to achieve your desired lighting effect.
Image: Close-up view of the solar light demonstrating the three distinct color temperature outputs.
7. Maintenance
- Cleaning: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, and debris. A clean solar panel ensures maximum charging efficiency.
- Inspection: Periodically check the lights for any signs of damage or wear. Ensure the ground stakes are firmly in place.
- Weather Resistance: The lights are designed to be weatherproof (IP65 rated), but extreme weather conditions may affect performance. Ensure proper drainage around the base of the lights.
Image: The solar path light shown enduring rain, highlighting its weatherproof construction.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | Insufficient solar charge; light sensor activated by other light sources. | Ensure the solar panel receives 6-8 hours of direct sunlight daily. Relocate the light away from streetlights or other bright lights. |
| Light is dim or turns off too early. | Inadequate solar charging; dirty solar panel; battery degradation. | Clean the solar panel. Ensure optimal sun exposure. If the issue persists after prolonged charging, the battery may need replacement (contact support). |
| Light flickers. | Loose connection; low battery charge. | Check all pole connections. Ensure the light receives sufficient solar charge. |
9. Technical Specifications
| Feature | Detail |
|---|---|
| Model Number | GD_BC2_SR-BK-3070K-6PK |
| Brightness | 100 Lumens |
| Wattage | 2 Watts |
| Color Temperature | 3000K / 5000K / 7000K (Selectable) |
| Power Source | Solar (DC) |
| Battery Type | 1 Lithium Ion (2000 mAh) |
| Material | Plastic |
| Water Resistance Level | IP65 (Waterproof) |
| Product Dimensions | 14.57"L x 13.46"W x 5.6"H |
| Item Weight | 12.8 ounces |
| Beam Angle | 110° |
| Efficiency | 50 LM/W |
| UPC | 840360610972 |

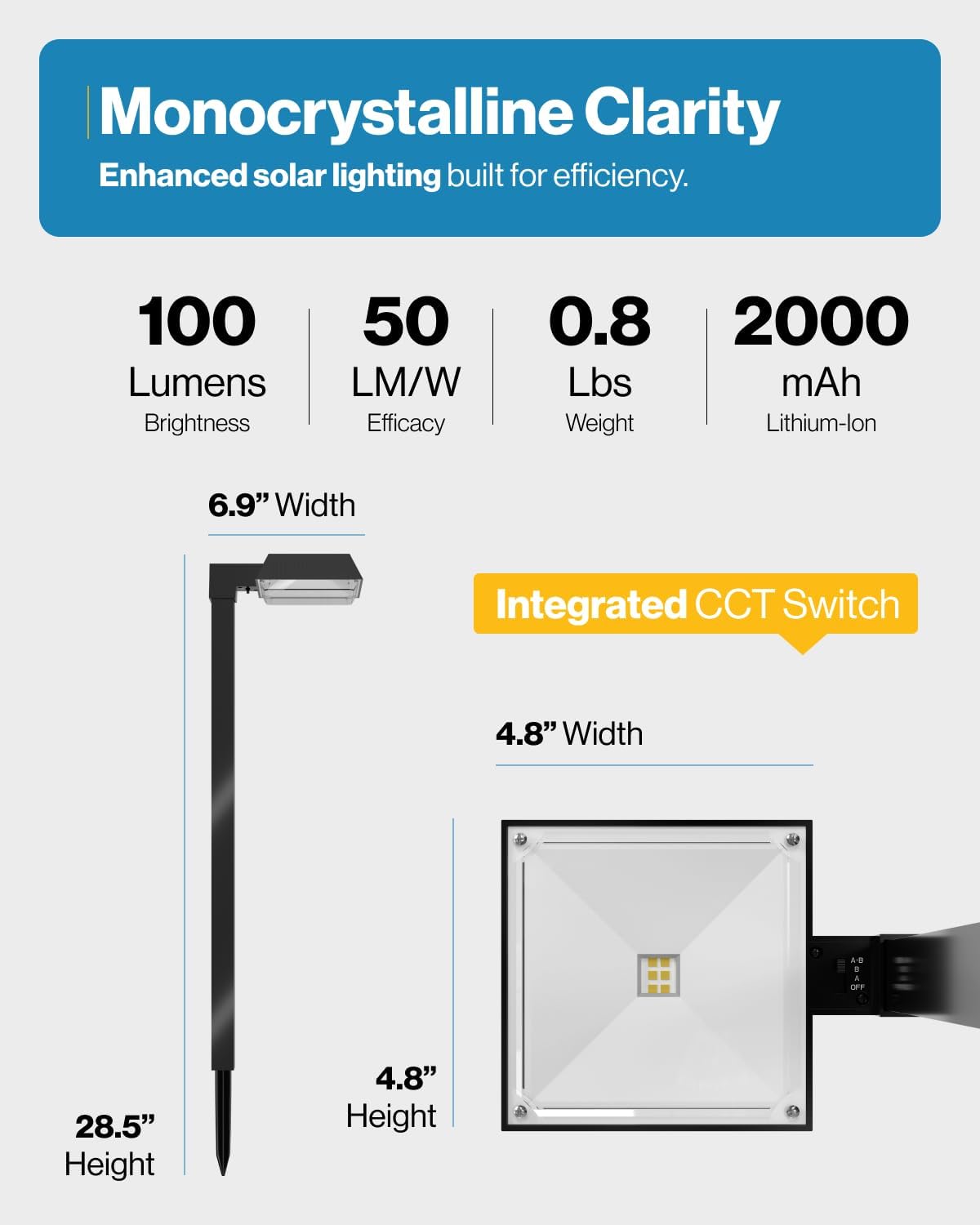

Image: Detailed dimensions and key technical specifications of the solar path light.
10. Warranty and Customer Support
Sunco Lighting provides a 1-Year Warranty for this product, ensuring quality and reliability. For any questions, technical assistance, or warranty claims, please contact our USA-based support specialists.
Product Overview Video
Video: An overview of the Sunco Selectable Solar Sidewalk Light, demonstrating its features and functionality.
