Introduction
Thank you for choosing the SINKVINE PVD Nano Stainless Steel Undermount Kitchen Sink. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new sink. Please read these instructions thoroughly before beginning installation or use, and retain this manual for future reference.

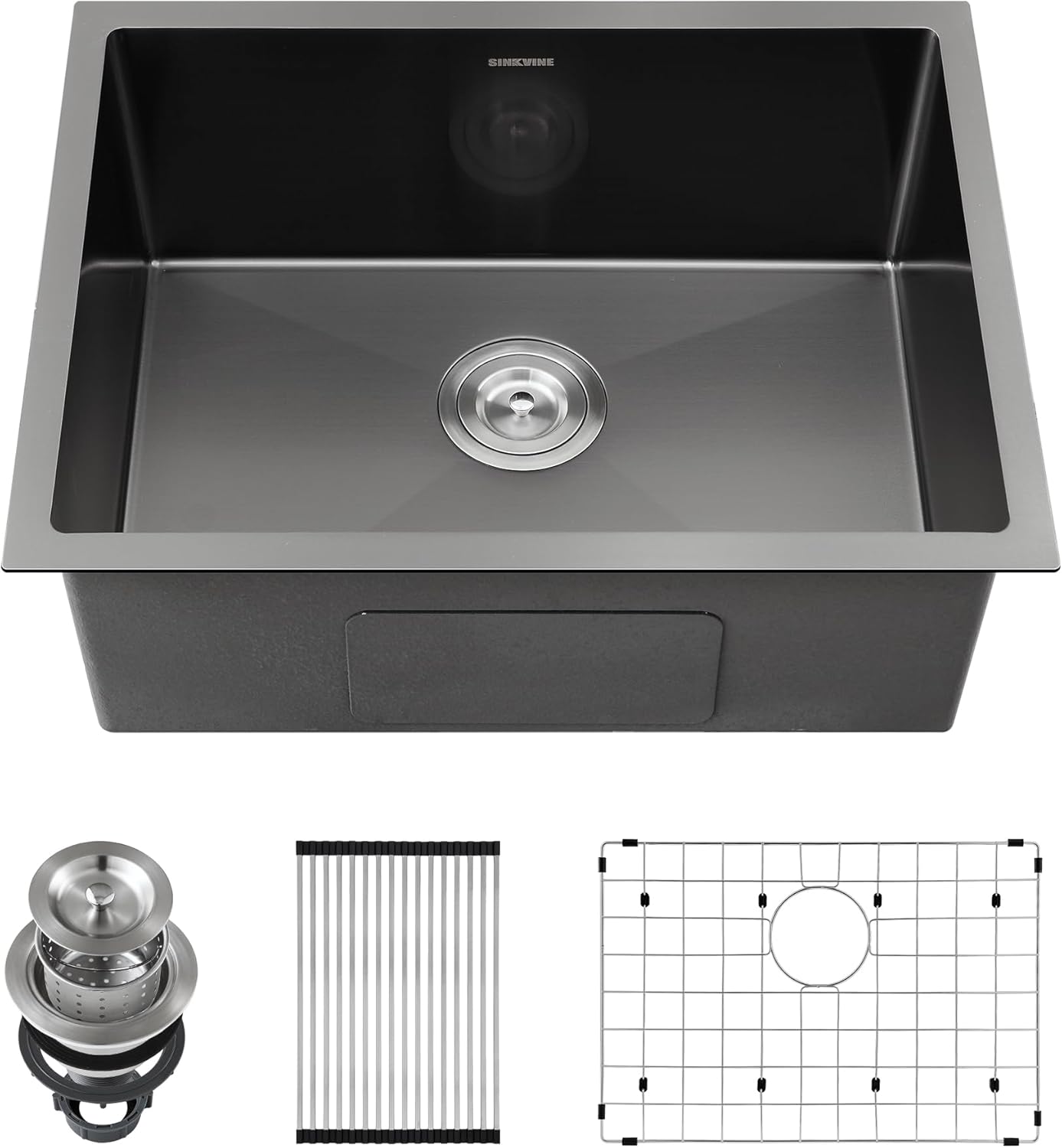

Figure 1: SINKVINE 22x18 inch Undermount Kitchen Sink with accessories.
Safety Information
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure the installation area is clear and well-lit.
- Turn off the main water supply before beginning any plumbing work.
- If you are unsure about any step of the installation process, consult a qualified professional plumber or installer.
- Handle the sink with care to avoid damage or injury due to its weight and size.
Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- SINKVINE Undermount Kitchen Sink (Model SVU221809RB0)
- Stainless Steel Basket Strainer Drain Assembly
- Protective Bottom Rinse Grid
- Roll-up Drying Rack
- Installation Guide
- Cut-out Template
- Mounting Clips

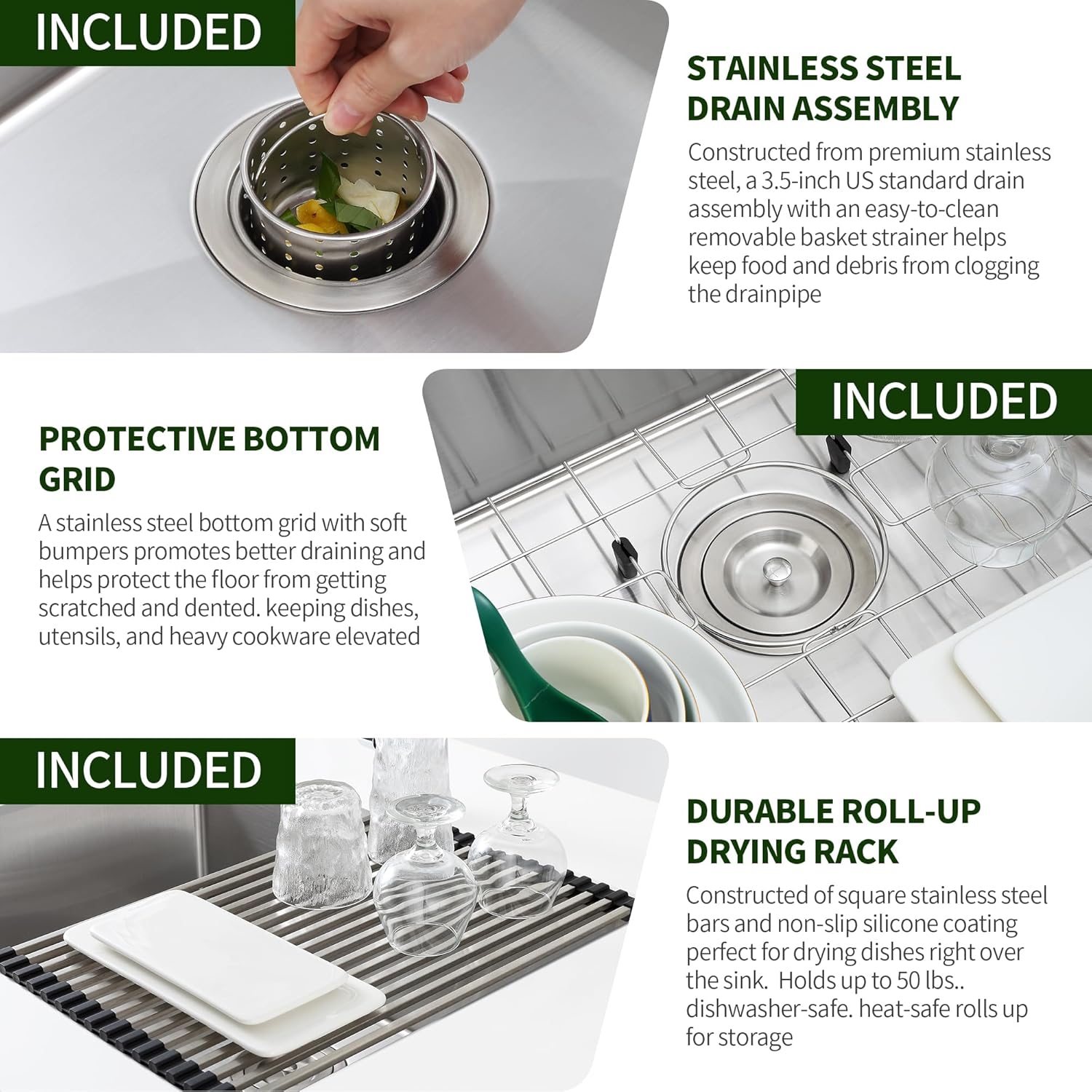

Figure 2: Included accessories: Drain Assembly, Bottom Grid, and Roll-up Drying Rack.
Setup and Installation
This section outlines the steps for properly installing your SINKVINE undermount sink.
1. Pre-Installation Checks
- Cabinet Size: Ensure your base cabinet is at least 25 inches wide to accommodate the sink. The cabinet base size should be at least 3 inches wider than the sink (left to right).
- Countertop Cutout: Use the provided cut-out template to mark and cut the countertop opening. The internal dimensions (cutout size) are 20 inches (wide) x 16 inches (front-to-back).
Figure 3: Guide for selecting the correct sink size and cabinet requirements.
Figure 4: Detailed dimensions of the SINKVINE SVU221809RB0 sink.
2. Installation Steps
- Prepare Countertop: Using the provided template, mark and cut the opening in your countertop. Ensure edges are smooth and clean.
- Apply Sealant: Apply a continuous bead of silicone sealant around the rim of the sink.
- Position Sink: Carefully lift the sink and align it with the countertop opening from underneath. Press firmly to ensure good adhesion.
- Secure with Clips: Attach the mounting clips to the underside of the countertop and tighten them evenly to secure the sink in place. Wipe away any excess sealant.
- Install Drain Assembly: Install the basket strainer drain assembly into the sink's drain opening according to its specific instructions. The standard 3.5-inch drain opening is compatible with most garbage disposal units.
- Connect Plumbing: Connect the drain assembly to your household plumbing system. Ensure all connections are watertight.
- Test for Leaks: Turn on the water supply and check for any leaks around the sink rim and plumbing connections.
Operating Instructions
Your SINKVINE undermount sink is designed for versatile use in kitchens, bars, RVs, or laundry areas.
1. General Use
- The deep single bowl design (9-inch depth) provides ample space for washing large items and minimizes splashing.
- The X-shaped sloped bottom with drain grooves facilitates fast water drainage, preventing water pooling.
Figure 5: X-shaped drainage for efficient water removal.
2. Using Accessories
- Basket Strainer Drain: Place the basket strainer in the drain opening to catch food debris and prevent clogs. It is easily removable for cleaning.
- Bottom Rinse Grid: Position the protective bottom grid at the base of the sink. This elevates dishes and cookware, protecting the sink surface from scratches and dents while promoting better drainage.
- Roll-up Drying Rack: Unroll the drying rack over the sink for air-drying dishes, fruits, or vegetables. It can support up to 50 lbs and is dishwasher-safe. Roll it up for compact storage when not in use.
Maintenance
Proper care will ensure the longevity and appearance of your SINKVINE sink.
1. Daily Cleaning
- After each use, rinse the sink thoroughly to remove any food particles or residue.
- Use a mild detergent and a soft cloth or sponge to clean the sink surface. Avoid abrasive cleaners, steel wool, or harsh chemicals, as these can damage the PVD Nano coating.
- Wipe the sink dry with a soft cloth to prevent water spots, especially in hard water areas.
Figure 6: Cleaning the sink drain area.
2. PVD Nano Coating Care
- The PVD Nano coating provides high hardness, scratch resistance, and a self-cleaning effect, making the sink easy to maintain.
- Avoid leaving acidic foods or harsh chemicals in the sink for extended periods, as they may affect the coating over time.
Figure 7: Explanation of the Nano PVD coating benefits.
3. Easy-to-Clean Corners
- The R10 radius inside corners are designed for easy cleaning, preventing debris buildup.
Figure 8: R10 rounded corners for simplified cleaning.
Troubleshooting
This section addresses common issues you might encounter with your sink.
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Drainage | Clogged drain strainer or plumbing. | Remove and clean the basket strainer. Check and clear any clogs in the P-trap or drainpipe. |
| Water Spots | Hard water residue. | Wipe the sink dry after each use. For stubborn spots, use a vinegar-water solution and rinse thoroughly. |
| Unusual Noise | Vibrations from water flow or garbage disposal. | The sink features sound-absorbing pads and undercoating to minimize noise. Ensure the sink is securely mounted. If using a garbage disposal, ensure it is properly installed and balanced. |
| Scratches on Surface | Abrasive objects or cleaners used. | The PVD Nano coating is highly scratch-resistant. Use the bottom rinse grid to protect the surface. Avoid sharp objects or abrasive cleaning materials. Minor surface marks may be buffed out with a non-abrasive stainless steel cleaner. |
Figure 9: NoiseDefend technology for reduced sound and condensation.
Specifications
Key technical details for the SINKVINE SVU221809RB0 Undermount Kitchen Sink.
| Feature | Detail |
|---|---|
| Brand | SINKVINE |
| Model Number | SVU221809RB0 |
| Color | Gunmetal Black |
| Material | T-304 Grade Nano PVD Stainless Steel |
| Exterior Dimensions | 22" (wide) x 18" (front-to-back) x 9" (height) |
| Interior Dimensions (Cutout) | 20" (wide) x 16" (front-to-back) x 9" (bowl depth) |
| Minimum Base Cabinet | 25" wide |
| Installation Type | Undermount |
| Drain Opening | Standard 3.5" |
| Thickness | 3mm (11 Gauge) top flange |
| Item Weight | 20.4 pounds |
| Included Components | Metal Sink Strainer, Bottom Rinse Grid, Roll-up Drying Rack |
Figure 10: Sink material thickness detail.
Warranty and Support
Your SINKVINE Undermount Kitchen Sink is backed by a Lifetime Limited Warranty, ensuring quality and durability.
Warranty Information
SINKVINE warrants this product to be free from defects in material and workmanship under normal use for the lifetime of the original purchaser. This warranty covers manufacturing defects and does not cover damage caused by misuse, abuse, improper installation, accidents, or normal wear and tear. For full warranty details, please refer to the documentation included with your purchase or contact SINKVINE customer service.
Customer Support
If you have any questions regarding the installation, operation, maintenance, or warranty of your SINKVINE sink, please contact our customer support team. Refer to the contact information provided with your product packaging or visit the official SINKVINE website for assistance.
