briebe Camp Portable Mini Washing Machine with Spin Dryer User Manual

1. Introduction and Overview

Thank you for choosing the briebe Camp Portable Mini Washing Machine with Spin Dryer. This compact and efficient appliance is designed for small loads of laundry, making it ideal for travel, camping, caravans, small apartments, or for washing delicate items. It features separate compartments for washing and spin-drying, offering convenience and water/energy efficiency.

Figure 1.1: The briebe Camp Portable Mini Washing Machine with Spin Dryer.

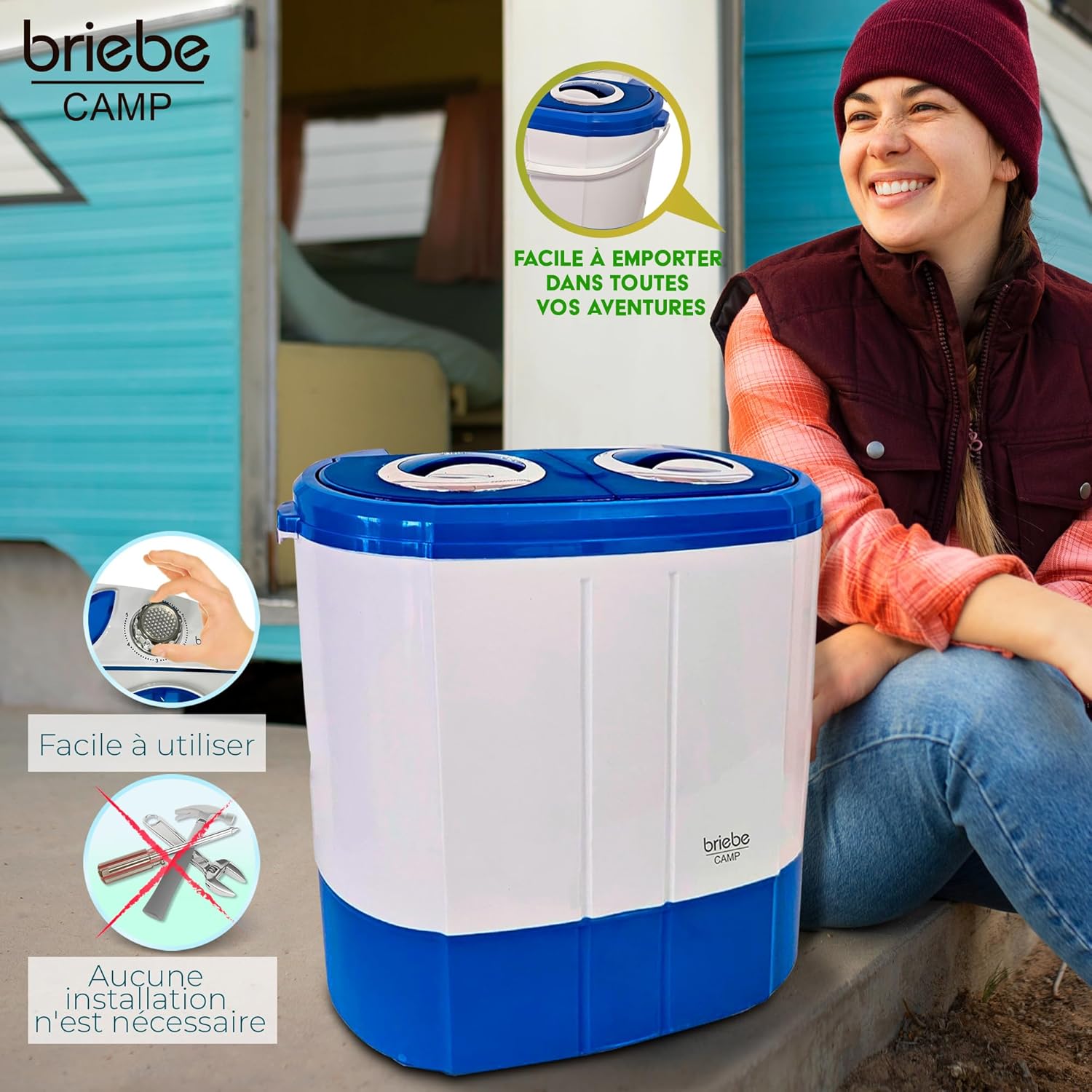

Figure 1.2: The washing machine is suitable for various environments such as camping, apartments, and travel.

2. Safety Instructions

Please read all safety instructions carefully before using the appliance to prevent injury or damage.

• Ensure the power supply matches the voltage specified on the appliance (220 Volts AC).
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Always unplug the machine from the power outlet when not in use, before cleaning, or before performing any maintenance.
• Keep the machine out of reach of children.
• Do not operate the machine if the power cord or plug is damaged, or if the machine malfunctions or has been damaged in any way.
• Place the machine on a stable, level surface to prevent tipping during operation.
• Do not overload the machine beyond its stated capacity (3 kg for washing, 1 kg for spin-drying).
• Ensure the drain hose is properly positioned to direct water away from the machine and electrical components.
• Avoid touching moving parts during operation.

3. Product Components

Familiarize yourself with the main parts of your briebe Camp Mini Washing Machine:

• Wash Tub: Larger compartment for washing clothes (up to 3 kg).
• Spin Tub: Smaller compartment for spin-drying clothes (up to 1 kg).
• Control Panel: Located on top, includes Wash Timer, Wash Selector, and Spin Timer.
• Water Inlet: Port for manually adding water to the wash tub.
• Drain Hose: Flexible hose for draining water from both tubs.
• Lids: Separate lids for the wash and spin tubs.

Figure 3.1: Top view of the washing machine showing the wash tub, spin tub, and control panel.

Figure 3.2: External dimensions and internal tub sizes for the washing machine.

4. Setup

1. Unpacking: Carefully remove the washing machine from its packaging. Check for any damage during transit.
2. Placement: Place the machine on a firm, level surface. Ensure it is near a drain or a bucket where water can be easily emptied. The machine does not require a direct water supply connection; water is added manually.
3. Drain Hose Positioning: Extend the drain hose and position it to direct wastewater into a sink, bucket, or drain. Ensure the hose is not kinked or blocked.
4. Power Connection: Plug the power cord into a suitable electrical outlet.

Figure 4.1: Side view illustrating the drain hose and power cord connection at the back.

5. Operating Instructions

5.1. Washing Cycle

1. Load Laundry: Open the lid of the wash tub. Place up to 3 kg of laundry into the wash tub. Do not overload.
2. Add Water and Detergent: Manually fill the wash tub with water up to the indicated water level mark. Add an appropriate amount of laundry detergent.
3. Select Wash Mode: Turn the 'Wash Selector' knob to either 'Gentle' for delicate items or 'Normal' for regular laundry.
4. Set Wash Timer: Turn the 'Wash Timer' knob to your desired wash time, up to 15 minutes. The machine will start washing automatically.
5. Drain Water: Once the wash cycle is complete, turn the 'Wash Selector' knob to 'Drain' to empty the dirty water through the drain hose.
6. Rinse Cycle (Optional but Recommended): For rinsing, refill the wash tub with clean water. You may add a small amount of fabric softener if desired. Set the 'Wash Timer' for a short rinse cycle (e.g., 3-5 minutes) and then drain the water again. Repeat if necessary until clothes are thoroughly rinsed.

Figure 5.1: Close-up view of the control panel with Wash Timer, Wash Selector, and Spin Timer knobs.

5.2. Spin Drying Cycle

1. Transfer Laundry: After washing and rinsing, transfer a portion of the wet laundry (up to 1 kg at a time) from the wash tub to the spin tub. Distribute the laundry evenly to ensure balance.
2. Close Lid: Close the lid of the spin tub securely.
3. Set Spin Timer: Turn the 'Spin Timer' knob to your desired spin time, up to 5 minutes. The machine will begin spin-drying.
4. Remove Laundry: Once the spin cycle is complete, open the lid and carefully remove the spin-dried laundry.

Figure 5.2: Top view with lids open, revealing the wash tub on the left and the spin tub on the right.

6. Maintenance

• Cleaning: After each use, wipe down the interior and exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Drain Hose: Ensure the drain hose is clear of lint and debris.
• Storage: Store the machine in a dry, cool place away from direct sunlight and extreme temperatures. Ensure all water has been drained before storage.

7. Troubleshooting

8. Specifications

9. Warranty and Support

Your briebe Camp Portable Mini Washing Machine is covered by a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or any inquiries not covered in this manual, please contact briebe customer service through the retailer where you purchased the product.
