NEWDERY 20000mAh Portable Charger User Manual

Introduction

Thank you for choosing the NEWDERY 20000mAh Portable Charger. This versatile power bank is designed to keep your devices charged on the go, featuring built-in cables, PD 20W fast charging, and a dedicated wireless charging module for Apple Watch. Please read this manual carefully to ensure proper use and maximize the lifespan of your device.

What's in the Box

• 1 x NEWDERY 20000mAh Portable Charger with Built-in Cables
• 1 x USB-C to USB-C Cable
• 1 x User Manual

Front view of the NEWDERY 20000mAh Portable Charger retail box.

Back view of the retail box, showing product specifications and certifications.

Product Overview

The NEWDERY 20000mAh Portable Charger is designed for maximum convenience and compatibility.

• High Capacity: 20000mAh battery provides multiple charges for various devices.
• Built-in Cables: Includes integrated Lightning and USB-C cables for direct charging without extra accessories.
• Wireless Apple Watch Charging: Features a magnetic wireless charging module for Apple Watch (Series 1-10, Ultra, SE).
• Multiple Output Ports: Equipped with USB-A and USB-C output ports for broad device compatibility.
• PD 20W Fast Charging: Supports Power Delivery (PD) for rapid charging of compatible devices.
• Smart LED Display: Digital display shows remaining battery percentage and charging status.

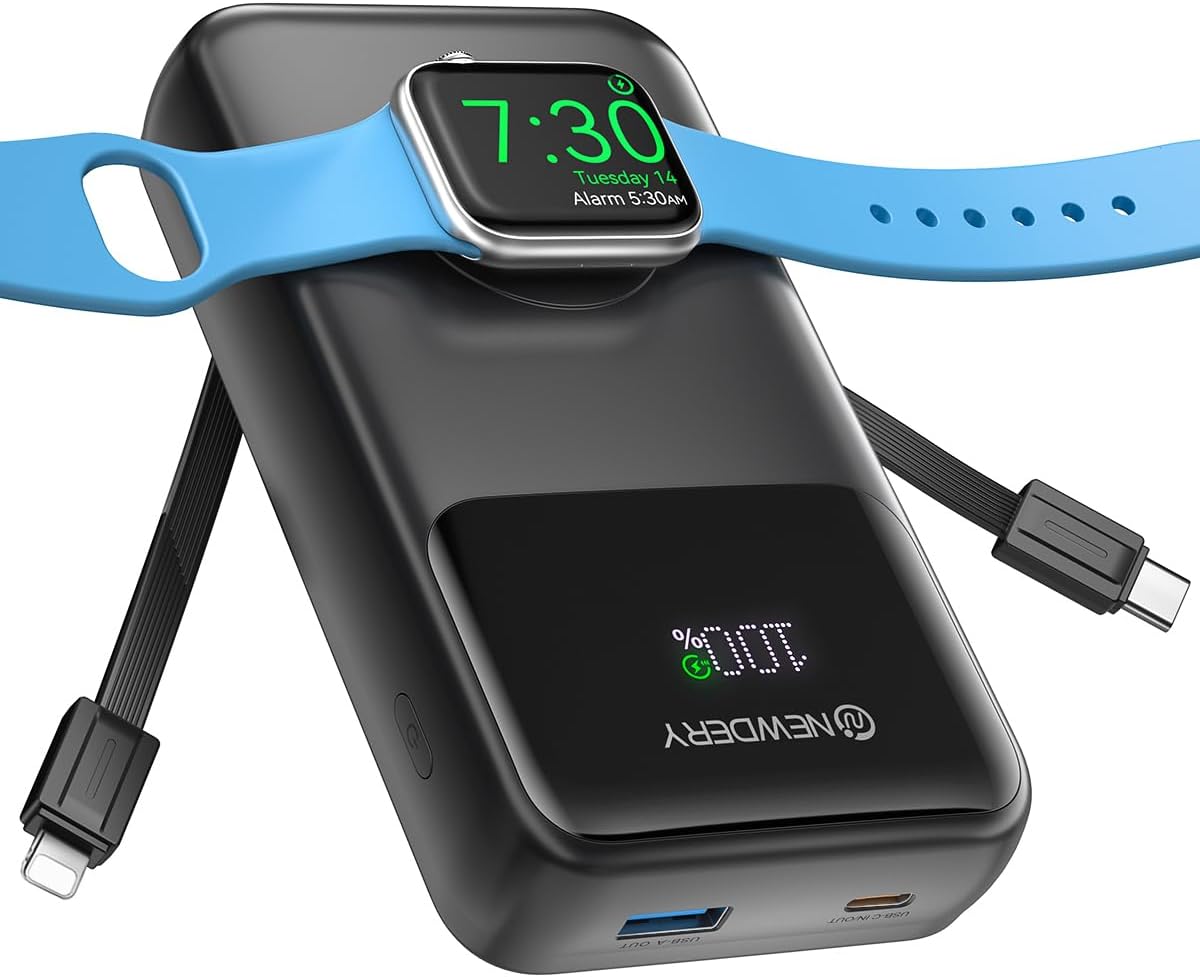

The NEWDERY 20000mAh Portable Charger with an Apple Watch magnetically attached for wireless charging.

Illustration of the 20000mAh capacity, showing approximate charge cycles for various devices like iPhones, iWatch, and AirPods.

The smart LED display provides real-time battery percentage, ensuring you always know the power bank's charge status.

Compact design for easy portability, ideal for travel and daily use.

Setup

Initial Charging of the Power Bank

Before first use, fully charge the power bank. Connect the provided USB-C to USB-C cable to the power bank's USB-C port and plug the other end into a compatible USB-C power adapter (e.g., 30W PD adapter) or a device like a MacBook Pro. The LED display will show the charging progress.

Note: The power bank charges via its USB-C port. USB-A ports are for output only.

Operating Instructions

Charging Devices

The power bank offers multiple ways to charge your devices:

• Using Built-in Cables: Pull out the integrated Lightning or USB-C cable and connect it directly to your device.
• Using USB-A/USB-C Ports: Connect your device's charging cable to the appropriate USB-A or USB-C output port on the power bank.
• Wireless Charging for Apple Watch: Place your Apple Watch onto the magnetic wireless charging module. Press the power button once and wait 3-10 seconds for wireless charging to activate. The LED display may show a charging indicator.

The power bank supports 20W Power Delivery (PD) fast charging via its USB-C port, allowing for quick recharges of compatible smartphones.

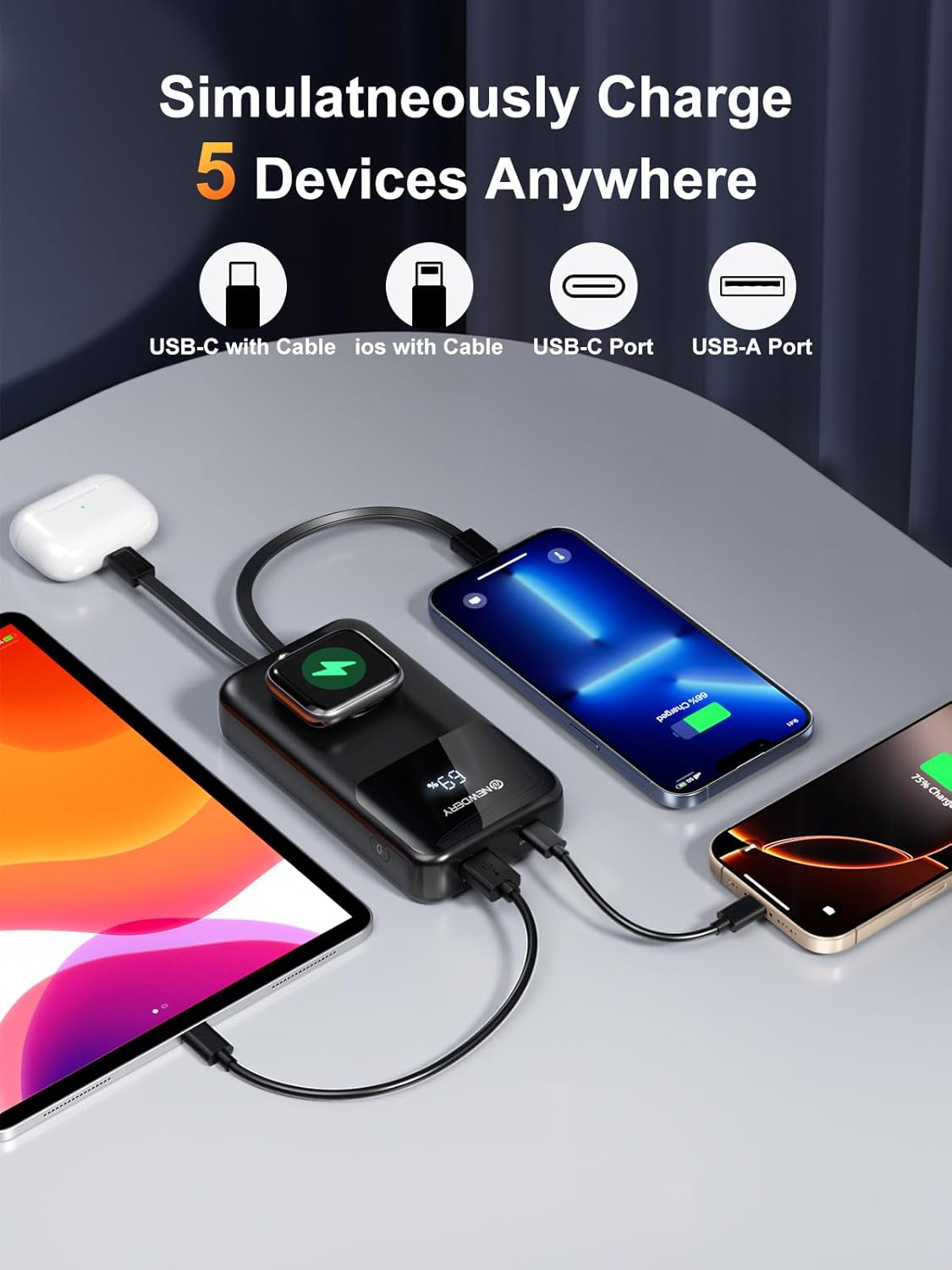

Charge up to 5 devices simultaneously using the built-in cables, USB-A, USB-C ports, and the Apple Watch wireless charger.

Pass-Through Charging

The power bank supports pass-through charging, allowing you to charge your devices while the power bank itself is being recharged. When the power bank is connected to a power source and devices are attached, the devices will charge first to 100%, and then the power bank will begin to recharge.

Illustrates the pass-through charging capability, where the power bank charges connected devices first, then recharges itself.

Checking Battery Level

Press the power button once to activate the LED display, which will show the remaining battery percentage.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the power bank. Avoid liquid cleaners.
• Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, fully charge the power bank at least once every three months if not in regular use.

Troubleshooting

• Device not charging: Ensure the power bank is charged. Check cable connections. Try a different cable or port.
• Apple Watch not charging wirelessly: Ensure the Apple Watch is correctly placed on the magnetic module. Remember to press the power button once to activate wireless charging. Wait 3-10 seconds for it to initiate.
• Slow charging: Ensure your device and cable support fast charging. Some devices may charge slower depending on their battery status or if multiple devices are connected.
• Power bank not charging: Ensure the USB-C input cable is securely connected to a compatible power adapter. Try a different power adapter or cable.

Specifications

Safety Information

• Do not expose the power bank to extreme temperatures (hot or cold), direct sunlight, or high humidity.
• Do not disassemble, open, or shred the battery pack.
• Keep out of reach of children.
• Avoid dropping or subjecting the power bank to strong impacts.
• Do not use if the power bank is damaged or swollen.
• Dispose of the product responsibly according to local regulations.

Warranty & Support

NEWDERY offers comprehensive customer support for your product:

• 24-Hour Professional and Friendly Support: Contact NEWDERY customer service for any questions or assistance.
• 30-Day Return Service: Enjoy a 30-day return period for your purchase.
• 12-Month Replacement Promise: Benefit from a 12-month replacement warranty for manufacturing defects.

For more information or to contact support, please visit the official NEWDERY store: NEWDERY Amazon Store
