1. Introduction
This manual provides instructions for the Mabe Refrigerator Shelf Glass, model 225D6047P002. This original tempered glass shelf is designed for the conservation area of compatible Mabe, IEM, and GE refrigerators. It serves as a direct replacement or an additional shelf to optimize storage within your appliance.
2. Product Overview
The Mabe Refrigerator Shelf Glass is a durable and easy-to-clean component, essential for organizing your refrigerator's interior. It features tempered glass for enhanced safety and resilience against impacts and temperature changes.
Key Features:
- Tempered Glass Construction: Provides strength and safety, resisting breakage and containing spills.
- Original Mabe Part: Ensures perfect fit and compatibility with specified refrigerator models.
- Dimensions: Approximately 62 cm (width) x 41 cm (depth) for the usable area.
Package Contents:
- 1 x Mabe Refrigerator Shelf Glass (Model 225D6047P002)

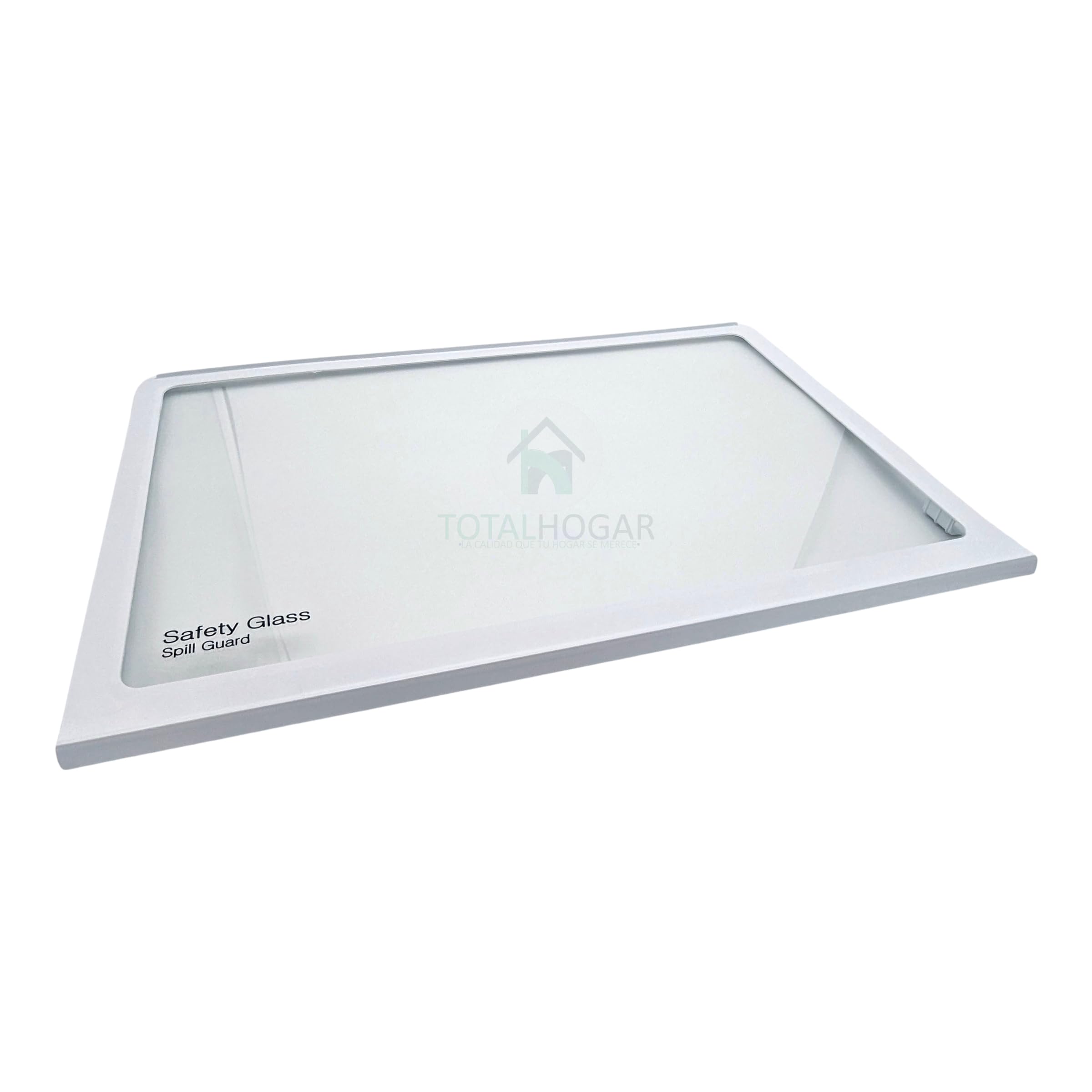

Visual Reference:
3. Compatible Refrigerator Models
This shelf is compatible with a wide range of Mabe, IEM, and GE refrigerator models. Please verify your refrigerator's model number against the list below or consult your appliance's documentation to ensure compatibility.
Reference Codes:
- 225D6046G002
- WR01L05128
- 225D6047P002 (This product's model)
Partial List of Compatible Models:
- RGS1951ZEUS0
- RMS1951ZMXX0
- RMS510ICMRXA
- RMT1951YMXS1
- RMS1951ZMXS0
- RMT1951ZLCS1
- RMS1951ZCEXA
- RMS1951ZMXX1
- ROS1951ADRXA
- RMT1951XMXCJ
- RHTFD51VEUXA
- RGS1951YLCXA
- RMS1951ZSABA
- RMS1951ZMXXG
- ROSED51XEUB0
- RMS1951ZCHXB
- RMT510RXTRBA
- HP5101WL
- RGS1951NRPS0
- RMS1951ZCHXE
- H510SLW
- HP510SLW
- RMS1951ZMXS1
- RMS1951AMXEJ
- RMS1951RBCXB
- RMS1951ZPRXB
- RMS1951XMXXC
- RPM1951ZRBN0
- RMT510RYMRED
- IOM1951ZMXN0
- GRE19KICRWW
- RMS510ICMRPA
- RMT1951YBCS0
- RMT1951NRPB0
- RMT1951ZMXCB
- RMS1951CBCXA
- IOMED51ZEUN0
- RMS1951BPRPA
- RMS1951RBCXA
- RHTFD51TEUBA
- RMS1951RMXX0
- RGS1951XLCB0
- RMS1951BMXXJ
- RGS1951WLCXA
- RGSC051XRPB1
- RMS1951CMXXJ
- RMS1951ZPRXA
- IOM1951ZMXTB
- RMS1951ZCEXB
- ROS1951BDRXA
- RZS510IBARXA
- RMT1951XRPBA
- RMS1951ZCHXA
- RMS1951ZGRS0
- IOM510MZBRNA
- RGS1951ZEUB0
- RMS1951CMXPJ
- RGS1951XRUB0
- RMS1951YCEB0
- H510WL
- RMT1951XMXB1
- RMT1951ZLCSA
- RMS1951XMXX0
- RHTFD51ZEUXA
- IOM1951ZMXTA
- RMT1951YMXC0
- FD584NFLX
- RGS1951BRUXA
- RMT1951XCEB0
- IOM1951ZMXNB
- RMS1951XMXS0
- RMT1951YMXCC
- RKT1951XEUB0
- RMS1951RMXXA
- RMS1951ZPRS1
- IOM510MZMRNA
- RKT1951TEUB0
- HR510SLWA
- RMT1951YMXCE
- RMT1951XCEB1
- RMT1951ZMXCA
- RMS1951XSAS0
- RMS1951XINSA
- RGS1951YRBC0
- RMT1951YBCSA
- RMT510RYMRPA
- RMS1951CPRPA
- IOM1951ZMXNA
- RMS1951BPRXB
- RMS1951XMXXJ
- RGS1951XSBC0
- RMS1951BPRXA
- RHTFD51VEUBA
- RMS1951WMXEA
- ROS510IANRXA
- RGS1951YEUS0
- RMS1951ZCES0
- IOM1951ZUNNB
- RMS1951ZZVXA
- GRE19MICRLS
- RMT1951YMXCA
- RMS1951YZVBA
- RMT510RXMRXC
- ROSED51XEUS0
- RGS1951YRBB0
- RGT1951YMXXA
- RMTC051XRPXA
- RGS1951ZLCXB
- RMS1951YCEBB
- RMT1951ZBCSA
- RMS1951BLCXA
- RGT1951ZLCXA
- IOM1951ZMXVD
- RGS1951WMXXB
- RGS1951ZLCXA
- RMT1951NRPBA
- RMS510IVMREC
- RGS1951BGRXE
- RMT510RYMREC
- RMS1951YMXX0
- IOM1951ZMXN2
- RMS1951CMXXC
- IOM510MZMRVA
- GRE19MICRWW
- ME539W
- RMS1951YCEBA
- RMS1951YMXS0
- RMS1951ZMXXB
- RMS1951YCES0
- RMS1951CPRXB
- RMS510IXMRXA
- RGSC051XRPXB
- GTE19PICRWW
- IOM1951ZMXN1
- RMP1029JMXS0
- RMT1951ZBCS1
- RMT1951YMXCF
- RPM1951ZSBN0
- H510W
- RGS1951XRPS0
- RGS1951YLCS0
- RGS1951BGRXA
- RMS1951CPRXA
- RMT1951XMXC0
- RMS1951ZINS0
- RMS1951ZMXXJ
- RMT1951XMXBJ
- RGS1951YEUB0
- RMT1951ZRUB0
- RMS510IXMRXD
- RMS1951ZCESA
- RMT1951VRUSA
- RMS1951ZZVX0
- RGS1951NRPB0
- RGS1951YRPS0
- RMT510RXMRBC
- HP5101GL
- RMS1951YUNBA
- RMS510IZMRXA
- ME539IX
- RGS1951YRUSB
- HR510SLA
- RETFA51XEUEA
- RBT1951ZINS0
- RMS1951XMXXA
- RMT1951ZMXS0
- RMS1951XSASB
- RMT1951VAPEA
- RGS1951XRPB0
- RMS1951ZMXPJ
- IOM1951ZMXVJ
This list is not exhaustive. If your model is not listed, please compare the dimensions and reference codes.
4. Installation Instructions
Installing the Mabe Refrigerator Shelf Glass is a straightforward process. Ensure your refrigerator is unplugged before attempting installation or removal of any parts for safety.
Steps:
- Prepare the Refrigerator: Open the refrigerator door and identify the desired location for the shelf. Ensure the area is clean and free of debris.
- Remove Old Shelf (if applicable): If replacing an existing shelf, carefully lift and slide out the old shelf. Dispose of it properly if it is broken.
- Insert New Shelf: Align the new Mabe Refrigerator Shelf Glass with the shelf supports inside the refrigerator. Gently slide the shelf into place until it is securely seated. Ensure it is level and stable.
- Verify Stability: Lightly press down on the shelf to confirm it is properly installed and does not wobble.
Important Considerations:
- Always handle tempered glass with care to prevent breakage.
- Do not force the shelf into place; if it doesn't fit, re-check your refrigerator model for compatibility.
Installation Video:
5. Operating Instructions
Once installed, the Mabe Refrigerator Shelf Glass functions as a standard refrigerator shelf, providing a stable surface for food storage.
Usage Guidelines:
- Distribute weight evenly across the shelf to prevent stress on the glass.
- Avoid placing excessively hot items directly on the cold glass, as extreme temperature changes can cause damage. Allow hot items to cool before placing them in the refrigerator.
- The "Spill Guard" feature helps contain minor spills, making cleanup easier and preventing liquids from dripping onto items below.
6. Maintenance and Cleaning
Regular cleaning will help maintain the hygiene and appearance of your refrigerator shelf and prolong its lifespan.
Cleaning Steps:
- Remove Items: Take all items off the shelf.
- Remove Shelf: Carefully slide the shelf out of the refrigerator.
- Clean: Wash the tempered glass shelf with warm water and a mild dish soap. For stubborn stains, a non-abrasive cleaner suitable for glass can be used.
- Rinse and Dry: Rinse thoroughly with clean water and dry completely with a soft, lint-free cloth to prevent water spots.
- Reinstall: Once dry, reinstall the shelf following the installation instructions.
Cleaning Tips:
- Avoid abrasive cleaners, scouring pads, or sharp objects that could scratch the glass or frame.
- Do not use harsh chemicals like ammonia-based cleaners on the plastic frame, as they may cause discoloration or damage.
7. Troubleshooting
Shelf Does Not Fit:
- Verify Model Number: Double-check your refrigerator's model number against the compatible models list provided in Section 3. Ensure the shelf dimensions (62x41 cm) match your requirement.
- Check Orientation: Ensure the shelf is being inserted in the correct orientation. Some shelves may have a specific front or back.
Shelf Appears Loose or Unstable:
- Reinstall: Remove the shelf and re-insert it, ensuring it slides fully into its designated supports and is seated correctly.
- Inspect Supports: Check the refrigerator's internal shelf supports for any damage, bending, or obstructions that might prevent proper seating.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Mabe |
| Model Number | 225D6047P002 |
| Material | Tempered Glass |
| Dimensions (L x W x H) | 63 x 42 x 3.4 cm (approx. 62 x 41 cm usable area) |
| Product Weight | 2.12 kg |
| Color | White (frame) |
| Part Type | Refrigerator Shelf / Tray / Rack (Conservation Area, Lower) |
9. Warranty and Support
For warranty information or technical support regarding your Mabe Refrigerator Shelf Glass, please refer to your refrigerator's original documentation or contact Mabe customer service directly. This product is an original replacement part.
