Savoy Lighting Assets 6-3333-7-WH LED Flush Mount Instruction Manual

1. Product Overview

The Savoy Lighting Assets 6-3333-7-WH is a T24 Compliant Outdoor Low Profile Flush Mount fixture featuring an integrated 15 Watt LED. This fixture is designed for various applications, including bathrooms, bedrooms, and outdoor wet locations, providing efficient and versatile lighting.

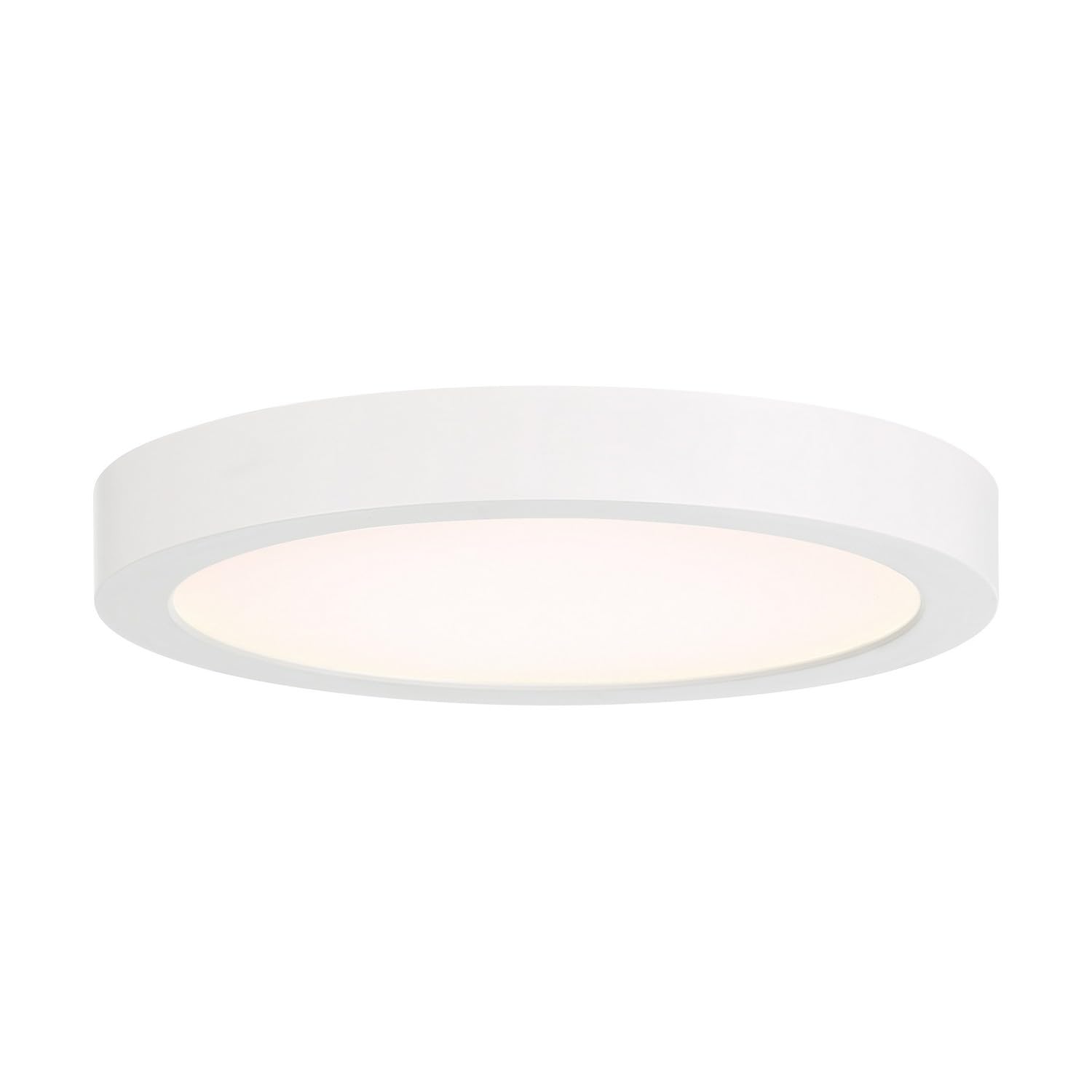

Image 1.1: Front view of the Savoy Lighting Assets 6-3333-7-WH LED Flush Mount fixture.

Key features include:

• Dimensions: 0.9 inches High x 7 inches Wide.
• Integrated LED: 15 Watt, Dimmable, with adjustable color temperature (3000K/4000K/5000K).
• Luminous Flux: 1292 Lumens.
• Safety Rating: ETL Approved for WET Locations.
• Construction: Durable metal and plastic components.

Image 1.2: The flush mount light installed in a hallway, demonstrating its low-profile design and illumination.

2. Important Safety Information

Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries.

• WARNING: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
• This fixture is intended for use with a 120V AC power supply.
• Do not attempt to alter the fixture or its components.
• Ensure the fixture is securely mounted to a structural element of the building.
• Wear safety glasses and gloves during installation.
• Keep flammable materials away from the light fixture.

3. What's in the Box

Verify that all components are present before proceeding with installation.

• Integrated LED Flush Mount Fixture (Model 6-3333-7-WH)
• Mounting Hardware (screws, wire nuts)
• Instruction Manual

4. Installation Instructions

This fixture requires minimal assembly. Follow these steps for safe and proper installation.

1. Turn Off Power: Before starting, ensure the power to the junction box is turned off at the circuit breaker or fuse box.
2. Prepare Mounting Surface: Ensure the ceiling or wall surface is clean, dry, and structurally sound to support the fixture.
3. Attach Mounting Bracket: Secure the mounting bracket (if separate) to the existing junction box using the provided screws. Ensure it is firmly attached.
4. Make Electrical Connections: Connect the fixture's wires to the corresponding wires from the junction box.
   • Connect the black wire (live) from the fixture to the black wire (live) from the junction box.
   • Connect the white wire (neutral) from the fixture to the white wire (neutral) from the junction box.
   • Connect the green or bare copper wire (ground) from the fixture to the green or bare copper wire (ground) from the junction box.
   Use wire nuts to secure all connections and ensure they are tight.
5. Mount the Fixture: Carefully tuck all wires into the junction box. Align the fixture with the mounting bracket and secure it in place using the provided screws or twist-lock mechanism.
6. Restore Power: Once the fixture is securely installed, restore power at the circuit breaker.

5. Operating Instructions

The Savoy Lighting Assets 6-3333-7-WH features an integrated LED with adjustable color temperature and dimming capabilities.

• Turning On/Off: Use a standard wall switch to turn the light fixture on or off.
• Dimming: This fixture is dimmable. To utilize the dimming feature, connect it to a compatible LED dimmer switch (sold separately). Follow the dimmer switch manufacturer's instructions for installation and operation.
• Color Temperature Adjustment: The integrated LED offers three color temperature options: 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight). The method for adjusting the color temperature typically involves a switch located on the fixture itself, often accessible before final installation or by removing the diffuser. Refer to the specific markings on your fixture for the exact location and operation of this switch.

6. Care and Maintenance

Proper care ensures the longevity and optimal performance of your light fixture.

• Cleaning: Always disconnect power before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
• Integrated LED: The LED in this fixture is integrated and not user-replaceable. If the LED fails, the entire fixture may need to be replaced.
• Inspection: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.

7. Troubleshooting

If your fixture is not functioning correctly, refer to the following common issues and solutions:

8. Product Specifications

9. Warranty and Support

For warranty information or technical support, please contact Savoy House customer service. Details regarding specific warranty periods and terms are typically provided with your purchase documentation or can be found on the manufacturer's official website.

Contact Information: Please refer to the packaging or the official Savoy House website for the most current customer service contact details.
