Introduction
Thank you for choosing the Luqeeg Portable Mini Washing Machine. This compact and versatile appliance is designed for convenience, offering a 10L capacity with automatic washing and gentle spin-drying functions. Its foldable design makes it ideal for travel, camping, RVs, dormitories, or any space where a full-sized washing machine is impractical. Please read this manual carefully before operation to ensure proper use and maintenance.
This washing machine is suitable for small loads such as underwear, socks, baby clothes, and small towels. It features a fully automatic washing cycle, eliminating the need for manual agitation or water level adjustments, and includes a gentle spin function to reduce drying time.
Setup
1. Unpacking
Carefully remove all components from the packaging. The package should include:
- 1 x Main Unit (Host)
- 1 x Power Adapter (EU Plug)
- 1 x User Manual
- 1 x Cover
Inspect the machine for any signs of damage. If any parts are missing or damaged, contact customer support.
2. Placement
Place the washing machine on a flat, stable surface. Ensure there is enough space around the unit for proper ventilation and operation. The foldable design allows for compact storage when not in use.
Image: The Luqeeg Portable Mini Washing Machine shown in its folded (14 cm height) and expanded (27 cm height) configurations, illustrating its compact and ready-to-use dimensions.
3. Power Connection
Connect the provided power adapter to the washing machine's power input port. Plug the adapter into a standard 100-240V AC power outlet (EU plug). Ensure the power outlet is easily accessible.
Image: The Luqeeg Portable Mini Washing Machine alongside its power adapter, ready for connection to an electrical outlet.
4. Water Filling and Drainage
Fill the washing machine tub with water up to the recommended level. The machine features a concealed drain for easy water removal after use. Ensure the drain hose is positioned correctly for drainage into a sink or bucket.
Image: An underside view of the washing machine, highlighting the concealed drain system and seismic chucks for stability.
Operating Instructions
1. Loading Clothes
Open the lid and place your laundry into the tub. Do not overload the machine. The maximum washing capacity is 10L or approximately 12 kg of dry clothes. For optimal results, wash small items like:
- Up to 4 pieces of underwear
- Up to 6 pieces of underwear (different type)
- Up to 12 pairs of socks
- Up to 6 small towels
- Up to 6 pieces of baby clothes
- Up to 2 T-shirts
Image: A visual guide illustrating the recommended load capacity for various small clothing items in the washing machine.
2. Adding Detergent
Add an appropriate amount of liquid detergent or washing powder directly into the tub with the clothes. Avoid using excessive amounts of detergent to prevent oversudsing.
3. Selecting a Program
The machine features a button control panel with standard programs. Typically, you can select wash cycles of 10 minutes, 15 minutes, or 20 minutes. Some models may also include a dedicated spin-dry function.

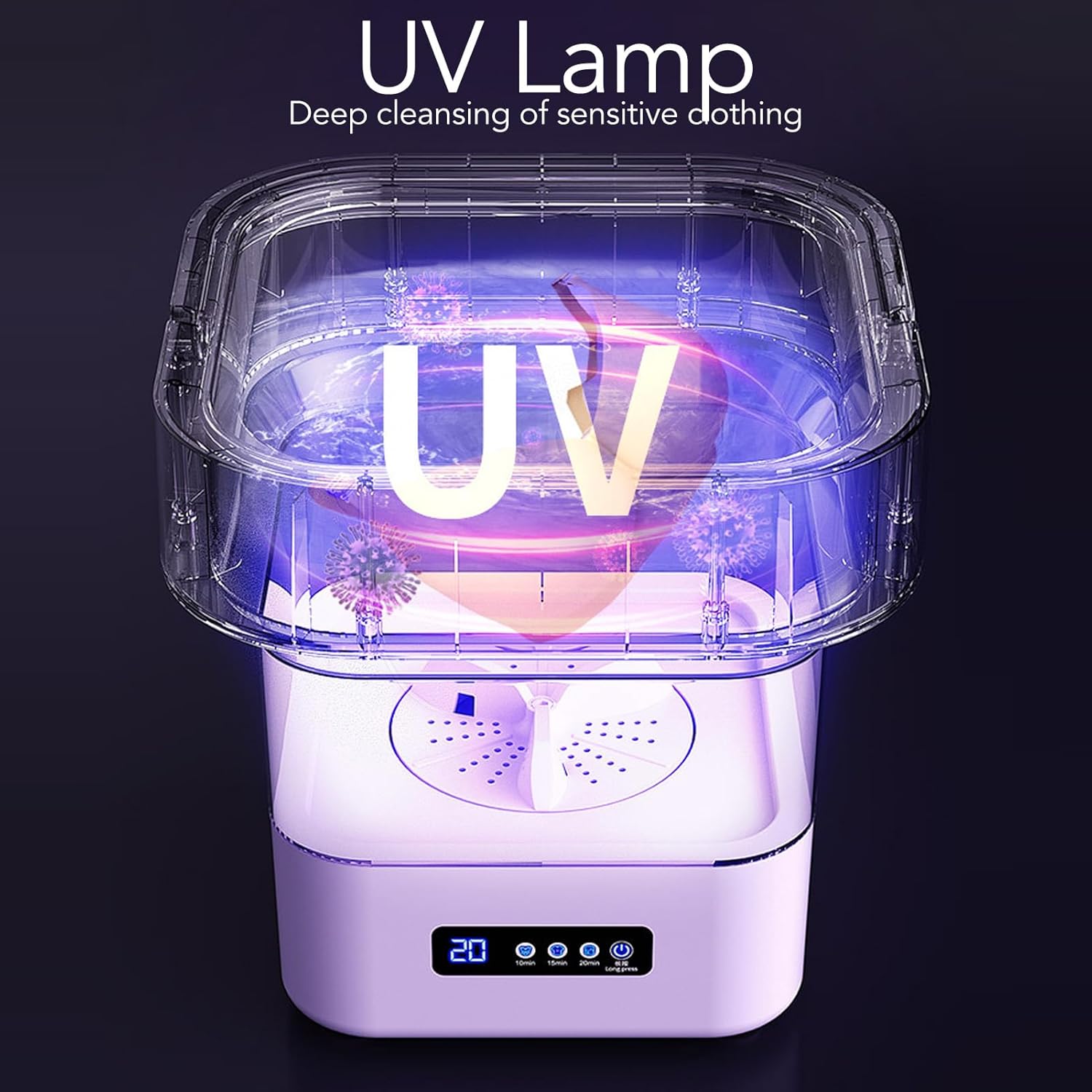

Image: The Luqeeg Portable Mini Washing Machine in operation, showcasing its UV lamp feature for deep cleansing of sensitive clothing.
4. Start/Stop Operation
Press the power button to turn on the machine. Select your desired wash program. Press the start/pause button to begin the cycle. To pause or stop the machine during operation, press the button again.
5. Gentle Spin Function
After the wash cycle, the machine will perform a gentle spin to remove excess water from your clothes. This reduces drying time. Ensure the drain hose is properly positioned during the spin cycle.
Maintenance
1. Cleaning the Tub
After each use, rinse the tub with clean water to remove any detergent residue or lint. Wipe the interior with a soft cloth. Do not use abrasive cleaners or harsh chemicals.
2. Draining Water
Always ensure all water is drained from the machine after use. The concealed drain system facilitates this process. Lift the machine slightly if necessary to ensure complete drainage.
3. Exterior Cleaning
Wipe the exterior of the machine with a damp cloth. Avoid getting water into the control panel or electrical components.
4. Storage
When not in use, ensure the machine is clean and dry. Fold the machine to its compact size for convenient storage. Store in a cool, dry place away from direct sunlight.
Image: The Luqeeg Portable Mini Washing Machine featuring a hidden lift handle for easy portability and storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Not plugged in; Power outage; Lid not closed properly. | Check power connection; Verify power supply; Ensure lid is securely closed. |
| Water leakage | Drain hose not properly secured; Overfilling; Damaged tub. | Check drain hose connection; Do not exceed max fill line; Contact support if tub is damaged. |
| Poor washing performance | Overloading; Insufficient detergent; Incorrect program selection. | Reduce load size; Use appropriate amount of detergent; Select suitable wash program. |
| Excessive vibration/noise | Uneven surface; Unbalanced load. | Place on a flat, stable surface; Redistribute laundry evenly in the tub. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | Luqeeg1ae9y2qoxz-11 |
| Type | Portable Washing Machine |
| Voltage | 100-240 V |
| Power | 18 W |
| Washing Tub Capacity | 10 L |
| Washing Capacity | 12 kg (approx. dry weight) |
| Material | ABS PP Plastic |
| Expanded Dimensions (L x W x H) | 30 cm x 30 cm x 27 cm (11.8 in x 11.8 in x 10.6 in) |
| Folded Height | 14 cm (5.5 in) |
| Weight | Approx. 2.05 kg (72.1 oz) |
| Installation Type | Portable |
| Special Features | Gentle Spin Function, Foldable Design, UV Lamp (on some models) |
| Control Type | Button |
| Loading Type | Top Load |
Warranty Information
Specific warranty details for the Luqeeg Portable Mini Washing Machine are not provided in this manual. For information regarding warranty coverage, duration, and claims, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty purposes.
Customer Support
If you have any questions, concerns, or require technical assistance with your Luqeeg Portable Mini Washing Machine, please contact the seller or manufacturer's customer support. Details for contacting support are typically found on the product packaging, the retailer's website, or in separate documentation provided with your purchase.
When contacting support, please have the following information ready:
- Product Model Number: Luqeeg1ae9y2qoxz-11
- Date of Purchase
- Description of the issue
