Introduction
This manual provides comprehensive instructions for the Vinsetto 3-Drawer Mobile File Cabinet, Model 924-008. It covers assembly, operation, maintenance, and troubleshooting to ensure proper use and longevity of your office storage unit. Please read these instructions carefully before assembly and use.
An overview of the Vinsetto 3-Drawer Mobile File Cabinet, featuring three drawers and caster wheels, presented in a white finish.
Safety Information
Please observe the following safety warnings:
- Ensure all parts are securely fastened during assembly to prevent instability.
- Do not overload drawers. Distribute weight evenly to maintain balance.
- Always engage the locking brakes on the caster wheels when the cabinet is in a stationary position to prevent unintended movement.
- Keep keys out of reach of children.
- Avoid climbing on or leaning heavily on the cabinet, especially when drawers are open.
Package Contents
Verify that all components are present before beginning assembly:
- Cabinet Panels (Top, Bottom, Sides, Back)
- Drawer Components (Fronts, Sides, Backs, Bottoms)
- Drawer Handles
- Caster Wheels (4 total, 2 with locking brakes)
- Lock Mechanism and Keys (2 keys included)
- Assembly Hardware (screws, dowels, cam locks, drawer slides)
- Assembly Instructions
Specifications
| Feature | Detail |
|---|---|
| Brand | Vinsetto |
| Model Number | 924-008 |
| Colour | White |
| Material | Engineered Wood |
| Product Dimensions (D x W x H) | 40D x 40W x 61.5H centimetres (15.7"D x 15.7"W x 24.2"H) |
| Number of Drawers | 3 |
| Special Feature | Lockable |
| Mounting Type | Floor Mount |
| Base Type | Wheels (Casters) |
| Item Weight | 16.33 kg |
| Weight Capacity (Maximum) | 29.94 kg |
A diagram illustrating the dimensions of the file cabinet: 15.7 inches (40 cm) width, 15.7 inches (40 cm) depth, and 24.2 inches (61.5 cm) height.
Setup and Assembly
Assembly is required for this product. Please follow the detailed instructions provided in the separate assembly manual included with your package. Ensure you have all components listed in the "Package Contents" section before starting.
General Assembly Steps:
- Unpack and Identify Parts: Carefully remove all components from the packaging and identify them against the parts list in your assembly manual.
- Assemble the Cabinet Frame: Connect the side panels, top, and bottom panels using the provided hardware. Ensure all connections are tight and secure.
- Install Drawer Slides: Attach the drawer slides to the interior of the cabinet frame according to the instructions.
- Assemble Drawers: Construct each drawer by connecting the front, back, side panels, and bottom. Attach the drawer handles.
- Install Lock Mechanism: Integrate the lock mechanism into the designated drawer front or cabinet panel as instructed.
- Attach Caster Wheels: Securely attach the four caster wheels to the bottom of the cabinet. Ensure the two wheels with locking brakes are positioned at the front for easy access.
- Insert Drawers: Carefully slide the assembled drawers onto their respective slides within the cabinet frame.
For detailed, step-by-step visual instructions, refer to the dedicated assembly guide.
The assembled file cabinet integrated into an office environment, demonstrating its functional placement.
Operating Instructions
Using the Drawers:
- Opening/Closing: Gently pull the handle to open a drawer. Push firmly to close until it is fully seated.
- Organization: The cabinet features one large and two smaller drawers, providing space for various office supplies and documents. Organize items to maximize storage efficiency.
The file cabinet with its three drawers partially open, highlighting the internal storage space for documents and office supplies.
Using the Lock:
- Locking: Ensure all drawers are fully closed. Insert one of the provided keys into the lock cylinder located on the top drawer. Turn the key clockwise to engage the locking mechanism, which secures all three drawers simultaneously. Remove the key.
- Unlocking: Insert the key into the lock cylinder. Turn the key counter-clockwise to disengage the lock. Remove the key before opening drawers.
Image showing the lock mechanism and two keys provided for securing the file cabinet's drawers.
A close-up image of the key inserted into the central lock, which secures all drawers simultaneously.
Mobility and Stability:
- Moving the Cabinet: The cabinet is equipped with four smooth-rolling caster wheels for easy relocation.
- Securing Position: Two of the caster wheels include locking brakes. To stabilize the cabinet, press down on the brake levers on these two wheels until they click into place. To release, lift the levers.
A detailed view of one of the smooth-rolling caster wheels, equipped with a locking brake mechanism for stability.

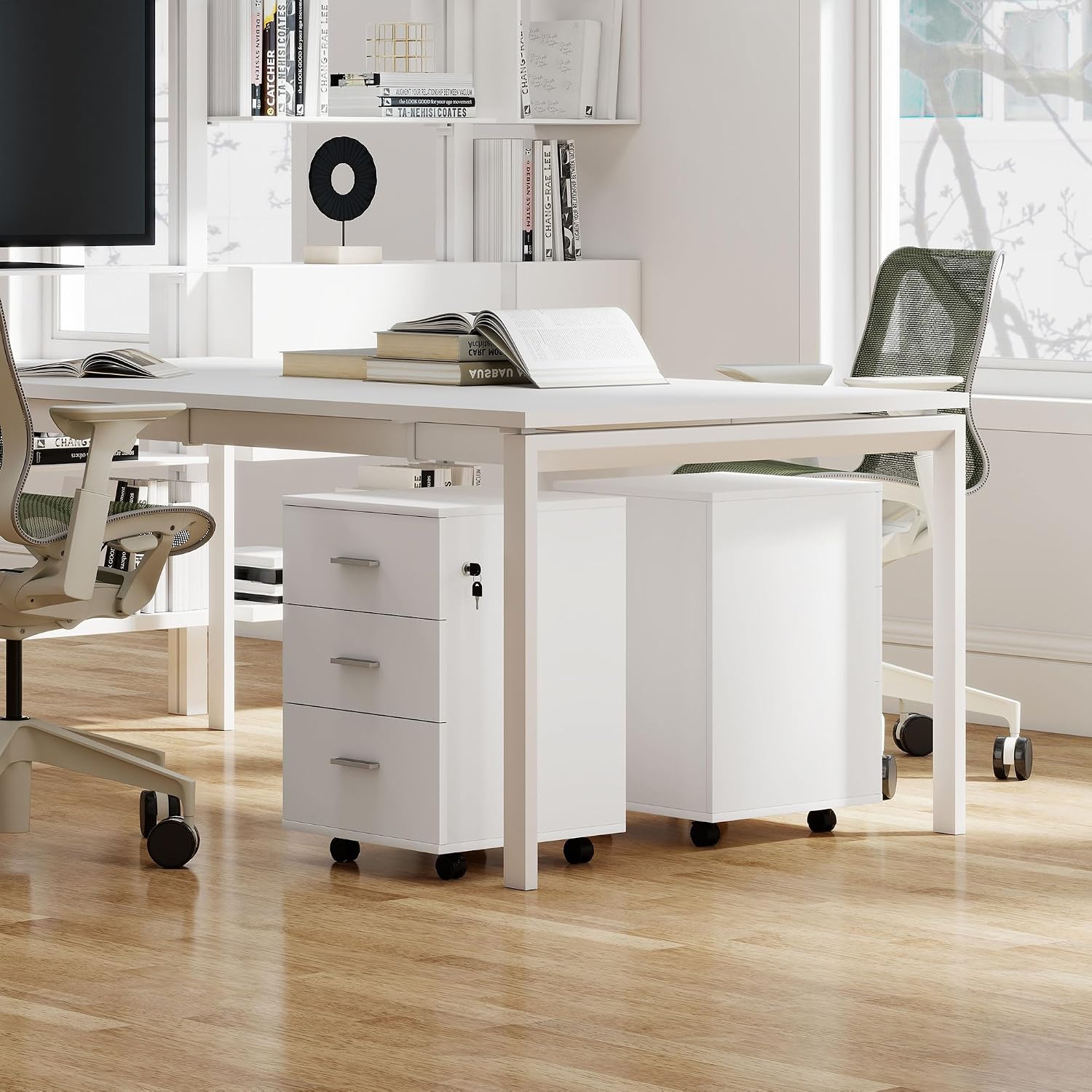

The file cabinet positioned beneath a standard office desk, demonstrating its compact size and suitability for under-desk placement.
Maintenance
- Cleaning: Wipe clean with a damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the surface finish.
- Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary.
- Drawer Slides: If drawers become stiff, a small amount of silicone-based lubricant can be applied to the drawer slides.
Troubleshooting
- Drawers do not close smoothly:
- Check for obstructions within the drawer or on the slides.
- Ensure drawer slides are properly aligned and securely attached.
- Verify that the cabinet itself is on a level surface.
- Lock does not engage/disengage:
- Ensure all drawers are fully closed before attempting to lock.
- Check if the key is fully inserted and turned correctly.
- Inspect the lock mechanism for any visible damage or misalignment.
- Cabinet is unstable or wobbles:
- Verify that all assembly hardware is tightened.
- Ensure the cabinet is placed on a flat, level surface.
- Engage the locking brakes on the caster wheels.
Warranty Information
This Vinsetto file cabinet is covered by a 90-day warranty against manufacturer defects. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Customer Support
For assistance with assembly, missing parts, or any other inquiries regarding your Vinsetto 3-Drawer Mobile File Cabinet, please contact Aosom Canada customer service:
- Manufacturer: Aosom Canada
- Location: Markham, Ontario, CA
- Telephone: 1-416-792-6088
When contacting support, please have your model number (924-008) and proof of purchase readily available.
