Introduction
The ALOEU 2-in-1 Auto Sensor is designed to enhance driving safety and convenience by automatically controlling your vehicle's wipers and headlights based on environmental conditions. This universal sensor detects rain to activate wipers and ambient light levels to manage headlights, providing an intelligent and responsive driving experience.
Package Contents
Please verify that all components are present in the package:
- 1 set x Rain & Light Sensor (includes main control unit, sensor unit, wiring harnesses)
- Necessary cables and connectors
Figure 1: Overview of all components included in the ALOEU 2-in-1 Auto Sensor package.
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | DC 10V - 16V |
| Operating Current | Less than 200 mA |
| Operating Temperature | -20°C to 85°C (-4°F to 185°F) |
| Relay Current | 20A |
| Wiper Response Time | 0.1 second |
| Detection Sensitivity (Water) | 0.005 milliliters |
| Color | Black |
| Material | ABS |
| Item Weight | 11.5 ounces |
| Package Dimensions | 5.91 x 4.72 x 3.15 inches |
Setup and Installation
Installation of the ALOEU 2-in-1 Auto Sensor requires basic automotive electrical knowledge. It is recommended to have this product installed by a qualified professional to ensure proper functionality and safety. Always disconnect the vehicle's battery before beginning any electrical work.
- Identify Mounting Location: Choose a suitable location for the main control unit within the vehicle's cabin, typically under the dashboard or behind the glove compartment, ensuring it is protected from moisture and extreme temperatures.
- Sensor Placement: The rain and light sensor unit should be mounted on the inside of the windshield, ideally behind the rearview mirror, where it has an unobstructed view of the road ahead and is not affected by wiper blades. Ensure the windshield area is clean and dry before applying the adhesive pad.
- Wiring Connections:
- Connect the main control unit to the vehicle's power supply (DC 10V-16V). Utilize the provided fuse holder for protection.
- Connect the sensor unit to the main control unit using the designated cable.
- Integrate the control unit's output wires with the vehicle's existing wiper and headlight control circuits. Refer to your vehicle's wiring diagram for specific connections. The wiring harnesses are color-coded for easier identification.
Figure 4: Inline fuse holder for power circuit protection.
Figure 5: Example of a wiring harness connector with multiple colored wires.
Figure 6: The main control unit with connection ports.
Figure 7: The long connection cable for the sensor system.
- Secure Components: Once all connections are made, secure the main control unit and route all cables neatly to prevent interference or damage.
- Test Functionality: Reconnect the vehicle's battery and test the rain and light sensor functions according to the operating instructions.
Figure 2: The sensor unit and its adhesive pad for windshield mounting.

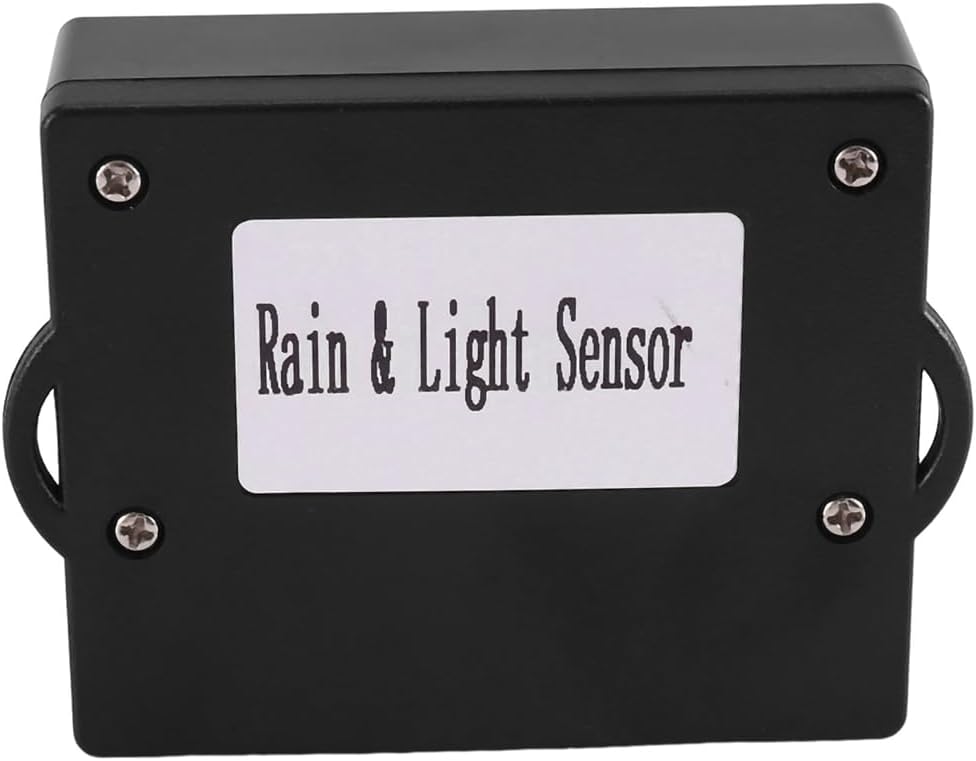

Figure 3: The sensor unit, showing its compact design and identification label.
Operating Instructions
The ALOEU 2-in-1 Auto Sensor operates automatically once properly installed and powered. Its primary functions are:
- Automatic Wiper Activation: The rain sensor continuously monitors the presence of water on the windshield. When rain is detected, the system automatically activates the vehicle's wipers. The wiper speed adjusts dynamically based on the intensity of the rainfall, from intermittent to continuous high speed. The wiper response time is approximately 0.1 second.
- Automatic Headlight Activation: The light sensor monitors ambient light conditions. In low light environments, such as tunnels, dusk, or night, the system automatically turns on the vehicle's headlights. When sufficient light is detected, the headlights will automatically turn off.
Ensure your vehicle's wiper and headlight switches are set to an "Auto" or "On" position as required by your vehicle's specific electrical system to allow the sensor to take control.
Maintenance
The ALOEU 2-in-1 Auto Sensor is designed for minimal maintenance. Follow these guidelines to ensure optimal performance:
- Keep Sensor Clean: Regularly clean the area of the windshield where the sensor is mounted. Dirt, dust, or film on the windshield can impair the sensor's ability to detect rain or light accurately. Use a soft cloth and glass cleaner.
- Check Wiring: Periodically inspect all wiring connections for any signs of wear, corrosion, or looseness. Ensure cables are securely routed and not pinched.
- Avoid Harsh Chemicals: Do not use abrasive cleaners or solvents directly on the sensor unit or its housing.
- Professional Inspection: If you suspect any issues, have the system inspected by a qualified automotive technician.
Troubleshooting
If you experience issues with your ALOEU 2-in-1 Auto Sensor, consider the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Wipers do not activate in rain. |
|
|
| Headlights do not activate in low light. |
|
|
| System is completely unresponsive. |
|
|
Warranty and Support
Specific warranty details for the ALOEU 2-in-1 Auto Sensor are not provided in this manual. For information regarding warranty coverage, technical support, or replacement parts, please contact the manufacturer or your point of purchase directly. Keep your purchase receipt as proof of purchase.
Manufacturer: ALOEU
