Introduction

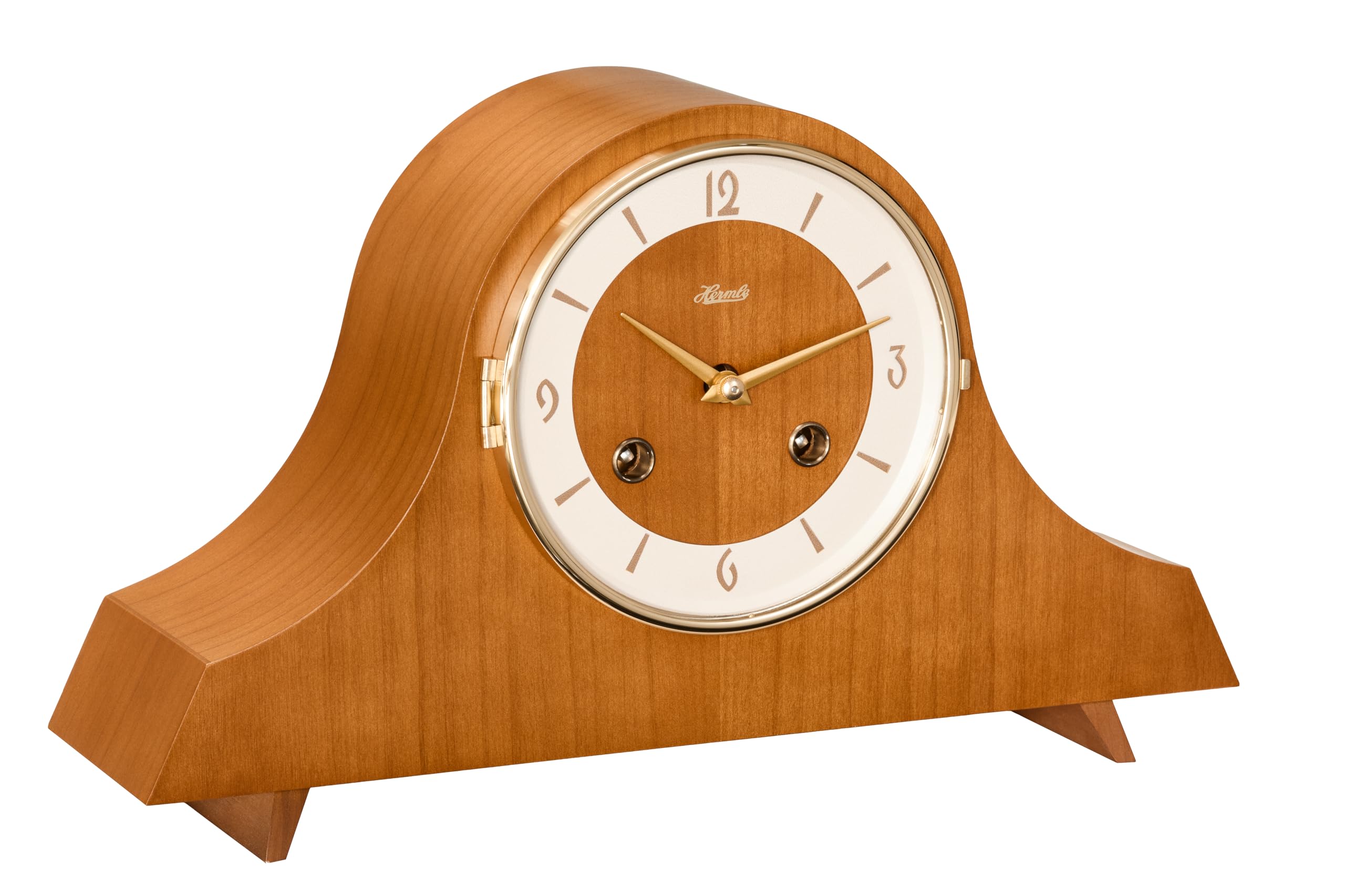

Thank you for choosing the Hermle Mechanical Table Clock Model 21154-160130. This precision timepiece features an 8-day mechanical movement with a 1/2 hour BimBam strike, housed in a cherry wood case with a glass bezel. This manual provides essential instructions for the setup, operation, maintenance, and troubleshooting of your clock to ensure its longevity and accurate performance.
Setup
1. Unpacking and Placement
Carefully remove the clock from its packaging. Place the clock on a stable, level surface, such as a table or mantelpiece, away from direct sunlight, extreme temperatures, and high humidity. Ensure the clock is not exposed to vibrations.
2. Winding the Movement
Your Hermle clock is powered by a traction spring mechanism. It requires manual winding. Locate the winding key (usually supplied with the clock). Insert the key into the winding arbors on the clock face or back. Turn the key clockwise until you feel firm resistance. Do not overwind. For an 8-day movement, winding once a week is recommended.
Image: Internal view of the Hermle clock mechanism. This image shows the intricate brass gears, springs, and levers that constitute the mechanical movement. Visible components include the balance wheel, escapement, and the winding arbors. The inscription 'Franz Hermle TWO (2) JEWELS MADE IN GERMANY 130-020' is also visible on the main plate, indicating the manufacturer and movement type.
3. Setting the Time
To set the time, gently turn the minute hand (the longer hand) clockwise until the correct time is displayed. Allow the clock to strike at each quarter and half-hour as you advance the minute hand. Never move the hour hand directly, as it is synchronized with the strike mechanism.
4. Synchronizing the Strike
After setting the time, if the strike does not match the hour displayed, allow the clock to run for a full hour. If the strike is still incorrect, gently move the hour hand (the shorter hand) to match the number of strikes. For example, if the clock strikes three times but the hour hand points to four, carefully move the hour hand back to three. The clock will automatically synchronize over time.
Operating Your Clock
Regular Winding
For consistent and accurate timekeeping, wind your clock fully once a week. Establish a routine, such as winding it every Sunday morning, to ensure it does not run down.
Strike Mechanism
The clock features a BimBam strike that sounds once on the half-hour and counts the hours on the hour. The strike volume is fixed and cannot be adjusted by the user.
Maintenance
Cleaning
Dust the clock case regularly with a soft, dry cloth. For the glass bezel, use a soft cloth lightly dampened with a glass cleaner, avoiding contact with the wooden case. Do not use abrasive cleaners or polishes on the wood, as this may damage the finish. For the internal mechanism, do not attempt to clean it yourself.
Professional Servicing
Mechanical clocks require periodic professional servicing, typically every 5-10 years, to clean, lubricate, and adjust the movement. This ensures optimal performance and extends the life of your timepiece. Consult a qualified clockmaker for this service.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Clock not running | Not wound; mechanism jammed; clock not level. | Ensure clock is fully wound. Check for obstructions. Verify clock is on a level surface. If problem persists, seek professional service. |
| Clock runs too fast or too slow | Regulation adjustment needed. | This clock may have a small regulator lever (often marked '+' and '-') near the balance wheel. Moving it towards '+' speeds up the clock, towards '-' slows it down. Make very small adjustments. If unsure, consult a professional. |
| Strike does not match time | Strike mechanism out of synchronization. | Follow the 'Synchronizing the Strike' instructions in the Setup section. |
| Strike is weak or absent | Not fully wound; mechanism obstruction. | Ensure the clock is fully wound. Check for any visible obstructions around the hammers or gongs. If problem persists, professional service is required. |
Specifications
- Model: Hermle 21154-160130
- Movement Type: Mechanical, 8-day traction spring
- Strike: 1/2 hour BimBam strike
- Display Type: Analog
- Case Material: Cherry wood
- Bezel Material: Glass
- Dimensions (L x H): Approximately 31.5 cm x 19 cm (19 x 31.5 x 11 cm)
- Mounting Type: Tabletop
- Batteries Required: No (Mechanical movement)
Warranty Information
Hermle clocks are crafted with high-quality materials and precision engineering. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Customer Support
For further assistance, technical support, or inquiries regarding professional servicing, please contact your authorized Hermle dealer or visit the official Hermle website. Contact details can typically be found on the manufacturer's packaging or website.
