1. Introduction
This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Bosch Series 4 GSN36VL30U free-standing freezer. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Bosch Series 4 GSN36VL30U is a 242-liter free-standing freezer featuring NoFrost technology, 7 drawers, and a stainless steel look finish. It is designed for optimal food preservation with energy efficiency.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Ensure the appliance is properly earthed.
- Do not damage the refrigerant circuit.
- Keep ventilation openings clear of obstructions.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Unplug the appliance before cleaning or maintenance.
- Supervise children to ensure they do not play with the appliance.
3. Setup and Installation
3.1 Unpacking and Placement
Carefully unpack the freezer and remove all packaging materials. Place the appliance on a stable, level surface. Ensure adequate ventilation around the unit. The appliance dimensions are approximately 186 cm (H) x 60 cm (W) x 65 cm (D).

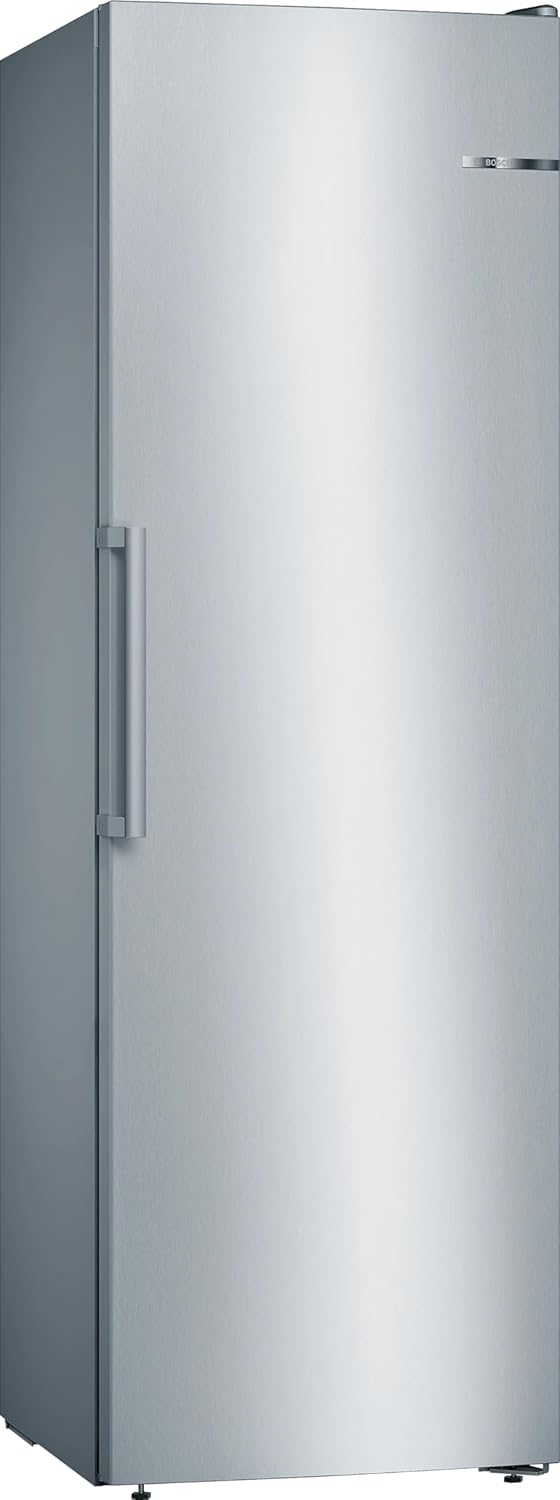

Image 1: Front view of the Bosch Series 4 GSN36VL30U free-standing freezer with its stainless steel door closed.
3.2 Electrical Connection
Connect the freezer to a properly earthed electrical outlet. The nominal voltage required is 220 - 240 V. Refer to the rating plate for specific electrical requirements.
3.3 Door Reversibility
The door is right-hinged as standard but is reversible to suit your kitchen layout. Consult a qualified technician for door reversal if needed. No side clearance is needed for door opening, allowing full access to all drawers.
3.4 Leveling
Adjust the height-adjustable front feet to ensure the appliance is level and stable.
4. Operating Instructions
4.1 Control Panel
The freezer features an LED electronic control panel for temperature settings and function activation.

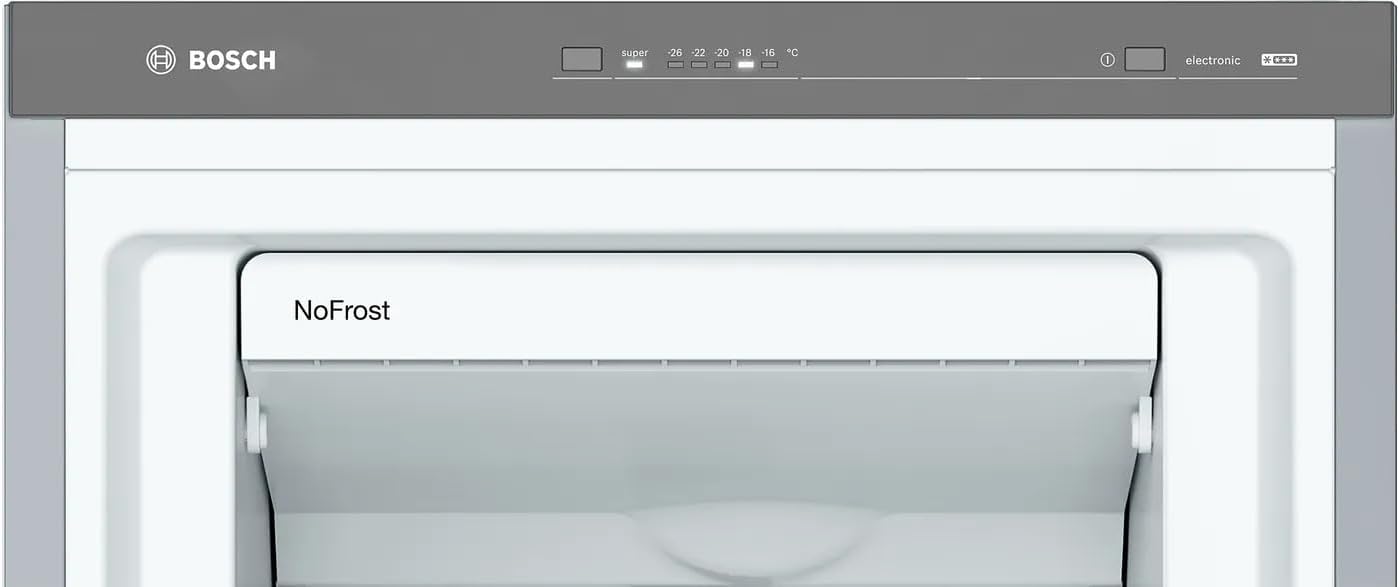

Image 2: Close-up view of the LED electronic control panel, showing temperature settings and function indicators.
4.2 Temperature Setting
Use the electronic controls to set the desired freezing temperature. The recommended temperature for long-term food storage is -18°C.
4.3 Super Freezing Function
Activate the Super Freezing function manually or automatically when adding a large quantity of fresh food to rapidly freeze it, preserving nutrients and flavor. This function automatically deactivates after a set period.
4.4 Storage Compartments
The freezer is equipped with 7 drawers, including 2 BigBox drawers, and Vario Zone removable safety glass shelves for flexible storage. The Multi Airflow-System ensures even temperature distribution throughout the freezer compartment.
Image 3: Interior view of the freezer, showing multiple transparent drawers and shelves for organized storage.
Image 4: Close-up of the BigBox drawers inside the freezer, designed for larger items, with food items visible.
5. Maintenance and Cleaning
5.1 NoFrost Technology
Your Bosch freezer features NoFrost technology, which automatically prevents ice build-up. This means manual defrosting is not required, simplifying maintenance.
5.2 Cleaning the Appliance
Before cleaning, always unplug the freezer from the power supply. Clean the interior and exterior surfaces with a soft cloth and a mild detergent solution. Avoid abrasive cleaners or solvents. Regularly clean the door seals to ensure a tight closure.
5.3 Accessories
The freezer comes with an ice cube tray and a cold accumulator. Clean these accessories regularly with warm soapy water.
6. Troubleshooting
This section provides solutions to common issues. For problems not listed here, contact customer service.
6.1 Acoustic Open Door Warning System
If the door is left open for too long, an acoustic warning will sound. Close the door fully to silence the alarm.
6.2 Malfunction Warning System
The freezer is equipped with a visual and acoustic warning system for malfunctions in the freezer compartment. If an alarm sounds or a warning light illuminates, consult the detailed troubleshooting section in the full user manual or contact customer support.
6.3 Power Failure
In the event of a power failure, the freezer can maintain storage temperature for approximately 25 hours, provided the door remains closed.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | BOSCH |
| Model Info | GSN36VL30U |
| Type | Free-standing freezer |
| Capacity | 242 Liters (Net) / 255 Liters (Gross) |
| Dimensions (H x W x D) | 186.0 cm x 60 cm x 65.0 cm |
| Energy Efficiency Class | EU_2010 (A++ to F range) |
| Energy Consumption | 237 kWh/yr |
| Noise Level | 39 dB(A) re 1 pW |
| NoFrost | Yes |
| Freezing Capacity | 20 kg/24 h |
| Storage Time in Power Failure | 25 h |
| Control Type | LED electronic control |
| Door Hinging | Right hinged, reversible |
| Color | Pearl grey (Stainless steel look doors) |
| Voltage | 220 - 240 V |
| Climate Class | SN-T |
| Included Components | Ice cube tray, cold accumulator |
8. Warranty and Support
8.1 Product Warranty
For detailed information regarding the product warranty, please refer to the warranty card included with your appliance or visit the official Bosch website. Extended warranty options may be available from third-party providers.
8.2 Customer Support
Should you require assistance, spare parts, or service, please contact Bosch customer support. You can find contact information on the official Bosch website or in the documentation provided with your freezer.
