Introduction
Thank you for choosing the VilroCaz Modern L-Shaped Convertible Sofa Couch. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

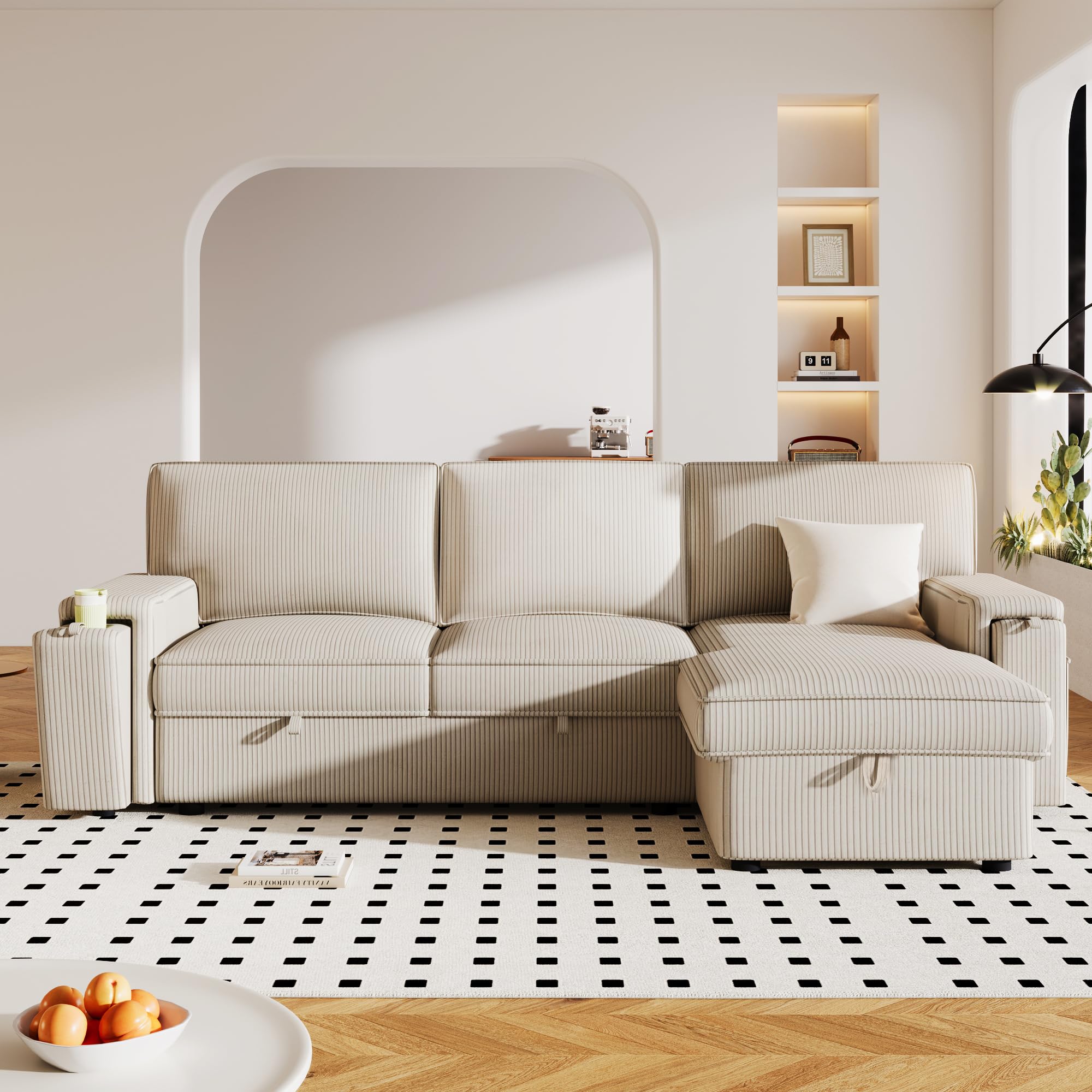

Image: The VilroCaz Modern L-Shaped Convertible Sofa Couch in beige, showcasing its L-shape configuration and modern design.
Safety Information
- Always supervise children and pets around the sofa to prevent entrapment or injury.
- Ensure all components are securely fastened before use. Periodically check and tighten all connections.
- Do not exceed the recommended weight capacity of 220 pounds per seat.
- Avoid standing or jumping on the sofa.
- Keep sharp objects away from the upholstery to prevent damage.
- Do not use harsh chemicals or abrasive cleaners on any part of the sofa.
Package Contents
Before assembly, verify that all parts are present. If any parts are missing or damaged, do not proceed with assembly and contact customer service.
- Sofa sections (main sofa, chaise lounge)
- Back cushions
- Seat cushions
- Legs and associated hardware
- Assembly tools (included)
- Instruction manual
Setup and Assembly
Assembly is required for this product. It is recommended that two people assemble the sofa to ensure safety and ease of construction. All necessary assembly tools are included.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Attach Legs: Securely attach the legs to the bottom of each sofa section using the provided hardware. Ensure they are tightened firmly.
- Connect Sofa Sections: Align the main sofa section with the chaise lounge section. Use the provided connectors to securely join the two pieces.
- Place Cushions: Position the seat and back cushions onto the sofa frame.
- Final Check: Verify that all connections are tight and the sofa is stable before use.
Image: An overhead view of the sofa components, illustrating the modular design before full assembly.
Operating Instructions
Converting to Sofa Bed
The sofa features a pull-out mechanism to transform it into a twin-sized sleeper bed.
- Locate Pull Handles: Identify the pull handles located at the front base of the main sofa section.
- Pull Out Bed: Gently pull the handles outwards and upwards to extend the sleeper mechanism. The bed will fold out smoothly.
- Retract Bed: To return to sofa mode, push the extended section back into the sofa frame until it locks into place.
Image: The sofa with its pull-out bed mechanism partially extended, showing the transition from sofa to bed.
Image: The sofa fully converted into a twin sleeper bed, demonstrating its functionality for sleeping.
Using Hidden Storage
The chaise lounge section includes a convenient hidden storage compartment.
- Lift Chaise Seat: Grasp the front edge of the chaise seat cushion and lift upwards. The seat will pivot open, revealing the storage space underneath.
- Close Storage: Gently lower the chaise seat until it rests securely in its closed position.
Image: The chaise lounge section of the sofa with its seat lifted, revealing the hidden storage compartment.
Utilizing Cup Holders and Storage Bags
The sofa is equipped with two hidden cup holders and storage bags on the armrests.
- Cup Holders: Locate the discreet panels on the inner side of each armrest. Gently pull them out to reveal the cup holders. Push them back in when not in use.
- Storage Bags: The armrests feature integrated storage pockets on the outer sides, suitable for magazines, remote controls, or small items.
Image: A close-up view of the sofa armrest, highlighting the hidden pull-out cup holder.
Image: A close-up view of the sofa armrest, showing the integrated storage pocket on its side.
Maintenance
- Regular Cleaning: Vacuum the surface and crevices regularly to remove dust and dirt. Use a soft brush attachment for upholstery.
- Spot Cleaning: For spills, immediately blot with a clean, dry cloth. Spot clean with a damp cloth or sponge using mild soap and water. Test on an inconspicuous area first.
- Avoid Harsh Chemicals: Do not use harsh chemicals, bleach, or abrasive cleaners, as these can damage the fabric.
- Sunlight Exposure: Avoid placing your upholstered furniture in direct sunlight to minimize fading and material degradation.
- Cushion Care: Do not machine wash cushion covers. Refer to spot cleaning instructions.
- Mechanism Care: Periodically check the pull-out bed mechanism for smooth operation. Keep it free of debris.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sofa feels unstable or wobbly. | Loose connections or uneven legs. | Check and tighten all bolts and screws. Ensure legs are evenly placed on the floor. |
| Pull-out bed mechanism is stiff or stuck. | Obstruction in the mechanism or lack of lubrication. | Clear any debris from the tracks. Apply a silicone-based lubricant to moving parts if necessary. Do not force the mechanism. |
| Fabric appears discolored or faded. | Prolonged exposure to direct sunlight. | Relocate the sofa away from direct sunlight or use curtains/blinds to protect it. |
Specifications
Image: A technical diagram illustrating the precise dimensions of the sofa in inches, including overall length, depth, height, seat depth, and arm height.
| Feature | Detail |
|---|---|
| Product Type | Sleeper Sofa, Sectional |
| Design | L-Shaped, Convertible |
| Overall Dimensions (D x W x H) | 59.3" x 96.1" x 37.4" |
| Seat Depth | 20.5 inches |
| Seat Height | 19.7 inches |
| Seating Capacity | 3 |
| Weight Capacity | 220 lbs per seat |
| Fabric Material | Polyester |
| Frame Material | Plywood, Engineered Wood |
| Leg Material | Plastic |
| Sleeper Mechanism | Fold Out, Twin Sleeper |
| Storage | Hidden storage in chaise, Storage bags on armrests |
| Cup Holders | 2 (hidden) |
| Assembly Required | Yes (Tools included, 2 people recommended) |
| Country of Origin | Vietnam |
Warranty Information
This VilroCaz product comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. The warranty typically covers manufacturing defects under normal household use.
Customer Support
If you encounter any issues with your VilroCaz L-Shaped Convertible Sofa Couch, require replacement parts, or have questions not covered in this manual, please contact our customer service team. Refer to your purchase documentation for contact details or visit the official VilroCaz website.
When contacting support, please have your model number (L-Shaped Convertible Sofa Bed Sectional Couch) and ASIN (B0CRKT9LFG) available for faster service.
