Bennett Read Indoor Misting Fan User Manual

Important Safety Information

Please read all instructions carefully before using this appliance and retain for future reference. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Always ensure the fan is placed on a stable, level surface to prevent tipping.
• Do not immerse the fan, power cord, or plug in water or other liquids.
• Keep the fan away from children and pets. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug the fan from the power outlet when not in use, when moving it, and before cleaning.
• Do not operate the fan with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact qualified service personnel for examination, repair, or adjustment.
• Do not insert fingers or any other objects through the grille when the fan is operating.
• Do not use the fan near windows, curtains, or other objects that may be drawn into the fan.
• Ensure the voltage indicated on the rating label corresponds to your mains voltage.
• Only use the fan indoors. Do not use outdoors or in wet conditions.
• Do not block air openings.
• Use only clean, distilled water in the misting tank to prevent mineral buildup and ensure optimal performance.
• Regularly clean the water tank and misting components to prevent bacterial growth.

Product Overview

Introduction

The Bennett Read Indoor Misting Fan is designed to provide powerful and effective cooling for your indoor spaces. Combining the air circulation of a fan with a refreshing cool mist, it offers a comfortable environment, especially during warmer periods. Its modern design and user-friendly features make it a versatile addition to any home or office.

Key Features

• Customize your experience with 3 modes and 3 speeds.
• Swing and tilt function for wide area coverage.
• Silent 85W motor with self-protecting overheating mechanism.
• Large, durable 16-inch blades for efficient airflow.
• Remote-controlled timer function for convenience.
• Modern LED control panel for easy operation.

Product Components

Familiarize yourself with the main parts of your Bennett Read Indoor Misting Fan:

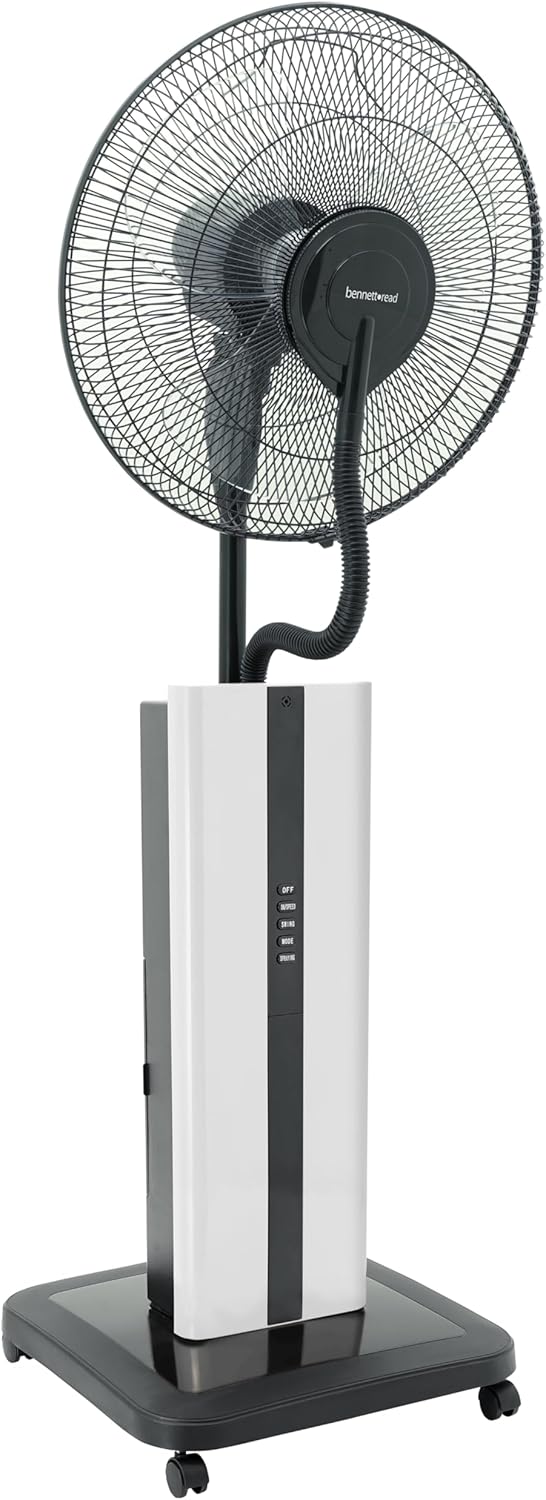

Figure 1: Front view of the Bennett Read Indoor Misting Fan, showing the fan head, misting unit, control panel, and base with wheels.

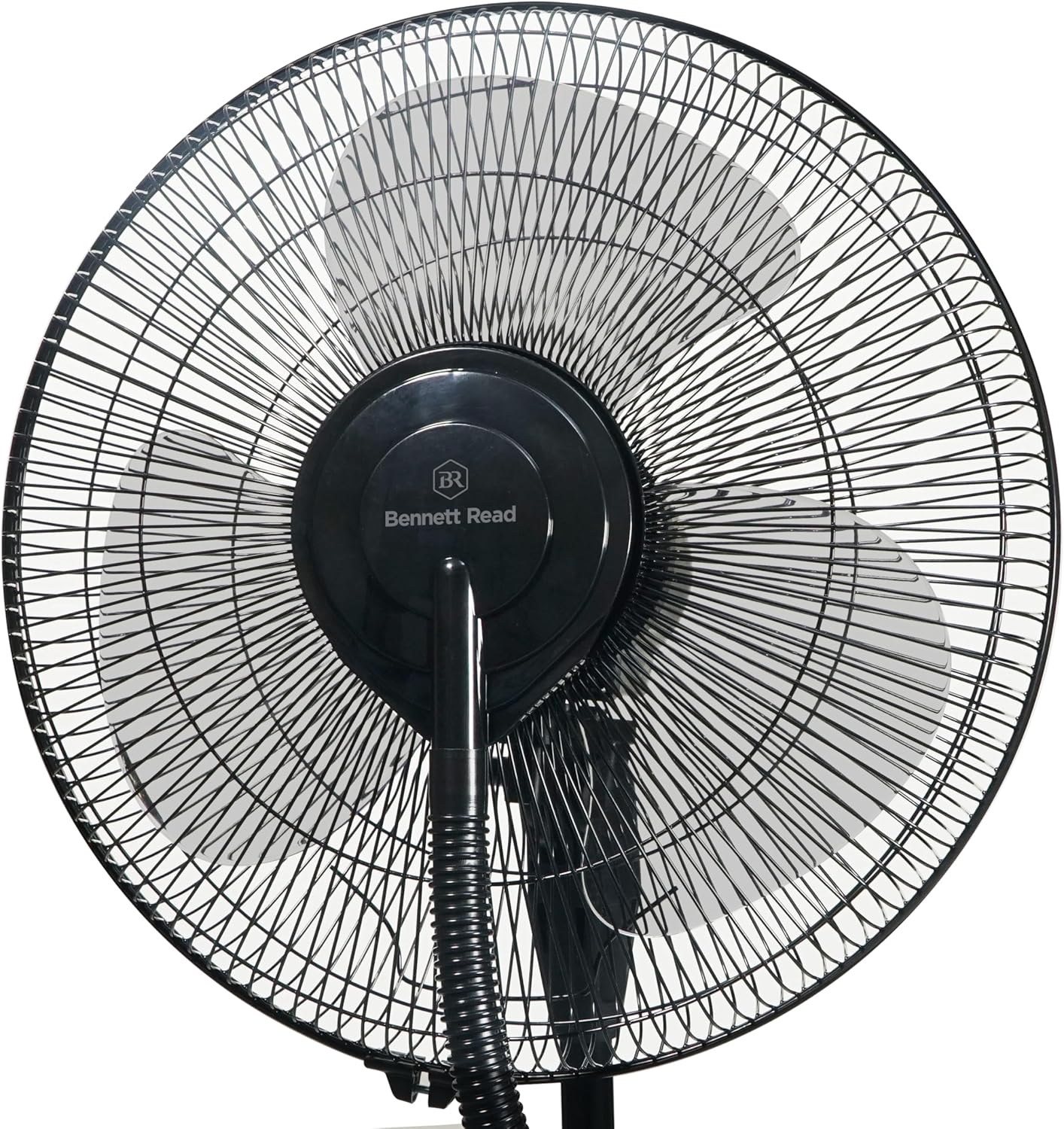

Figure 2: Rear view of the fan head, highlighting the protective grille and the Bennett Read logo.

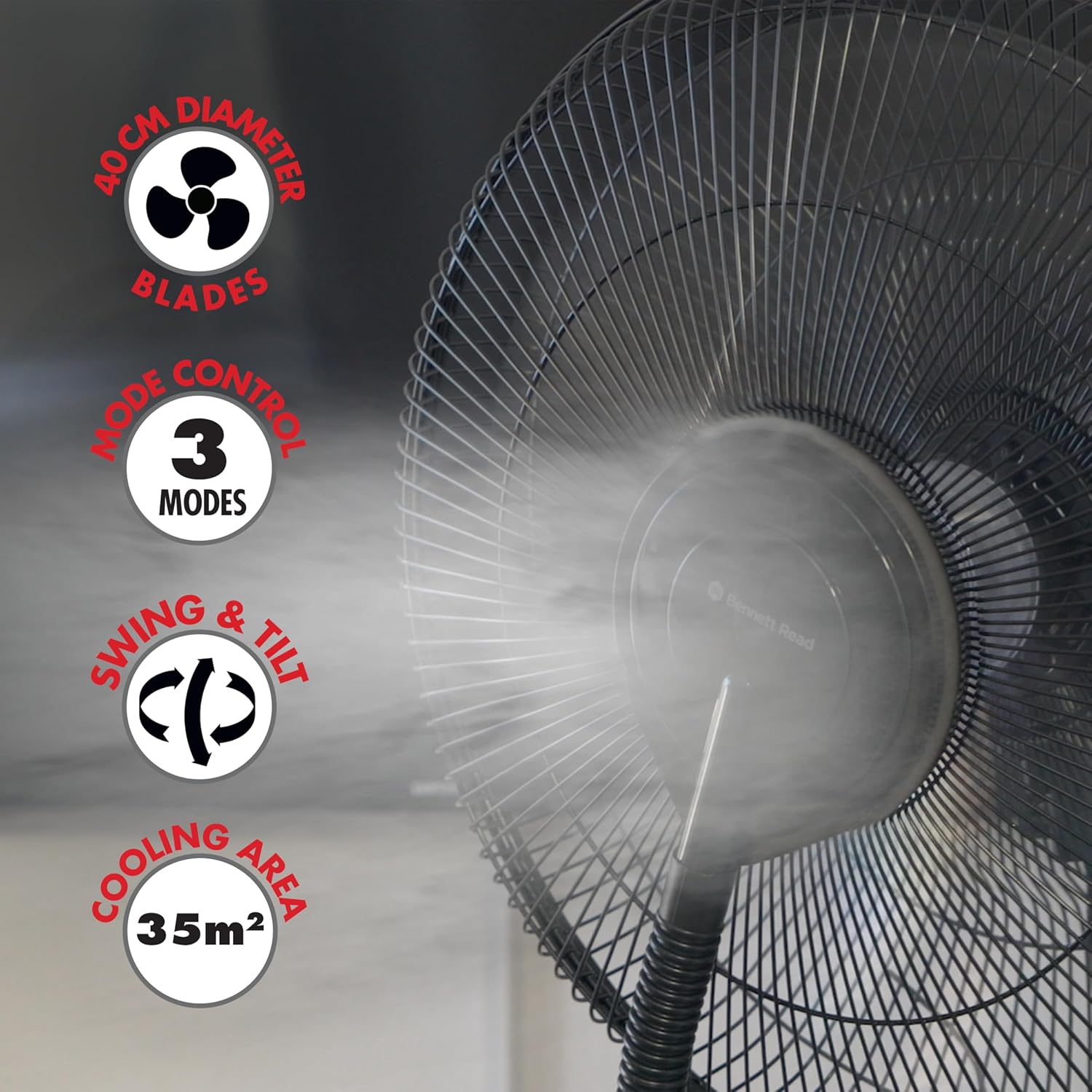

Figure 3: The fan operating with mist, illustrating its 40cm diameter blades, 3 modes, swing & tilt, and 35m² cooling area.

Assembly and Initial Setup

Unpacking

Carefully remove all components from the packaging. Check for any damage during transit. Retain the packaging for future storage or transport.

Assembly Steps

1. Place the fan base on a flat, stable surface.
2. Securely attach the main fan body to the base, ensuring it clicks into place or is fastened according to the specific model's design.
3. Attach the fan head assembly to the top of the main body, aligning the misting tube and electrical connections.
4. Ensure all connections are firm and secure before proceeding.

Water Tank Filling

1. Locate the water tank on the fan unit.
2. Carefully remove the water tank cap or pull out the tank if it's removable.
3. Fill the tank with clean, distilled water. Do not exceed the maximum fill line. Using tap water may lead to mineral buildup and reduced misting performance.
4. Securely replace the water tank cap or reinsert the tank into the unit.

Operating Instructions

Control Panel and Remote

Your Bennett Read Misting Fan can be operated using the intuitive LED control panel on the unit or the included remote control.

Figure 4: The modern LED control panel with buttons for OFF, ON/SPEED, SWING, MODE, and MISTING. Also shown are indicators for timer settings (1H, 2H, 3H, 4H) and fan speed/mode.

Power On/Off

• Plug the fan into a suitable power outlet.
• Press the 'ON/SPEED' button on the control panel or remote to turn the fan on.
• Press the 'OFF' button to turn the fan off.

Speed Settings

• While the fan is on, press the 'ON/SPEED' button repeatedly to cycle through the 3 available fan speeds (Low, Medium, High). The LED indicators will show the current speed.

Mode Selection

• Press the 'MODE' button to select from the 3 available modes (Normal, Natural, Sleep).
• Normal Mode: Constant airflow at the selected speed.
• Natural Mode: Simulates natural breeze by varying fan speed.
• Sleep Mode: Operates at a lower, quieter speed for comfortable sleep.

Misting Function

• Ensure the water tank is filled with distilled water.
• Press the 'MISTING' button to activate the misting function.
• Press the 'MISTING' button again to turn it off.

Swing and Tilt

• Press the 'SWING' button to activate the oscillation (swing) function, allowing the fan head to move from side to side for wider coverage. Press again to stop oscillation.
• Manually adjust the tilt of the fan head up or down to direct airflow as desired.

Timer Function

• Press the 'TIMER' button (on remote) or cycle through timer options on the control panel to set the fan to automatically turn off after a specified period (e.g., 1H, 2H, 3H, 4H).
• The corresponding LED indicator will illuminate to show the selected timer duration.

Care and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your misting fan.

General Cleaning

• Always unplug the fan before cleaning.
• Use a soft, damp cloth to wipe down the exterior surfaces of the fan. Do not use abrasive cleaners or solvents.
• For the fan blades and grilles, use a vacuum cleaner with a brush attachment or a soft, dry cloth to remove dust and debris.
• Ensure no water enters the motor housing or electrical components.

Water Tank Cleaning

• Empty any remaining water from the tank after each use or if the fan will not be used for an extended period.
• Rinse the water tank thoroughly with clean water.
• To remove mineral deposits, fill the tank with a solution of equal parts white vinegar and water. Let it soak for 30 minutes, then rinse thoroughly.
• Clean the misting nozzle regularly with a soft brush or cotton swab to prevent blockages.

Storage

• If storing the fan for a long period, ensure it is clean and dry.
• Store it in its original packaging or a suitable box in a cool, dry place.

Common Issues and Solutions

If you encounter any problems with your Bennett Read Indoor Misting Fan, please refer to the following troubleshooting guide:

Technical Specifications

Detailed specifications for your Bennett Read Indoor Misting Fan:

Warranty and Support

Warranty Information

This Bennett Read Indoor Misting Fan comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

Customer Support

For any questions, technical assistance, or service requests not covered in this manual, please contact Bennett Read customer support. Contact details can typically be found on the product packaging, the official Bennett Read website, or your purchase receipt.
