Introduction
The TMT KeyPad P2 is a robust, wireless keyless entry system designed for automatic swing gate openers. Featuring a durable metal body and an IPX4 waterproof rating, it provides secure and convenient access control for outdoor environments. This manual provides essential information for installation, operation, and maintenance of your KeyPad P2.

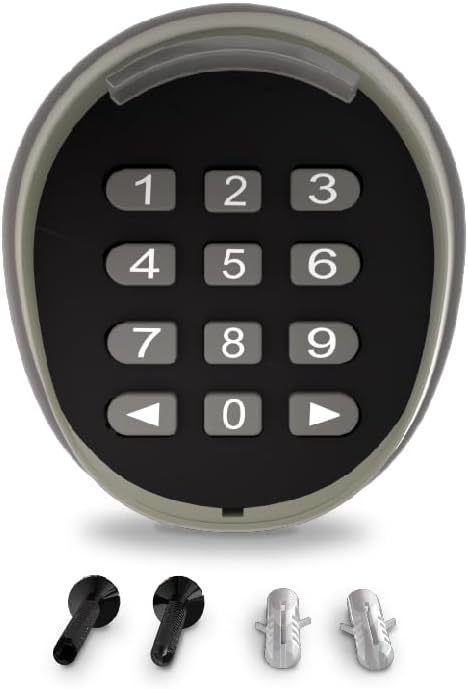

Image: TMT KeyPad P2 Wireless Keypad, showing the numeric keypad and included mounting hardware.
Key Features
- High-Quality Durable Material: Superior metal body for exceptional durability against outdoor elements, ideal for diverse outdoor placement.
- Easy to Install: Transforms your door into a smart automatic gate with basic household tools. All necessary hardware included.
- Outdoor Wireless Control: Completely wireless operation, allowing effortless installation at any suitable location within a 150 ft transmission range.
- Outstanding Waterproof Rating: IPX4 rating provides protection against water splashes, ensuring accurate code input even in low-light conditions.
- Secure & Convenient: Configure up to 2 customized passwords with streamlined entry, offering a blend of security and ease.
Image: Visual representation of KeyPad P2 features: 2 Customized Passwords, 4-Digit access codes, Provisional Password Enabled, and Stylish LED Lights.
Package Contents
The TMT KeyPad P2 package includes the following items:
- One (1) TMT Keypad P2 unit
- Installation kit (screws and expansion bolts)
- User manual
Image: Diagram illustrating the P2 Keypad and Expansion Bolts included in the package.
Setup and Installation
The TMT KeyPad P2 is designed for straightforward installation. Follow these steps for proper setup:
- Prepare the Mounting Surface: Choose a suitable location within 150 ft of your gate opener's receiver. Ensure the surface is flat and stable.
- Disassemble the Keypad: Carefully take off the surface panel, unscrew the case, and remove the back cover to access the PCBA (Printed Circuit Board Assembly).
- Mount the Back Plate: Use the provided screws and expansion bolts to securely attach the back cover to your chosen mounting surface.
- Reassemble the Keypad: Once the back plate is mounted, reattach the PCBA, case, and surface panel.

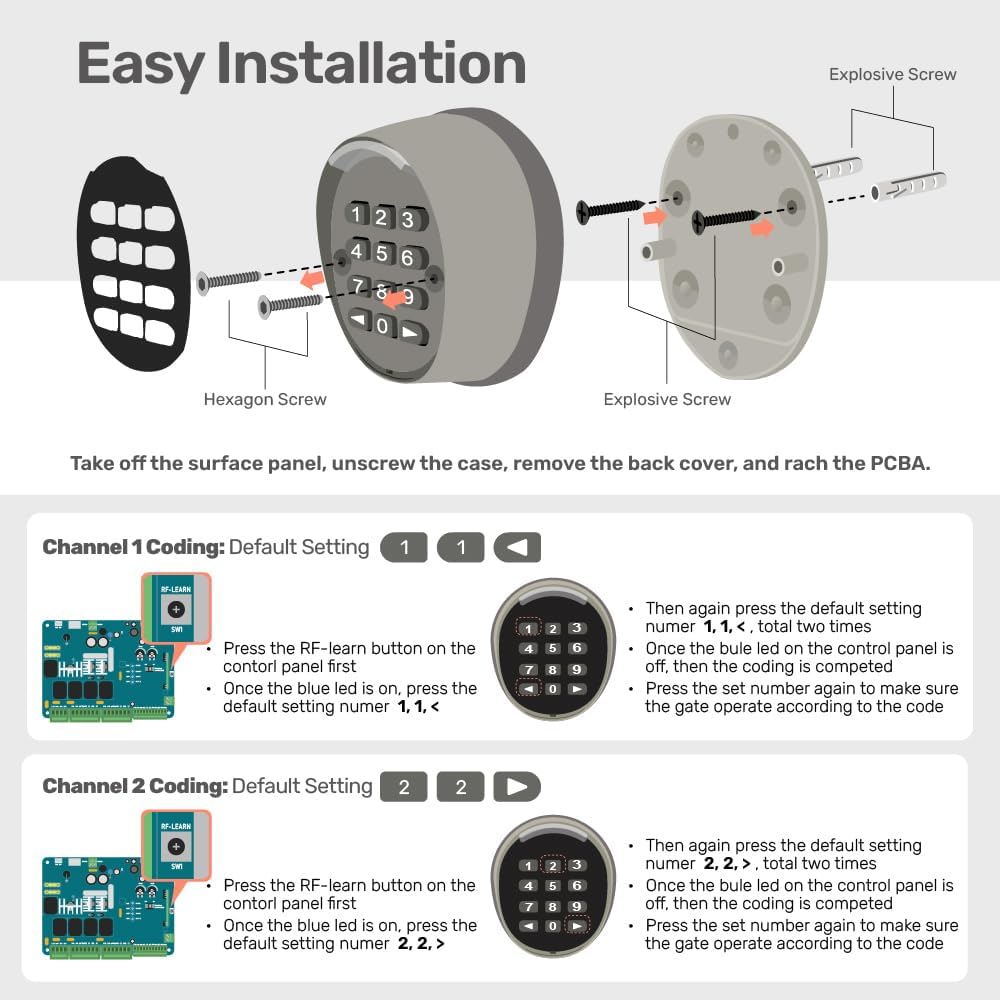

Image: Step-by-step diagram illustrating how to disassemble the keypad, remove the back cover, and access the internal components for installation.
For visual guidance, refer to the installation video (if available from the manufacturer) or the detailed diagrams provided in this manual.
Operating Instructions
The KeyPad P2 allows for secure and convenient access using customized passwords. Follow these steps to program and operate your keypad:
Programming Access Codes (Coding)
The KeyPad P2 supports two channels for programming, allowing for different access codes or control of different gate functions.
Channel 1 Coding: Default Setting 1, 1, <
- 1. Press the RF-learn button on the control panel first.
- 2. Once the blue LED is on, press the default setting number 1, 1, < on the keypad.
- 3. Then again press the default setting number 1, 1, <, a total of two times.
- 4. Once the blue LED on the control panel is off, the coding is completed.
- 5. Press the set number again to make the gate operate according to the code.
Channel 2 Coding: Default Setting 2, 2, >
- 1. Press the RF-learn button on the control panel first.
- 2. Once the blue LED is on, press the default setting number 2, 2, > on the keypad.
- 3. Then again press the default setting number 2, 2, >, a total of two times.
- 4. Once the blue LED on the control panel is off, the coding is completed.
- 5. Press the set number again to make the gate operate according to the code.
Image: Detailed instructions for programming Channel 1 and Channel 2 access codes, showing the keypad and a control board with an RF-learn button.
Daily Operation
To operate your gate using the KeyPad P2:
- Enter your programmed 4-digit access code.
- The keypad's LED lighting cues will confirm accurate input.
- The gate will operate according to the programmed function for that code.
Image: The TMT P2 keypad with a blue LED light indicating successful input, ensuring visibility and confirmation.
Maintenance
The TMT KeyPad P2 is designed for minimal maintenance due to its durable construction and IPX4 waterproof rating. To ensure optimal performance and longevity:
- Cleaning: Periodically wipe the keypad surface with a soft, damp cloth to remove dirt and debris. Avoid abrasive cleaners or solvents.
- Battery Replacement: While the product description states "Batteries Included? No" and "Batteries Required? No", it's important to note that wireless devices typically require power. If your specific model requires batteries (e.g., for the keypad's wireless transmission), refer to the product packaging or a more detailed manual for battery type and replacement instructions.
- Inspect for Damage: Regularly check the keypad for any signs of physical damage, such as cracks or loose components, especially after severe weather conditions.
Troubleshooting
If you encounter issues with your TMT KeyPad P2, consider the following common troubleshooting steps:
- Keypad Not Responding:
- Ensure the keypad is within the specified transmission range (up to 150 ft) of the gate opener's receiver.
- Verify that the keypad has power (if battery-operated, check/replace batteries).
- Check for any obstructions between the keypad and the receiver that might interfere with the wireless signal.
- Gate Not Opening/Closing After Code Entry:
- Confirm that the access code was entered correctly.
- Re-attempt the programming steps for the specific channel (Channel 1 or Channel 2) to ensure the code is properly learned by the gate opener's control panel.
- Ensure the gate opener itself is functioning correctly and has power.
- LED Light Not Illuminating:
- This could indicate a power issue (if battery-operated, check/replace batteries) or a fault with the keypad.
If problems persist, please contact TMT customer support for further assistance.
Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | TMT Automation Inc |
| Part Number | KP |
| Item Weight | 4.6 ounces |
| Product Dimensions | 2.9 x 2.9 x 1.55 inches |
| Country of Origin | China |
| Item Model Number | KP |
| Color | black and silver |
| Included Components | One P2 Keypad |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B0CRHCBZ8P |
| Date First Available | January 4, 2024 |
Warranty and Support
The TMT KeyPad P2 comes with a 12-Month Warranty from the date of purchase, covering manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
TMT Automation Inc. is committed to providing reliable local service and support. For technical assistance, troubleshooting, or warranty inquiries, please contact TMT customer service through the official TMT website or your point of purchase.
Images: Demonstrating ease of installation, the product's origin (Designed in Taiwan), and the keypad's mounted appearance.
