COMETX TE-CSS-001 Rechargeable Selfie Stick User Manual

1. Product Overview

The COMETX TE-CSS-001 is a versatile rechargeable selfie stick designed for extended use and convenience. It integrates a power bank function, allowing you to charge your camera or other devices while capturing moments. Its telescoping design extends up to 90cm, providing a wide range of shooting possibilities, and it supports QC/PD3.0 fast charging protocols.

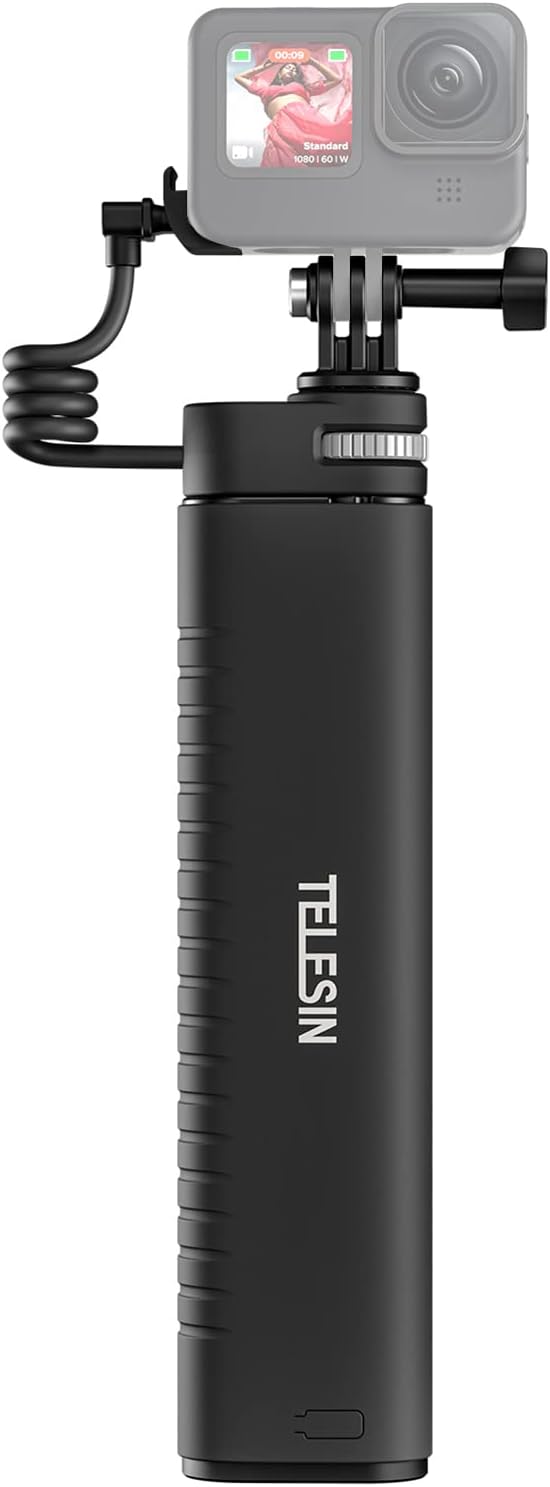

Image: The TE-CSS-001 Rechargeable Selfie Stick with a camera mounted, showcasing its compact form.

Image: Two TE-CSS-001 selfie sticks, one in its compact state and another fully extended, demonstrating its dual functionality as a power bank and selfie stick.

2. Package Contents

Please verify that all items listed below are included in your package:

• 1 x Chargeable Selfie Stick
• 1 x 3-prong Adapter
• 1 x Screw
• 1 x Phone Clip
• 1 x Fast Charging Cable
• 1 x Instruction Manual
• 1 x Weather-Resistant Pass Through Door

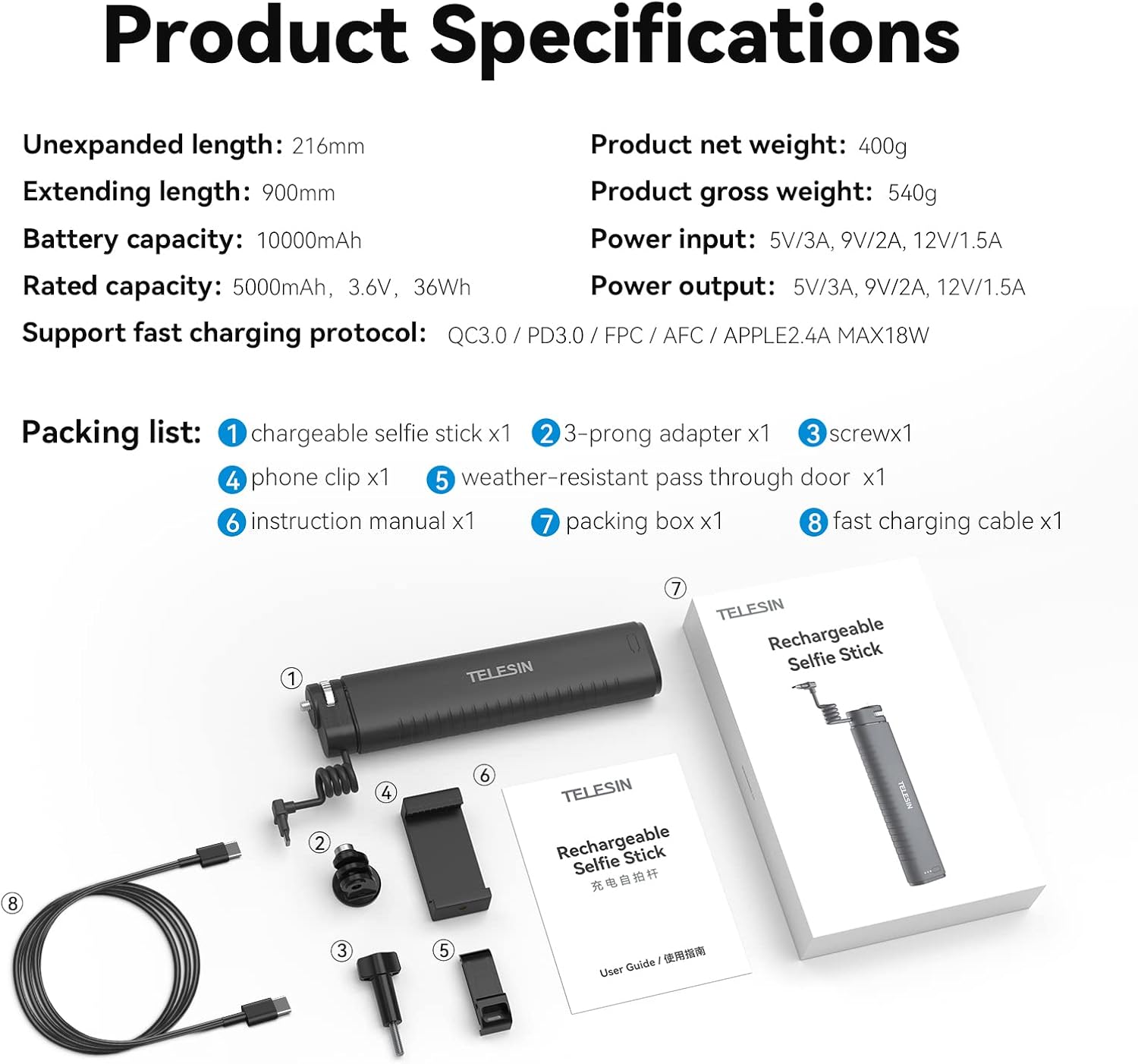

Image: A visual representation of the product's packing list, including the selfie stick, various adapters, cables, and the instruction manual.

3. Product Features

• Extended and Rechargeable: This selfie stick functions as both an extendable pole and an integrated power bank, capable of charging your camera or other devices while in use. It features a power reminder display for charging status.
• Energy Endurance & Long Working Time: Equipped with a 10000mAh battery, it supports 5.3k/30 fps recording for up to 7 hours, offering significantly extended runtime compared to standard setups.
• Stretchable and Portable: The stick extends up to 90cm for diverse shooting needs and collapses to a compact 21.6cm, weighing only 400g, making it highly portable.
• Water-Resistant Design: Features an IP52-level dustproof and drip-proof design, making it suitable for outdoor use in various weather conditions, resistant to small splashes of water and snowy environments.
• Fast-Charging Capability: Supports QC/PD3.0 fast charging protocols, allowing direct charging of compatible devices without needing their internal batteries, ideal for extended outdoor activities.

Image: Examples of the selfie stick being used in diverse outdoor settings, including hiking, fishing, and capturing time-lapse footage, highlighting its versatility.

Image: A visual representation of the product's impressive battery life, indicating 10000mAh capacity and up to 7 hours of recording time.

Image: An illustration detailing the IP52 waterproof and dustproof rating, emphasizing its resistance to dust, rain, and snow for outdoor use.

4. Setup

Attaching Your Device:

1. Identify the 3-prong adapter and screw from the package contents.
2. Attach your compatible camera (e.g., GoPro) or smartphone (using the phone clip) to the 3-prong adapter.
3. Securely fasten the adapter to the top of the selfie stick using the provided screw. Ensure it is tightened to prevent wobbling.

Initial Charging:

Before first use, it is recommended to fully charge the selfie stick. Refer to the 'Charging the Selfie Stick' section for detailed instructions.

5. Operating Instructions

Extending and Retracting the Pole:

• To extend: Gently pull the top section of the selfie stick upwards until it reaches the desired length, up to 90cm.
• To retract: Push the extended sections back into the main body until the stick is fully collapsed to 21.6cm.

Image: The selfie stick fully extended to 90cm, illustrating its reach and comparing it to older models that lack extension or charging capabilities when extended.

Using as a Power Bank:

The TE-CSS-001 features both a top output port with a Type-C spring cable and a bottom Type-C connector for input/output. These ports allow you to charge your camera or other devices.

• Top Output Port: Connect your camera using the integrated Type-C spring cable. This port supports up to 18W output.
• Bottom Output/Input Port: Use a separate Type-C cable to connect other devices for charging. This port also supports up to 18W output.
• Dual Charging: Both Type-C ports can be used simultaneously to charge two devices. Note: When charging two devices at the same time, both output ports are normally charged, but fast charging may not be supported simultaneously.

Image: A detailed view of the selfie stick's top output port with its integrated Type-C spring cable and the bottom Type-C input/output port, highlighting their 18W charging capabilities.

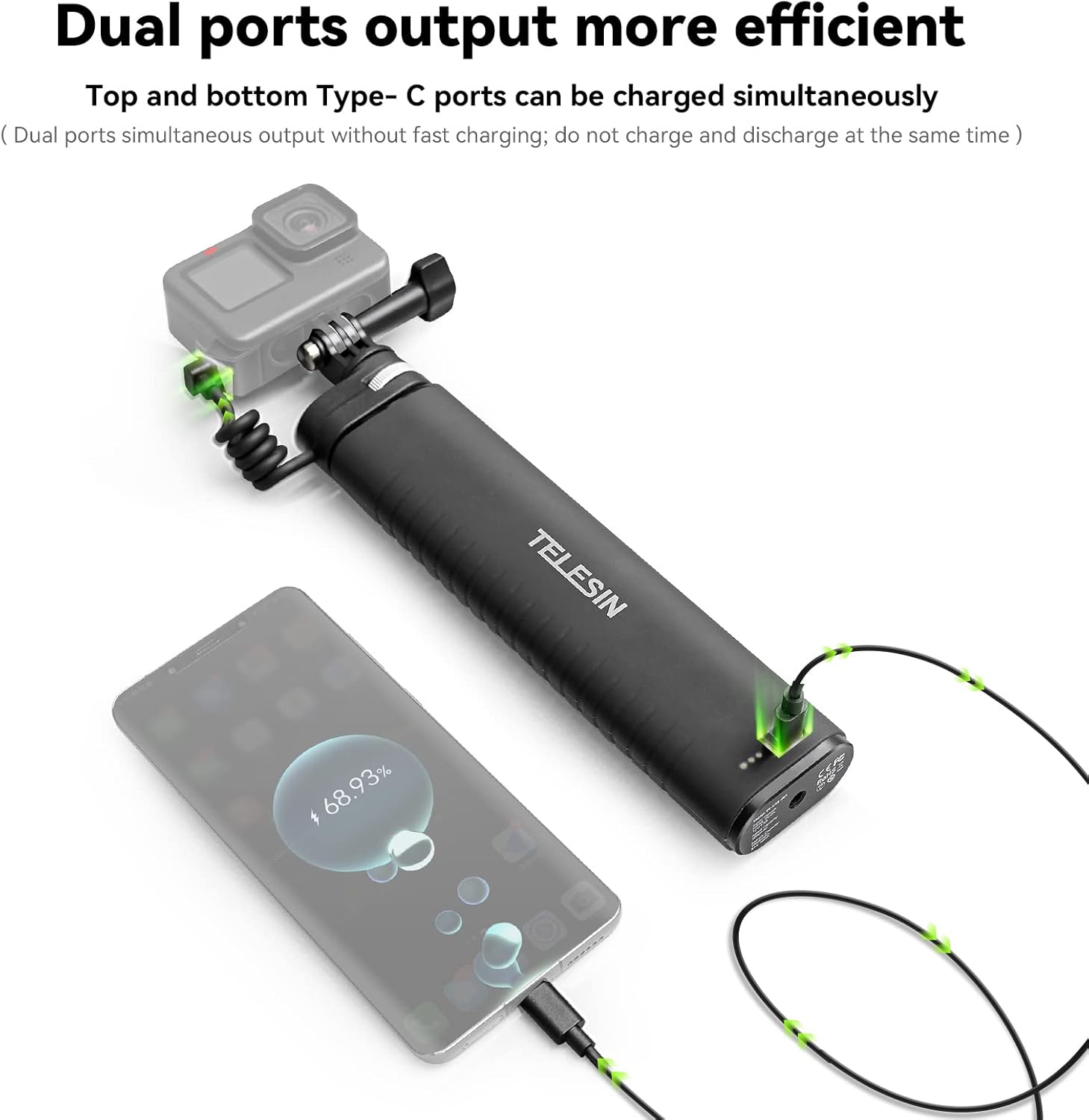

Image: The selfie stick demonstrating its dual charging capability, simultaneously powering a camera and a smartphone via its two Type-C ports.

6. Charging the Selfie Stick

The TE-CSS-001 supports QC/PD3.0 fast charging protocols for efficient power replenishment.

• Connect the provided fast charging cable to the bottom Type-C port of the selfie stick.
• Connect the other end of the cable to a compatible QC/PD3.0 fast charger (not included).
• The power reminder display will indicate the charging status.

Note: This product does not support charging and discharging at the same time.

7. Maintenance and Care

• Water Exposure: While the product has an IP52 dustproof and drip-proof design, splashing water should be wiped away as soon as possible.
• Snow Exposure: Snow needs to be wiped away before it melts to prevent moisture ingress.
• Weather-Resistant Door: For optimal protection in adverse weather, the selfie stick needs to be used with the weather-resistant pass-through door.
• Cleaning: Use a soft, dry cloth to clean the surface of the selfie stick. Avoid using abrasive cleaners or solvents.
• Storage: Store the selfie stick in a cool, dry place away from direct sunlight and extreme temperatures.

8. Troubleshooting

• Device not charging:
  • Ensure the selfie stick itself is charged.
  • Verify the charging cable is securely connected to both the selfie stick and the device.
  • Check if the device being charged is compatible with the power output.
  • Remember that charging and discharging simultaneously is not supported.
• Selfie stick not extending/retracting smoothly:
  • Check for any obstructions or debris in the telescoping sections.
  • Ensure you are pulling/pushing directly along the axis of the stick.
• Power reminder not working:
  • Ensure the selfie stick has some charge.
  • If the issue persists, contact customer support.

9. Specifications

10. Warranty and Support

For warranty information and customer support, please refer to the official COMETX website or contact their customer service directly. Keep your purchase receipt for warranty claims.
