Introduction
Thank you for choosing the SANODESK Electric Height Adjustable Standing Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new desk. Please read these instructions carefully before use and retain them for future reference.

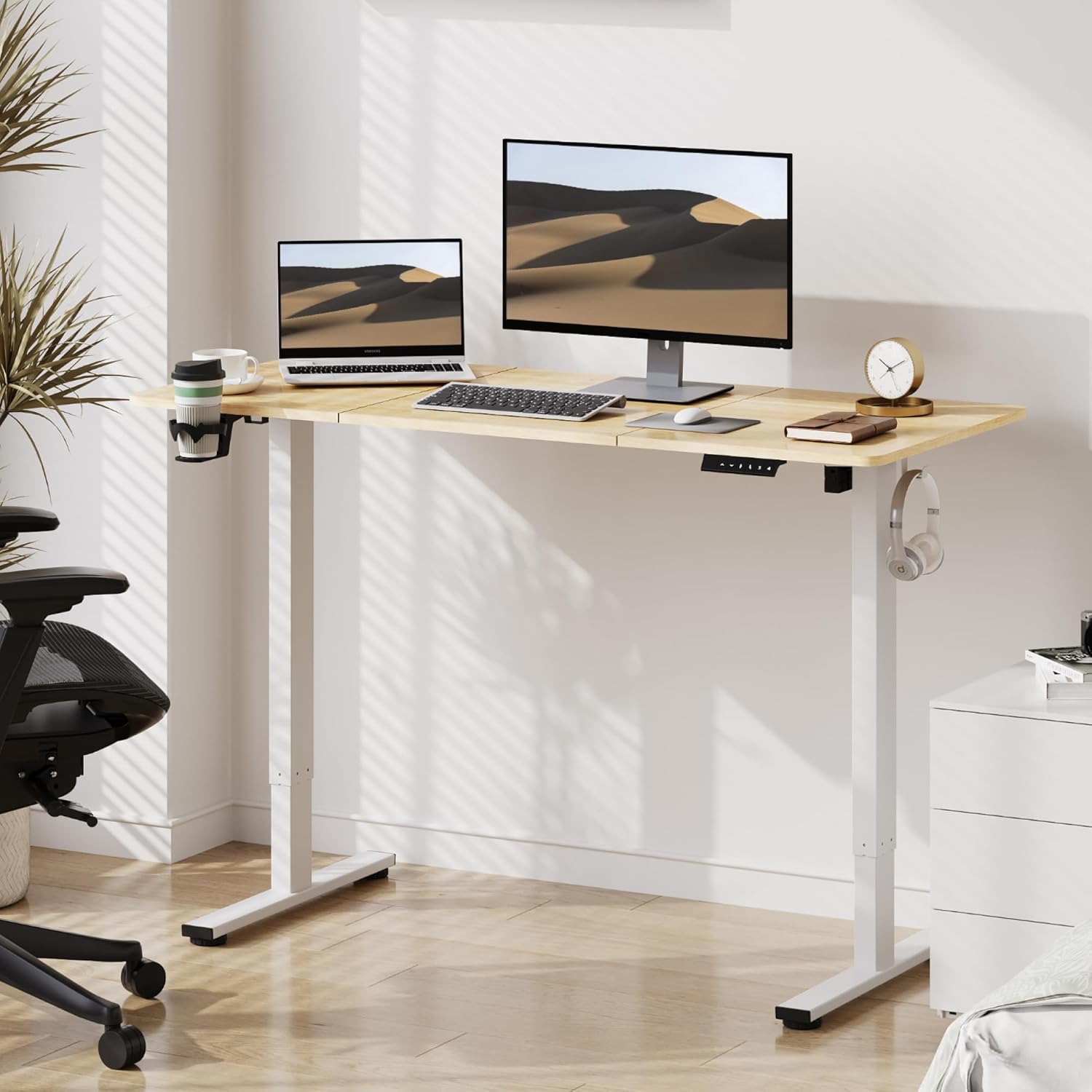

Image: The SANODESK Electric Height Adjustable Standing Desk, 140x60cm, with a maple top and white frame, set up in an office environment.
Safety Warnings
This desk is electric and height-adjustable. Follow all assembly and usage instructions carefully.
- Do not overload the desk. The maximum load capacity is 70 kg.
- Keep the desk away from excessive heat and moisture sources.
- Do not use the desk if you find any defects or damage to the structure or electrical components.
- Ensure all cables are properly managed to prevent tripping hazards or damage.
- Keep children and pets away from the desk during operation.
Setup and Assembly
The assembly process for your SANODESK electric standing desk is designed to be straightforward and can typically be completed in about thirty minutes.
Quick Assembly
Image: Visual representation of the desk assembly, emphasizing quick setup.
Cable Management
Proper cable management is crucial for a tidy and safe workspace. Utilize the integrated cable management system to keep your desk organized.
Image: A comparison demonstrating effective cable organization, transforming a cluttered setup into a clean workspace.
Image: Close-up of the under-desk cable management system, designed to keep wires neatly tucked away.
Operating Instructions
Height Adjustment
The desk offers a versatile height range from 73.5 cm to 118 cm, allowing you to easily switch between sitting and standing positions.
Image: The desk shown at its minimum and maximum height settings, demonstrating its adjustable range.
Image: The desk in both sitting and standing configurations, highlighting its ergonomic flexibility.
Control Panel and Memory Function
The intuitive control panel allows you to effortlessly modify and store your preferred desk height settings.
- LED Display: Shows the current desk height.
- Up/Down Arrows: Adjust the desk height manually.
- Sit/Stand Buttons: Quickly switch between pre-set sitting and standing heights.
- Memory Function (1-4): Store up to four preferred height settings for quick recall.
Image: The desk's control panel, detailing the LED display, height adjustment buttons, and memory presets.
Quiet Operation
The desk operates quietly, with noise levels below 50dB, ensuring a disturbance-free environment.
Image: A visual representation of the desk's quiet operation, comparing its noise level to a normal voice and city traffic.
Integrated Accessories
The spacious desktop includes convenient features such as a bottle holder and headphone hook to enhance your working environment.

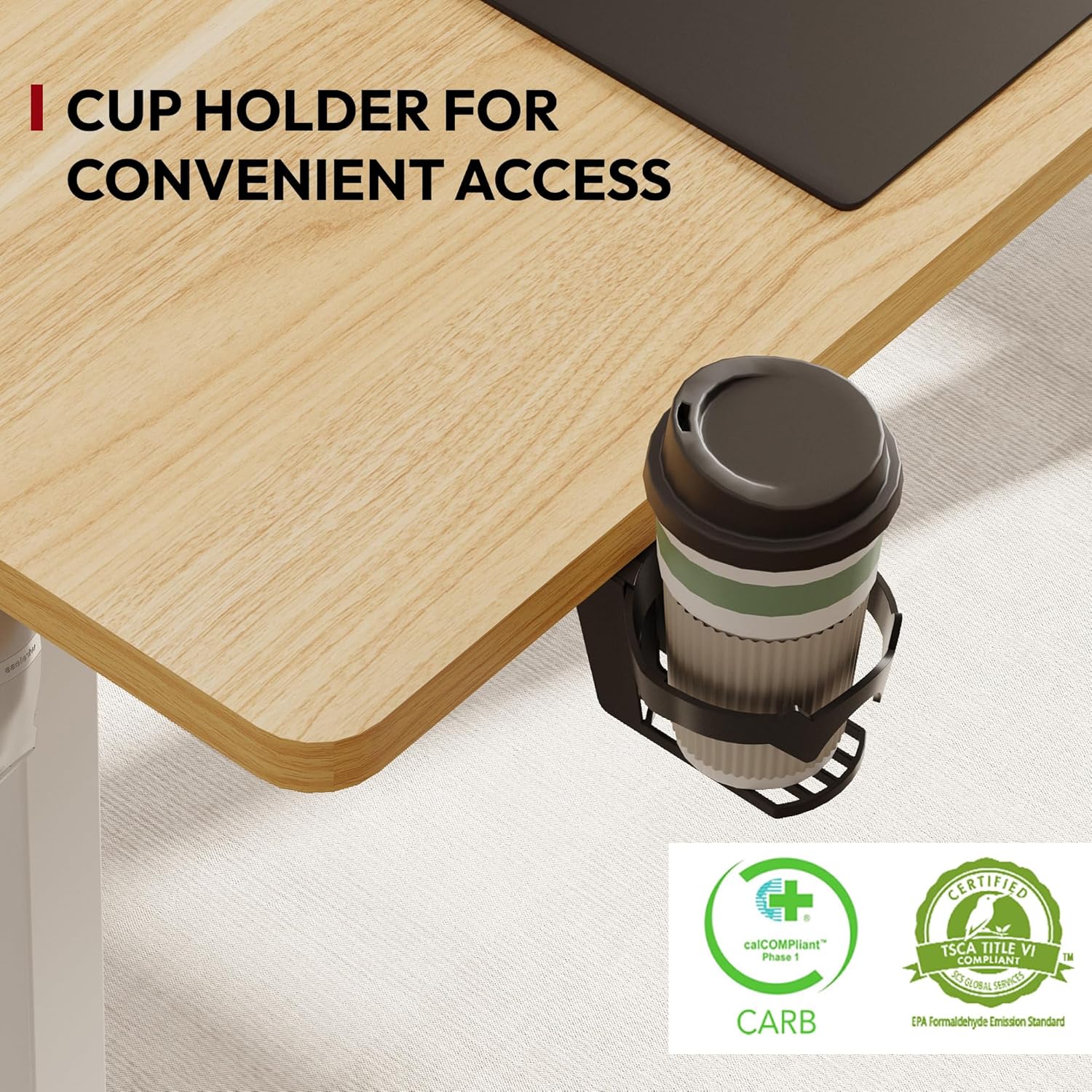

Image: The desk's integrated cup holder, providing convenient access to beverages.
Image: The metallic hooks for headphones and the cup holder, designed for easy access to frequently used items.
Maintenance
To ensure the longevity and optimal performance of your SANODESK electric standing desk, follow these maintenance guidelines:
- Cleaning: Wipe the desk surface and frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Cable Inspection: Periodically check all cables for wear, fraying, or damage. Ensure they are securely connected and properly managed.
- Motor Care: The electric motor is designed for durability. Avoid obstructing the desk's movement or placing excessive weight on it, which could strain the motor.
- Environmental Conditions: Keep the desk in a dry environment and avoid direct exposure to sunlight or extreme temperatures.
Troubleshooting
If you encounter any issues with your SANODESK electric standing desk, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move. | Power cable disconnected, overload, motor error. | Check power connection. Reduce weight on desk. Perform a reset (see below). |
| Uneven movement or shaking. | Uneven load, loose screws, floor instability. | Distribute weight evenly. Check and tighten all assembly screws. Ensure desk is on a flat surface. |
| Memory function not working. | Incorrect programming, power interruption. | Reprogram the memory settings according to the operating instructions. |
Reset Procedure
If the desk encounters an error or stops responding, a reset may resolve the issue.
- Unplug the power cord from the wall outlet.
- Wait for at least 30 seconds.
- Plug the power cord back into the wall outlet.
- Press and hold the "Down" arrow button until the desk reaches its lowest position and slightly rebounds. Release the button.
- If the issue persists, contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | SANODESK |
| Model | 140x60cm Electric Height Adjustable Standing Desk |
| Dimensions (L x W x H) | 140 x 60 x 73.5-118 cm |
| Height Adjustment Range | 73.5 cm to 118 cm |
| Material | Stainless Steel, Wood (Maple), Metal |
| Load Capacity | Up to 70 kg |
| Noise Level | Below 50dB |
| Special Features | Adjustable, Height Adjustable, Electric, Ergonomic, Scratch Resistant, Memory Function, Bottle Holder, Headphone Hook |
| Power Consumption (Standby) | Less than 0.5 watts |
Structural Stability
The SANODESK features a robust frame design for enhanced stability and durability.

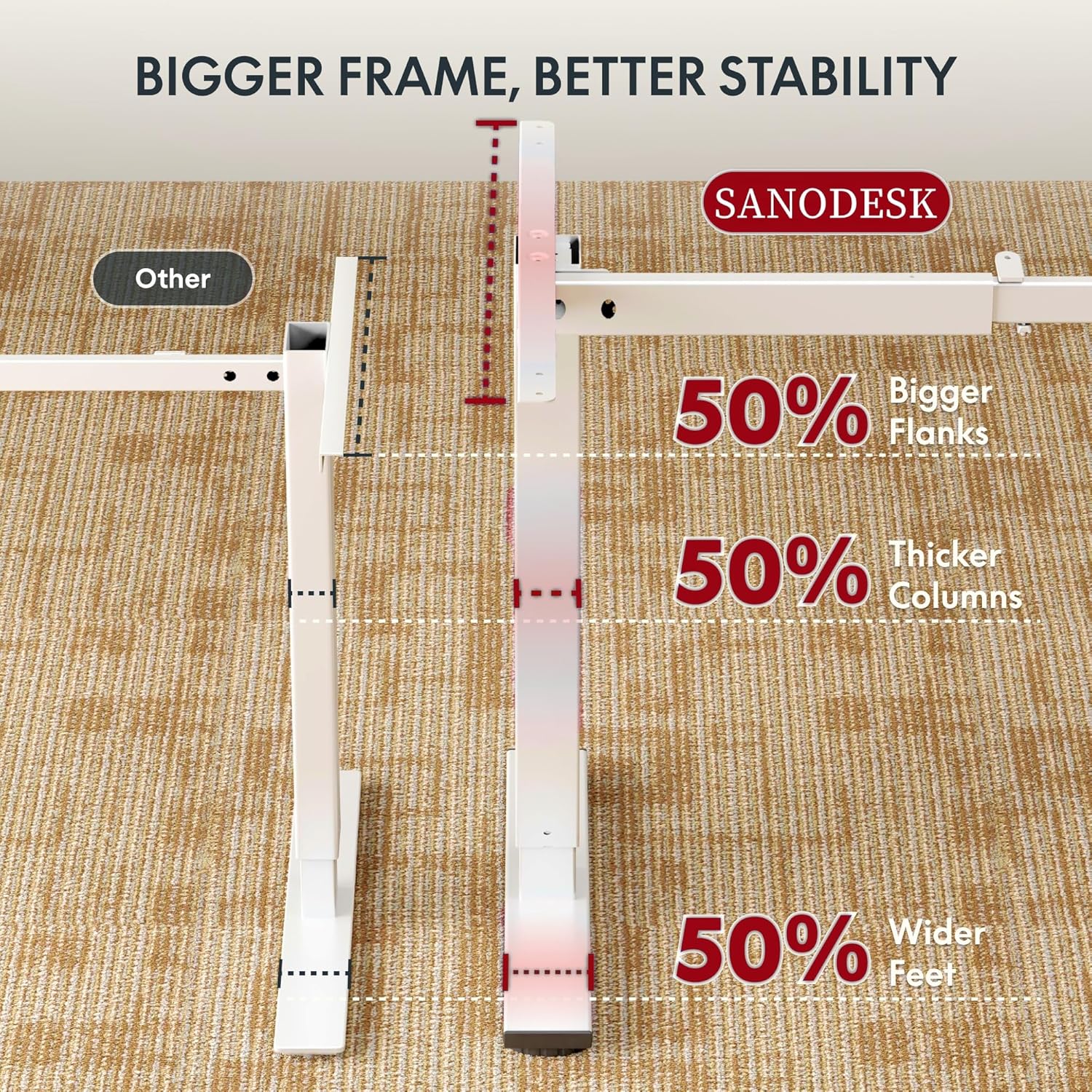

Image: A diagram illustrating the enhanced stability features of the SANODESK frame compared to standard designs.
Warranty and Support
Warranty Information
Your SANODESK electric standing desk comes with a 3-year official warranty, covering any manufacturing defects. This warranty ensures peace of mind and product reliability.
Customer Support
Our dedicated customer service team is available to provide quick and professional support. Should you require assistance with assembly, operation, troubleshooting, or warranty claims, please do not hesitate to contact us. We also facilitate agile replacement management when necessary.
For support, please visit the SANODESK store on Amazon or refer to the contact information provided with your purchase.
Product Overview Video
Video: An official product video demonstrating the features and functionality of the SANODESK Electric Height Adjustable Standing Desk, including its smooth height transitions and robust design.
