Jocca Sweet Line 3.8L Air Fryer (Model 63627) User Manual

1. Introduction

Thank you for choosing the Jocca Sweet Line 3.8L Air Fryer. This appliance is designed to cook a variety of foods using rapid hot air circulation, offering a healthier alternative to traditional frying methods. Please read this manual thoroughly before first use to ensure proper operation and maintenance.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.
• A short power-supply cord is provided to reduce the risks resulting from entanglement or tripping over a longer cord.

3. Product Overview and Components

Familiarize yourself with the parts of your Jocca Sweet Line Air Fryer.

Image 3.1: Front view of the Jocca Sweet Line 3.8L Air Fryer, showcasing its pink exterior and black LED touchscreen control panel.

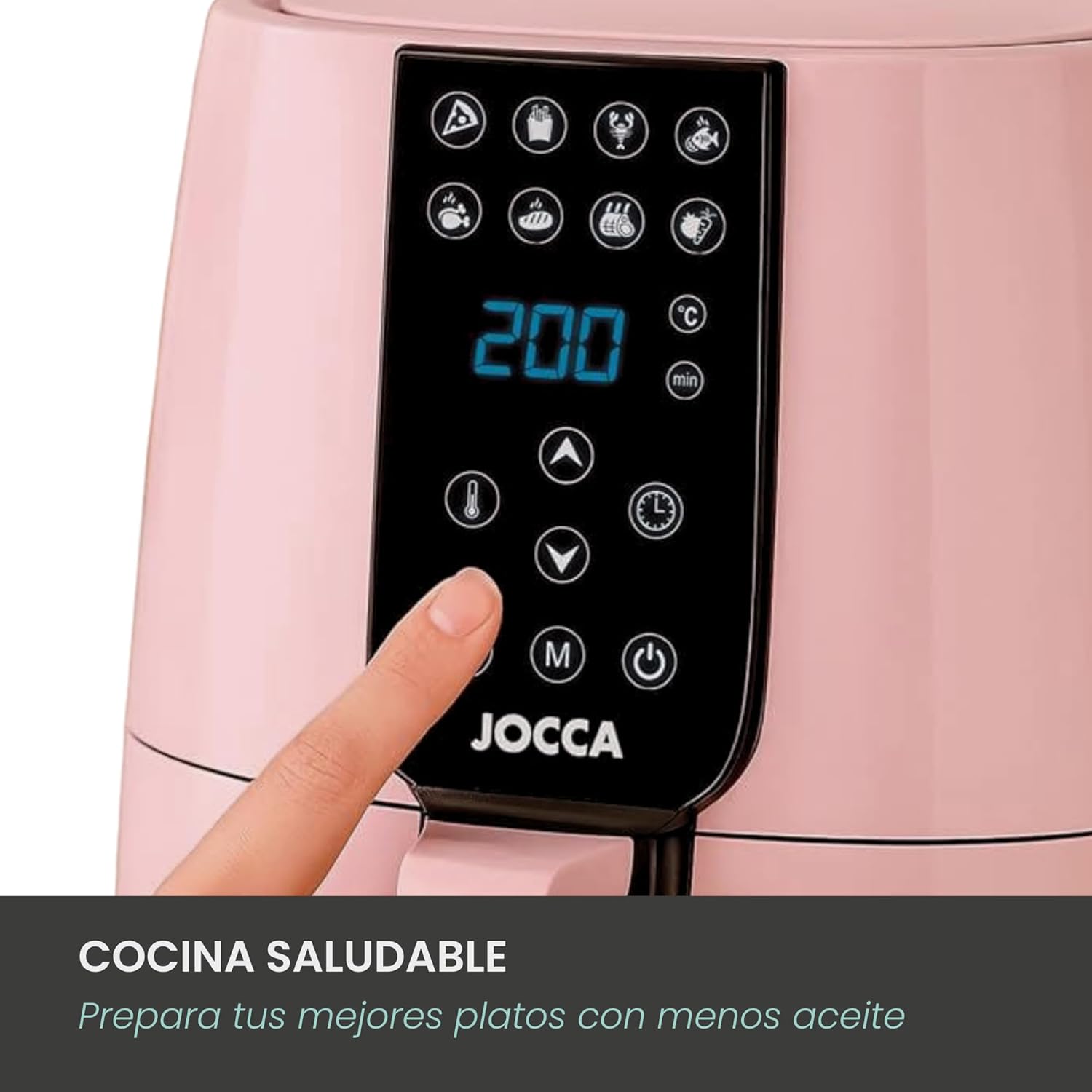

Image 3.2: A close-up of the air fryer's LED touchscreen, displaying "200" degrees Celsius and various cooking program icons. A finger is shown interacting with the controls.

Image 3.3: The air fryer with its cooking basket partially pulled out, showing the non-stick interior and the cool-touch handle.

Image 3.4: The Jocca air fryer with the cooking basket completely detached and placed next to the main unit, highlighting its compact design.

• Main Unit: Houses the heating element and fan.
• Control Panel: LED touchscreen for setting time, temperature, and selecting programs.
• Cooking Basket: Removable, non-stick basket for holding food.
• Handle: Cool-touch handle for safe removal of the cooking basket.
• Air Inlet/Outlet: Located at the top and back for air circulation.

4. Setup and First Use

1. Unpacking: Remove all packaging materials and promotional labels from the air fryer.
2. Cleaning: Wash the cooking basket and any removable parts with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely. Wipe the interior and exterior of the main unit with a damp cloth.
3. Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance to allow for proper ventilation. Do not place it directly against a wall or under cabinets.
4. Power Connection: Plug the power cord into a grounded wall outlet.
5. Initial Run (Optional but Recommended): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (350°F) to eliminate any manufacturing odors. A slight smell or smoke may occur, which is normal and will dissipate.

5. Operating Instructions

5.1. Basic Operation

1. Prepare Food: Place the food you wish to cook into the cooking basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the cooking basket back into the main unit until it clicks securely into place.
3. Power On: Press the Power button () on the LED touchscreen to turn on the appliance.
4. Select Program or Manual Settings:
   • Pre-set Programs: The air fryer features 8 pre-set programs for common foods (e.g., fries, chicken, fish, cake). Press the Menu button (M) to cycle through the programs. Each program has a default time and temperature.
   • Manual Adjustment: To set time and temperature manually, use the Temperature Up/Down buttons () and Time Up/Down buttons (). The temperature range is typically 80°C to 200°C, and the timer can be set up to 60 minutes.
5. Start Cooking: Once settings are chosen, press the Start/Pause button () to begin the cooking process. The fan and heating element will activate.
6. Shaking/Turning Food: For best results, especially with smaller items like fries, it is recommended to shake or turn the food halfway through the cooking time. Carefully pull out the basket using the cool-touch handle, shake or turn the food, and then reinsert the basket. The air fryer will automatically resume cooking.
7. Completion: The air fryer will beep when the cooking time is complete. Carefully pull out the basket and transfer the cooked food to a serving plate.
8. Power Off: Press and hold the Power button to turn off the appliance, or it will automatically shut off after a period of inactivity.

5.2. Cooking Tips

• For crispy results, lightly brush or spray food with oil.
• Smaller food items usually require shorter cooking times.
• Preheating the air fryer for 3-5 minutes can improve cooking results for some foods.
• Use oven-safe accessories (e.g., baking dishes, ramekins) in the basket for certain recipes.
• Refer to a reliable air fryer recipe guide for specific cooking times and temperatures for various ingredients.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Clean Basket and Pan: The cooking basket and any removable parts are dishwasher-safe. Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak the basket in hot soapy water for about 10 minutes before cleaning.
3. Clean Interior: Wipe the interior of the appliance with a damp cloth and mild detergent. Avoid abrasive cleaners or metal scouring pads.
4. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
5. Heating Element: If necessary, gently clean the heating element with a soft brush to remove any food residue.
6. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

7. Troubleshooting

If you encounter issues with your air fryer, consult the following table before contacting support.

8. Product Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Jocca customer service directly. Keep your proof of purchase for any warranty claims.

You can visit the official Jocca store for more information: Jocca Official Store
