Introduction
Thank you for purchasing the DSP KC1238 6-in-1 Multi-Functional Snack Maker. This appliance is designed for preparing a variety of snacks including sandwiches, waffles, nuts, donuts, and sweet shells. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and retain it for future reference.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. These include:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use the appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface during operation.
- This appliance is for household use only.
Product Overview
The DSP KC1238 is a versatile snack maker featuring interchangeable non-stick plates for various culinary creations. It includes a robust 800W heating element and a thermostat for consistent cooking.
Image: The DSP KC1238 snack maker shown open with the waffle plates installed, ready for use.
Components:
- Main Unit with Phenolic Outer Casing and Stainless Steel Panel
- Interchangeable Non-Stick Plates (6 types: Triangle Sandwich, Grill Line, Waffle, Nut, Donut, Shell)
- Power Cord and Plug
- Indicator Lights (Power and Ready)
- Handle with Locking Latch
- Flat Spatula (Included Accessory)
Image: The DSP KC1238 snack maker in its closed position, showing the top panel and handle.
Setup
Unpacking:
- Carefully remove the appliance and all accessories from the packaging.
- Remove any packaging materials, stickers, or labels.
- Wipe the exterior of the appliance with a damp cloth.
Initial Cleaning and Plate Installation:
- Before first use, wash the removable plates in warm, soapy water, rinse thoroughly, and dry completely. Do not use abrasive cleaners or scouring pads.
- To install the plates, ensure the appliance is unplugged and cool. Align the plate with the grooves on the heating element and press down gently until it clicks into place. Repeat for the other plate.
- For the first use, it is recommended to operate the appliance empty for approximately 5-10 minutes to burn off any manufacturing residues. A slight odor or smoke may be present; this is normal. Ensure adequate ventilation.
Image: The DSP KC1238 snack maker shown open with the cooking plates removed, illustrating the removable plate feature.
Operating Instructions
Preheating:
- Ensure the desired cooking plates are securely installed.
- Close the lid and plug the appliance into a 220V electrical outlet. The power indicator light (usually red) will illuminate.
- Allow the appliance to preheat. The ready indicator light (usually green) will illuminate when the optimal cooking temperature is reached. This typically takes 3-5 minutes.
Cooking:
- Once the ready light illuminates, carefully open the lid.
- Place your ingredients onto the bottom cooking plate. Do not overfill.
- Close the lid and secure the locking latch. The ready light may turn off during cooking and cycle on/off to maintain temperature.
- Cook for the recommended time for your recipe. Cooking times will vary depending on the type of food and desired crispness.
- When cooking is complete, carefully open the lid and remove the food using the included flat spatula or a heat-resistant plastic/wooden utensil. Do not use metal utensils, as they can damage the non-stick coating.
- Unplug the appliance from the outlet after use.
Changing Plates:
Always ensure the appliance is unplugged and completely cool before attempting to change the cooking plates. To remove a plate, locate the release tabs or buttons (if present) and gently lift the plate out. Install new plates by aligning them with the grooves and pressing down until they click into place.
Maintenance and Cleaning
Proper maintenance ensures the longevity and performance of your snack maker.
- Always unplug the appliance and allow it to cool completely before cleaning.
- Cleaning the Plates: Remove the cooking plates. Wash them in warm, soapy water using a soft sponge or cloth. Rinse thoroughly and dry completely. The non-stick coating is delicate; do not use abrasive cleaners, metal scouring pads, or sharp utensils.
- Cleaning the Exterior: Wipe the exterior surfaces of the appliance with a soft, damp cloth. Do not immerse the main unit in water or any other liquid.
- Storage: Once clean and dry, store the appliance in a cool, dry place. The compact design allows for vertical storage.

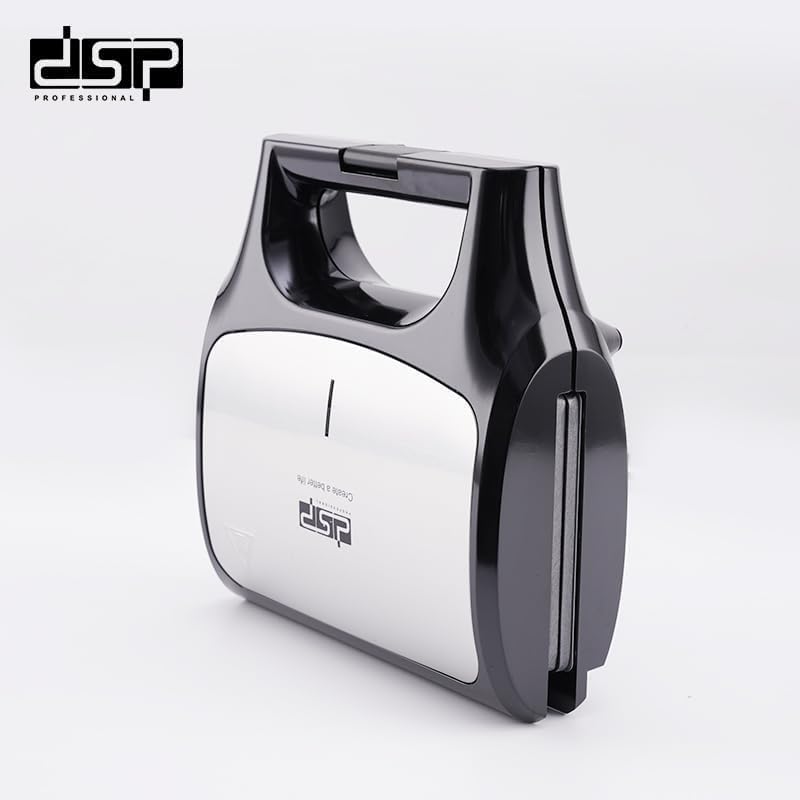

Image: The DSP KC1238 snack maker shown in a closed, upright position, demonstrating its compact storage capability.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not heat up. | Not plugged in; power outlet malfunction; internal fault. | Ensure the appliance is securely plugged into a working 220V outlet. Check the circuit breaker. If the problem persists, contact customer support. |
| Food sticks to the plates. | Plates not properly seasoned; insufficient oil/butter; damaged non-stick coating. | Lightly grease the plates with cooking oil or butter before each use. Ensure plates are clean. Avoid using metal utensils that can scratch the coating. |
| Ready light does not illuminate. | Appliance not preheated; thermostat malfunction. | Allow sufficient time for preheating (3-5 minutes). If the light still does not come on after adequate preheating, contact customer support. |
| Smoke or odor during first use. | Manufacturing residues burning off. | This is normal for the first use. Ensure good ventilation. It should dissipate after a few minutes. |
Specifications
| Feature | Detail |
|---|---|
| Model | KC1238 |
| Brand | DSP |
| Power | 800 Watts |
| Voltage | 220 Volts |
| Plate Size | 21.6 cm x 12 cm |
| Number of Plates | 6 (Interchangeable) |
| Plate Types | Triangle Sandwich, Grill Line, Waffle, Nut, Donut, Shell |
| Special Features | Temperature Control, Lightweight, Removable Non-Stick Plates |
| Material | Phenolic Outer Casing, Stainless Steel Panel, Various |
| Color | Black x Silver |
| Product Dimensions (D x W x H) | 26.5 cm x 35.2 cm x 30 cm |
| Item Weight | 2 Kilograms |
| BPA-Free | Yes |
| Included Components | Flat spatula, Removable plates, User Manual |
Warranty Information
This DSP KC1238 Multi-Functional Snack Maker comes with a limited warranty. Please refer to your purchase documentation or contact the retailer for specific terms and conditions regarding warranty coverage, duration, and claims process. Keep your proof of purchase for warranty validation.
Customer Support
If you have any questions, require assistance, or encounter issues not covered in this manual, please contact the retailer where you purchased the product or the manufacturer's customer service department. Have your model number (KC1238) and proof of purchase ready when contacting support.
