DUMBORC P10FG Gyro Receiver User Manual

Introduction

This user manual provides comprehensive instructions for the DUMBORC P10FG Gyro Receiver. It covers product specifications, setup procedures, operational guidelines, maintenance tips, and troubleshooting steps to ensure optimal performance and longevity of your receiver. Please read this manual thoroughly before using the product.

Product Overview

The DUMBORC P10FG is a 2.4Ghz 10-channel RC receiver designed for use with RC cars, boats, and tank models. It features GFSK modulation, FHSS 67-channel pseudo-random frequency hopping, and an optional built-in gyro function for enhanced stability. The receiver is compatible with DUMBORC X10P/DDF-350 RC transmitters.

Key Features:

• 350-400m operating distance, compatible with X10P/DDF-350 RC transmitters.
• Built-in Gyro and LED Flashing lights system.
• 40M Voltage Return capability.
• Multiple editable channels for versatile control.
• Independent channel operation.

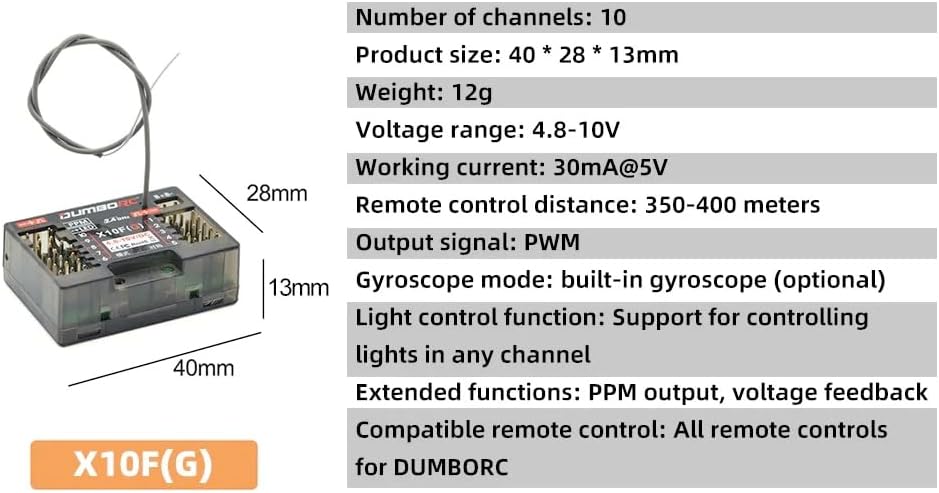

Figure 1: DUMBORC P10FG Receiver showing dimensions and key specifications. The receiver measures 40mm x 28mm x 13mm and weighs 12g. It operates within a voltage range of 4.8-10V and has a working current of 30mA@5V. The remote control distance is 350-400 meters. It supports PWM output signal, optional built-in gyroscope, light control function, PPM output, and voltage feedback. It is compatible with all DUMBORC remote controls.

Setup and Binding

Before operating your P10FG receiver, it must be properly connected and bound to your DUMBORC transmitter. Follow these steps carefully:

1. Connecting the Receiver:

Connect the receiver to your RC model's power source (4.8-10V DC) and connect your servos, ESC, and other components to the appropriate channels (1-10) on the receiver. Ensure correct polarity for all connections.

Figure 2: Top view of the P10FG receiver, illustrating the layout of the 10 channel ports, PPM output, LED indicator, and BIND port. The power input (B+ B-) is also clearly marked.

2. Binding Procedure:

1. Ensure your DUMBORC transmitter is turned off.
2. Connect a bind plug (not included, typically comes with transmitter) to the "BIND" port on the P10FG receiver.
3. Power on the receiver. The LED on the receiver should start flashing rapidly, indicating it is in binding mode.
4. Turn on your DUMBORC transmitter.
5. The LED on the receiver should turn solid, indicating a successful bind.
6. Turn off the receiver, then remove the bind plug.
7. Turn off the transmitter.
8. Power on the transmitter first, then the receiver. The receiver should now be bound and ready for operation.

3. Initial Gyro Setup (P10FG model):

For models with the built-in gyro function (P10FG), you may need to adjust its settings. Refer to the "Operating Instructions" section for details on gyro calibration and adjustment.

Operating Instructions

The P10FG receiver offers several advanced functions accessible via button presses on the receiver itself, often in conjunction with your DUMBORC transmitter.

Figure 3: P10FG Receiver illustrating the functions associated with short and long presses of the left and right buttons. These buttons control gyro direction, gyro on/off, EPA, code checking, runaway protection, light control, and PPM mode activation.

Button Definitions:

Voltage Return Function:

The P10FG receiver supports 40M Voltage Return, allowing you to monitor the voltage of your model's battery directly from your compatible DUMBORC transmitter. Refer to your transmitter's manual for specific instructions on how to display this information.

Maintenance

Proper maintenance ensures the longevity and reliable performance of your DUMBORC P10FG receiver.

• Cleaning: Keep the receiver clean and free from dust, dirt, and moisture. Use a soft, dry cloth to wipe the exterior. Avoid using solvents or harsh chemicals.
• Storage: Store the receiver in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, disconnect it from the power source.
• Connections: Regularly inspect all wire connections for signs of wear, corrosion, or looseness. Ensure all plugs are securely seated in their respective ports.
• Antenna: Ensure the receiver antenna is not kinked, cut, or damaged. A damaged antenna can significantly reduce range and signal reliability.

Troubleshooting

If you encounter issues with your P10FG receiver, refer to the following common problems and solutions:

Technical Specifications

Detailed specifications for the DUMBORC P10FG Gyro Receiver:

Warranty and Support

For any technical assistance, warranty claims, or further inquiries regarding your DUMBORC P10FG Gyro Receiver, please contact DUMBORC customer support through their official channels or visit their brand store.

You can find more information and contact details on the official DUMBORC Amazon store page: DUMBORC Store.
