Sterling By Music Man StingRay RAY35 5-string Bass Guitar User Manual

Introduction

This manual provides essential information for the setup, operation, and maintenance of your Sterling By Music Man StingRay RAY35 5-string Bass Guitar. Please read these instructions carefully to ensure proper use and to maximize the lifespan of your instrument.

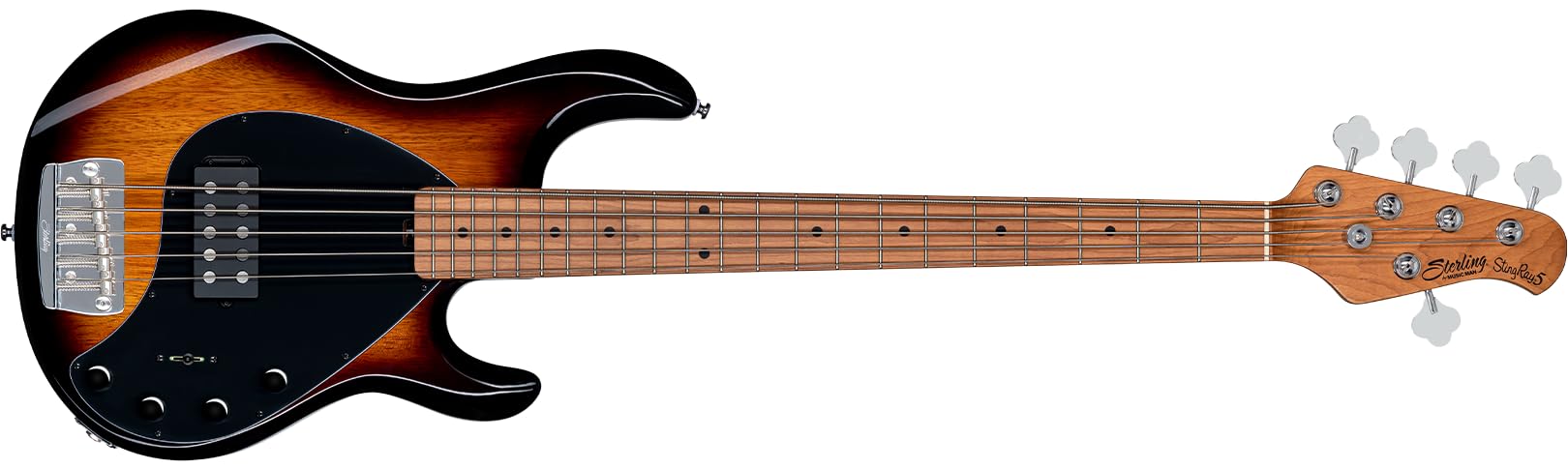

Image: The Sterling By Music Man StingRay RAY35 5-string Bass Guitar, showcasing its Vintage Sunburst finish and classic StingRay body shape.

Setup

1. Unpacking

• Carefully remove the bass guitar from its packaging.
• Inspect the instrument for any signs of damage that may have occurred during shipping.
• Retain all packaging materials for future transport or storage.

2. Initial Inspection

• Check the tuning pegs, bridge, and strap buttons for tightness.
• Verify that the strings are properly seated in the bridge saddles and nut. The instrument comes equipped with Ernie Ball strings for optimal performance.

3. Connecting to an Amplifier

• Use a standard 6.35mm (1/4 inch) instrument cable to connect the bass guitar's output jack to your amplifier's input.
• Ensure your amplifier is turned off or at a low volume before connecting or disconnecting the cable.

Operating the Bass Guitar

1. Controls Overview

The StingRay RAY35 features an active electronics system for versatile tone shaping.

• 3-Band Active Preamp: This allows for boosting or cutting bass, mid, and treble frequencies. Experiment with these controls to find your desired tone.
• 3-Way Toggle Pickup Selector: This switch allows you to select different pickup configurations, offering a range of tonal options. Refer to the specific wiring diagram for detailed functions if available from the manufacturer.
• Volume Knob: Controls the overall output volume of the instrument.

2. Battery Installation/Replacement

The active preamp requires a 9V alkaline battery for operation. When the sound becomes weak or distorted, it's time to replace the battery.

1. Locate the battery compartment on the back of the bass.
2. Open the compartment and remove the old battery.
3. Insert a new 9V alkaline battery, observing the correct polarity.
4. Close the battery compartment securely.

Maintenance

1. Cleaning

• Wipe down the body, neck, and strings with a soft, dry cloth after each use to remove sweat and oils.
• For deeper cleaning, use a guitar-specific polish or cleaner sparingly. Avoid harsh chemicals.

2. String Replacement

Strings should be replaced regularly to maintain optimal tone and playability. The bass comes with Ernie Ball 2836 Regular Slinky strings.

• Replace one string at a time to maintain neck tension.
• Stretch new strings gently after installation to help them settle and hold tune.

3. Neck Adjustment

The roasted maple neck is designed for stability, but environmental changes can affect neck relief. If you notice buzzing or high action, the truss rod may need adjustment. This procedure is best performed by a qualified guitar technician.

4. Storage

Store your bass in a climate-controlled environment, away from extreme temperatures and humidity fluctuations, to prevent damage to the wood and finish.

Troubleshooting

Specifications

Warranty and Support

For detailed warranty information, please refer to the documentation provided with your purchase or visit the official Sterling by Music Man website. For technical support or service inquiries, contact your authorized dealer or the manufacturer directly.
