COOLHOOD Portable High-Pressure Water Spray Gun Instruction Manual

1. Introduction

Thank you for choosing the COOLHOOD Portable High-Pressure Water Spray Gun. This manual provides essential information for the safe and effective use of your new spray gun. Designed for versatility, this tool is ideal for various tasks, including car washing and garden irrigation, offering adjustable water pressure and spray patterns for optimal performance.

2. Safety Information

• Always wear appropriate eye protection when operating the spray gun.
• Do not point the spray gun at people, animals, or electrical outlets.
• Ensure all connections are secure before turning on the water supply.
• Do not leave the spray gun unattended when connected to a water source.
• Keep out of reach of children.
• Use only with clean water.

3. Package Contents

The package includes:

• 1 x COOLHOOD Portable High-Pressure Water Spray Gun

4. Product Overview

Familiarize yourself with the components of your spray gun:

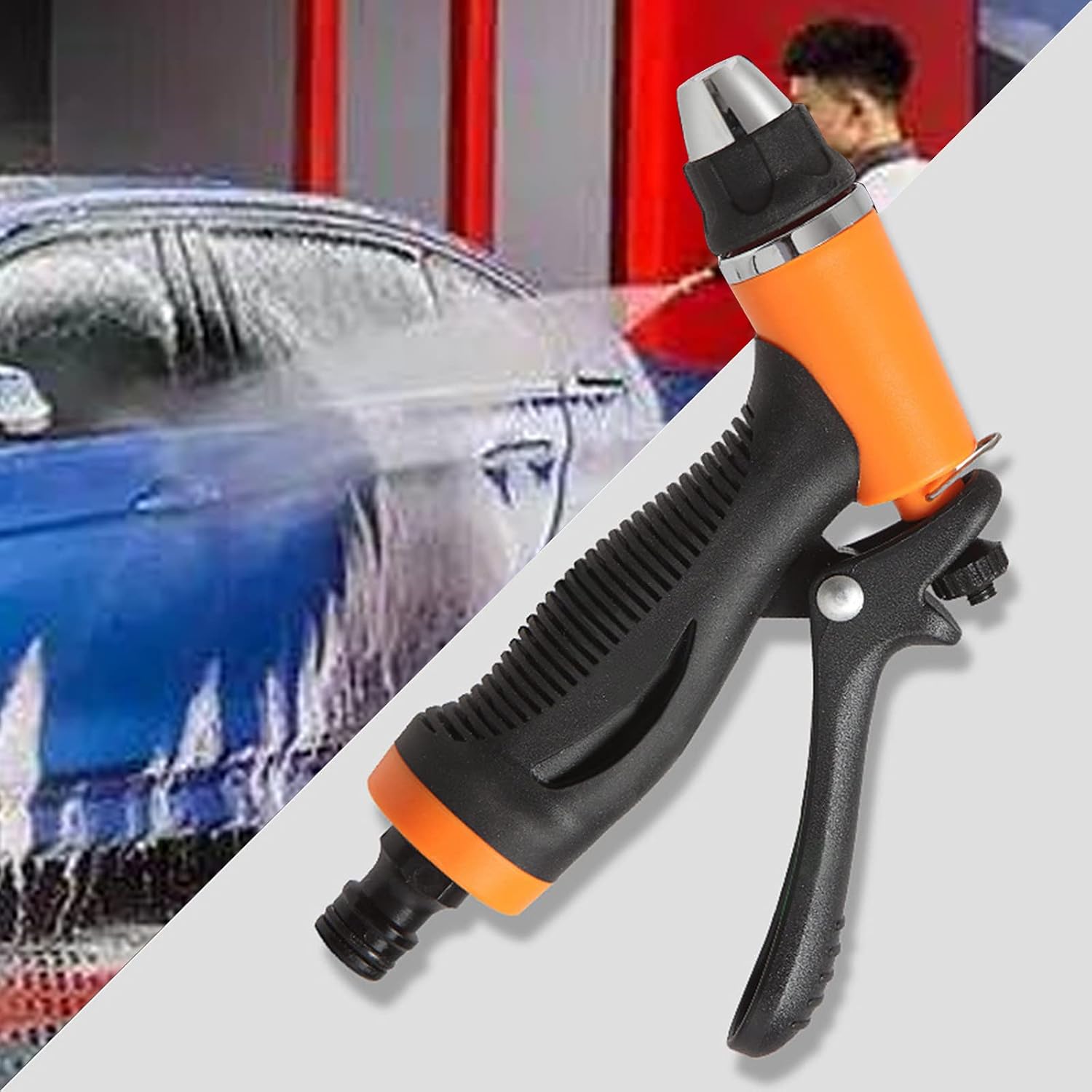

Figure 4.1: Overall view of the COOLHOOD Portable High-Pressure Water Spray Gun.

Figure 4.2: Close-up of the detachable head for spray adjustment and the rear water transfer valve for flow control.

• Adjustable Nozzle Head: Located at the front, this part can be rotated to change the spray pattern.
• Trigger Handle: Activates the water flow when pressed.
• Rear Water Transfer Valve: A knob at the back of the handle to adjust the water flow rate.
• Hose Connector: Located at the base of the handle for attaching a standard garden hose.

5. Setup

Follow these steps to set up your spray gun:

1. Ensure the water supply is turned off.
2. Connect a standard garden hose to the hose connector at the base of the spray gun handle. Ensure the connection is tight to prevent leaks.
3. Turn on the water supply slowly to check for any leaks.

Figure 5.1: Demonstrates connecting the hose and the initial water spray.

6. Operating Instructions

To operate your COOLHOOD Portable High-Pressure Water Spray Gun:

1. Activate Water Flow: Squeeze the trigger handle to start the water flow. Release the trigger to stop the flow.
2. Adjust Spray Pattern: Rotate the nozzle head at the front of the gun to change the spray pattern. You can switch between various forms of water columns, from a fine mist to a powerful jet.
3. Adjust Water Flow Rate: Use the rear water transfer valve (knob) to easily adjust the water size and pressure. Turn clockwise for less flow/pressure, counter-clockwise for more.

Figure 6.1: Demonstrates the spray gun in use, showing its versatility for garden irrigation.

Figure 6.2: A close-up view of a narrow, high-pressure spray pattern, suitable for targeted cleaning.

7. Maintenance

Proper maintenance ensures the longevity of your spray gun:

• After each use, turn off the water supply and squeeze the trigger to release any remaining pressure.
• Disconnect the hose and drain any water from the spray gun.
• Clean the exterior of the spray gun with a damp cloth. Do not use harsh chemicals.
• Store the spray gun in a cool, dry place, away from direct sunlight and freezing temperatures.
• Periodically check the hose connector for wear and tear. Replace if necessary.

8. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

9. Specifications

Key specifications for the COOLHOOD Portable High-Pressure Water Spray Gun:

Figure 9.1: Product dimensions for reference.

10. Warranty and Support

Currently, specific warranty information for this product is not provided. For any support inquiries or further assistance, please refer to the retailer or point of purchase.
