Wipro Elato FSM201 Soup Maker User Manual

1. Product Overview

The Wipro Elato FSM201 Soup Maker is a versatile kitchen appliance designed to simplify your meal preparation. With a 1.2-litre capacity, it efficiently prepares smooth or chunky soups, blends ingredients, makes drinks, and offers an automatic cleaning function. It features automatic blending and heating, 7 preset cooking functions including a convenient sauté function, and is built with a 100% pure copper motor and durable stainless steel components for longevity.

Figure 1: Wipro Elato FSM201 Soup Maker

Key Features:

• Multi-functional: Create smooth or chunky soups, blend ingredients, make drinks, and clean the unit easily.
• Convenient Sauté Function: Enhance flavors by adding ingredients during the cooking process with an ergonomic switch on the handle.
• Durable Construction: Stainless steel jug and blades ensure long-lasting performance.
• Intelligent Control System: Equipped with smart controls to prevent dry burning.
• Memory Function: Saves your preferred settings for future use.

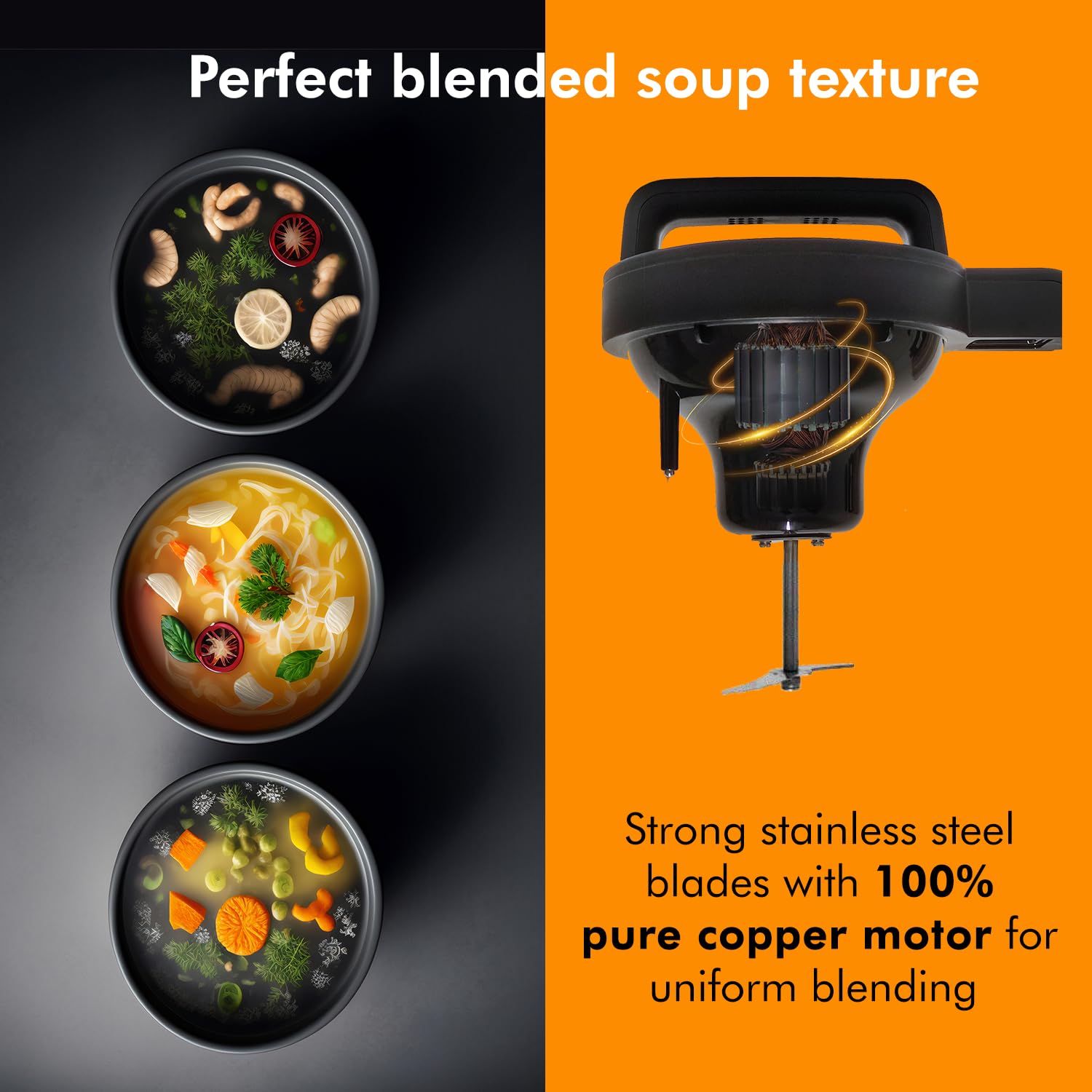

• 100% Pure Copper Motor: Ensures efficient and uniform blending.

Figure 2: Overview of Wipro Elato FSM201 Soup Maker features

2. Safety Information

Please read all safety instructions carefully before using the Wipro Elato FSM201 Soup Maker to prevent injury or damage. Keep this manual for future reference.

Important Safeguards:

• Always ensure the lid is securely placed before operating the appliance.
• Do not immerse the main unit (motor base) in water or any other liquid.
• The appliance features Overfill and Overspill sensors to prevent accidents. Do not exceed the maximum fill line.
• An Intelligent Control System prevents dry burning, but always ensure there is sufficient liquid when heating.
• The mixing blades are SHARP. Exercise extreme caution when handling and cleaning.
• Keep the appliance out of reach of children and pets.
• Ensure the power cord is not damaged and is placed away from hot surfaces.
• Unplug the appliance from the power outlet when not in use, before cleaning, or before adding/removing parts.

3. Product Components

Familiarize yourself with the different parts of your Wipro Elato FSM201 Soup Maker.

Figure 3: Diagram of the Wipro Elato FSM201 Soup Maker components

Components List:

• Lid: Top cover with integrated control panel and handle.
• Control Panel: Features mode selection, start/stop button, and indicator lights.
• S/S Jug: Stainless steel blending and heating jug with MIN/MAX indicators.
• Overfill Detector: Safety sensor located on the lid assembly.
• Mixing Blades: Sharp stainless steel blades for blending.
• Power Socket: Connection point for the power cord.
• Setting Button (MODE): Used to cycle through preset functions.
• ON/OFF Button (START/STOP): Initiates and stops operation.

4. Setup and First Use

Follow these steps for initial setup and your first use of the soup maker.

Initial Setup:

1. Unpack: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
2. Clean: Before first use, wash the jug, lid, and blades with warm, soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp cloth.
3. Placement: Place the soup maker on a stable, flat, heat-resistant surface, away from edges and heat sources.

First Use Steps:

Figure 4: Visual guide for initial use of the soup maker

1. Prepare Ingredients: Add cut vegetables, spices, oil, and water to the stainless steel jug. Ensure the liquid level is between the MIN and MAX indicator marks.
2. Secure Lid: Place the lid securely on the soup maker, ensuring it is properly aligned and locked into position.
3. Connect Power: Plug the power cord into a suitable electrical outlet.
4. Select Mode: Press the 'MODE' button on the control panel to cycle through the desired cooking function (e.g., Smooth, Chunky, Drinks, Blend, Clean, Saute).
5. Start Operation: Press the 'START/STOP' button to begin the selected process. The programmable indicator light will illuminate.

5. Operating Instructions

The Wipro Elato FSM201 offers 7 preset cooking functions for various preparations.

Preset Cooking Functions:

Figure 5: The 5-in-1 modes available on the control panel

• Smooth Soup: For creamy, finely blended soups.
• Chunky Soup: For soups with larger pieces of ingredients.
• Drinks: Ideal for preparing smoothies, milkshakes, or other beverages.
• Blend: A general blending function for various ingredients without heating.
• Clean: An automatic cleaning cycle for easy maintenance.
• Sauté Function: Located on the handle, this function allows you to sauté ingredients directly in the jug before cooking.

Figure 6: Sauté control switch on the handle

Using the Sauté Function:

1. Add a small amount of oil and desired ingredients (e.g., onions, garlic) to the jug.
2. Ensure the lid is securely placed.
3. Slide the ergonomic switch on the handle to the 'SAUTE' position.
4. Monitor ingredients and stir occasionally if needed.
5. Once sautéed, switch the control to 'OFF' and proceed with your chosen soup program.

6. Cleaning and Maintenance

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your soup maker.

Automatic Cleaning:

• After use, add water and a small amount of dish soap to the jug.
• Select the 'CLEAN' function on the control panel and press 'START/STOP'.
• The appliance will run a cleaning cycle. Once complete, rinse the jug thoroughly.

Manual Cleaning:

• Always unplug the appliance before cleaning.
• Carefully remove the lid and jug.
• Wash the jug and lid with warm, soapy water. Use a brush for hard-to-reach areas around the blades. Caution: Blades are sharp.
• Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
• Ensure all parts are completely dry before reassembling or storing.

Storage:

Store the soup maker in a cool, dry place, away from direct sunlight and out of reach of children.

7. Troubleshooting

If you encounter any issues with your Wipro Elato FSM201 Soup Maker, refer to the following common problems and solutions.

8. Technical Specifications

Detailed specifications for the Wipro Elato FSM201 Soup Maker.

Figure 7: Dimensions of the Wipro Elato FSM201 Soup Maker

9. Warranty and Customer Support

Your Wipro Elato FSM201 Soup Maker comes with a comprehensive warranty and dedicated customer support.

Warranty Information:

• The product is covered by a 2-year warranty provided by Wipro.
• The package includes the FSM201 Soupmaker, a User Manual, and a Warranty Card.
• To register your product for warranty, scan the QR code below or visit the provided link.

Figure 8: Scan to register your product for warranty

Warranty Registration Link: https://apps.wcclg.com/wccwarrantyregistration.php

Customer Support:

For any queries, assistance, or service requests, please contact Wipro Customer Care:

• Customer Care Number: 1800-425-1969
• Email: feedback.wcc@wipro.com
• Manufacturer Address: Wipro Enterprises Private Limited, #8, Wipro House, 80 Feet Road, Koramangala, Bengaluru - 560034, Karnataka.
