1. Introduction
The KZ EDX Pro X In-Ear Monitor Headphones are designed to provide high-fidelity audio with a focus on clear sound reproduction and comfortable wear. Featuring a super-linear dynamic driver and a detachable cable, these earphones are suitable for various audio applications.
This manual provides detailed instructions to help you set up, operate, and maintain your KZ EDX Pro X earphones.
2. Package Contents
Please check the box for the following items:
- 1 pair of KZ EDX Pro X In-Ear Monitor Headphones
- 1 earphones cable (detachable, 2-pin, oxygen-free copper)
- 3 pairs of ear tips (various sizes)
- 1 user manual (this document)
Image: Contents of the KZ EDX Pro X package, showing the earphones, detachable cable, ear tips, and user manual.
3. Setup
3.1 Attaching the Detachable Cable
- Identify the left (L) and right (R) earphone units.
- Align the 2-pin connector on the cable with the corresponding socket on each earphone unit. Ensure the pins are correctly oriented to avoid damage.
- Gently push the cable connector into the earphone socket until it is securely seated. Do not force the connection.
3.2 Wearing the Earphones
- Select the appropriate size of ear tips for a comfortable and secure fit. A good seal is crucial for optimal sound quality and noise isolation.
- Insert the earphone units into your ear canals.
- Guide the cable over your ears, utilizing the ergonomic earhook design for stability. This design helps reduce microphonics and ensures a secure fit during movement.
Image: A KZ EDX Pro X earphone properly worn in an ear, illustrating its ergonomic design and the cable routed over the ear for a secure fit.
4. Operating Instructions
4.1 Connecting to an Audio Source
Plug the 3.5mm jack of the earphone cable into the audio output port of your device (e.g., smartphone, music player, computer, audio interface). Ensure the connection is firm.
4.2 Audio Playback
Once connected, begin audio playback on your device. Adjust the volume to a comfortable listening level. The KZ EDX Pro X earphones are designed to deliver a wide frequency range (20Hz-40kHz) and enhanced low-frequency performance.
Image: An exploded view diagram illustrating the components of the super-linear dynamic driver within the KZ EDX Pro X earphones, highlighting its acoustic design.
4.3 Microphone and Remote Control (Optional)
If your model includes an optional microphone and remote control, refer to your device's instructions for specific functions such as play/pause, track skipping, and call management. The remote typically features a single button for these controls.
5. Maintenance
5.1 Cleaning the Earphones
- Regularly clean the ear tips with a soft, damp cloth to remove earwax and debris.
- For the earphone units, use a dry, soft cloth to wipe the surface. Avoid using harsh chemicals or abrasive materials.
- Ensure the 2-pin connectors and 3.5mm jack are free from dust and moisture.
5.2 Cable Care
- Avoid sharp bends or excessive pulling on the cable to prevent internal damage.
- When detaching the cable, grasp the connector firmly, not the cable itself, and pull straight out.
- Store the earphones and cable in a protective case when not in use to prevent tangling and damage.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound or low volume |
|
|
| Poor sound quality (e.g., muffled, lacking bass) |
|
|
| Cable detaches easily |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Brand | KZ |
| Model | EDX Pro X |
| Drive Unit | Dual-Dynamic Drivers |
| Earphone Type | In-Ear Monitor (IEM) |
| Connectivity | Wired |
| Plug Type | 3.5mm Jack |
| Pin Type | 0.75mm 2PIN |
| Sensitivity | 107dB/mW |
| Impedance | 12Ω |
| Frequency Range | 20Hz-40kHz |
| Weight | 22±3g |
| Cable Length | 125±5cm |
| Detachable Cable | Yes |
| Microphone | Optional |
| Noise Control | Sound Isolation |
| Material | Metal, Plastic (Imported Resin) |

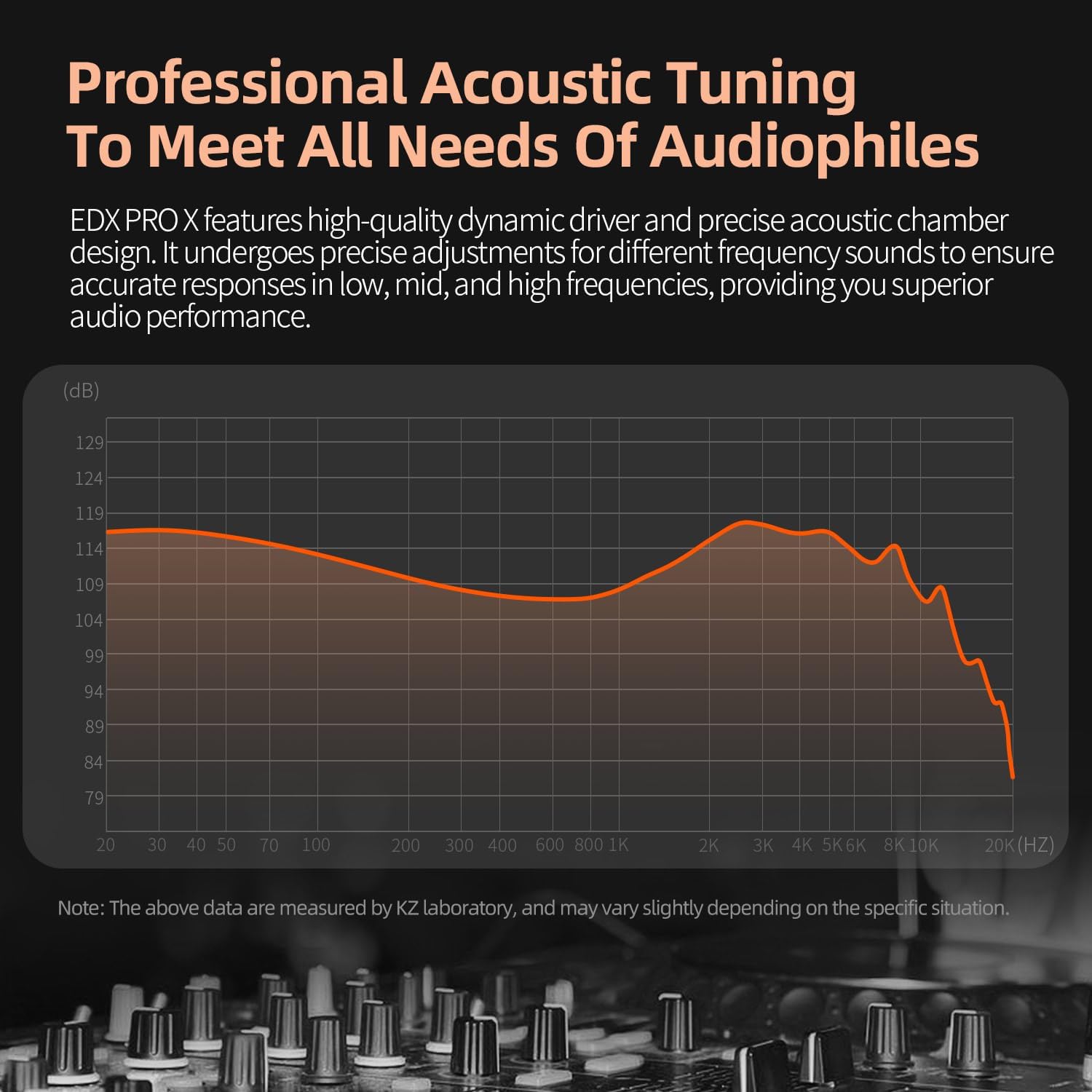

Image: Frequency response curve of the KZ EDX Pro X earphones, indicating their acoustic tuning across the audible spectrum.
8. Warranty Information
KZ EDX Pro X In-Ear Monitor Headphones come with a 12-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
9. Customer Support
If you encounter any issues or have questions regarding your KZ EDX Pro X earphones that are not addressed in this manual, please contact KZ customer support. You can typically find contact information on the KZ official website or through your retailer.
