1. Product Overview
The Topyond 250W 24V DC Brushed Electric Wheelchair Motor (Model: Topyond5cspb6r23v) is designed for electric wheelchairs, offering high efficiency, powerful torque, and quiet operation. This motor features a brushed design for low heat generation and uses high-quality carbon brushes and pure copper wires for durability and stable current transmission. It is engineered to provide reliable performance across various terrains, ensuring a smooth and comfortable mobility experience.
Key Features:
- High Efficiency and Low Heat: Designed with a brushed motor for reduced energy loss and improved energy utilization, preventing overheating during prolonged use.
- Long Lifespan and Durability: Features high-quality carbon brushes and pure copper wires for excellent durability, reduced friction, and stable current transmission.
- Powerful Torque: Provides strong torque to navigate flat surfaces and uneven roads, ensuring smooth operation for electric wheelchairs.
- Energy Efficient: Converts electricity into energy efficiently, minimizing losses and extending battery life through advanced motor control and precision gear design.
- Quiet Operation: Utilizes a thick wire design to stabilize current transmission and effectively reduce noise during motor operation, enhancing user comfort.
Figure 1.1: Overview of the Topyond 250W 24V DC Brushed Electric Wheelchair Motor.
2. Safety Instructions
Read all safety warnings and instructions carefully before installing or operating the motor. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Always disconnect power before performing any installation, maintenance, or repair work.
- Ensure the motor is installed by a qualified technician to prevent improper wiring or damage.
- Verify that the power supply voltage and current match the motor's specifications (24V DC, 13.4A).
- Do not operate the motor if it is damaged or if any wires are frayed or exposed.
- Keep hands and loose clothing away from moving parts during operation.
- Avoid exposing the motor to excessive moisture or extreme temperatures.
- Use only genuine replacement parts for repairs to maintain product integrity and safety.
3. Setup and Installation
This section provides general guidelines for installing the Topyond 250W 24V DC motor. Professional installation is highly recommended.
3.1 Unpacking and Inspection
- Carefully remove the motor from its packaging.
- Inspect the motor for any visible damage during shipping. Contact your supplier immediately if damage is found.
- Ensure all components listed in the packing list are present.
3.2 Mounting the Motor
The motor is designed for secure mounting to the electric wheelchair frame. Use appropriate fasteners (not included) to attach the motor's mounting bracket to the wheelchair chassis.
Figure 3.1: Motor dimensions and mounting points. Ensure proper alignment and secure fastening.
- Position the motor to ensure proper alignment with the drive mechanism (e.g., chain or belt).
- Secure the motor using bolts through the mounting holes on the bracket. Tighten all fasteners to the manufacturer's recommended torque specifications.
3.3 Electrical Connections
Connect the motor to the wheelchair's power supply and controller. Pay close attention to polarity.

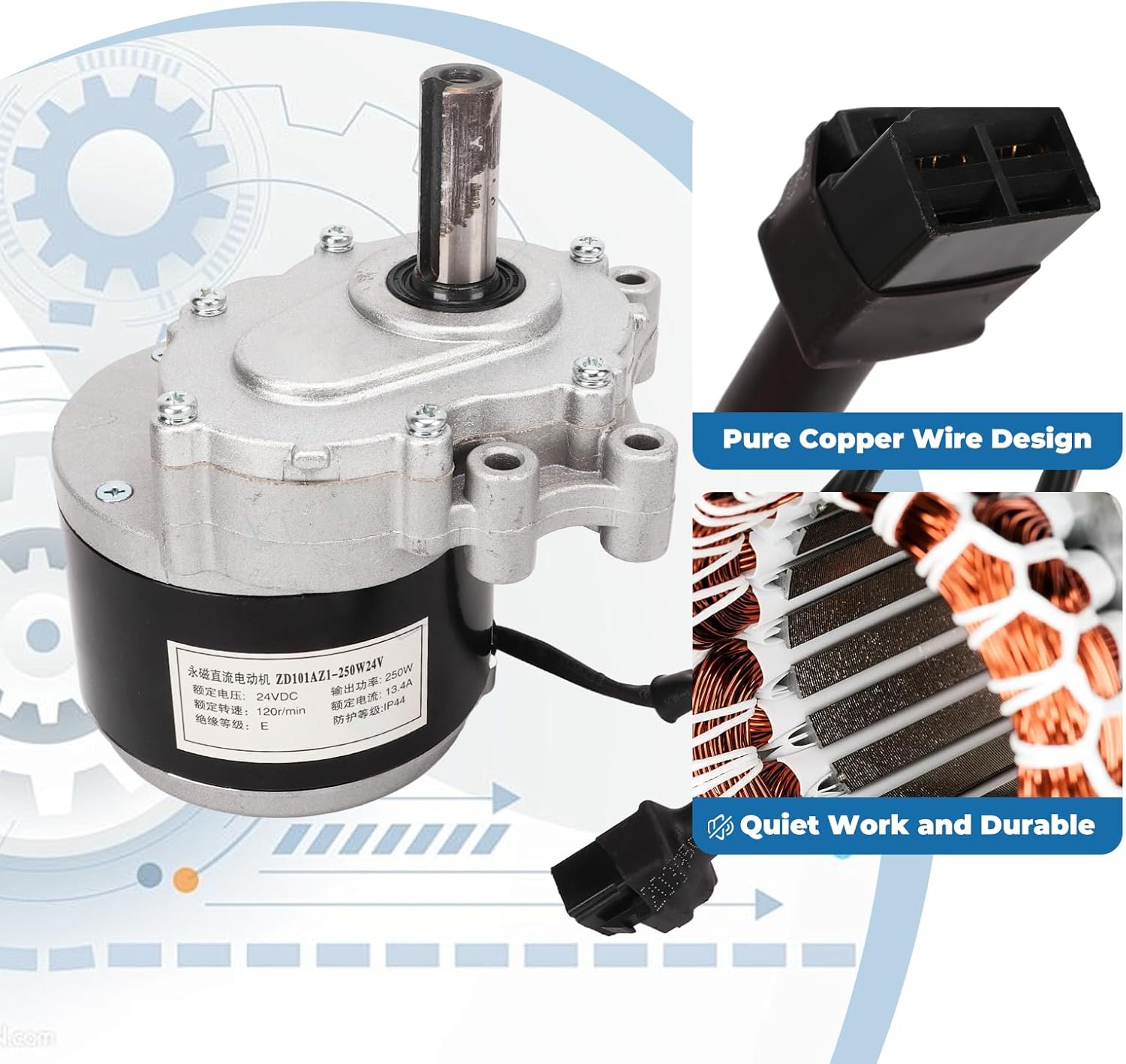

Figure 3.2: Motor wiring with pure copper wires and thick wire design for stable current transmission.
- Connect the motor's positive (+) wire (typically red) to the positive output of the controller.
- Connect the motor's negative (-) wire (typically black) to the negative output of the controller.
- Ensure all connections are secure and insulated to prevent short circuits.
- Double-check all wiring before applying power.
Video 3.1: Detailed view of the MY1016Z2 reduction motor, showing its components and wiring connections. This video demonstrates the physical aspects of the motor relevant for installation.
4. Operating Instructions
Once installed, the motor operates under the control of the electric wheelchair's main control unit. Refer to your wheelchair's user manual for specific operating procedures.
4.1 Initial Power-Up
- After installation, turn on the main power switch of the electric wheelchair.
- Listen for any unusual noises or vibrations from the motor. If any are detected, immediately turn off the power and inspect the installation.
4.2 Driving the Wheelchair
- Use the joystick or control panel of your electric wheelchair to control movement.
- The motor provides consistent power for smooth acceleration and deceleration.
- The motor is designed to handle various terrains, including meadows, cobbled roads, unpaved roads, and snowy conditions.
Figure 4.1: The motor enables electric wheelchairs to operate effectively on diverse surfaces such as grass, cobblestones, dirt paths, and snow.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Topyond motor.
5.1 Cleaning
- Keep the motor housing clean and free from dust, dirt, and debris.
- Use a dry cloth to wipe down the exterior. Avoid using harsh chemicals or excessive moisture.
5.2 Inspection
- Periodically check all electrical connections for tightness and signs of corrosion.
- Inspect the motor for any unusual wear, cracks, or damage to the housing or wiring.
- Ensure the mounting bolts are secure.
5.3 Brush Replacement (Professional Service Recommended)
The motor uses carbon brushes which will wear down over time. If you notice a significant decrease in performance or increased sparking, the brushes may need replacement. This procedure should be performed by a qualified technician.
6. Troubleshooting
This section addresses common issues you might encounter with your Topyond motor. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not run | No power supply; loose wiring; faulty controller; motor damage. | Check battery charge and connections. Verify wiring. Test controller. Consult a technician for motor inspection. |
| Motor runs slowly or with reduced power | Low battery; worn carbon brushes; excessive load; internal motor issue. | Charge battery. Have brushes inspected/replaced. Reduce load. Seek professional repair. |
| Unusual noise or vibration | Loose mounting; foreign object; worn bearings; internal gear damage. | Check mounting bolts. Inspect for obstructions. Professional inspection required for internal components. |
| Motor overheats | Prolonged heavy load; insufficient ventilation; internal short circuit. | Reduce continuous heavy use. Ensure motor is not obstructed. Professional inspection for electrical issues. |
7. Product Specifications
Detailed technical specifications for the Topyond 250W 24V DC Brushed Electric Wheelchair Motor.
| Feature | Specification |
|---|---|
| Brand | Topyond |
| Model Number | Topyond5cspb6r23v |
| Item Type | Wheelchair Motor |
| Material | Aluminum |
| Rated Voltage | 24V DC |
| Output Power | 250W |
| Rated Speed | 120 r/min |
| Rated Current | 13.4A |
| Item Weight | 2.91 Kilograms |
Figure 7.1: Diagram illustrating key specifications and dimensions of the Topyond wheelchair motor.
8. Warranty and Support
This Topyond motor comes with a standard warranty. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer.
8.1 Warranty Information
- Return Policy: 30 days for refund/replacement (as per product data).
- The warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
- Keep your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Topyond customer support or your authorized dealer. You can often find contact information on the product packaging or the official Topyond website.
