1. Product Overview
The BOBLOV T5 is a compact and lightweight body camera designed for various recording needs, including law enforcement, security, and personal use. It features 1440P video recording, 40-megapixel photo capabilities, night vision, and a built-in 256GB memory for reliable evidence collection.
Key Features
- High-Resolution Recording: Captures video at 1440P and photos at 40 megapixels.
- Extended Battery Life: Equipped with two 1800mAh replaceable Li-polymer batteries, providing up to 10-12 hours of video recording (at 1080P with IR and screen off).
- Convenient Charging Dock: Includes a dedicated charging dock for easy battery recharging.
- Integrated Storage: Features a built-in 256GB TF card for immediate use without external memory cards.
- Longer Video Fragments: Supports recording video clips up to 30 minutes in length.
- Powerful IR Night Vision: Auto/Manual night vision with high-intensity infrared LEDs for clear footage up to 32 feet in low-light conditions.
- Stealth Mode: Allows recording without sound, hidden indicators, or visible lights.
- File Protection: Mark important videos to prevent accidental deletion.
- Customizable Police ID: Edit the Police ID directly on the camera menu.
What's in the Box
- 1x BOBLOV T5 Body Camera
- 1x Charging Dock
- 2x Batteries (One pre-installed in camera)
- 1x User Manual
- 1x USB Cable
- 1x 360 Degree Short Clip
- 1x 180 Degree Long Clip
2. Setup
2.1 Charging the Battery
Before initial use, fully charge the camera's battery. The BOBLOV T5 comes with two 1800mAh Li-polymer batteries, one of which is typically pre-installed. Use the provided charging dock for convenient charging.
- Insert a battery into the charging dock.
- Connect the charging dock to a power source using the supplied USB cable.
- The indicator light on the dock will show charging status. Ensure the battery is fully charged before use.
2.2 Powering On/Off
- To Power On: Press and hold the Power button until the device vibrates and the screen turns on.
- To Power Off: Press and hold the Power button until the device prompts you to shut down, then confirm.
2.3 Internal Memory
The BOBLOV T5 features a built-in 256GB internal memory. There is no external card slot under the battery. The available memory capacity will be displayed on the screen.
3. Operation
3.1 Basic Recording
- Video Recording: In standby mode, press the Video button to start recording. Press again to stop.
- Audio Recording: In standby mode, press the Audio button to start audio-only recording. Press again to stop.
- Photo Capture: In standby mode, press the Photo button to take a still image.
3.2 Menu Navigation
- Enter Menu: Long press the "OK" button to access the menu settings.
- Navigate: Use the navigation buttons (Up/Down) to scroll through options.
- Select: Press the "OK" button to select an option.
- Return: Short press the "Audio" button to go back to the previous screen or standby mode.
3.3 Resolution Switch (PTT Function)
The PTT (Push-To-Talk) function on the BOBLOV T5 is used to switch between video resolutions. Available resolutions include 720P, 1080P, 1296P, and 1440P.
3.4 Stealth Mode
Stealth Mode disables all indicators, sounds, and visible lights (red light positioning, white light) during recording, ensuring discreet operation.
- To activate/deactivate Stealth Mode, navigate to the menu settings and select the "Stealth Mode" option.
3.5 File Protection Function
This feature allows you to mark important video files to prevent them from being accidentally deleted or overwritten.
- During playback or in the file management menu, select the desired file and choose the "Protect" option.

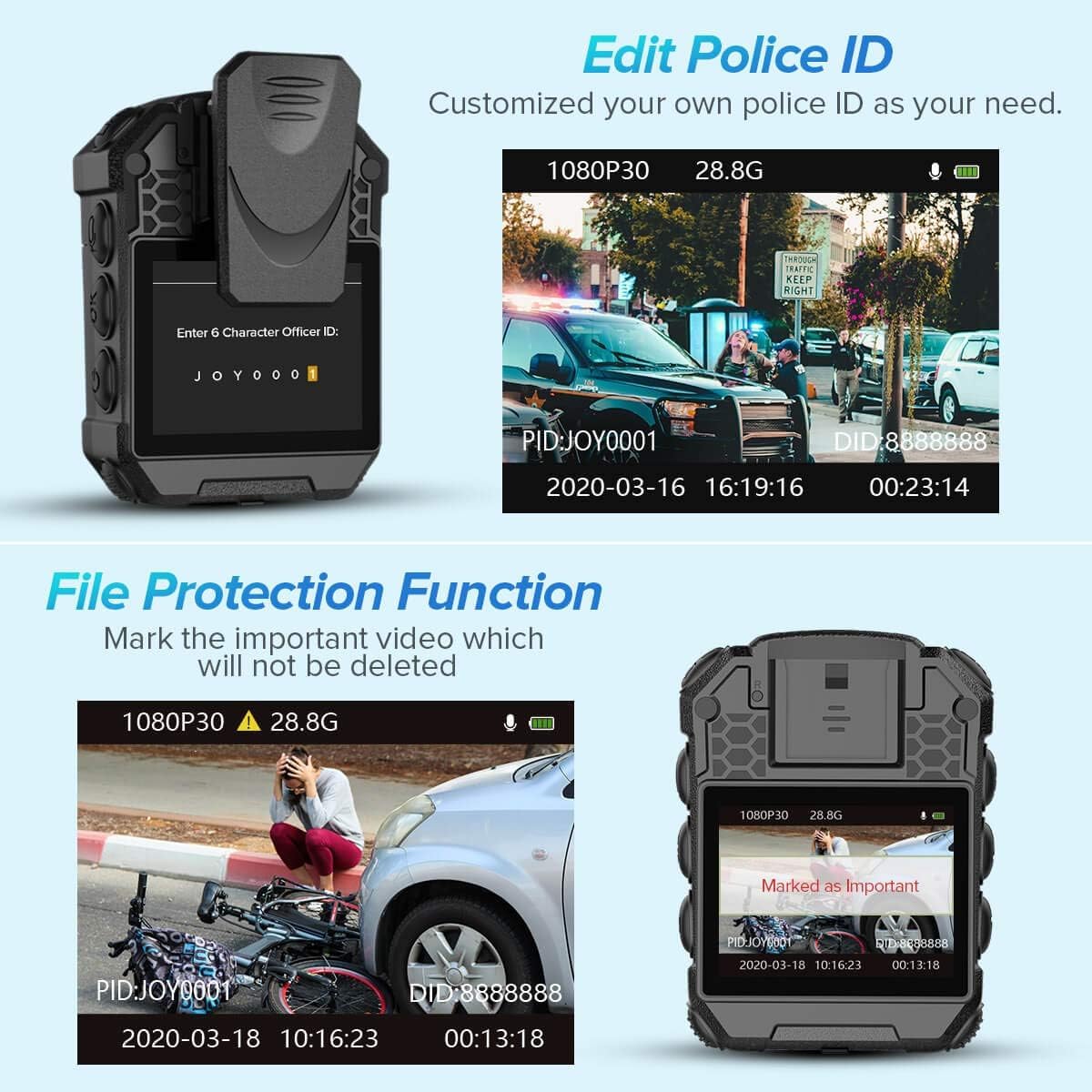

3.6 Editing Police ID
You can customize the Police ID directly on the camera's menu.
- Access the menu settings and locate the "Officer ID" option to input or modify the ID.
3.7 Night Vision
The camera features automatic and manual infrared (IR) night vision for clear recording in low-light conditions.
- Auto Night Vision: The camera will automatically switch to night vision when light levels are low.
- Manual Night Vision: You can manually enable or disable night vision through the menu settings.
4. Maintenance
4.1 Cleaning the Device
- Use a soft, dry cloth to clean the camera body.
- For the lens, use a specialized lens cleaning cloth and solution to avoid scratches.
- Do not use harsh chemicals or abrasive materials.
4.2 Data Transfer
To transfer recorded files to a computer:
- Connect the camera to your computer using the provided USB cable.
- The camera will appear as a removable disk drive.
- Access the camera's internal storage to copy files.
4.3 Storage
Store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery is partially charged if storing for extended periods.
5. Troubleshooting
5.1 Camera Not Powering On
- Ensure the battery is fully charged. Connect the camera to the charging dock and verify the charging indicator.
- Try using the second battery if available.
- Press and hold the Power button for at least 10 seconds to attempt a forced restart.
5.2 Recording Issues
- Check if the internal memory is full. Transfer files to a computer to free up space.
- Ensure the camera is not in Stealth Mode if you expect audio or visible indicators.
- Verify that the correct recording mode (video/audio/photo) is selected.
5.3 Night Vision Not Working
- Check the IR Filter setting in the menu. Ensure it is set to "Auto" or "Manual" and enabled.
- Ensure there are no obstructions blocking the IR LEDs.
5.4 Computer Not Recognizing Camera
- Ensure the USB cable is securely connected to both the camera and the computer.
- Try connecting to a different USB port on your computer.
- Restart both the camera and the computer.
- Ensure the camera is powered on when connected to the computer.
6. Specifications
| Feature | Specification |
|---|---|
| Brand Name | BOBLOV |
| Item Weight | 12.3 ounces |
| Package Dimensions | 5.59 x 3.82 x 2.83 inches |
| Item Model Number | 02US-T5-256GB |
| Batteries | 1 Lithium Polymer battery required (included) |
| Color Name | Black |
| Special Features | 1440P Body Camera, Built-in 256GB Memory Card, Camcorder with Two Batteries with Dock, For Law Enforcement, Obtain Evidence |
| Photo Sensor Technology | CMOS |
| Video Capture Resolution | 1440p |
| Maximum Focal Length | 100 Millimeters |
| Flash Memory Type | Micro SD (Internal) |
| Video Capture Format | MOV |
| Supported Audio Format | AAC |
| Screen Size | 2 Inches |
| Connectivity Technology | USB |
7. Warranty & Support
BOBLOV provides product coverage for 24 months. For technical assistance or warranty claims, please contact BOBLOV customer support. They offer quick response within 24 hours and lifetime technical support.
For more information, visit the official BOBLOV Store: BOBLOV Store on Amazon
