TRU Hydration Blender User Manual

1. Introduction

Welcome to the TRU Hydration Blender user manual. This portable, USB-rechargeable personal blender is designed for convenience, allowing you to create smoothies, shakes, and protein drinks anywhere. This manual provides essential information for safe and effective use, including setup, operation, maintenance, and troubleshooting.

2. Important Safety Instructions

Please read all instructions carefully before using the TRU Hydration Blender. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the lid is securely fastened before operating the blender.
• Do not immerse the motor base in water or any other liquid. Clean with a damp cloth only.
• Keep hands and utensils out of the blending cup while blending to prevent injury.
• Do not blend hot liquids, as pressure buildup may cause the lid to eject and result in burns.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug the blender from the charging source when not in use and before cleaning.
• Do not operate the blender with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only attachments and accessories recommended by the manufacturer.
• Keep the blender out of reach of children.

3. Components

The TRU Hydration Blender consists of the following main parts:

• Blender Cup (10 oz capacity)
• Lid with Integrated Blade Assembly
• USB Charging Cord

Figure 3.1: The TRU Hydration Blender assembled, showing the main cup, lid, and base filled with orange segments.

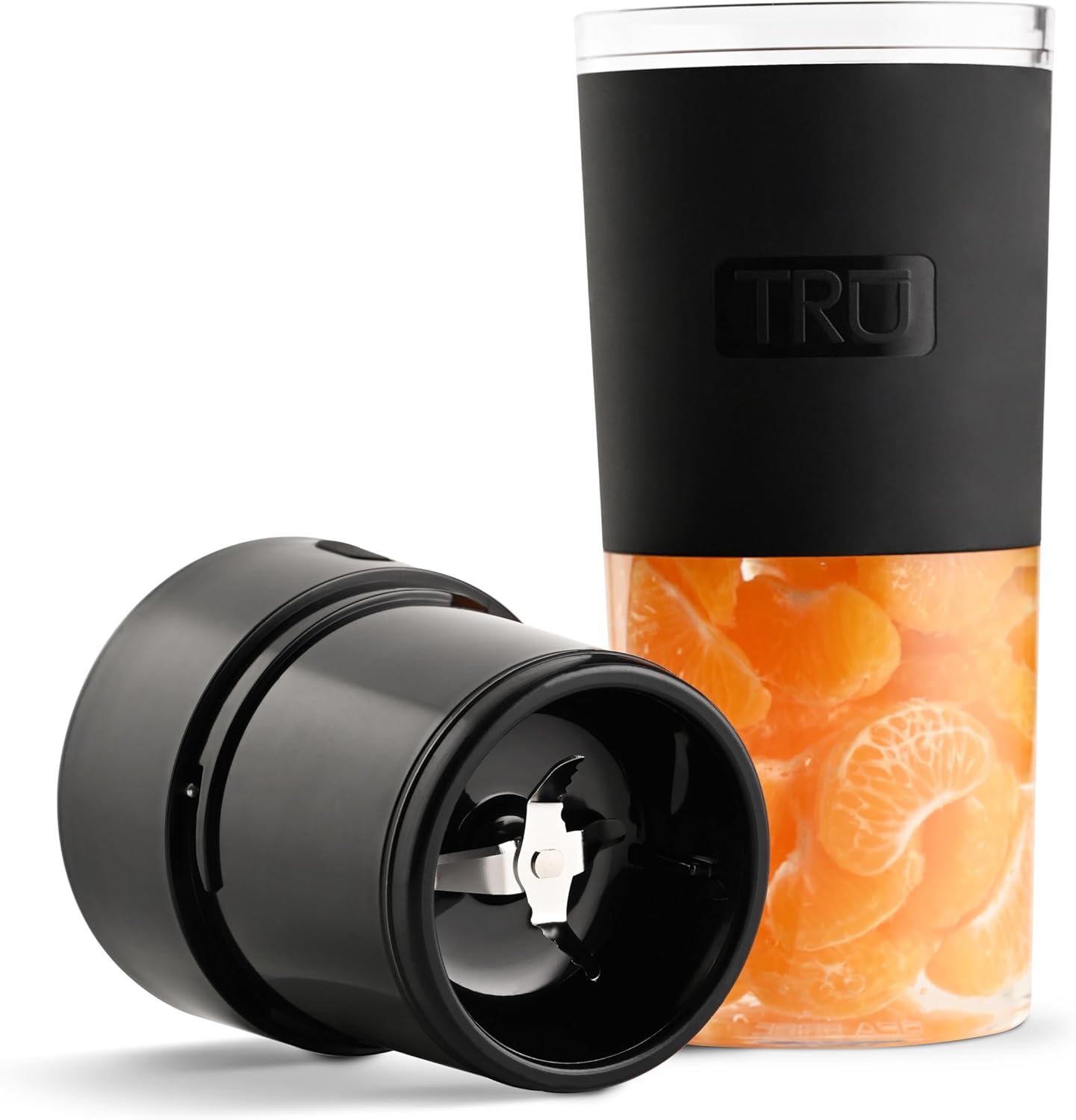

Figure 3.2: The TRU Hydration Blender with the lid detached, revealing the integrated blade assembly.

4. Setup and First Use

4.1 Charging the Blender

The blender is powered by a built-in rechargeable lithium-ion battery. Before first use, fully charge the blender for optimal performance.

1. Locate the USB charging port on the side of the blender base.
2. Connect the provided USB charging cord to the blender's port.
3. Plug the other end of the USB cord into a compatible USB power source (e.g., wall adapter, computer, power bank).
4. The indicator light on the lid will illuminate to show charging status. It will turn solid when fully charged.

Figure 4.1: Close-up view of the USB charging port located on the blender base, with the charging cable connected.

4.2 Assembly

Before blending, ensure the components are correctly assembled.

1. Ensure the blender cup is clean and dry.
2. Add your desired ingredients to the blender cup. Do not overfill past the maximum fill line.
3. Align the lid with the integrated blade assembly onto the blender cup.
4. Twist the lid clockwise until it is securely tightened. The blender will not operate if the lid is not properly secured.

5. Operation

5.1 Blending Instructions

The TRU Hydration Blender features simple one-button operation.

1. After assembling the blender with ingredients, ensure the lid is securely tightened.
2. Press the power button located on the top of the lid once to start blending. The indicator light will illuminate.
3. Blend until desired consistency is achieved. For best results, shake the blender gently during operation to ensure all ingredients are processed.
4. Press the power button again to stop blending.
5. Carefully unscrew the lid and enjoy your freshly blended drink.

Figure 5.1: Top view of the blender lid, highlighting the single power button for operation.

5.2 Usage Tips

• For optimal blending, cut fruits and vegetables into small pieces (approximately 1 inch or smaller).
• Always add liquid first, then soft ingredients, and finally harder ingredients or ice.
• Do not overload the blender. The 10-ounce capacity is designed for single servings.
• If the blender stops during operation, check for blockages or if the battery needs recharging.
• The blender is designed for portability and fits most standard car cup holders.

Figure 5.2: A person holding the TRU Hydration Blender filled with strawberries, demonstrating its portability.

Figure 5.3: The TRU Hydration Blender placed securely in a car's cup holder, illustrating its travel-friendly design.

6. Cleaning and Care

Proper cleaning and maintenance will extend the life of your TRU Hydration Blender.

6.1 Cleaning the Cup and Lid

1. After each use, rinse the blender cup and lid immediately to prevent food from drying on the surfaces.
2. Unscrew the lid from the cup.
3. Wash the cup and lid with warm, soapy water. A bottle brush may be helpful for thorough cleaning.
4. Rinse thoroughly with clean water.
5. Do not put the motor base (the part with the charging port and power button) in water. Wipe it clean with a damp cloth.
6. Ensure all parts are completely dry before reassembling or storing.

Figure 6.1: Close-up view of the integrated blade assembly within the blender lid, showing the blades.

6.2 Storing the Blender

Store the blender in a clean, dry place when not in use. Ensure the lid is not tightly sealed if storing for extended periods to allow for air circulation.

7. Troubleshooting

If you encounter issues with your TRU Hydration Blender, refer to the table below for common problems and solutions.

8. Specifications

9. Warranty and Support

Specific warranty details for the TRU Hydration Blender are not provided in this manual. For information regarding warranty coverage, product registration, or customer support, please visit the official Tru website or contact their customer service department directly.

Please retain your proof of purchase for any warranty claims.
