EVERCROSS EV06C Electric Scooter User Manual

1. Introduction

Welcome to the user manual for your new EVERCROSS EV06C Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before first use to ensure optimal performance and safety.

The EVERCROSS EV06C is a foldable electric scooter designed for children aged 6-12, featuring a 6.5-inch wheel size, adjustable handlebar height, LED display, and colorful LED lights for an engaging riding experience. It offers multiple speed modes and a robust braking system for safety.

Image: The EVERCROSS EV06C Electric Scooter, showcasing its sleek design, integrated LED display, and vibrant lighting system.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
• Ensure the scooter is fully charged and all components are securely fastened before each ride.
• Do not ride in wet conditions, on uneven surfaces, or in heavy traffic.
• Maintain a safe distance from other riders, pedestrians, and obstacles.
• The scooter is designed for a maximum load of 60 kg. Do not exceed this limit.
• Supervise children at all times when they are operating the scooter.
• Familiarize yourself with the braking system and practice braking in a safe, open area.
• The non-zero start function requires the scooter to be traveling at least 3 MPH (5 KM/H) to activate the motor, preventing accidental acceleration.

3. Package Contents

Upon opening the package, please verify that all the following items are included:

• EVERCROSS EV06C Electric Scooter (main unit)
• Power Adapter/Charger
• User Manual (this document)
• Assembly Tools (if required)

4. Setup and Assembly

Follow these steps to set up your EVERCROSS EV06C Electric Scooter:

1. Unfold the Scooter: Carefully lift the handlebar stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
2. Adjust Handlebar Height: The stem can be adjusted between 76-96 cm. Loosen the quick-release clamp on the stem, adjust to the desired height, and securely tighten the clamp.


   Image: The adjustable handlebar mechanism, allowing for height customization to suit different riders.
3. Initial Charge: Before first use, fully charge the scooter's battery. Connect the power adapter to the charging port and plug it into a power outlet. The LED indicator on the charger will change color when charging is complete.

5. Operating Instructions

Learn how to operate your scooter safely and efficiently:

1. Power On/Off: Press and hold the power button on the LED display to turn the scooter on or off.
2. Non-Zero Start Function: For safety, the scooter features a non-zero start. This means the motor will only activate once the scooter is moving at a speed of at least 3 MPH (5 KM/H). Push off with your foot to gain initial momentum. To switch between ZERO START and NON-ZERO START, quickly press the power button five times after powering on.
3. Speed Modes: The scooter has 3 adjustable speed modes: 5 km/h, 10 km/h, and 15 km/h. Use the controls on the handlebar to cycle through these modes.


   Image: The integrated dashboard and throttle, displaying current speed, mode, and battery level, with the electronic brake lever.
4. Acceleration: Once moving, gently press the thumb throttle to accelerate.
5. Braking: The EV06C uses an electronic brake system. Pull the brake lever on the handlebar to slow down or stop. For additional stopping power, you can also press your foot down on the rear fender brake.


   Image: A child using the electronic brake lever on the handlebar for safe deceleration.

6. LED Display: The LED display on the thumb throttle shows current speed, current speed mode, and battery level.
7. Colorful LED Lights: The scooter is equipped with stylish colorful LED lights in the stem and on the deck, enhancing visibility and aesthetic appeal.


   Image: The scooter's vibrant LED breathing light strips, providing both style and increased visibility during rides.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter:

• Cleaning: Wipe the scooter with a damp cloth after each use. Do not use harsh chemicals or abrasive cleaners. Avoid direct water spray.
• Battery Care: Charge the battery regularly, even if the scooter is not in use for extended periods, to maintain battery health. Do not overcharge.
• Tire Inspection: Check the rubber tires for wear and tear or damage before each ride.
• Brake Check: Ensure the electronic brake and fender brake are functioning correctly. Adjust if necessary.
• Folding Mechanism: Periodically check the folding mechanism for proper function and ensure it locks securely.
• Storage: Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. The one-step folding system makes storage convenient.


  Image: The scooter's lightweight and one-step foldable design allows for easy transport and storage, such as in a car trunk.

7. Troubleshooting

Refer to this section for common issues and their solutions:

8. Specifications

Detailed technical specifications for the EVERCROSS EV06C Electric Scooter:

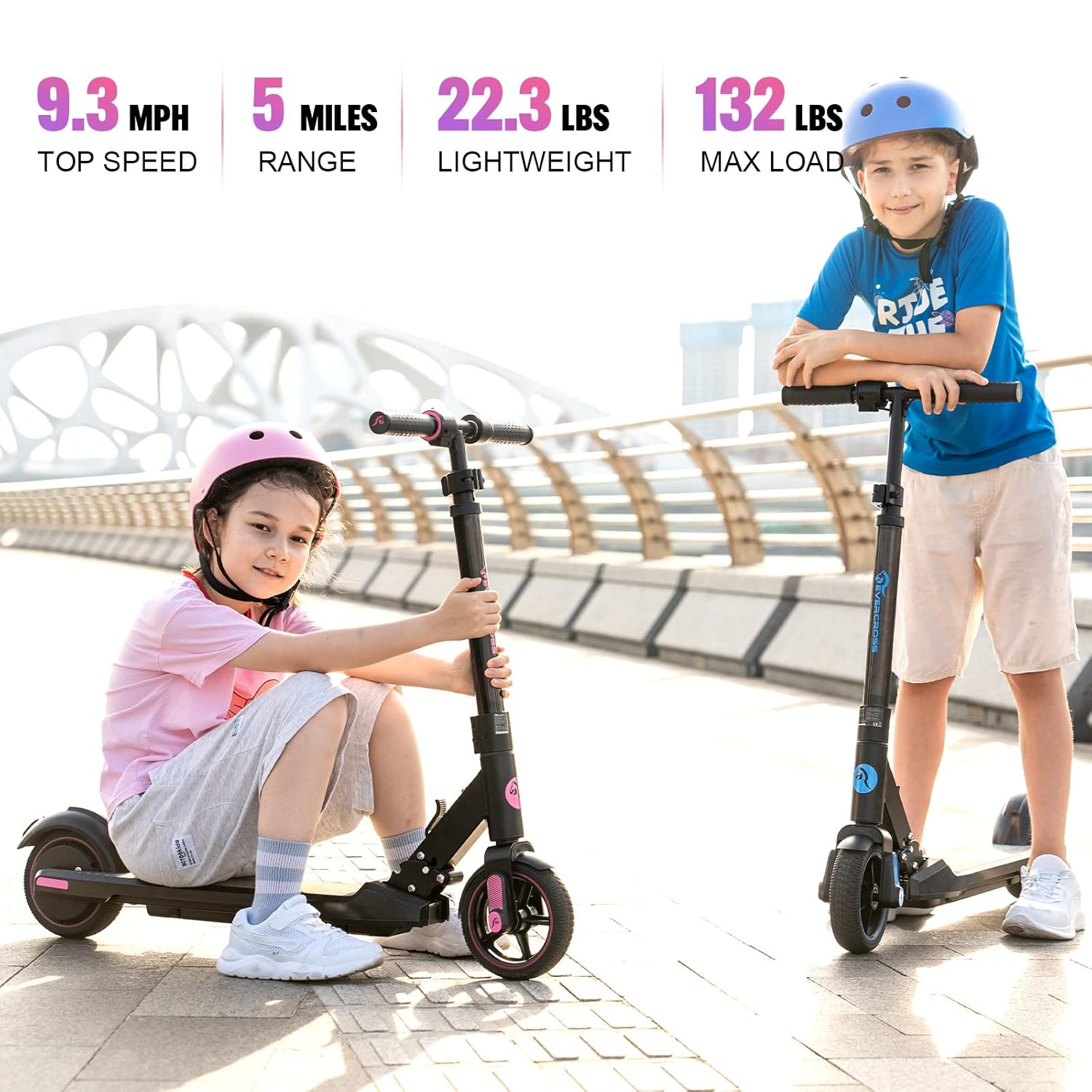

Image: Visual representation of key performance metrics and suitability for children.

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official EverCross website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you encounter any issues not covered in this manual, or require further assistance, please contact EverCross customer service through their official channels.
