1. Product Overview
This manual provides essential information for the safe and effective use of your CCIYU Full Chisel Chainsaw Chain. This chain is engineered for low kickback and reduced vibration, enhancing safety during operation without compromising cutting performance. Each chain is precision-ground and cold-headed for optimal sharpness and durability.
Compatibility: This chainsaw chain is compatible with various models, including but not limited to:
- For CS-370, CS-400
- For 142, 141, 41, 136, 36, 137
- For Poulan, McCulloch, Solo chainsaws

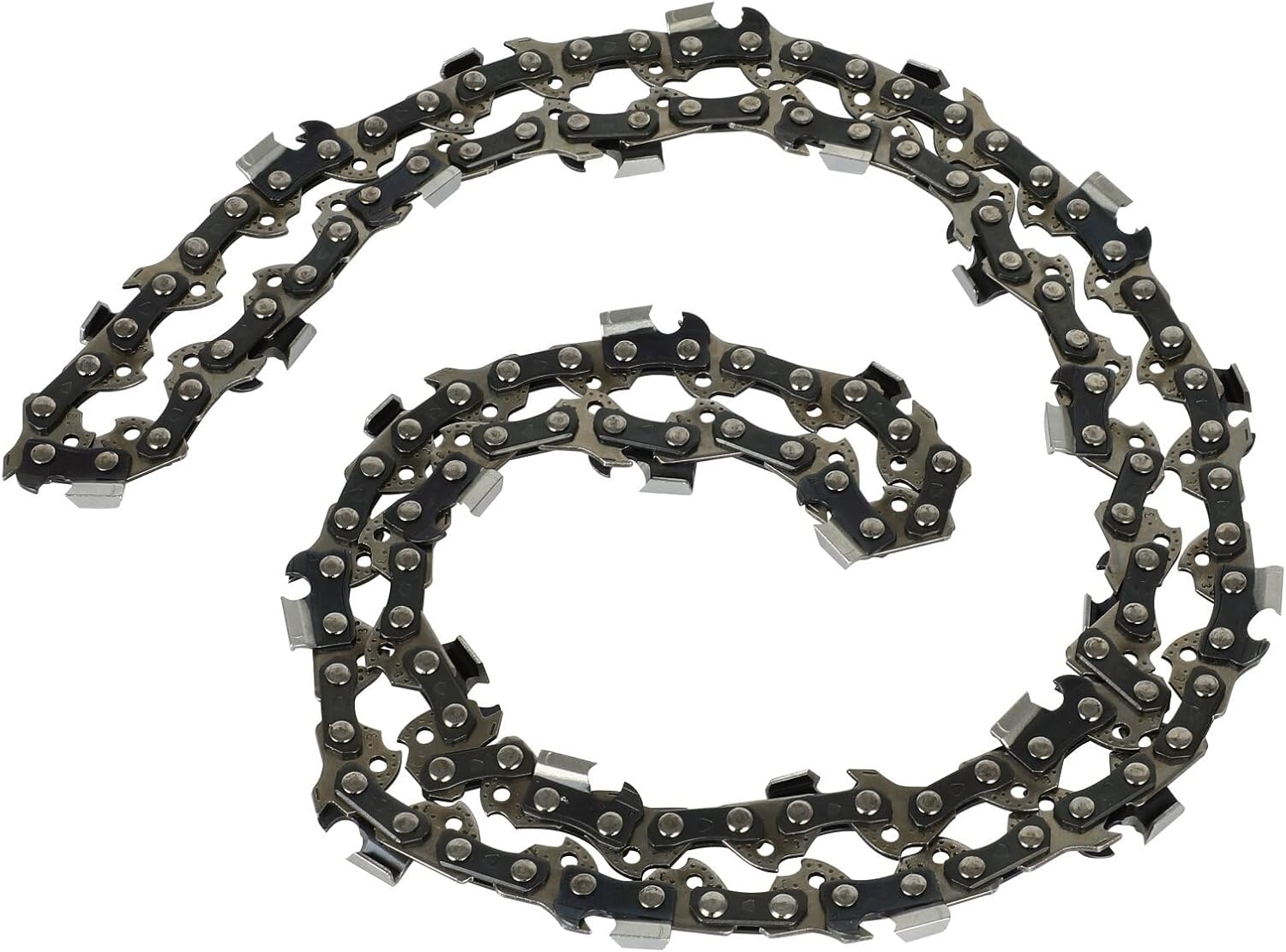

Image 1.1: The CCIYU Full Chisel Chainsaw Chain in its coiled state, ready for installation.
2. Safety Information
Always prioritize safety when working with chainsaws. Failure to follow safety guidelines can result in serious injury.
- Read Your Chainsaw Manual: Always consult your chainsaw's specific instruction manual for detailed safety procedures and chain replacement guidelines.
- Wear Personal Protective Equipment (PPE): This includes a helmet with face shield, hearing protection, safety glasses, heavy-duty gloves, chainsaw chaps, and steel-toed boots.
- Ensure Proper Chain Tension: An improperly tensioned chain can derail, causing injury or damage.
- Inspect Before Use: Before each use, check the chain for damage, dullness, or loose rivets.
- Maintain a Firm Grip: Always hold the chainsaw with both hands.
- Be Aware of Kickback: Understand and avoid situations that can lead to chainsaw kickback.
3. Installation (Setup)
Follow these general steps to replace your chainsaw chain. Refer to your chainsaw's specific manual for exact procedures.
- Ensure Safety: Turn off the chainsaw, remove the spark plug wire (for gas models) or battery (for electric models) to prevent accidental starting. Engage the chain brake.
- Remove Bar Cover: Loosen the bar nuts and remove the side cover that holds the guide bar in place.
- Remove Old Chain: Carefully remove the old chain from the guide bar and drive sprocket.
- Clean Components: Clean any sawdust or debris from the guide bar groove, sprocket, and inside the chain cover.
- Install New Chain: Place the new CCIYU chain onto the drive sprocket, ensuring the cutting edges face the correct direction (usually forward on the top of the bar). Fit the chain into the groove of the guide bar.
- Reattach Bar Cover: Slide the guide bar back into position and replace the side cover, hand-tightening the bar nuts.
- Adjust Chain Tension: Adjust the chain tensioning screw until the chain is snug against the guide bar but can still be pulled freely by hand. The chain should not sag underneath the bar. A good test is to lift the chain at the center of the top of the bar; it should lift slightly but not expose the drive links.
- Tighten Bar Nuts: Fully tighten the bar nuts while holding the tip of the guide bar up to maintain tension.
- Final Check: Re-check chain tension after tightening the nuts. Replace the spark plug wire or battery.
Image 3.1: The CCIYU Full Chisel Chainsaw Chain forming a complete loop, illustrating its structure for installation.
4. Operation
Once the chain is correctly installed and tensioned, you can begin operation. Always follow your chainsaw's operating instructions.
- Initial Run-in: For new chains, run the chainsaw for a few minutes at moderate speed, then re-check and adjust chain tension as needed. New chains may stretch slightly.
- Proper Lubrication: Ensure the chainsaw's oil reservoir is filled with appropriate bar and chain oil. Proper lubrication is crucial for chain longevity and performance.
- Cutting Technique: Use a steady, controlled motion. Let the chain do the work; do not force it. Avoid hitting dirt, rocks, or metal, which can dull or damage the chain.
- Monitor Chain Condition: Periodically check the chain for sharpness and tension during extended use.
5. Maintenance
Regular maintenance extends the life of your chainsaw chain and ensures safe, efficient cutting.
5.1. Cleaning
After each use, clean the chain to remove sap, sawdust, and debris. A stiff brush and a mild solvent can be used. Ensure the chain is dry before storage.
5.2. Sharpening
A sharp chain cuts efficiently and safely. Sharpen the chain regularly using a round file of the correct diameter for your chain's pitch (refer to specifications). Maintain the correct filing angle as recommended by your chainsaw manufacturer.
Image 5.1: A close-up view of the full chisel cutting teeth, highlighting the areas for sharpening.
5.3. Tensioning
Check chain tension frequently, especially during the first hour of use with a new chain. A properly tensioned chain should be snug against the guide bar but still allow you to pull it around the bar by hand without excessive force. It should not sag on the underside of the bar.
6. Troubleshooting
This section addresses common issues you might encounter with your chainsaw chain.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chain not cutting efficiently | Dull chain, incorrect sharpening angle, insufficient bar oil | Sharpen the chain, verify sharpening angle, check bar oil level and pump operation |
| Chain smoking or overheating | Insufficient lubrication, incorrect chain tension (too tight), dull chain | Check bar oil, adjust chain tension, sharpen chain |
| Chain derails from guide bar | Incorrect chain tension (too loose), worn guide bar, damaged drive sprocket | Adjust chain tension, inspect and replace guide bar or sprocket if worn |
| Excessive vibration | Dull chain, damaged chain links, improper chain tension | Sharpen chain, inspect for damaged links and replace if necessary, adjust chain tension |
7. Specifications
Key technical specifications for the CCIYU Full Chisel Chainsaw Chain:
- Length: 16 Inch
- Chain Drive Links: 56
- Chain Pitch: 3/8" / 0.375 Inch Low Profile
- Chain Gauge: .050 Inch
- Manufacturer: CCIYU
- Model Number: 177424-5210-1352547391
- Item Weight: 0.22 Kilograms
8. Customer Support
For any questions, concerns, or assistance regarding your CCIYU Full Chisel Chainsaw Chain, please do not hesitate to contact us via email. Our support team is available to help you.
Please refer to the product packaging or the retailer's website for specific contact details.
