Vetoper 2-in-1 Cordless Pole Saw and Mini Chainsaw User Manual

1. Product Overview

The Vetoper 2-in-1 Cordless Pole Saw and Mini Chainsaw is a versatile battery-powered tool designed for efficient tree trimming and wood cutting. It combines a compact 4-inch mini chainsaw with an extendable pole, allowing for both close-range work and reaching high branches up to 18 feet overhead.

Figure 1: Vetoper 2-in-1 Cordless Pole Saw and Mini Chainsaw with included accessories.

Key Features:

• 2-in-1 Design: Functions as a standalone 4-inch mini chainsaw or as a pole saw with an extendable rod.
• Cordless Operation: Powered by a 20V 2.0Ah Lithium-Ion battery for freedom of movement.
• Extended Reach: Adjustable extension pole provides up to 18 feet of overhead reach (when held by a 6 ft person at a 60-degree angle).
• Efficient Cutting: Features a 4-inch high hardness chain suitable for various cutting tasks.
• Ergonomic Design: Rubber handle and balanced design for improved comfort and reduced hand stress.

2. Setup and Assembly

Before first use, ensure all components are present and the battery is fully charged. Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves during assembly and operation.

2.1 Charging the Battery

The product includes one 20V 2.0Ah Lithium-Ion battery and a charger. Connect the charger to a standard power outlet and then connect the battery to the charger. The charging indicator light on the charger will indicate the charging status. A full charge typically takes several hours.

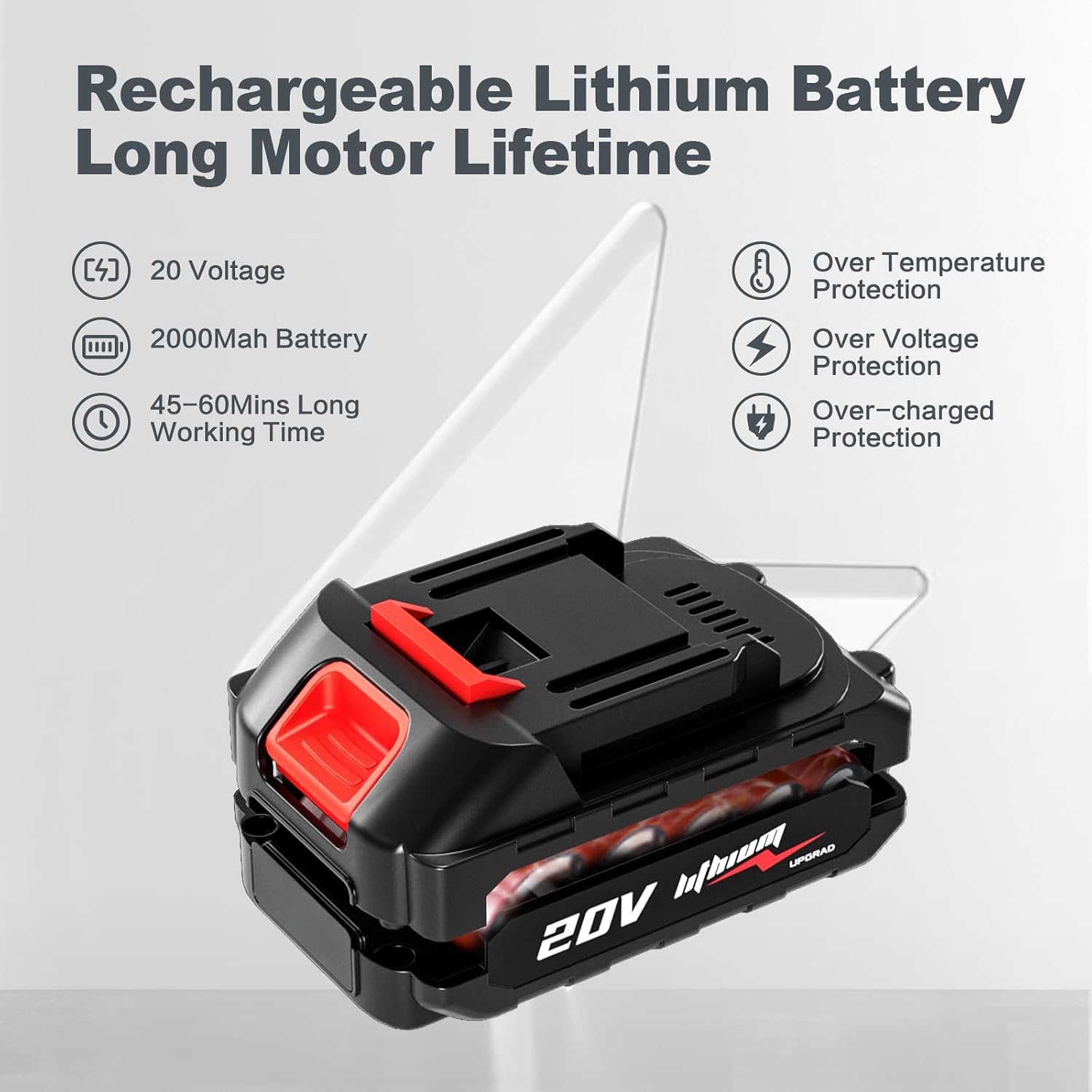

Figure 2: The 20V 2.0Ah Lithium-Ion battery features over-temperature, over-voltage, and over-charged protection.

2.2 Assembling the Pole Saw

1. Attach the Chain and Bar: Carefully install the 4-inch chain onto the guide bar, ensuring the chain direction matches the arrow on the chainsaw body. Secure the guide bar and chain to the chainsaw unit according to the detailed instructions in the included user manual.
2. Connect the Extension Pole: If using as a pole saw, align the chainsaw unit with the top end of the extension pole. Securely fasten the chainsaw unit to the pole using the provided locking mechanism.
3. Adjust Pole Length: Loosen the locking collars on the extension pole to extend or retract the pole to your desired length. Tighten the collars firmly to secure the pole in place before operation.
4. Insert Battery: Slide the charged 20V Lithium-Ion battery into the battery slot on the chainsaw unit or the base of the pole, ensuring it clicks securely into place.

Figure 3: Key components including the chainsaw unit, extension pole, battery, charger, and chain.

Figure 4: The adjustable extension pole allows for a maximum overhead reach of 18 feet.

3. Operating Instructions

Always ensure a clear work area and be aware of your surroundings. Maintain a firm grip on the tool and keep both hands on the handles during operation.

3.1 Mini Chainsaw Operation

For cutting smaller branches or logs at ground level, the chainsaw unit can be used independently without the extension pole. Hold the chainsaw firmly with both hands, ensuring a stable stance. Press the safety lock button and then squeeze the trigger to start the chain. Allow the chain to reach full speed before making contact with the material.

Figure 5: The 4-inch high hardness chain provides efficient cutting performance.

3.2 Pole Saw Operation

When trimming high branches, attach the extension pole as described in the Setup section. Adjust the pole length to comfortably reach the branch while maintaining a safe distance. Hold the pole saw firmly with both hands, one on the main handle and the other on the extension pole. Position the saw head against the branch, activate the safety lock, and press the trigger. Apply steady, gentle pressure to cut through the branch. Avoid forcing the saw.

Figure 6: The lightweight design ensures safe and easy operation for branch removal.

3.3 General Operating Tips

• Always ensure the chain is properly tensioned before and during use.
• Do not attempt to cut branches thicker than the recommended 4-inch diameter.
• Avoid cutting near power lines or other obstructions.
• Keep bystanders and pets at a safe distance from the work area.
• The tool is designed for pruning trees, home improvement tasks, and general wood cutting.

Figure 7: The versatile design allows for wide usage in various scenarios.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Vetoper 2-in-1 Cordless Pole Saw. Always disconnect the battery before performing any maintenance.

4.1 Chain Maintenance

• Lubrication: Regularly apply chain oil to the chain and guide bar to reduce friction and prevent wear.
• Tension: Check chain tension frequently. A properly tensioned chain should be snug but still allow you to pull it around the guide bar by hand.
• Sharpening: Sharpen the chain as needed to maintain cutting efficiency. Refer to the detailed sharpening instructions in the full product manual.
• Cleaning: After each use, clean sawdust and debris from the chain, guide bar, and motor housing.

4.2 Battery Care

• Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
• Do not store the battery in a fully discharged state for extended periods. Charge it periodically if not in use.
• Use only the original Vetoper charger provided with the tool.

4.3 General Cleaning and Storage

• Wipe down the tool with a damp cloth after each use. Do not use harsh chemicals or abrasive cleaners.
• Store the pole saw in a secure, dry location out of reach of children.
• Ensure the chain cover is in place when storing or transporting the tool.

5. Troubleshooting

This section provides solutions to common issues you might encounter with your Vetoper 2-in-1 Cordless Pole Saw. If the problem persists, please contact customer support.

6. Specifications

7. Warranty and Support

Vetoper stands behind the quality of its products. This 2-in-1 Cordless Pole Saw is covered by a 1-year warranty from the date of purchase.

7.1 Return Policy

You may return the product for any reason within 7 days of purchase. Please refer to your retailer's return policy for specific instructions.

7.2 Customer Service

For any questions, recommendations, or issues not covered in this manual, please contact Vetoper customer service. We are committed to providing efficient after-sales support and will respond to your inquiries within 24 hours.

Contact Information:

• Email: support@vetoper.com
• Website: www.vetoper.com
