1. Introduction

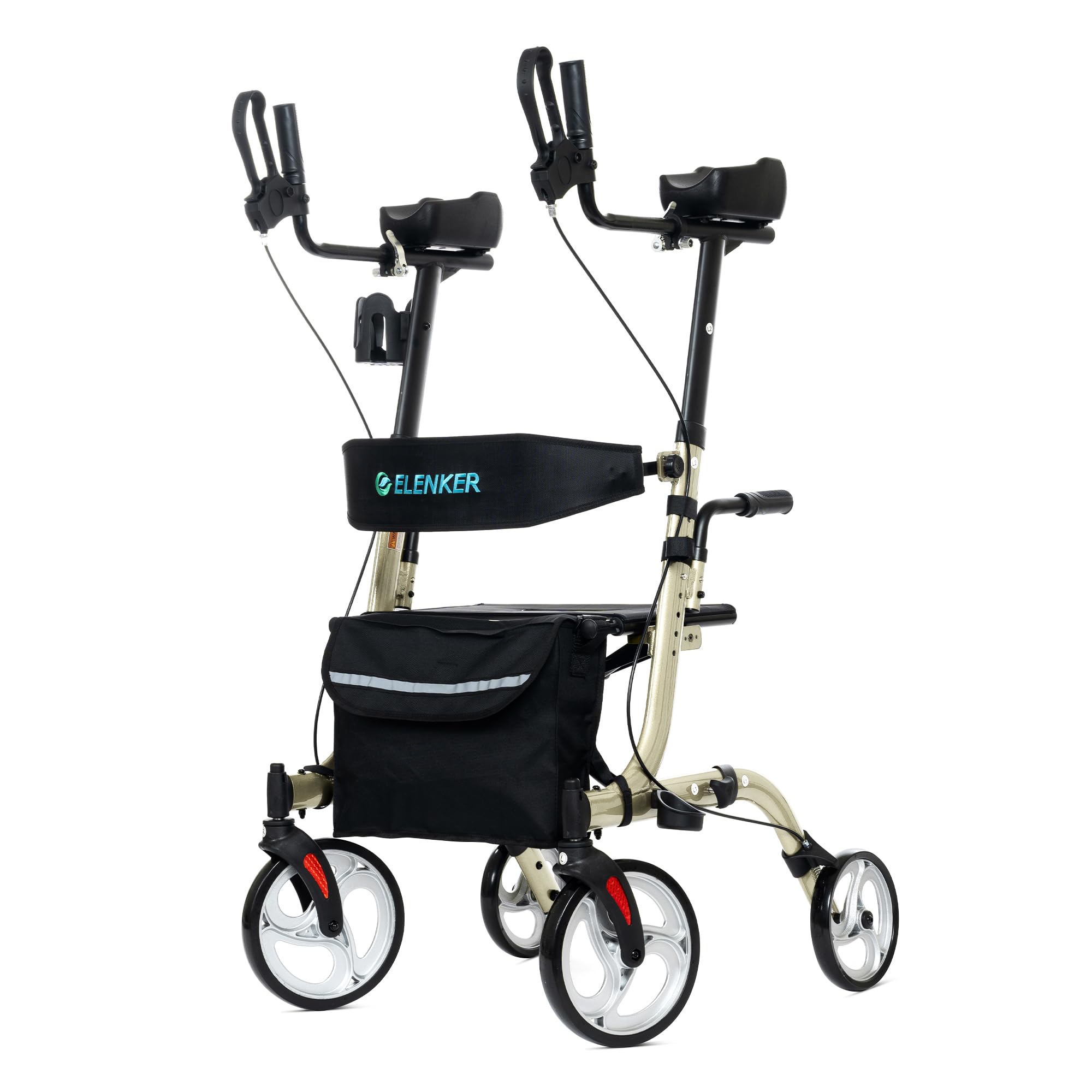

This manual provides essential information for the safe and effective use of your ELENKER HFK-9210KD-3 Upright Walker. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.
Key Features:
- Upright Posture Support: Padded armrests are adjustable from 38 to 47 inches, promoting a natural, upright walking posture and reducing strain on shoulders and back.
- Enhanced Stability: Features 10-inch front and 8-inch rear PVC wheels for smooth maneuvering indoors and outdoors. Front wheels swivel 360 degrees.
- Ergonomic Braking System: Hand brakes allow for controlled slowing or stopping by squeezing, and can be locked by pushing forward for stability when seated.
- Comfortable Seating: Equipped with an 18"(L) x 10"(D) x 21"(H) breathable mesh seat and a durable backrest, allowing for comfortable rest.
- Convenient Portability: Designed for easy, tool-free assembly and compact folding for storage and transport. Includes a detachable polyester storage bag and a cane holder.
2. Safety Information
- Always ensure all parts are securely assembled and locked before use.
- Test the brakes before each use to ensure they are functioning correctly.
- Lock the rear wheels before sitting on the seat to prevent accidental movement.
- Do not exceed the maximum weight capacity of 300 pounds.
- Use caution when navigating uneven surfaces, inclines, or obstacles.
- Regularly inspect wheels, brakes, and frame for wear or damage.
- Keep hands and clothing clear of moving parts during folding and unfolding.
3. Assembly Instructions
The ELENKER HFK-9210KD-3 Upright Walker is designed for easy, tool-free assembly. Follow these steps:
- Open the Main Frame: Carefully unfold the main frame of the walker until it locks into place.
- Front Wheels Assembly: Insert the front wheels into the designated slots on the front legs until they click securely.
- Rear Wheels Assembly: Remove the protective plugs from the rear legs. Insert the rear wheels and secure them by inserting the knob into the designated hole.
- Handle Bar Assembly: Insert the handlebar assemblies into the main frame. Ensure they are aligned and secured.
- Handgrip Assembly: Attach the handgrips to the handlebars. Tighten any securing mechanisms.
- Backrest Assembly: Attach the backrest to the frame, ensuring it is securely fastened.
- Sit-to-stand Handle Bar Assembly: Attach the sit-to-stand handles to the frame.
- Storage Bag Assembly: Attach the storage bag to the frame using the provided straps.
- Cup Holder Assembly: Secure the cup holder to the desired location on the frame.
- Cane Holder Assembly: Attach the cane holder to the frame.
- Secure Brake Cable: Use the hook and loop straps to secure any loose brake cables to the frame.
Video: Step-by-step guide on how to set up the ELENKER HFK-9210KD-3 Upright Walker.
4. Operating Instructions
4.1. Walking with the Walker
To walk, maintain an upright posture with your forearms resting comfortably on the padded armrests. Push the walker forward a short distance, then step forward with one foot, followed by the other. Keep your weight centered over the walker.
Image: A person using the ELENKER Upright Walker outdoors, demonstrating the natural upright posture.
4.2. Using the Brakes
The walker features ergonomic hand brakes. Squeeze the brake levers to slow down or stop. To engage the parking brake (lock the wheels), push the brake levers forward until they click into place. To release, pull the levers back.
Image: Close-up view of the ergonomic hand brake levers, showing the squeeze and push-forward actions.
4.3. Using the Seat
Before sitting, ensure the walker is on a flat, stable surface and engage both parking brakes by pushing the levers forward. Sit down slowly and carefully. The breathable mesh seat and backrest provide comfort for resting.
Image: A person sitting on the walker's seat, demonstrating its use for resting.
4.4. Standing Up from the Seat
To stand up, use the sit-to-stand handles located on the sides of the seat for support. Ensure the parking brakes are engaged before attempting to stand.
Image: A person utilizing the sit-to-stand handles to transition from a seated to a standing position.
4.5. Adjusting Armrest Height
The padded armrests can be adjusted to suit your height for optimal comfort and posture. Locate the adjustment pins on the armrest supports, press them in, and slide the armrests up or down to the desired height. Ensure they click securely into place at an even height on both sides.
Image: Diagram showing the height adjustment range of the armrests, from 38 to 47 inches, for users between 5'1" and 6'4".
4.6. Folding for Storage and Transport
To fold the walker, pull up on the strap located on the center of the seat. This will cause the walker to collapse inward. Once folded, it becomes compact for easy storage in a car trunk or small spaces.
Image: The ELENKER Upright Walker folded compactly and stored in a car trunk.
4.7. Using the Cane/Umbrella Holder and Storage Bag
The integrated cane/umbrella holder allows you to carry your cane or umbrella hands-free. The detachable storage bag provides convenient space for personal belongings.
Image: A user demonstrating the cane holder and storage bag features of the walker.
Video: Demonstrates the ELENKER Upright Walker's use in outdoor environments, highlighting its stability and features.
Video: Shows the ELENKER Upright Walker being used indoors, emphasizing its maneuverability.
5. Maintenance
- Cleaning: Wipe down the frame and padded surfaces with a damp cloth and mild soap. Avoid abrasive cleaners.
- Wheel Inspection: Regularly check the wheels for debris, wear, or damage. Ensure they spin freely.
- Brake Check: Periodically test the brakes for proper function. If they feel loose or ineffective, consult a professional for adjustment or repair.
- Fasteners: Ensure all screws, bolts, and adjustment knobs are tight and secure.
- Storage: Store the walker in a dry, clean place when not in use.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Walker feels unstable | Loose fasteners; uneven leg height; damaged frame. | Check and tighten all fasteners. Ensure armrests are adjusted to the same height. Inspect frame for damage. |
| Brakes are not effective | Brake cables are loose or worn; brake pads are worn. | Adjust brake cable tension. If pads are worn, contact customer service for replacement. |
| Wheels do not roll smoothly | Debris in wheels; worn bearings; damaged wheels. | Clean wheels of any debris. Inspect for damage. Contact customer service if issues persist. |
| Difficulty folding/unfolding | Mechanism obstructed; frame misaligned. | Ensure no items are obstructing the folding mechanism. Check for proper alignment of frame components. |
7. Specifications
- Model: HFK-9210KD-3
- Color: Champagne
- Material: Nylon, Polyester, Polyvinyl Chloride
- Item Weight: 18 Pounds
- Package Dimensions: 25.9 x 18.1 x 10.6 inches
- Item Dimensions (D x W x H): 18"D x 10"W x 47"H
- Minimum Armrest Height: 38 Inches
- Maximum Armrest Height: 47 Inches
- Weight Capacity: 300 Pounds
- Wheel Type: 10" Front PVC wheels, 8" Rear PVC wheels (360° swivel front)
- Foldable: Yes
- Age Range: Adult
8. Warranty and Support
ELENKER products are 100% tested before leaving the factory. For any questions, concerns, or warranty claims, please contact ELENKER customer service. We offer 24-hour friendly email customer service.
For further assistance, please visit the official ELENKER store: ELENKER Store on Amazon
