1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Einhell TC-SS 406 E Scroll Saw. Please read these instructions carefully before using the tool and keep them for future reference. The Einhell TC-SS 406 E is designed for precise fine cuts in various materials, making it ideal for model making and intricate woodworking tasks.
Figure 1: Overview of the Einhell TC-SS 406 E Scroll Saw. This image displays the complete scroll saw unit, highlighting its compact design and key components such as the work table, blade guard, and control panel.
2. Safety Instructions
Always observe general safety regulations when operating power tools. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces.
- Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Dress properly; avoid loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Specific Scroll Saw Safety: Ensure the blade is correctly installed and tensioned before operation. Always use the hold-down clamp to secure the workpiece. Keep hands clear of the blade path.
3. Package Contents
Upon unpacking, verify that all items listed below are present and undamaged:
- Einhell TC-SS 406 E Scroll Saw Unit
- 2 x Scroll Saw Blades
- Dust Extraction Adapter
- Operating Manual
If any parts are missing or damaged, contact your dealer or Einhell customer service immediately.
4. Setup
4.1 Workbench Mounting
For stable operation, the scroll saw can be securely mounted to a workbench. Use appropriate bolts and nuts (not included) to fasten the saw through the designated mounting holes in its base.
4.2 Blade Installation
- Ensure the saw is unplugged from the power source.
- Loosen the quick clamping device for the blade at the top and bottom arms.
- Insert the blade into the lower blade holder, ensuring the teeth point downwards. Tighten the lower clamp.
- Carefully guide the blade through the workpiece opening in the table and into the upper blade holder.
- Ensure the blade is properly seated and tensioned. The quick clamping device allows for tool-free blade changes.
Figure 2: Close-up view of the blade installation area, showing the quick clamping mechanism for securing the scroll saw blade. This system allows for easy and tool-free blade changes.
Figure 3: Detailed view of the upper blade clamping mechanism, illustrating how the blade is held in place. Proper clamping ensures blade stability and cutting accuracy.
4.3 Table Adjustment for Bevel Cuts
The work table can be tilted up to 47 degrees for bevel cuts.
- Loosen the locking knob located beneath the table.
- Adjust the table to the desired angle using the angle scale.
- Tighten the locking knob firmly to secure the table in position.

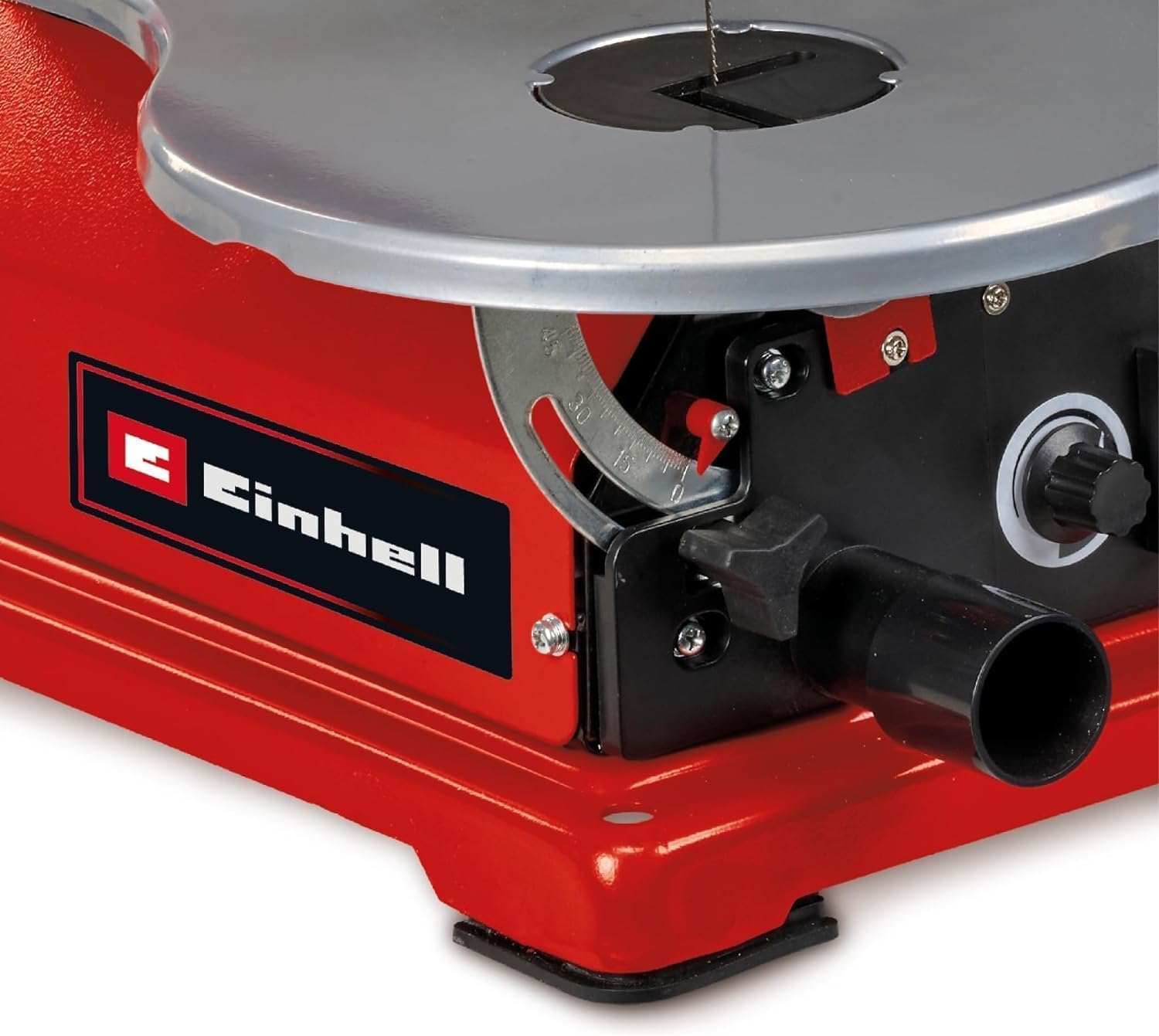

Figure 4: The tilting work table mechanism, showing the angle scale and adjustment knob. This feature enables precise bevel cuts up to 47 degrees.
Figure 5: Diagram illustrating the adjustable tilt range of the work table, from 0 to 45 degrees. This visual aid clarifies the table's movement for angled cuts.
4.4 Workpiece Hold-Down Clamp
The integrated hold-down clamp ensures the workpiece is held firmly against the table, preventing vibration and improving cutting accuracy.
- Adjust the height of the hold-down clamp so it rests gently on the workpiece.
- Ensure the clamp does not impede the blade's movement or the workpiece's feed.

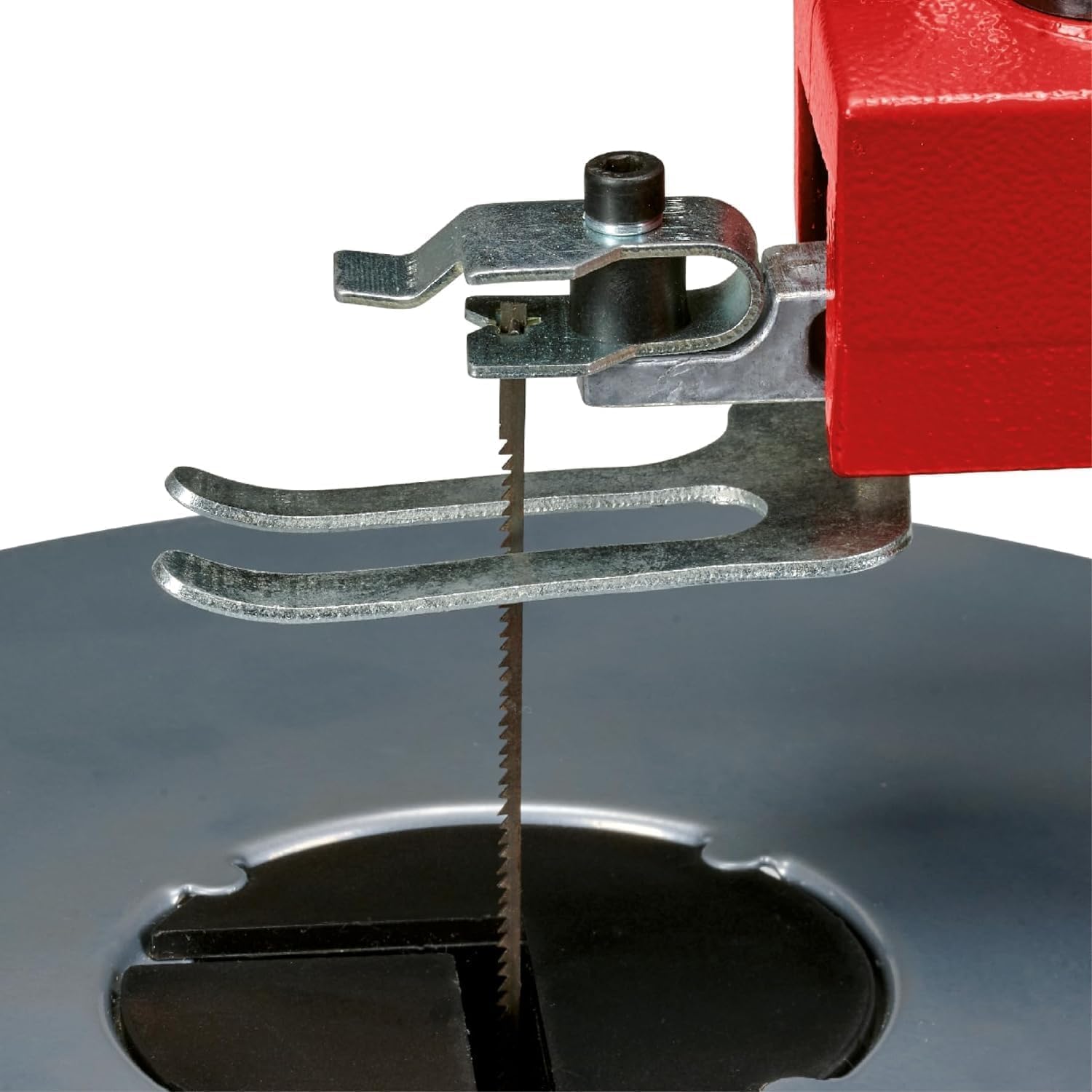

Figure 6: The workpiece hold-down clamp positioned above the blade. This component secures the material during cutting, enhancing precision and safety.
4.5 Dust Extraction Connection
Connect a suitable wet/dry vacuum cleaner to the 36 mm dust extraction port to maintain a clean work area and improve visibility.
5. Operating Instructions
5.1 Power On/Off
Plug the scroll saw into a suitable power outlet. Use the green 'I' button to turn the saw ON and the red 'O' button to turn it OFF.
5.2 Speed Adjustment
The Einhell TC-SS 406 E features variable speed control, allowing you to adjust the cutting speed (400-1600 strokes/min) to match the material and desired cut precision. Rotate the speed control knob to increase or decrease the blade speed.
Figure 7: Close-up of the speed control knob and the power ON/OFF switches. The knob allows for variable speed adjustment, while the switches control the saw's power.
5.3 Blower Device
The integrated blower device directs a stream of air towards the cutting line, keeping it clear of sawdust and ensuring optimal visibility during operation.
Figure 8: The blower nozzle directing air to clear sawdust from the cutting line. This feature enhances visibility for precise cuts.
Figure 9: A detailed view of the flexible blower hose and nozzle, which can be adjusted to direct airflow precisely onto the cutting area.
5.4 Cutting Procedure
- Ensure the workpiece is clean and free of obstructions.
- Adjust the hold-down clamp to secure the workpiece.
- Select the appropriate blade speed for your material.
- Turn on the scroll saw.
- Gently feed the workpiece into the blade, following your cutting line. Do not force the material.
- For internal cuts, drill a pilot hole in the workpiece, then unclamp the blade, thread it through the pilot hole, and re-clamp it before cutting.
Figure 10: A user operating the Einhell TC-SS 406 E Scroll Saw, demonstrating proper posture and workpiece handling. Safety glasses are worn for protection.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your scroll saw.
- Cleaning: After each use, disconnect the saw from power and clean off sawdust and debris using a brush or compressed air. Ensure the ventilation slots are clear.
- Blade Replacement: Replace dull or damaged blades promptly. Refer to section 4.2 for blade installation instructions.
- Lubrication: Periodically apply a small amount of light machine oil to moving parts, such as the blade arms and pivot points, to ensure smooth operation.
- Inspection: Regularly inspect the power cord, plug, and switches for any signs of damage. Check all fasteners for tightness.
7. Troubleshooting
This section addresses common issues you might encounter with your scroll saw.
| Problem | Possible Cause | Solution |
|---|---|---|
| Saw does not start | No power supply Faulty switch | Check power connection and outlet Contact qualified service personnel |
| Blade breaks frequently | Incorrect blade tension Forcing the workpiece Wrong blade type for material | Adjust blade tension Reduce feed pressure Use appropriate blade for material |
| Inaccurate cuts | Dull blade Loose blade Workpiece not secured | Replace blade Tighten blade tension Use hold-down clamp |
| Excessive vibration | Saw not mounted securely Loose components | Mount saw to workbench Check and tighten all fasteners |
8. Specifications
| Feature | Specification |
|---|---|
| Model | TC-SS 406 E |
| Power | 120 Watts |
| Voltage | 230 Volts (AC) |
| Stroke Rate | 400 - 1600 min⁻¹ (variable) |
| Max. Cutting Height (90°) | 50 mm |
| Max. Cutting Height (45°) | 23 mm |
| Table Tilt Angle | 0° to 47° |
| Product Dimensions (L x W x H) | 60.8 x 27.5 x 33.9 cm |
| Item Weight | 10.13 kg |
| Blade Material | Alloy Steel |
| Dust Extraction Port Diameter | 36 mm |
| Certification | CE |
9. Warranty and Support
The Einhell TC-SS 406 E Scroll Saw comes with a 2-year warranty on spare parts availability. For warranty claims, technical support, or spare parts inquiries, please contact your authorized Einhell dealer or visit the official Einhell website for customer service contact information.
Please retain your proof of purchase for any warranty claims.
