Tera Mini 1D Barcode Scanner 1100L User Manual

1. Introduction

The Tera Mini 1D Barcode Scanner 1100L is a compact, portable, and versatile laser barcode reader designed for efficient data collection. It features 3-in-1 connectivity options, including Bluetooth, 2.4GHz wireless, and USB wired modes, making it compatible with various operating systems such as iOS, Windows, and Android. Its robust design includes IP66 waterproof and dustproof protection, suitable for diverse working environments.

2. Package Contents

• Barcode Scanner x1
• USB Cable x1
• 2.4G USB Dongle x1
• User Manual x1

3. Product Overview

The Tera Mini 1D Barcode Scanner is designed for comfortable, single-handed operation, featuring a prominent pink scan button and a wrist strap for security. The package includes a USB cable and a 2.4G wireless dongle for versatile connectivity.

• Compact and Lightweight: Weighing only 1.4oz (39g) with dimensions of 1.1 x 1.5 x 3.4 inches, it is designed for portability.
• Durable Design: Features an IP66 waterproof and dustproof rating, enhanced by a silicone port plug for protection against environmental elements.
• Ergonomic Button: A soft silicone button ensures a smooth and comfortable scanning experience.

With a weight of only 1.4oz (39g) and compact dimensions, the Tera Mini 1D Barcode Scanner is highly portable, easily fitting into a pocket for on-the-go use.

The scanner features an IP66 waterproof and dustproof rating, ensuring durability in various environments. A silicone port plug protects the charging port from moisture and dust.

4. Setup and Connection

4.1 Charging the Scanner

Before first use, fully charge the scanner. The built-in 650mAh rechargeable battery provides up to 12 hours of continuous scanning or 4 weeks of standby time. A full charge typically takes 3.5 hours.

This image highlights the scanner's 650mAh high-capacity rechargeable battery, providing up to 12 hours of continuous scanning, 4 weeks of standby time, and a full charge in approximately 3.5 hours.

Important Charging Note:

• Use a standard 5V/1A charging adapter.
• Do NOT use USB Power Delivery (USB PD) standard power adapters or cables to charge this product.
• It is recommended to use the original USB cable included in the package for charging.

For optimal charging, use a 5V/1A adapter. Avoid using USB Power Delivery (USB PD) standard power adapters and cables, as they are not compatible with this device.

4.2 Connection Modes

The scanner supports three connection methods:

• Bluetooth 5.0: For wireless connection to smartphones, tablets, and computers.
• 2.4GHz Wireless: Using the included USB dongle for wireless connection to computers. Offers a transmission distance of up to 656ft in barrier-free environments and 98ft with obstacles.
• USB 2.0 Wired: Direct connection via the USB cable to a computer.

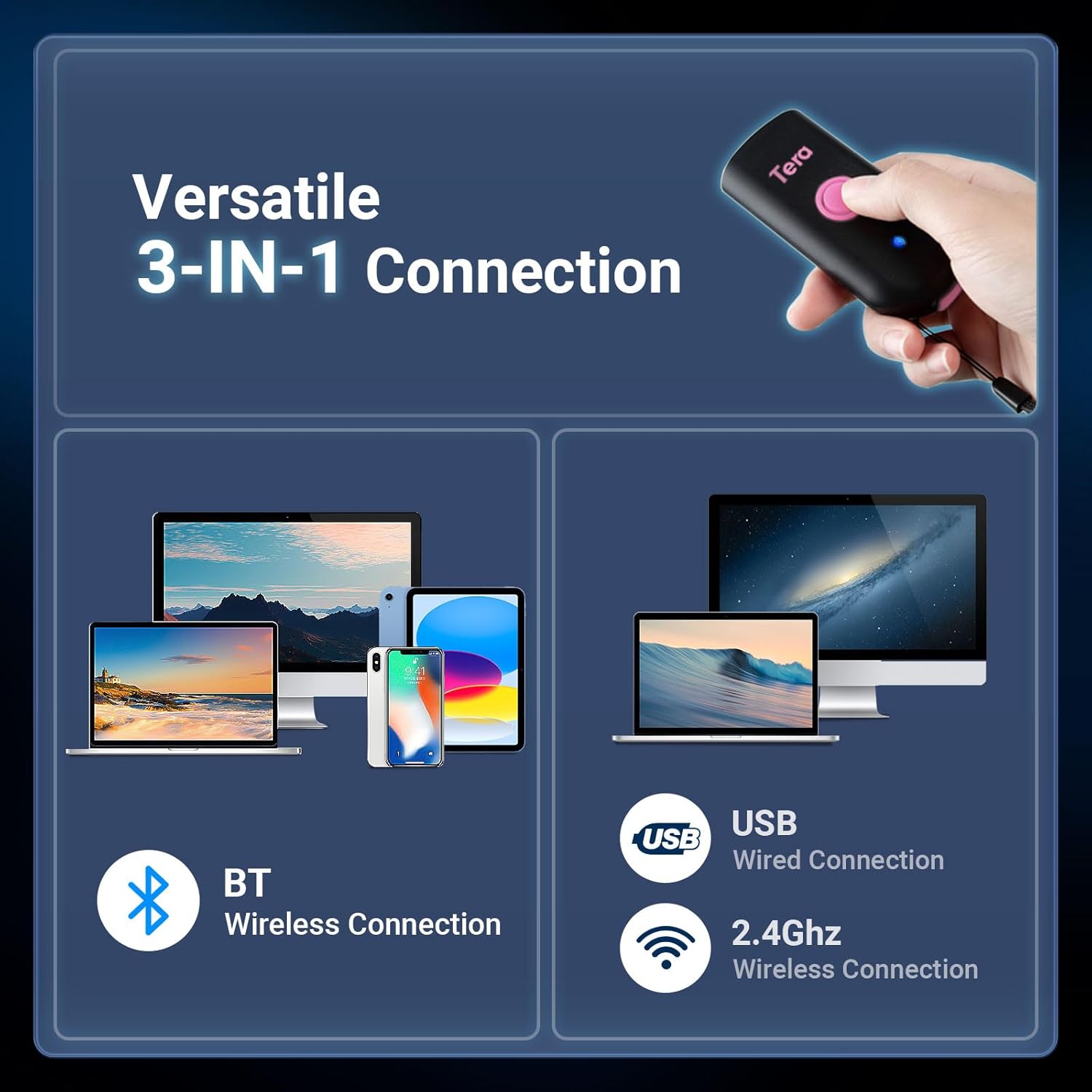

The scanner offers flexible connectivity with three modes: Bluetooth wireless for mobile devices, USB wired for direct connection, and 2.4GHz wireless via a dongle for extended range, supporting a wide range of operating systems.

4.3 Bluetooth Pairing Guide

To connect the scanner to your device via Bluetooth:

1. Scan the 'Bluetooth HID' barcode.
2. Scan the 'Pairing' barcode.
3. On your smartphone or computer, go to Bluetooth settings and select 'Barcode Scanner HID' to connect.

To connect via Bluetooth, scan the 'Bluetooth HID' barcode, then the 'Pairing' barcode. Afterward, enable Bluetooth on your device and select 'Barcode Scanner HID' from the available devices.

5. Operating Modes and Configuration

5.1 Scanning Modes

The scanner supports two primary scanning modes:

• Key Trigger Mode: Press the scan button to initiate a scan.
• Continuous Mode: The scanner continuously emits a laser for automatic scanning without needing to press the button for each scan.

Users can choose between Key Trigger Mode for manual scanning by pressing the button, or Continuous Mode for automatic, uninterrupted scanning.

5.2 Data Transmission Modes

• Instant Upload Mode: Scanned data is immediately transmitted to the connected device.
• Storage Mode: Scanned data is stored in the scanner's internal memory and can be uploaded later.

5.3 Customization Options

The scanner offers various configuration options to suit your needs:

• Sound and Vibration: Adjust sound levels (Off, Low, Medium, High) and enable/disable vibration feedback.
• Prefix/Suffix: Add custom characters before or after scanned barcode data.
• Multi-Language Support: The scanner supports various keyboard layouts for different languages.

Customize sound and vibration feedback.

Configure custom prefixes or suffixes.

Supports multiple language keyboard layouts.

6. Scanning Capabilities

The Tera Mini 1D Barcode Scanner 1100L is designed to read printed 1D barcodes efficiently.

6.1 Supported 1D Symbologies

• Codabar
• Code 11
• Code 93
• MSI
• Code 128
• UCC/EAN-128
• Code 39
• EAN-8
• EAN-13
• UPC-A
• ISBN
• Industrial 25
• Interleaved 25
• Standard 25
• 2/5 Matrix

6.2 Advanced Decoding

The scanner features super decoding ability, allowing it to read damaged, distorted, colorful, and reflective barcodes.

Important Scanning Limitations:

• This scanner cannot scan 2D barcodes.
• This scanner cannot scan 1D barcodes displayed on screens (e.g., phone or computer displays).
• It can ONLY scan printed 1D barcodes.

7. Maintenance

The Tera Mini 1D Barcode Scanner 1100L is built with an IP66 rating, providing protection against dust ingress and powerful water jets. This makes it suitable for use in environments where exposure to dust or water splashes is possible.

• Ensure the silicone port plug is securely closed when not charging to maintain waterproof and dustproof integrity.
• Clean the scanner's lens and body with a soft, dry cloth. Avoid abrasive cleaners or solvents.

8. Troubleshooting

If you encounter issues with your scanner, please refer to the following common solutions:

• Scanner not connecting:
  • Ensure the scanner is fully charged.
  • For Bluetooth, re-scan the 'Bluetooth HID' and 'Pairing' barcodes, then re-attempt connection from your device's Bluetooth settings.
  • For 2.4GHz wireless, ensure the USB dongle is securely plugged into your device.
  • For USB wired, ensure the cable is properly connected to both the scanner and your device.
• Scanner not reading barcodes:
  • Verify that the barcode is a printed 1D barcode. This scanner does not read 2D barcodes or 1D barcodes from screens.
  • Ensure the barcode is clean and not excessively damaged.
  • Adjust the distance and angle of the scanner to the barcode.
• No sound/vibration feedback: Check the configuration settings for sound and vibration.

9. Specifications

10. Support

For further assistance or technical support, please refer to the contact information provided in your product packaging or visit the official Tera website.
