Mobestech 2-Pin Power Cord Replacement Manual

1. Introduction

Thank you for choosing the Mobestech 2-Pin Power Cord Replacement. This product is designed to provide a reliable and efficient power connection for a variety of household and industrial appliances. This manual provides essential information on the product's features, setup, operation, and maintenance to ensure safe and effective use.

2. Product Overview and Features

The Mobestech 2-Pin Power Cord is a versatile replacement cable featuring a European standard plug and two-conductor stripped copper wire for secure connections. It is suitable for a wide range of devices requiring a 2-pin power input.

Figure 2.1: Two Mobestech 2-Pin Power Cords, coiled and ready for use.

Figure 2.2: Close-up view of the 2-pin plug, indicating its 10A 250V rating.

Key Features:

• Durable Construction: The outer sheath is made of flame-retardant PVC, ensuring durability and safety during use.
• Secure Connection: The stripped end of the cord is designed to be soldered to the device's power interface, providing a reliable and long-lasting fixed power method.
• Versatile Application: Suitable for a variety of appliances including lamps, computers, rice cookers, and machine tools.
• Standard Length: Each cord measures approximately 1.5 meters (59 inches) in length, offering practical use and flexibility.
• European Standard Plug: Equipped with a standard European 2-pin plug for broad compatibility.

3. Setup and Installation

This power cord is intended for replacement or custom wiring applications where a direct, soldered connection is required. Professional installation is recommended for safety.

1. Safety First: Before beginning any installation, ensure the appliance is completely disconnected from any power source. Turn off and unplug the device if applicable.
2. Prepare the Appliance: Access the power input interface of your appliance. This may involve opening the device casing.
3. Prepare the Cord: The Mobestech power cord comes with two stripped copper wires at one end. Ensure these wires are clean and ready for soldering.
4. Solder Connection: Carefully solder the stripped copper wires of the new power cord to the corresponding power input terminals on your appliance's circuit board or connection block. Ensure a strong, clean solder joint for reliable power transmission. Pay attention to polarity if specified by the appliance manufacturer.
5. Secure the Connection: After soldering, ensure the connection is secure and insulated to prevent short circuits. Use heat shrink tubing or electrical tape if necessary.
6. Reassemble Appliance: Carefully reassemble the appliance, ensuring no wires are pinched or damaged.
7. Test: Once fully reassembled, plug the appliance into a suitable power outlet and test its functionality.

Figure 3.1: Tools and components typically involved in electrical wiring, including the power cord.

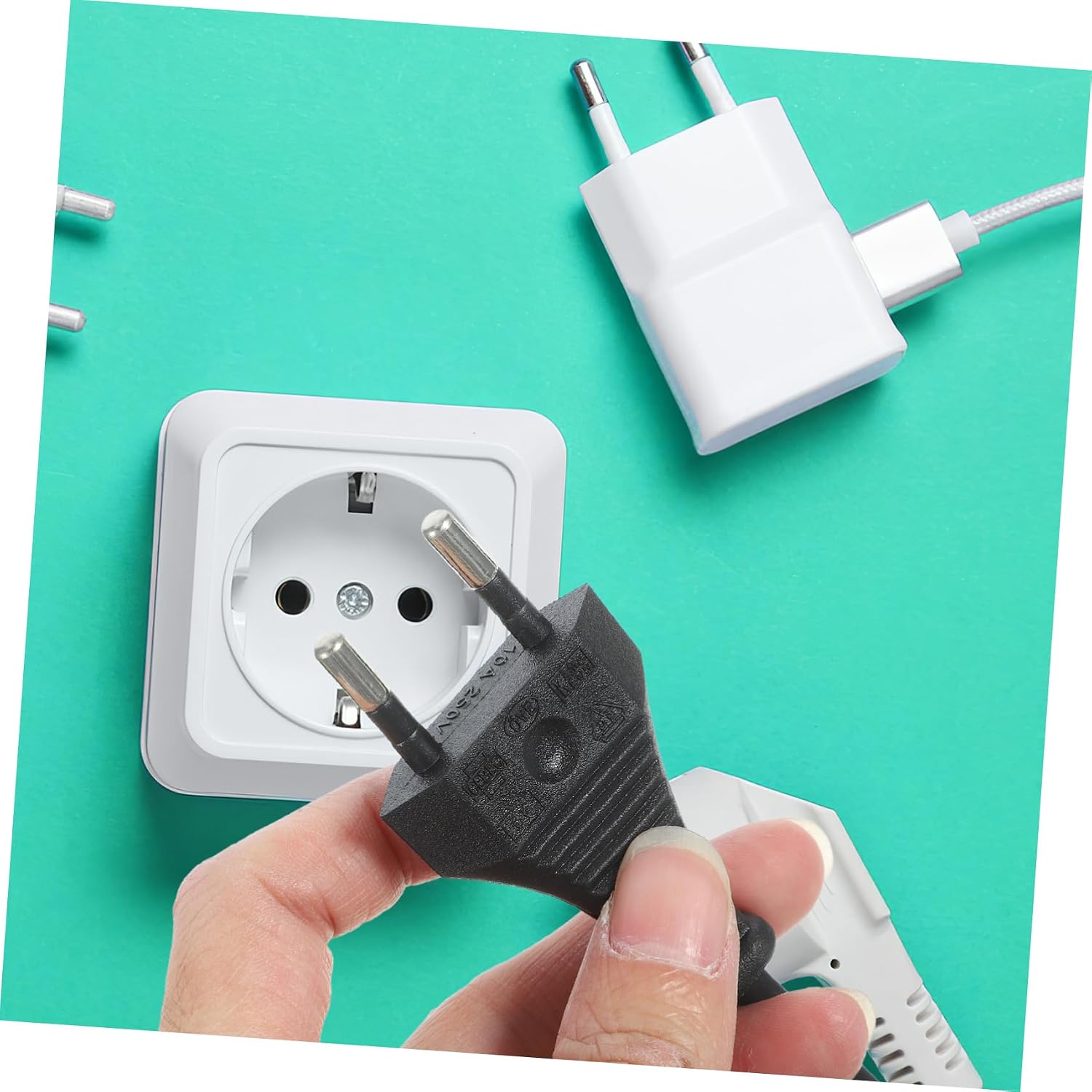

Figure 3.2: The 2-pin plug ready to be inserted into a standard European wall socket.

4. Operating Instructions

Once properly installed, the Mobestech 2-Pin Power Cord functions as a standard power supply cable for your appliance. Ensure the appliance's power requirements match the cord's specifications (10A 250V).

Compatible Appliances:

This power cord is designed for use with a variety of small to medium-sized electronic and electrical appliances that utilize a 2-pin power input. Examples include:

• Lamps and lighting fixtures
• Desktop computers and monitors
• Rice cookers and other kitchen appliances
• Electric kettles
• Small machine tools
• Washing machines and other home appliances (ensure power rating compatibility)

Figure 4.1: The power cord is suitable for various kitchen appliances.

Figure 4.2: The power cord can be used with various home appliances.

Figure 4.3: Visual representation of common compatible devices.

5. Maintenance and Care

Proper care and maintenance will extend the lifespan of your Mobestech 2-Pin Power Cord.

• Regular Inspection: Periodically inspect the cord for any signs of damage, such as cuts, fraying, or exposed wires. If damage is found, replace the cord immediately.
• Cleanliness: Keep the cord clean and free from dust and debris. Wipe with a dry cloth if necessary. Do not use liquid cleaners directly on the cord or plug.
• Storage: When not in use, store the cord in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tightly coiling or bending the cord sharply, which can damage the internal wires.
• Avoid Overloading: Ensure the connected appliance does not exceed the cord's maximum current rating (10A). Overloading can lead to overheating and potential hazards.
• Proper Disconnection: Always pull the plug from the outlet by grasping the plug itself, not by pulling the cord.

6. Troubleshooting

If you experience issues with your Mobestech 2-Pin Power Cord, consider the following common troubleshooting steps:

If problems persist after following these steps, consult a qualified electrician or appliance repair technician.

7. Specifications

8. Warranty and Support

Mobestech is committed to providing high-quality products. For specific warranty information or technical support, please refer to the retailer's return policy or contact Mobestech customer service through their official channels. Information regarding spare parts availability is not provided with this product.
