JOCCOS ES-M2 Sensor Proximity Switch Long Distance Fiber Amplifier Split Type Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of the JOCCOS ES-M2 Sensor Proximity Switch. The ES-M2 is a long-distance fiber amplifier split type sensor designed for industrial applications requiring precise object detection. Please read this manual thoroughly before installation and operation, and retain it for future reference.

2. Safety Information

Always observe the following safety precautions to prevent injury and damage to the product or connected equipment.

• Power Supply: Ensure the power supply voltage matches the specifications of the ES-M2 sensor. Incorrect voltage can cause damage.
• Wiring: All wiring should be performed by qualified personnel in accordance with local electrical codes. Disconnect power before wiring.
• Environment: Do not install the sensor in environments with excessive dust, moisture, corrosive gases, or extreme temperatures outside the specified operating range.
• Mounting: Securely mount the sensor and fiber optic cables to prevent vibration or accidental displacement.
• Maintenance: Do not attempt to disassemble or modify the sensor. Refer all servicing to authorized personnel.

3. Product Overview

The ES-M2 system consists of a fiber amplifier unit and separate fiber optic cables (sold separately or as part of a kit) that transmit and receive light. This split-type design allows for flexible installation in various industrial settings.

Figure 3.1: The ES-M2 fiber amplifier unit with its integrated cables. This unit processes the light signals transmitted through the fiber optic cables for object detection.

Figure 3.2: A close-up view of a fiber optic cable, which connects to the amplifier unit to extend the sensing range and allow for detection in confined spaces.

4. Setup

4.1 Unpacking

Carefully remove the ES-M2 sensor and its components from the packaging. Inspect all items for any signs of damage during transit. If any damage is found, contact your supplier immediately.

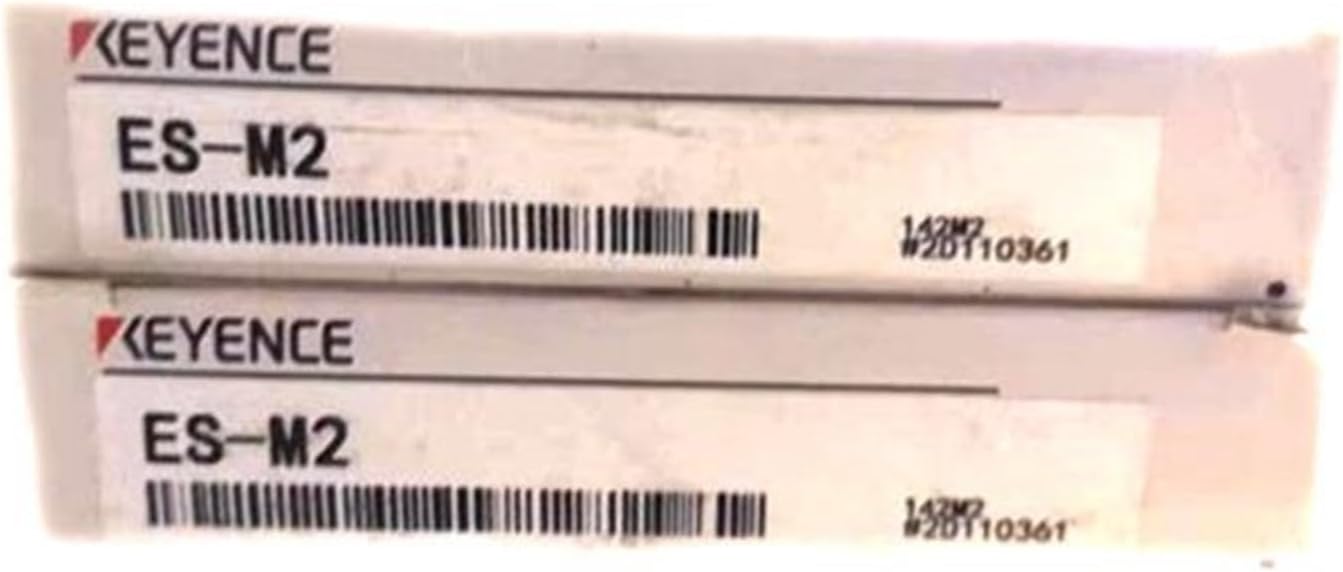

Figure 4.1: Example of product packaging for the ES-M2 sensor. Ensure all components listed in the packing list are present.

4.2 Mounting the Amplifier Unit

The amplifier unit should be mounted in a stable location, free from excessive vibration and within the specified operating temperature range. Use appropriate mounting hardware (not included) to secure the unit. Ensure adequate space for wiring and fiber optic cable connections.

4.3 Connecting Fiber Optic Cables

Insert the fiber optic cables into the designated ports on the amplifier unit. Ensure a secure and clean connection. Avoid bending the fiber optic cables sharply, as this can damage the internal fibers and impair performance.

4.4 Wiring the Sensor

Refer to the wiring diagram provided with your specific ES-M2 model for correct connections. Typically, the sensor requires a DC power supply and provides an output signal.

• Power: Connect the positive (+) terminal of the power supply to the designated power input terminal and the negative (-) terminal to the common ground.
• Output: Connect the output terminal to your control system (e.g., PLC, relay). The output type (NPN/PNP) will depend on the specific model.

Caution: Double-check all wiring before applying power to prevent damage to the sensor or control system.

5. Operating Instructions

5.1 Power On

Once all connections are secure, apply power to the ES-M2 sensor. The power indicator LED (if present) should illuminate.

5.2 Sensitivity Adjustment

The ES-M2 fiber amplifier typically features a sensitivity adjustment mechanism (e.g., a potentiometer or digital buttons) to fine-tune the detection threshold.

1. Place the target object at the desired sensing distance.
2. Adjust the sensitivity until the output indicator LED reliably changes state when the object is present and absent.
3. Test with multiple objects to ensure consistent detection.

Note: Over-sensitivity can lead to false triggers, while under-sensitivity may result in missed detections. Optimize for your specific application.

5.3 Output Configuration (if applicable)

Some models may allow configuration of the output mode (e.g., Light-ON/Dark-ON). Refer to the specific model's datasheet for details on how to change these settings.

6. Maintenance

6.1 Cleaning

Regularly clean the sensing heads of the fiber optic cables and the amplifier unit's display (if applicable) to ensure optimal performance.

• Use a soft, dry cloth to wipe away dust and debris.
• For stubborn dirt, a cloth lightly dampened with isopropyl alcohol may be used. Avoid abrasive cleaners or solvents.
• Ensure the fiber optic cable ends are free from dust or smudges, as this can significantly reduce sensing distance and reliability.

6.2 Inspection

Periodically inspect the sensor and its cables for any signs of physical damage, wear, or loose connections.

• Check fiber optic cables for kinks, cuts, or excessive bending.
• Verify that all wiring connections are secure.
• Ensure the mounting of the amplifier unit and fiber heads remains stable.

7. Troubleshooting

If the ES-M2 sensor is not functioning as expected, refer to the following troubleshooting guide:

8. Specifications

The following specifications are typical for the JOCCOS ES-M2 Sensor Proximity Switch. Refer to the product datasheet for precise details of your specific model.

• Model: ES-M2
• Type: Long Distance Fiber Amplifier Split Type Photoelectric Sensor
• Manufacturer: JOCCOS
• Item Weight: 1.76 ounces (approx. 50 grams)
• Package Dimensions: 1.18 x 0.79 x 0.39 inches (approx. 3 x 2 x 1 cm)
• Assembly Required: No
• Number of Pieces: 1 (amplifier unit)
• ASIN: B0CQG6CXWH

Note: Operating voltage, sensing distance, output type (NPN/PNP), and response time vary by specific fiber optic cable and amplifier configuration.

9. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your authorized JOCCOS distributor. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the JOCCOS official website or contact their customer service department.
