1. Introduction
Thank you for choosing the BONAI Rechargeable Lithium AA Batteries with Charger. This manual provides essential information for the safe and efficient use of your new batteries and charger. Please read it thoroughly before first use and retain it for future reference.

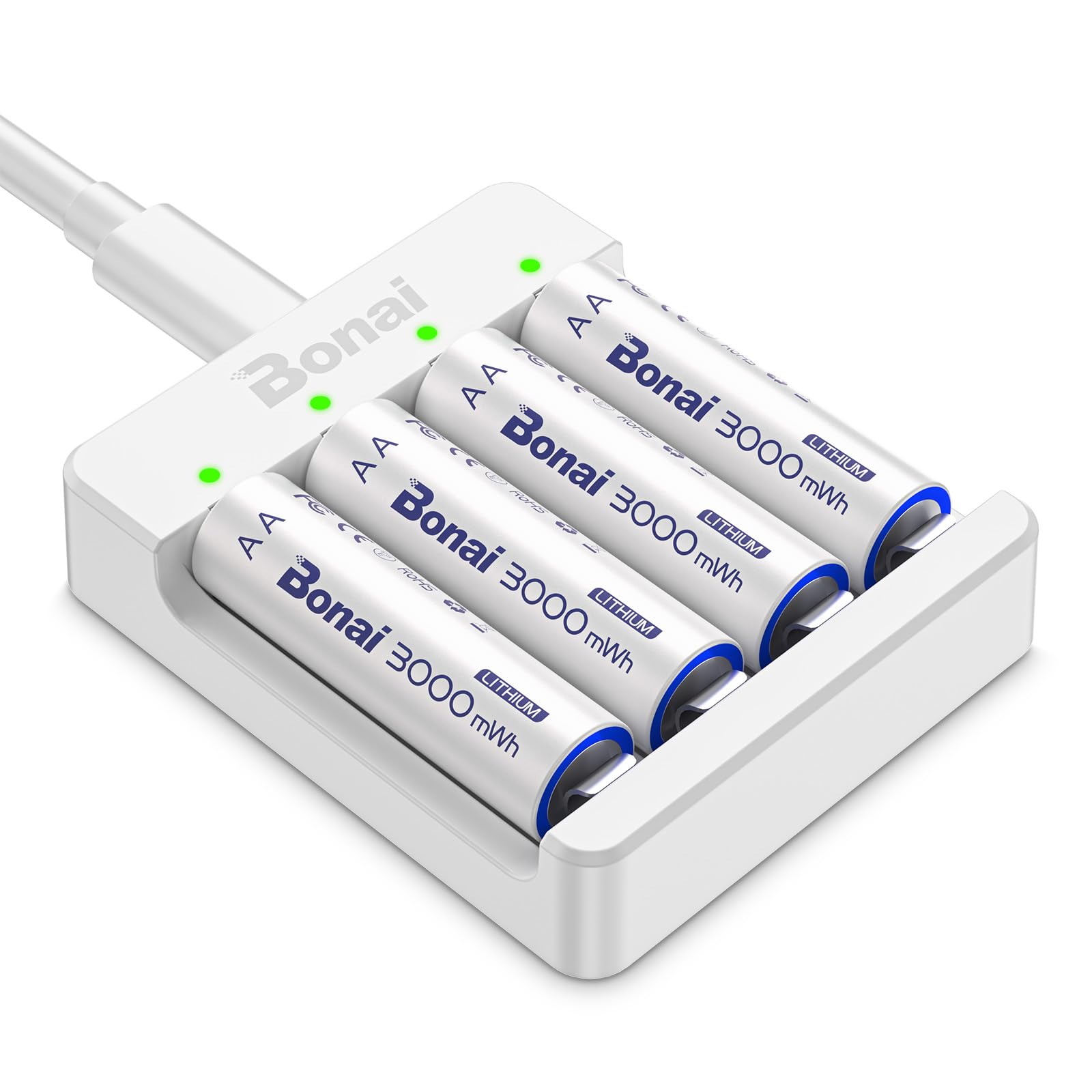

Image 1: The BONAI Rechargeable Lithium AA Batteries and Charger Kit, showing four AA batteries and the compact charging unit.
2. Product Overview & Features
The BONAI Rechargeable Lithium AA Batteries offer a reliable and eco-friendly power solution for various devices. Key features include:
- Consistent 1.5V Output: These AA lithium batteries maintain a stable 1.5V output, ensuring consistent performance for your devices until nearly depleted.
- High Capacity: Each battery provides 3000 mWh of power, suitable for demanding electronics.
- Wide Compatibility: Ideal for most AA battery-powered devices, including Blink cameras, wireless microphones, car air fresheners, and more. Always consult your device's vendor for compatibility.
- Fast Charging: The included charger supports a DC 5V/2A input and provides a DC 5V/500mA output, allowing for quick charging of both AA and AAA 1.5V lithium batteries. Ensure your power supply meets the 5V 2A requirement.
- Eco-Friendly & Economical: Designed for over 1000 recharge cycles, these mercury-free batteries reduce waste and save money compared to disposable alternatives.
- Intelligent Protection: The charger features multiple safety protections, including short circuit, overcharge, overcurrent, overheating, and overvoltage protection.
- Low Self-Discharge: Batteries retain approximately 80% capacity even after three years of non-use.
Image 2: A graph illustrating the stable 1.5V voltage output of BONAI lithium batteries throughout their discharge cycle, contrasting with the declining voltage of other battery types.
Image 3: An illustration demonstrating the wide range of applications for BONAI AA rechargeable batteries, such as in Blink cameras, wireless microphones, and computer peripherals.
3. Safety Information
To ensure safe operation and prolong the life of your batteries and charger, please observe the following:
- This charger is exclusively designed for 1.5V rechargeable AA and AAA lithium batteries. Do NOT attempt to charge other battery types (e.g., NiMH, alkaline, carbon-zinc) as this may cause damage, fire, or explosion.
- Do not disassemble, crush, puncture, or short-circuit the batteries or charger.
- Keep batteries and charger away from water, fire, and extreme temperatures.
- Store batteries in a cool, dry place when not in use.
- Keep out of reach of children.
- If a battery shows signs of damage, leakage, or overheating, discontinue use immediately and dispose of it properly.
4. Setup
Your BONAI Rechargeable Lithium AA Batteries and Charger come ready for use. The package includes:
- 4 x BONAI 3000 mWh 1.5V AA Lithium Batteries
- 1 x Individual Portable Charger
- 1 x USB-Type C Cable
- 1 x User Guide (this document)
Image 4: The complete contents of the BONAI Rechargeable Lithium AA Batteries kit, laid out to show the four batteries, the charger, and the USB-C charging cable.
5. Operating Instructions
5.1 Charging the Batteries
- Connect the provided USB-Type C cable to the charger's input port.
- Plug the other end of the USB cable into a compatible power source (e.g., USB wall adapter, power bank, computer USB port) with a minimum output of DC 5V/2A.
- Insert the BONAI 1.5V rechargeable AA or AAA lithium batteries into the charger slots, ensuring correct polarity (+/-).
- The LED indicator lights above each slot will illuminate red to indicate charging. Once fully charged, the LED will turn green.
- The charger features an auto-shutoff function to prevent overcharging.
Image 5: The BONAI battery charger connected via USB-C to a power bank, with batteries inserted and charging, indicated by red lights.
Image 6: Close-up of the BONAI charger's LED indicators, showing red for charging and green for fully charged batteries.
5.2 Using the Batteries
Once fully charged, remove the batteries from the charger and insert them into your compatible electronic devices according to the device's polarity markings. The stable 1.5V output ensures optimal performance.
Video 1: An official BONAI video demonstrating the features and usage of the rechargeable lithium AA batteries and charger.
6. Maintenance
- Clean the charger and battery contacts regularly with a dry, soft cloth to ensure optimal connection.
- Avoid exposing the charger or batteries to dust, dirt, or moisture.
- When storing batteries for extended periods, ensure they are partially charged (around 50%) and stored in a cool, dry place.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Batteries not charging (LEDs not red) | Incorrect battery type; poor contact; insufficient power supply. | Ensure only 1.5V lithium AA/AAA batteries are used. Check battery polarity. Verify power supply is DC 5V/2A or higher. Clean contacts. |
| Charger LEDs flashing red | Defective battery; incorrect battery type. | Remove the problematic battery. Ensure only 1.5V lithium AA/AAA batteries are used. If the issue persists with multiple batteries, the charger may be faulty. |
| Batteries not holding charge | Battery end-of-life; device power consumption. | While designed for 1000+ cycles, all batteries eventually degrade. Consider replacing older batteries. Check if the device has unusually high power draw. |
8. Specifications
- Battery Type: 1.5V AA Lithium-ion Rechargeable
- Battery Capacity: 3000 mWh
- Charger Input: DC 5V/2A
- Charger Output: DC 5V/500mA (per slot)
- Recharge Cycles: >1000 times
- Safety Features: Short circuit, overcharge, overcurrent, overheating, overvoltage protection
- Environmental: Mercury-free
- Package Dimensions: 6.14 x 3.35 x 0.71 inches
- Item Weight: 0.67 ounces
9. Warranty and Support
BONAI provides a worry-free 24-month warranty for this product. Should you encounter any issues or require assistance, please contact our friendly customer service team. Refer to the product packaging or our official website for contact details.
